KCH10W-GRSGT (1995)
Toyota Granvia/Grand Hiace
Production
Aug 1995
-
May 2002
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9508-0205)KCH1#

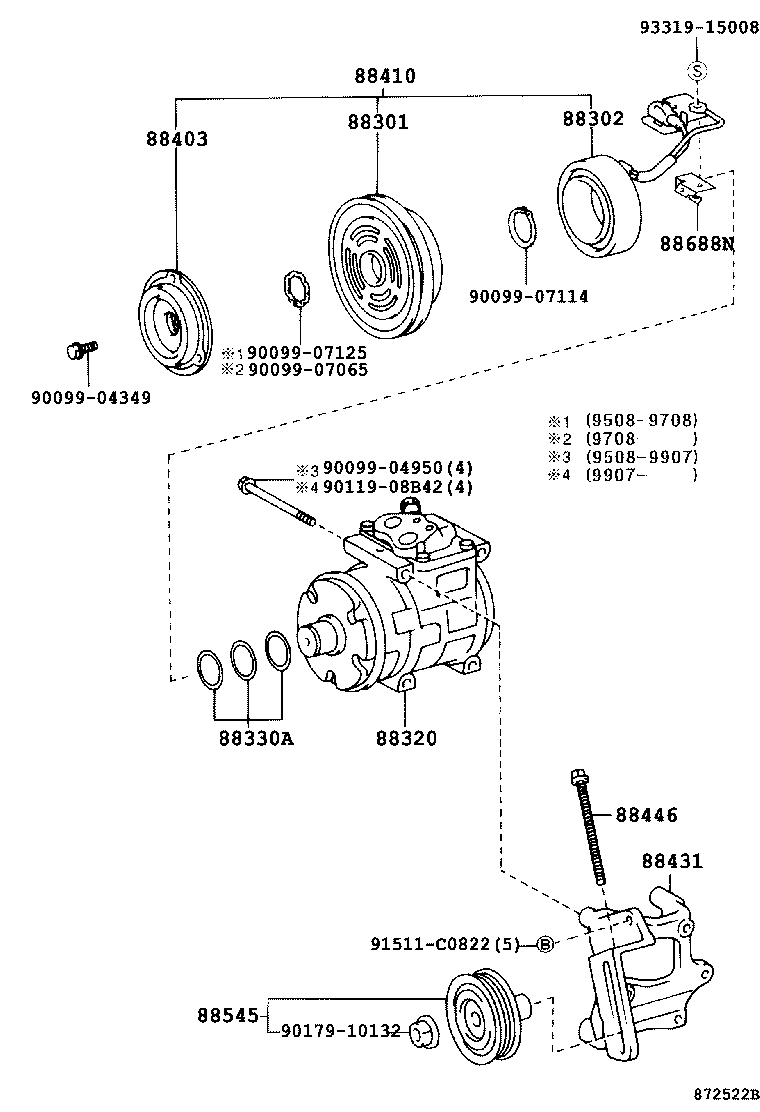

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22080 |
KCH10,16 |
1 | ||
| 88412-22070 |
KCH1# |
1 | ||
| 88412-26070 |
KCH1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
KCH1#,RCH11,VCH1# |
1 | ||
| 88411-22310 |
KCH1#,RCH11 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26550 |
KCH10,16 |
1 | ||
| 88320-26610 |
KCH10,16 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
KCH1#,RCH11 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
KCH1#,RCH11,VCH1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-26210 |
KCH1# |
1 | ||
| 88410-60330 |
KCH1# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-26370 |
KCH1# |
1 | ||
| 88431-60220 |
KCH1# |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60040 |
KCH1# |
1 | ||
| 88446-60040 |
KCH1# |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-60050 |
KCH1# |
1 | ||
| 88440-60050 |
KCH1# |
1 | ||
| 88688N - BRACKET, COOLER | ||||
| 88688-2D770 |
KCH10,16 |
1 | ||
| 88688-2D770 |
KCH1# |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90119-08B42 | ||||
| 90179-10132 | ||||
| 91511-C0822 | ||||
| 93319-15008 | ||||
