KCH10W-GRSGT (1995)
Toyota Granvia/Grand Hiace

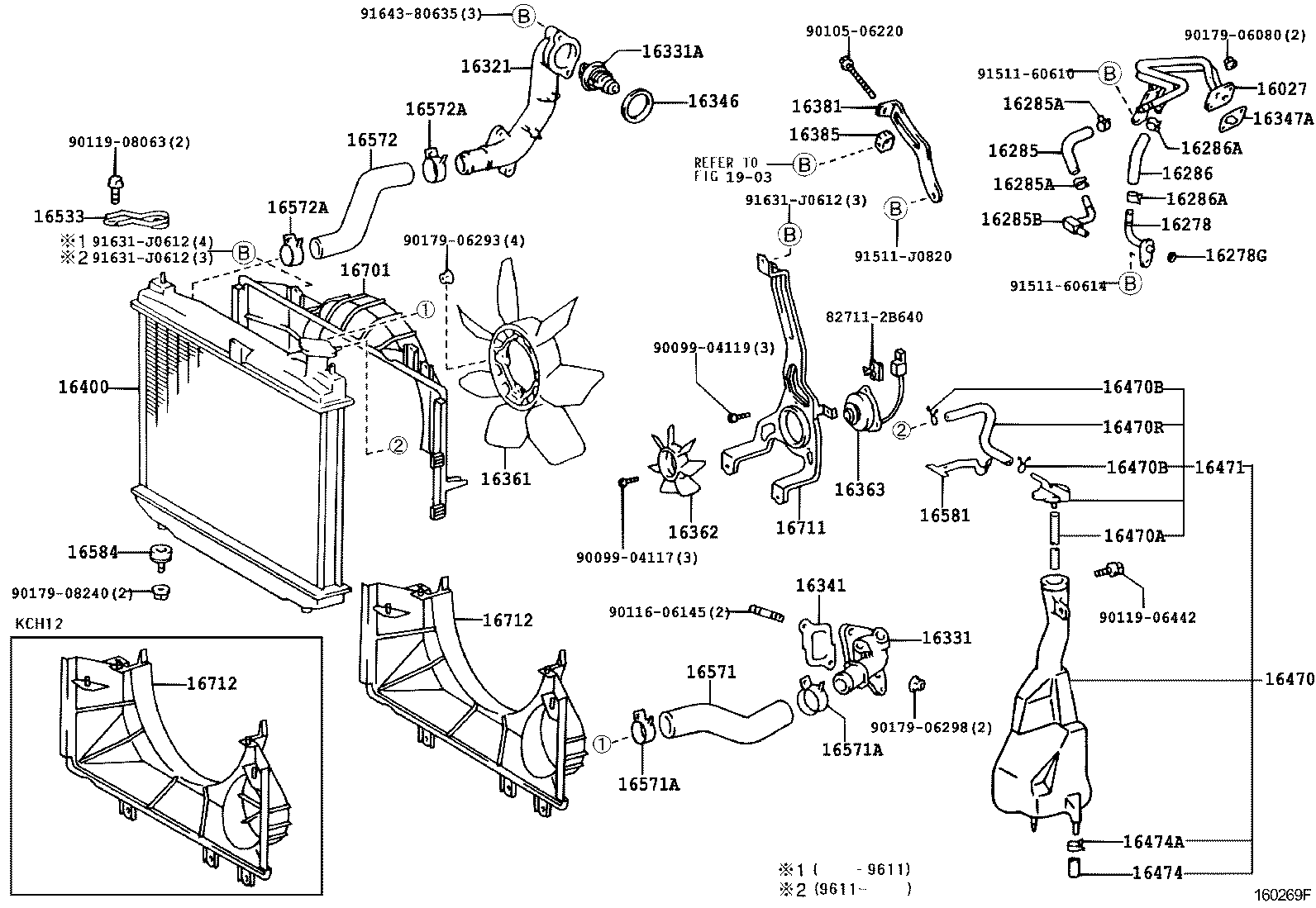

ILLUST NO. 1 OF 2(9508-9907)1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

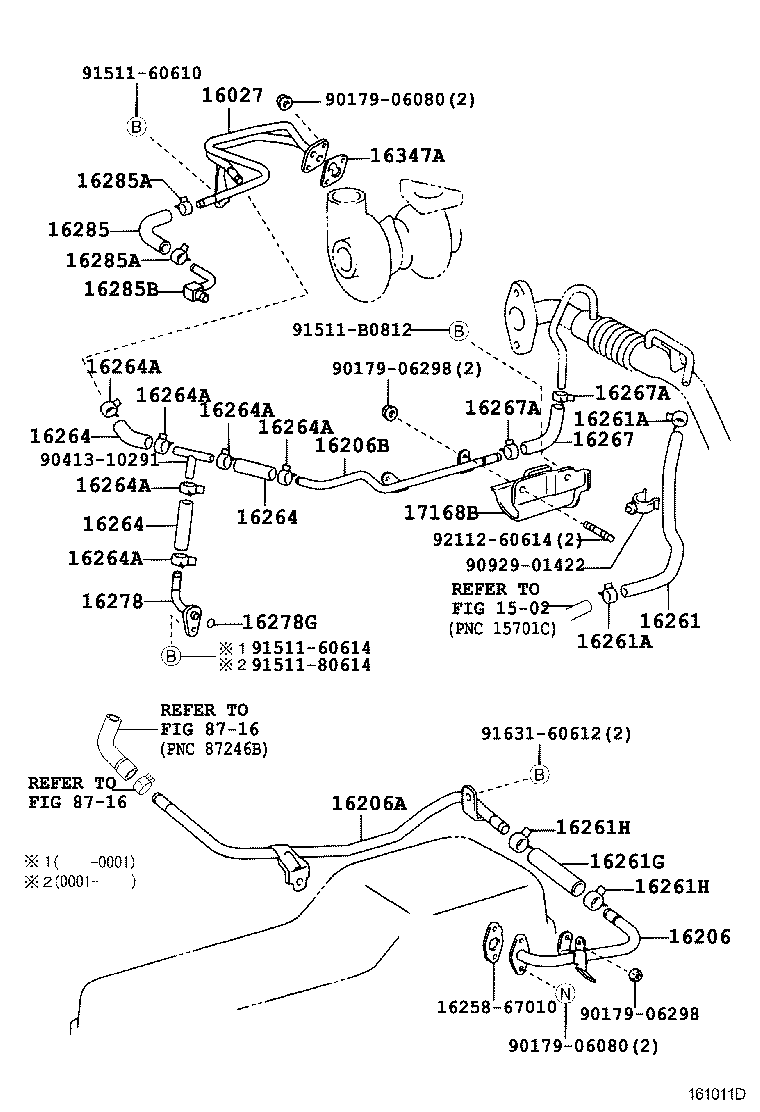

| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-67010 |
1KZTE..KCH1# |
1 | ||
| 16027-67011 |
1KZTE..KCH1# |
1 | ||
| 16027-67011 |
1KZTE..KCH1# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-67010 |
1KZTE..KCH1# |
1 | ||
| 16278-67010 |
1KZTE..KCH1# |
1 | ||
| 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) | ||||
| 96761-24010 |
1KZTE..KCH1# |
1 | ||
| 96761-24010 |
1KZTE..KCH1# |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-67010 |
1KZTE..KCH1# |
1 | ||
| 16285-67010 |
1KZTE..KCH1# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-10044 |
1KZTE..KCH1# |
1 | ||
| 90405-10044 |
1KZTE..KCH1# |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16285-67010 |
1KZTE..KCH1# |
1 | ||
| 16284-67020 |
1KZTE..KCH1# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KZTE..KCH1# (L) |
1 | ||
| 16321-67011 |
1KZTE..KCH1# (J) |
1 | ||
| 16321-67011 |
1KZTE..KCH1# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-67020 |
1KZTE..KCH1# |
1 | ||
| 16331-67061 |
1KZTE..KCH1# |
1 | ||
| 16331-67060 |
1KZTE..KCH1# |
1 | ||
| 16331-67061 |
1KZTE..KCH1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03098 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 90916-03119 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 90916-03119 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-67020 |
1KZTE..KCH1# |
1 | ||
| 16341-67020 |
1KZTE..KCH1# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KZTE..KCH1# |
1 | ||
| 16346-67010 |
1KZTE..KCH1# |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZTE..KCH1# |
1 | ||
| 16347-67010 |
1KZTE..KCH1# |
1 | ||
| 16361 - FAN | ||||
| 16361-67030 |
1KZTE..KCH1# |
1 | ||
| 16361-67030 |
1KZTE..KCH1# |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-46070 |
1KZTE..KCH10,16 |
1 | ||
| 16361-46070 |
1KZTE..KCH1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46020 |
1KZTE..KCH1# |
1 | ||
| 16363-46020 |
1KZTE..KCH10,16 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-67020 |
1KZTE..KCH1# |
1 | ||
| 16381-67020 |
1KZTE..KCH1# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-67010 |
1KZTE..KCH1# |
1 | ||
| 16385-67010 |
1KZTE..KCH1# |
1 | ||

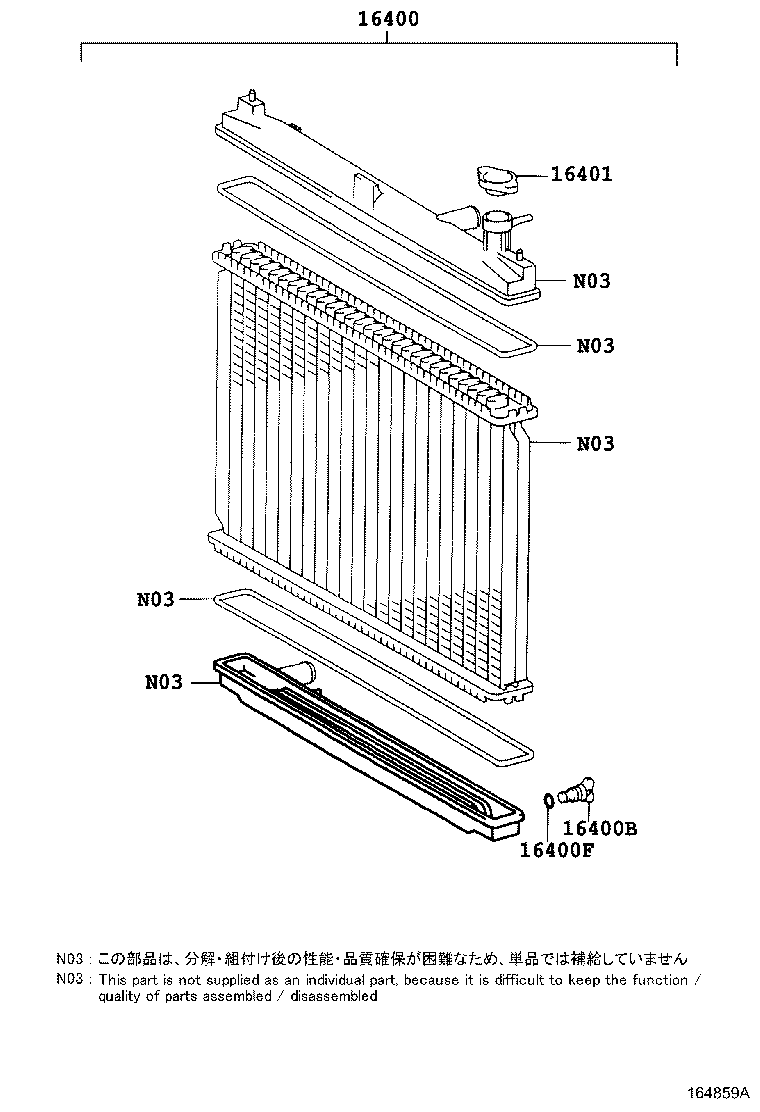

| 16400 - RADIATOR ASSY | ||||
| 16400-67090 |
1KZTE..KCH10 |
1 | ||
| 16400-67091 |
1KZTE..KCH10 |
1 | ||
| 16400-67092 |
1KZTE..KCH1# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54290 |
1KZTE..KCH1# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1KZTE..KCH1# *H,L=450 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-54290 |
1KZTE..KCH1# |
1 | ||
| 16472-54290 |
1KZTE..KCH1# |
1 | ||
| 16477-54290 |
1KZTE..KCH1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54260 |
1KZTE..KCH1# |
1 | ||
| 16405-54261 |
1KZTE..KCH1# |
1 | ||
| 16474 - CAP(FOR RADIATOR RESERVE TANK DRAIN) | ||||
| 16474-54290 |
1KZTE..KCH1# |
1 | ||
| 16474-54290 |
1KZTE..KCH1# |
1 | ||
| 16474A - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP) | ||||
| 90467-09173 |
1KZTE..KCH1# |
1 | ||
| 90467-09173 |
1KZTE..KCH1# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-54050 |
1KZTE..KCH1# |
2 | ||
| 16505-54050 |
1KZTE..KCH1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-67060 |
1KZTE..KCH1# |
1 | ||
| 16571-67060 |
1KZTE..KCH1# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-67060 |
1KZTE..KCH1# |
1 | ||
| 16572-67060 |
1KZTE..KCH1# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-67010 |
1KZTE..KCH1# |
1 | ||
| 16581-54060 |
1KZTE..KCH1# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-54010 |
1KZTE..KCH1# |
2 | ||
| 16584-54010 |
1KZTE..KCH1# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-67060 |
1KZTE..KCH1# |
1 | ||
| 16711-67061 |
1KZTE..KCH1# |
1 | ||
| 16711-67061 |
1KZTE..KCH1# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-67070 |
1KZTE..KCH1# |
1 | ||
| 16711-67070 |
1KZTE..KCH10,16 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67030 |
1KZTE..KCH10,16 |
1 | ||
| 16712-67031 |
1KZTE..KCH1# |
1 | ||
| 16712-67031 |
1KZTE..KCH10,16 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67030 |
1KZTE..KCH10,16 |
1 | ||
| 16712-67031 |
1KZTE..KCH1# |
1 | ||
| 16712-67031 |
1KZTE..KCH10,16 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90105-06220 | ||||
| 90116-06145 | ||||
| 90119-06442 | ||||
| 90119-08063 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-06298 | ||||
| 90179-08240 | ||||
| 91511-60610 | ||||
| 91511-60614 | ||||
| 91511-J0820 | ||||
| 91631-J0612 | ||||
| 91643-80635 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 1 OF 3(9907- )1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16321 - INLET, WATER | ||||
| 16321-0K010 |
1KZTE..KCH1# (L) |
1 | ||
| 16321-67011 |
1KZTE..KCH1# (J) |
1 | ||
| 16321-67011 |
1KZTE..KCH1# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-67020 |
1KZTE..KCH1# |
1 | ||
| 16331-67061 |
1KZTE..KCH1# |
1 | ||
| 16331-67060 |
1KZTE..KCH1# |
1 | ||
| 16331-67061 |
1KZTE..KCH1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03098 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 90916-03119 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 90916-03119 |
1KZTE..KCH1# *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-67020 |
1KZTE..KCH1# |
1 | ||
| 16341-67020 |
1KZTE..KCH1# |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KZTE..KCH1# |
1 | ||
| 16346-67010 |
1KZTE..KCH1# |
1 | ||
| 16361 - FAN | ||||
| 16361-67030 |
1KZTE..KCH1# |
1 | ||
| 16361-67030 |
1KZTE..KCH1# |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-46070 |
1KZTE..KCH10,16 |
1 | ||
| 16361-46070 |
1KZTE..KCH1# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46020 |
1KZTE..KCH1# |
1 | ||
| 16363-46020 |
1KZTE..KCH10,16 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-67020 |
1KZTE..KCH1# |
1 | ||
| 16381-67020 |
1KZTE..KCH1# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-67010 |
1KZTE..KCH1# |
1 | ||
| 16385-67010 |
1KZTE..KCH1# |
1 | ||

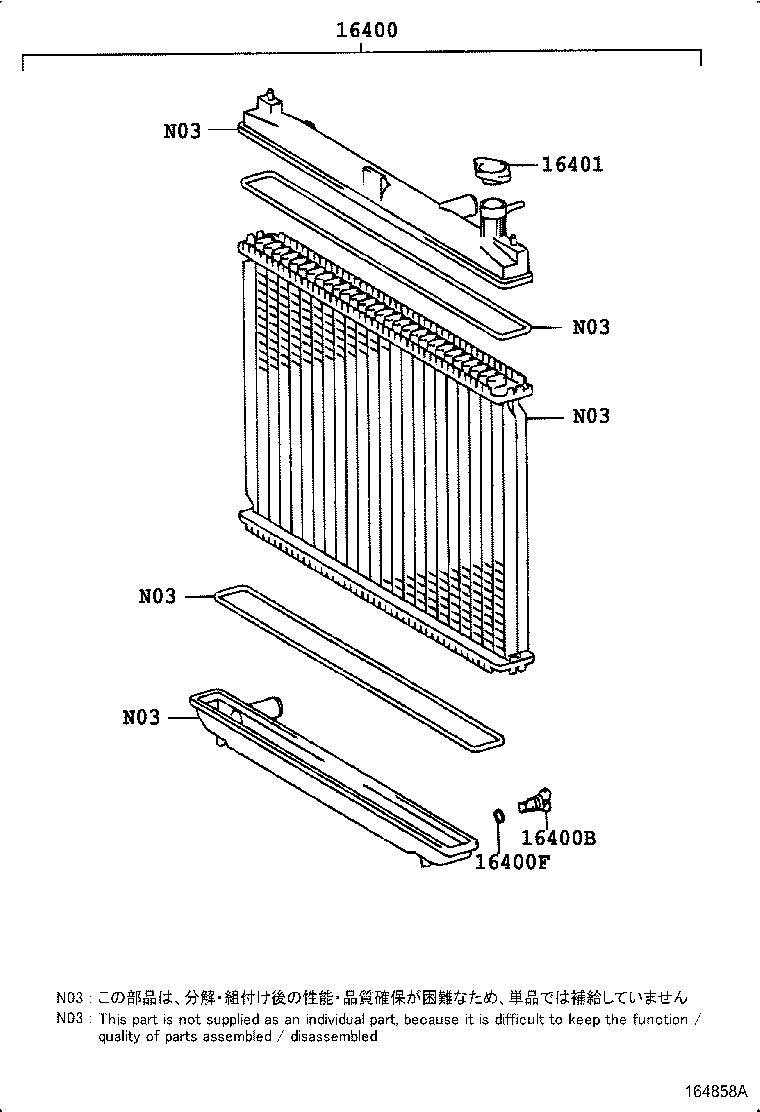

| 16400 - RADIATOR ASSY | ||||
| 16400-67090 |
1KZTE..KCH10 |
1 | ||
| 16400-67091 |
1KZTE..KCH10 |
1 | ||
| 16400-67092 |
1KZTE..KCH1# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 90467-11085 |
1KZTE..KCH1# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16477-54290 |
1KZTE..KCH1# |
1 | ||
| 16472-54290 |
1KZTE..KCH1# |
1 | ||
| 16477-54290 |
1KZTE..KCH1# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54260 |
1KZTE..KCH1# |
1 | ||
| 16405-54261 |
1KZTE..KCH1# |
1 | ||
| 16474 - CAP(FOR RADIATOR RESERVE TANK DRAIN) | ||||
| 16474-54290 |
1KZTE..KCH1# |
1 | ||
| 16474-54290 |
1KZTE..KCH1# |
1 | ||
| 16474A - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP) | ||||
| 90467-09173 |
1KZTE..KCH1# |
1 | ||
| 90467-09173 |
1KZTE..KCH1# |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-67020 |
1KZTE..KCH1# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-54050 |
1KZTE..KCH1# |
2 | ||
| 16505-54050 |
1KZTE..KCH1# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-67060 |
1KZTE..KCH1# |
1 | ||
| 16571-67060 |
1KZTE..KCH1# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-67060 |
1KZTE..KCH1# |
1 | ||
| 16572-67060 |
1KZTE..KCH1# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 90467-41006 |
1KZTE..KCH1# |
2 | ||
| 90466-41001 |
1KZTE..KCH1# |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-67010 |
1KZTE..KCH1# |
1 | ||
| 16581-54060 |
1KZTE..KCH1# |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-54010 |
1KZTE..KCH1# |
2 | ||
| 16584-54010 |
1KZTE..KCH1# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-67060 |
1KZTE..KCH1# |
1 | ||
| 16711-67061 |
1KZTE..KCH1# |
1 | ||
| 16711-67061 |
1KZTE..KCH1# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-67070 |
1KZTE..KCH1# |
1 | ||
| 16711-67070 |
1KZTE..KCH10,16 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67030 |
1KZTE..KCH10,16 |
1 | ||
| 16712-67031 |
1KZTE..KCH1# |
1 | ||
| 16712-67031 |
1KZTE..KCH10,16 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-67030 |
1KZTE..KCH10,16 |
1 | ||
| 16712-67031 |
1KZTE..KCH1# |
1 | ||
| 16712-67031 |
1KZTE..KCH10,16 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90105-06220 | ||||
| 90116-06145 | ||||
| 90119-06442 | ||||
| 90119-08063 | ||||
| 90179-06293 | ||||
| 90179-06298 | ||||
| 90179-08240 | ||||
| 91511-J0820 | ||||
| 91631-J0612 | ||||
| 91643-80635 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 2 OF 3(9907- )1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-67010 |
1KZTE..KCH1# |
1 | ||
| 16027-67011 |
1KZTE..KCH1# |
1 | ||
| 16027-67011 |
1KZTE..KCH1# |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-67030 |
1KZTE..KCH1# |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16206-67040 |
1KZTE..KCH1# |
1 | ||
| 16206B - PIPE SUB-ASSY, WATER BY-PASS, NO.3 | ||||
| 16206-67050 |
1KZTE..KCH1# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-67060 |
1KZTE..KCH1# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 87245-2F280 |
1KZTE..KCH1# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-23009 |
1KZTE..KCH1# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-23009 |
1KZTE..KCH1# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-67070 |
1KZTE..KCH1# |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-67070 |
1KZTE..KCH1# |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-67070 |
1KZTE..KCH1# |
3 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
6 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-67010 |
1KZTE..KCH1# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-67010 |
1KZTE..KCH1# |
1 | ||
| 16278-67010 |
1KZTE..KCH1# |
1 | ||
| 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) | ||||
| 96761-24010 |
1KZTE..KCH1# |
1 | ||
| 96761-24010 |
1KZTE..KCH1# |
1 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-67010 |
1KZTE..KCH1# |
1 | ||
| 16285-67010 |
1KZTE..KCH1# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 90467-15022 |
1KZTE..KCH1# |
2 | ||
| 16285B - UNION(FOR TURBO WATER HOSE NO.2) | ||||
| 90405-10044 |
1KZTE..KCH1# |
1 | ||
| 90405-10044 |
1KZTE..KCH1# |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-67010 |
1KZTE..KCH1# |
1 | ||
| 16347-67010 |
1KZTE..KCH1# |
1 | ||
| 17168B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-67010 |
1KZTE..KCH1# |
1 | ||
| Common parts | ||||
| 16258-67010 | ||||
| 90179-06080 | ||||
| 90179-06298 | ||||
| 90413-10291 | ||||
| 90929-01422 | ||||
| 91511-60610 | ||||
| 91511-60614 | ||||
| 91511-80614 | ||||
| 91511-B0812 | ||||
| 91631-60612 | ||||
| 92112-60614 | ||||
| Linked diagrams | ||||
| 1502 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9508-9907)1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-67090 |
1KZTE..KCH10 |
1 | ||
| 16400-67091 |
1KZTE..KCH10 |
1 | ||
| 16400-67092 |
1KZTE..KCH1# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1KZTE..KCH1# |
1 | ||
| 16417-15210 |
1KZTE..KCH1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KZTE..KCH1# |
1 | ||
| 16418-15520 |
1KZTE..KCH1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1KZTE..KCH1# |
1 | ||
| 16401-67150 |
1KZTE..KCH1# |
1 | ||
| 16401-67150 |
1KZTE..KCH1# |
1 | ||
| 16401-54750 |
1KZTE..KCH1# |
1 | ||
ILLUST NO. 3 OF 3(9907- )1KZTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-67090 |
1KZTE..KCH10 |
1 | ||
| 16400-67091 |
1KZTE..KCH10 |
1 | ||
| 16400-67092 |
1KZTE..KCH1# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1KZTE..KCH1# |
1 | ||
| 16417-15210 |
1KZTE..KCH1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1KZTE..KCH1# |
1 | ||
| 16418-15520 |
1KZTE..KCH1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1KZTE..KCH1# |
1 | ||
| 16401-67150 |
1KZTE..KCH1# |
1 | ||
| 16401-67150 |
1KZTE..KCH1# |
1 | ||
| 16401-54750 |
1KZTE..KCH1# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
