KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

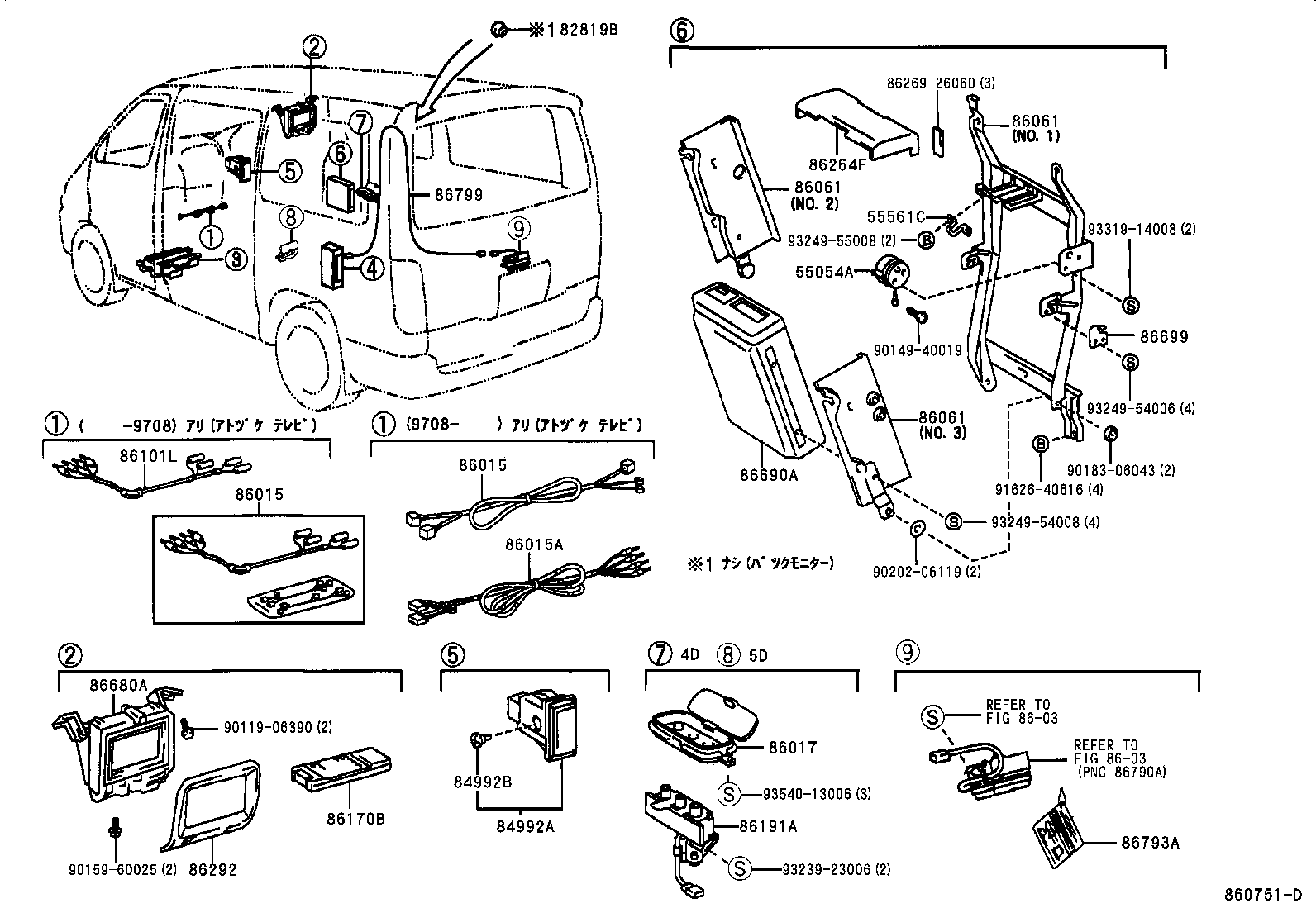

ILLUST NO. 1 OF 2(9508-9907)

Click highlighted areas on diagram

diagram 55054A 55561C 82819B 84992A 84992B 86015 86015 86015A 86017 8603 8603 86061 86061 86061 86101L 86170B 86191A 86264F 8626926060 86292 86680A 86690A 86699 86793A 86799 9011906390 9014940019 9015960025 9018306043 9020206119 9162640616 9323923006 9324954006 9324954008 9324955008 9331914008 9354013006
Part # Description Qty Price
55054A - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-26010

KCH1#,VCH1#..Q..4D

 1
55054-26010

KCH10,16,RCH11

 1
55561C - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-95J01

KCH10,16,RCH11

 1
55561-95J01

KCH1#,VCH1#..Q..4D

 1
82819B - GROMMET, WIRING HARNESS
82819-26360

KCH1#,VCH1#

 1
84992A - SWITCH, TELEVISION
84992-26030

KCH1#,VCH1#..Q

 1
84992-26030

KCH10,16,RCH11

 1
84992B - BULB
84999-10320

KCH10,16,RCH11

 1
86015 - PARTS SET, TELEVISION
86015-26040

KCH10,16,RCH11

***

 1
86015-26050

KCH1#,RCH11,VCH1#

 1
86015 - PARTS SET, TELEVISION
86015-26040

KCH10,16,RCH11

***

 1
86015-26050

KCH1#,RCH11,VCH1#

 1
86015A - PARTS SET, TELEVISION
86015-26060

KCH1#,RCH11,VCH1#

 1
86017 - PARTS SET, VIDEO
86017-26010B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
86017-26010E0

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
86017-26010B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86017-26010E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
86061 - HOLDER SUB-ASSY, VIDEO
86061-26060

KCH10,16,RCH11

NO.3

 1
86061-26040

KCH1#,VCH1#..Q..4D

NO.1

 1
86061-26050

KCH1#,VCH1#..Q..4D

NO.2

 1
86061-26060

KCH1#,VCH1#..Q..4D

NO.3

 1
86061-26040

KCH10,16,RCH11

NO.1

 1
86061-26050

KCH10,16,RCH11

NO.2

 1
86061 - HOLDER SUB-ASSY, VIDEO
86061-26060

KCH10,16,RCH11

NO.3

 1
86061-26040

KCH1#,VCH1#..Q..4D

NO.1

 1
86061-26050

KCH1#,VCH1#..Q..4D

NO.2

 1
86061-26060

KCH1#,VCH1#..Q..4D

NO.3

 1
86061-26040

KCH10,16,RCH11

NO.1

 1
86061-26050

KCH10,16,RCH11

NO.2

 1
86061 - HOLDER SUB-ASSY, VIDEO
86061-26060

KCH10,16,RCH11

NO.3

 1
86061-26040

KCH1#,VCH1#..Q..4D

NO.1

 1
86061-26050

KCH1#,VCH1#..Q..4D

NO.2

 1
86061-26060

KCH1#,VCH1#..Q..4D

NO.3

 1
86061-26040

KCH10,16,RCH11

NO.1

 1
86061-26050

KCH10,16,RCH11

NO.2

 1
86101L - CORD SUB-ASSY, TELEVISION ANTENNA, NO.2
86101-26010

KCH10,16,RCH11

 1
86170B - SWITCH & VOLUME ASSY, TELEVISION
86170-26010

KCH10,16,RCH11

 1
86170-26020

KCH1#,VCH1#..Q

 1
86191A - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-26020

KCH10,16,RCH11,VCH1#

 1
86264F - COVER, TAPE PLAYER
86264-26030

KCH10,16,RCH11

 1
86264-26030

KCH1#,VCH1#..Q..4D

 1
86292 - COVER, TELEVISION SET
86292-26080A0

KCH1#,VCH1#..Q

IVORY,TRIM4#

 1
86292-26040B0

KCH10,16,RCH11

LT.BLUISH GRAY,TRIM1#

 1
86680A - DISPLAY ASSY, TELEVISION
86680-26051

KCH1#,VCH1#..Q

MATSUSHITA

 1
86680-26040

KCH10,16,RCH11

 1
86690A - VIDEO DECK ASSY
86690-26030

KCH1#,VCH1#..Q..4D

 1
86690-26030

KCH10,16,RCH11

 1
86699 - STOPPER, VIDEO HOLDER
86699-26010

KCH10,16,RCH11

 2
86699-26010

KCH1#,VCH1#..Q..4D

 2
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-26010

KCH1#,RCH11,VCH1#

 1
86799 - WIRE, TELEVISION CAMERA
86799-26030

KCH1#,RCH11,VCH1#

 1
Common parts
86269-26060
90119-06390
90149-40019
90159-60025
90183-06043
90202-06119
91626-40616
93239-23006
93249-54006
93249-54008
93249-55008
93319-14008
93540-13006
Linked diagrams
8603

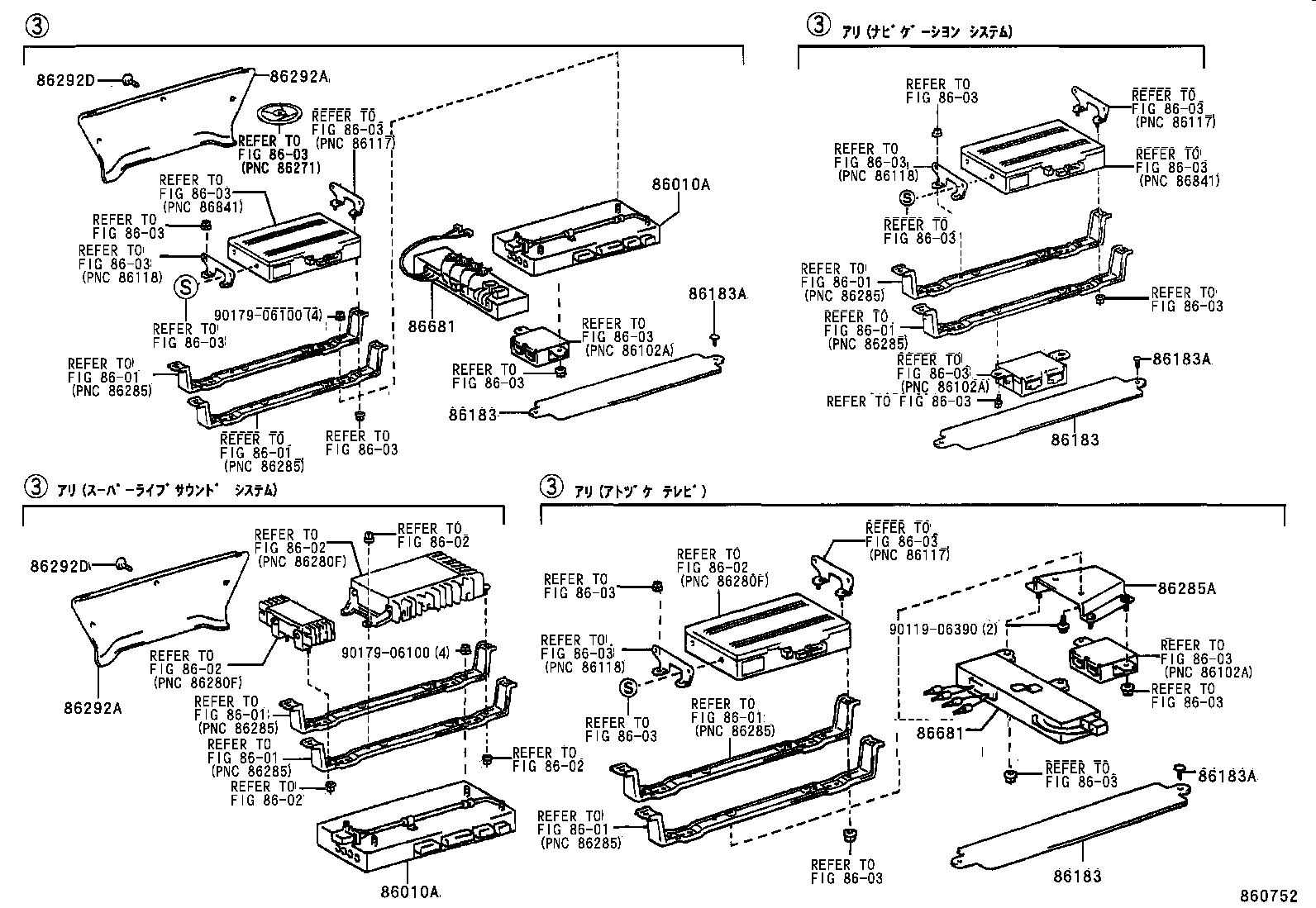

ILLUST NO. 2 OF 2(9508-9608)

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86010A 86010A 8602 8602 8602 8602 8602 8602 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 86183 86183 86183 86183A 86183A 86183A 86285A 86292A 86292A 86292D 86292D 86681 86681 9011906390 9017906100 9017906100
Part # Description Qty Price
86010A - TUNER ASSY, TELEVISION
86010-26030

KCH10,16,RCH11

 1
86010-26050

KCH10,16,RCH11

 1
86010-26070

KCH1#,VCH1#..Q

 1
86010-26060

KCH1#,VCH1#..Q

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86010A - TUNER ASSY, TELEVISION
86010-26030

KCH10,16,RCH11

 1
86010-26050

KCH10,16,RCH11

 1
86010-26070

KCH1#,VCH1#..Q

 1
86010-26060

KCH1#,VCH1#..Q

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86183 - COVER, AUDIO RACK
86183-26012

KCH1#,VCH1#

 1
86183-26010B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
86183-26011

KCH1#,RCH11,VCH1#

 1
86183 - COVER, AUDIO RACK
86183-26012

KCH1#,VCH1#

 1
86183-26010B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
86183-26011

KCH1#,RCH11,VCH1#

 1
86183 - COVER, AUDIO RACK
86183-26012

KCH1#,VCH1#

 1
86183-26010B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
86183-26011

KCH1#,RCH11,VCH1#

 1
86183A - CLIP(FOR AUDIO RACK COVER)
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 2
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 2
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 2
86183A - CLIP(FOR AUDIO RACK COVER)
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 2
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 2
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 2
86183A - CLIP(FOR AUDIO RACK COVER)
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 2
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 2
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 2
86285A - BRACKET, AMPLIFIER, NO.2
86285-26040

KCH10,16,RCH11

 1
86292A - COVER, TELEVISION SET
86292-26050B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
86292-26070E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
86292-26070E0

KCH10,16,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
86292A - COVER, TELEVISION SET
86292-26050B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
86292-26070E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
86292-26070E0

KCH10,16,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
86292D - CLIP(FOR TELEVISION SET COVER)
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 3
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 3
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 3
86292D - CLIP(FOR TELEVISION SET COVER)
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 3
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 3
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 3
86681 - DIVIDER, ANTENNA
86681-26011

KCH10,16,RCH11

 1
86681 - DIVIDER, ANTENNA
86681-26011

KCH10,16,RCH11

 1
Common parts
90119-06390
90179-06100
Linked diagrams
8601
8602
8603

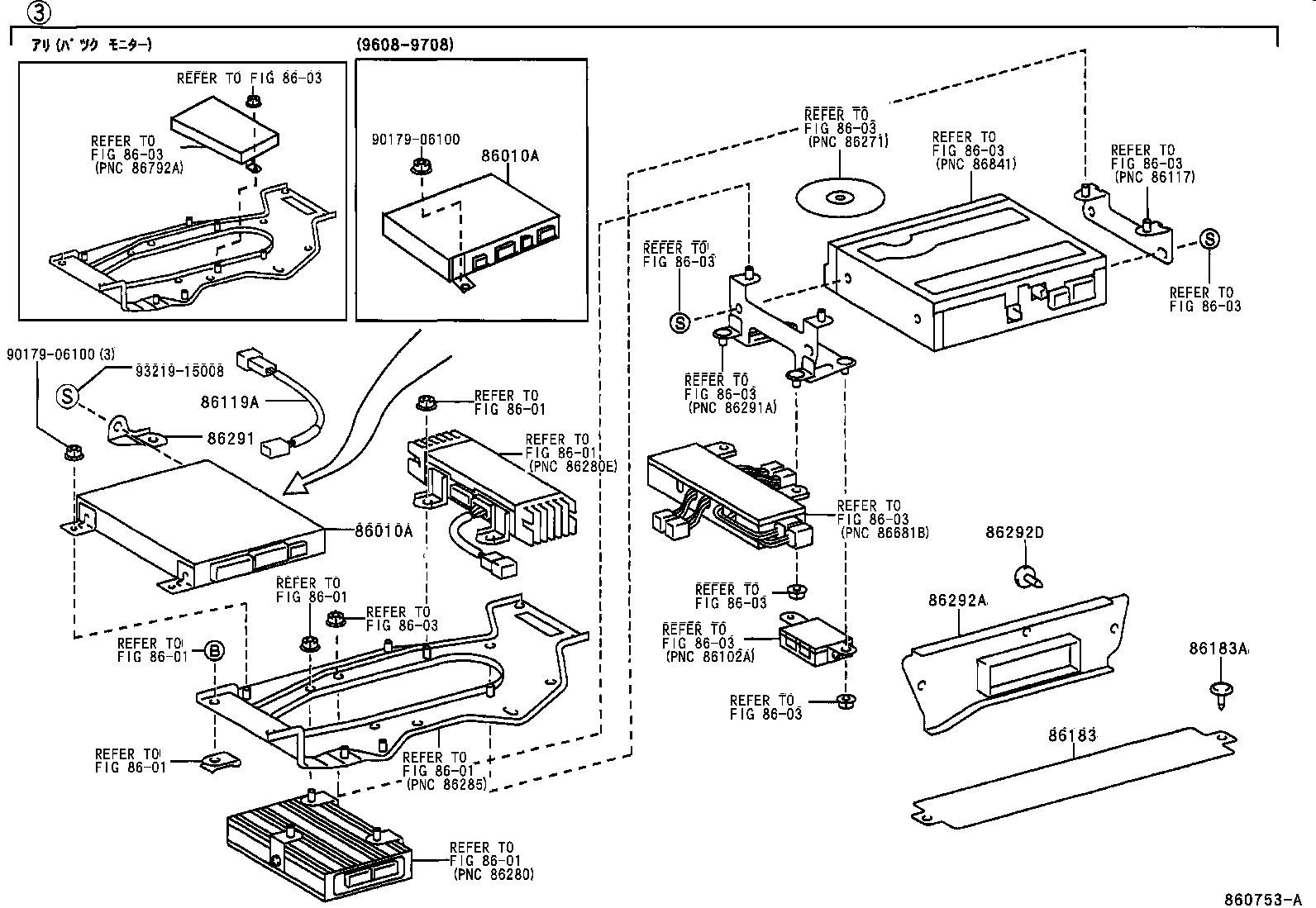

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 86010A 86010A 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 86119A 86183 86183A 86291 86292A 86292D 9017906100 9017906100 9321915008
Part # Description Qty Price
86010A - TUNER ASSY, TELEVISION
86010-26030

KCH10,16,RCH11

 1
86010-26050

KCH10,16,RCH11

 1
86010-26070

KCH1#,VCH1#..Q

 1
86010-26060

KCH1#,VCH1#..Q

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86010A - TUNER ASSY, TELEVISION
86010-26030

KCH10,16,RCH11

 1
86010-26050

KCH10,16,RCH11

 1
86010-26070

KCH1#,VCH1#..Q

 1
86010-26060

KCH1#,VCH1#..Q

ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-)

 1
86119A - WIRE, TELEVISION SWITCH
86119-26050

KCH1#,VCH1#..Q

 1
86183 - COVER, AUDIO RACK
86183-26012

KCH1#,VCH1#

 1
86183-26010B0

KCH10,16,RCH11

LT. BLUISH GRAY,TRIM1#

 1
86183-26011

KCH1#,RCH11,VCH1#

 1
86183A - CLIP(FOR AUDIO RACK COVER)
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 2
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 2
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 2
86291 - BRACKET, TELEVISION
86291-26150

VCH10..Q;KCH1#,RCH11,VCH16

 1
86292A - COVER, TELEVISION SET
86292-26050B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 1
86292-26070B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 1
86292-26070E0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
86292-26070E0

KCH10,16,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
86292D - CLIP(FOR TELEVISION SET COVER)
90467-06020E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 3
90467-06020B0

KCH10,16,RCH11

BLUISH GRAY,TRIM1#

 3
90467-06020B0

KCH1#,RCH11,VCH1#..G

BLUISH GRAY,TRIM1#

 3
Common parts
90179-06100
93219-15008
Linked diagrams
8601
8603

ILLUST NO. 2 OF 2(9708-9907)G

Click highlighted areas on diagram

ｸﾙｰｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ

diagram 8601 8601 8601 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603
Part # Description Qty Price
Linked diagrams
8601
8603
