KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9907)KCH1#

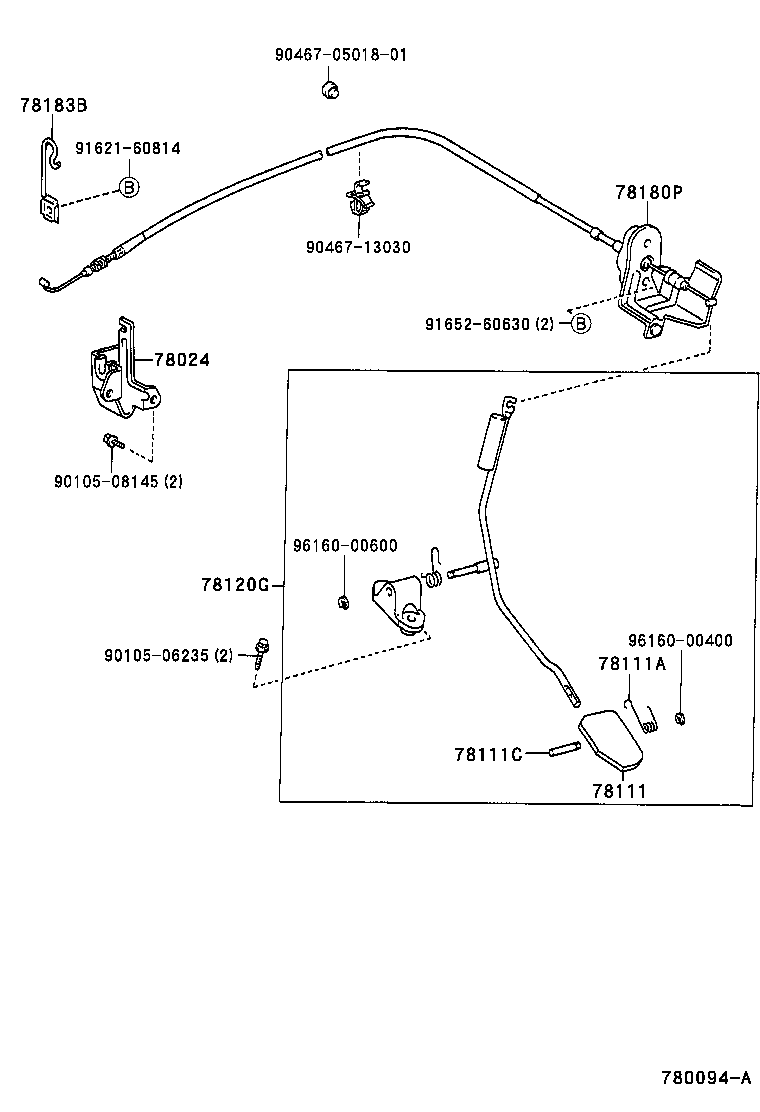

Click highlighted areas on diagram

diagram 78024 78111 78111A 78111C 78120G 78180P 78183B 9010506235 9010508145 904670501801 9046713030 9162160814 9165260630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-26040

KCH1#

 1
78111 - PEDAL, ACCELERATOR
78111-20050

KCH1#,RCH11,VCH1#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

KCH1#,RCH11,VCH1#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

KCH1#,RCH11,VCH1#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-26030

KCH1#,RCH11

 1
78120-26050

KCH1#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-26050

KCH1#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26120

KCH1#

 1
Common parts
90105-06235
90105-08145
90467-0501801
90467-13030
91621-60814
91652-60630
96160-00400
96160-00600
