KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

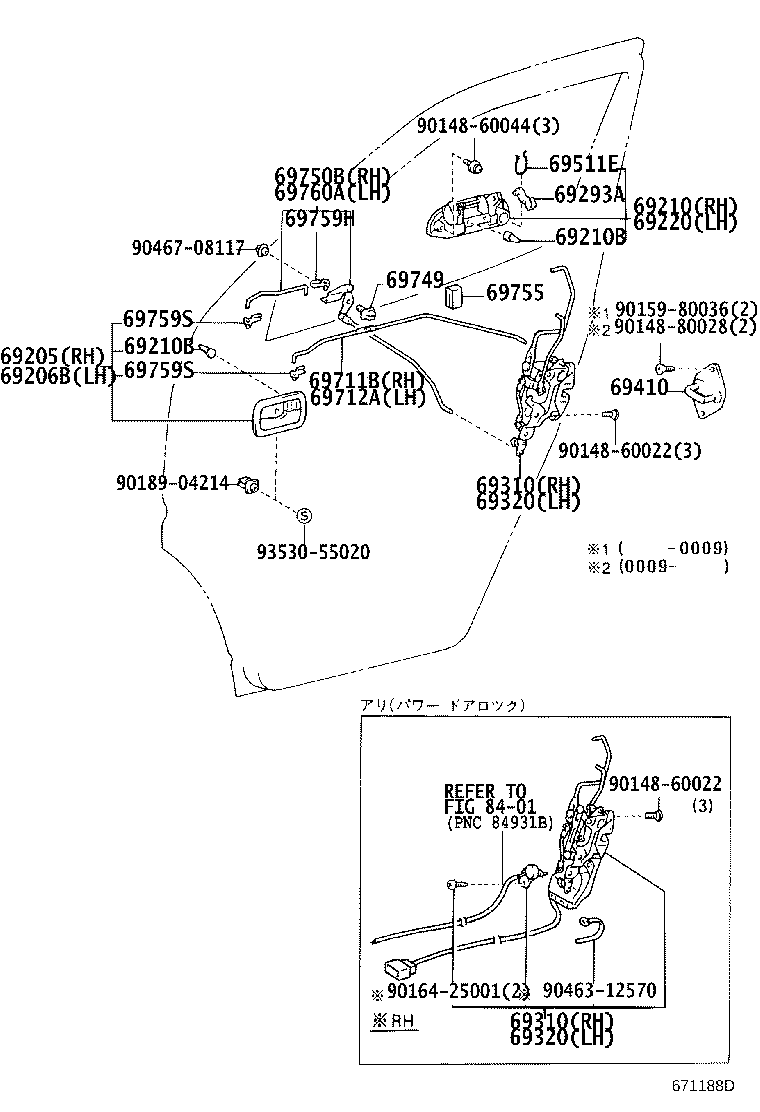

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69210B 69220 69293A 69310 69310 69320 69320 69410 69511E 69711B 69712A 69749 69750B 69755 69759H 69759S 69759S 69760A 8401 9014860022 9014860022 9014860044 9014880028 9015980036 9016425001 9018904214 9046312570 9046708117 9353055020
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20120E2

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
69205-20120B0

KCH1#,RCH11

BLUEISH GRAY,TRIM1#

 1
69205-20120E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
69205-20120B0

KCH1#,RCH11,VCH1#..G

BLUEISH GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20120B0

KCH1#,RCH11

BLUEISH GRAY,TRIM1#

 1
69206-20120E2

KCH1#,VCH1#..Q

SANDAL WOOD,TRIM4#

 1
69206-20120B0

KCH1#,RCH11,VCH1#..G

BLUEISH GRAY,TRIM1#

 1
69206-20120E2

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),SANDAL WOOD,TRIM4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-26020H0

KCH10,16,RCH11..Q

DEEP TEAL ME,2BA

 1
69210-26020A0

KCH10,16,RCH11..G

Gﾘﾐﾃﾂﾄﾞ,WHITE PEARL MC.,2CH

 1
69210-26020A0

KCH10,16,RCH11..G

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ*(C),*(D),WHITE PEARL MC.,2CH

 1
69210-26020G1

KCH10,16,RCH11..Q

GR. GREEN ME,2BP

 1
69210-26020B0

KCH10,16,RCH11..Q

SILVER ME,2BW

 1
69210-26020G0

KCH10,16,RCH11..Q

GRAYISH BREEN M,2AZ

 1
69210-95J03

KCH1#,RCH11,VCH1#..DX,G

 1
69210-26020A0

KCH10,16,RCH11..Q

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ*(E),WHITE PEARL MC.,2CH

 1
69210-26020K1

KCH1#,VCH1#..Q

DP.PURPLE MC .,2EC

 1
69210-26020A0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),WHITE PM.,2FG

 1
69210-26020B0

KCH1#,RCH11,VCH1#

SILVER ME,2BW

 1
69210-26020D0

KCH1#,RCH11,VCH1#

LT.GRAISH ROSE OP,2CJ

 1
69210-26020D0

KCH10,16,RCH11..Q

LT.GRAISH ROSE OP,2CJ

 1
69210-26020A0

KCH1#,VCH1#..Q

WHITE PEARL MC.,2CH

 1
69210-26020A0

KCH1#,RCH11,VCH1#..G

WHITE PEARL MC.,2CH ,2EE

 1
69210-26020H0

KCH1#,RCH11,VCH1#

DEEP TEAL ME,2BA

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

KCH1#,RCH11,VCH1#

 6
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

KCH1#,RCH11,VCH1#

 6
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-26020G0

KCH10,16,RCH11..Q

GRAYISH BREEN M,2AZ

 1
69220-26020A0

KCH10,16,RCH11..G

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ*(C),*(D),WHITE PEARL MC.,2CH

 1
69220-26020A0

KCH10,16,RCH11..G

Gﾘﾐﾃﾂﾄﾞ,WHITE PEARL MC.,2CH

 1
69220-26020B0

KCH10,16,RCH11..Q

SILVER ME,2BW

 1
69220-26020A0

KCH1#,VCH1#..Q

WHITE PEARL MC.,2CH

 1
69220-26020A0

KCH1#,RCH11,VCH1#..G

WHITE PEARL MC.,2CH ,2EE

 1
69220-26020D0

KCH10,16,RCH11..Q

LT.GRAISH ROSE OP,2CJ

 1
69220-26020H0

KCH1#,RCH11,VCH1#

DEEP TEAL ME,2BA

 1
69220-26020B0

KCH1#,RCH11,VCH1#

SILVER ME,2BW

 1
69220-26020A0

KCH10,16,RCH11..Q

ﾊﾟ-ﾙﾏｲｶ ｾﾚｸｼﾖﾝ*(E),WHITE PEARL MC.,2CH

 1
69220-95J03

KCH1#,RCH11,VCH1#..DX,G

 1
69220-26020H0

KCH10,16,RCH11..Q

DEEP TEAL ME,2BA

 1
69220-26020D0

KCH1#,RCH11,VCH1#

LT.GRAISH ROSE OP,2CJ

 1
69220-26020G1

KCH10,16,RCH11..Q

GR. GREEN ME,2BP

 1
69220-26020K1

KCH1#,VCH1#..Q

DP.PURPLE MC .,2EC

 1
69220-26020A0

KCH1#,VCH1#..G

G ｴｸｽﾃ-ｼﾞ *(L), *(M),WHITE PM.,2FG

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-10020

VCH10..Q;KCH1#,RCH11,VCH16

右側

 1
69293-10010

VCH10..Q;KCH1#,RCH11,VCH16

左側

 1
69293-12030

KCH1#,RCH11,VCH16..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ,左側

 1
69293-12040

KCH1#,RCH11,VCH16..G

ｸﾙ-ｼﾞﾝｸﾞ ｾﾚｸｼﾖﾝ,右側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-26050

KCH10,16,RCH11,VCH1#..G

 1
69030-26070

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ)

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-26050

KCH10,16,RCH11,VCH1#..G

 1
69030-26070

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-26060

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ)

 1
69040-26040

KCH1#,RCH11,VCH16..DX,G

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-26060

VCH10..Q;KCH10,16,RCH11,VCH16

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛｯｸ)

 1
69040-26040

KCH1#,RCH11,VCH16..DX,G

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-26010

KCH1#,RCH11,VCH1#

 2
69511E - RETAINER, FRONT DOOR LOCK CYLINDER
69511-26010

KCH1#,RCH11,VCH1#

 2
69511-26010

KCH1#,RCH11

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69701-26010

KCH1#,RCH11,VCH1#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69702-26010

KCH1#,RCH11,VCH1#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32030

KCH1#,RCH11,VCH1#

 2
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-26010

KCH1#,RCH11,VCH1#

 1
69750-26040

KCH1#,VCH1#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

KCH1#,RCH11,VCH1#

 4
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24050

KCH1#,RCH11,VCH1#

ｸﾞﾘｰﾝ

 1
69759-24060

KCH1#,RCH11,VCH1#

ｸﾞﾚｰ

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

KCH1#,RCH11,VCH1#

ﾋﾟﾝｸ

 2
69759-24070

KCH1#,RCH11,VCH1#

ｲｴﾛｰ

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-14050

KCH1#,RCH11,VCH1#

ﾋﾟﾝｸ

 2
69759-24070

KCH1#,RCH11,VCH1#

ｲｴﾛｰ

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-26040

KCH1#,VCH1#

 1
69760-26010

KCH1#,RCH11,VCH1#

 1
Common parts
90148-60022
90148-60044
90148-80028
90159-80036
90164-25001
90189-04214
90463-12570
90467-08117
93530-55020
Linked diagrams
8401
