KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9907)KCH10..Q ; (9907- )KCH1#..QLTD

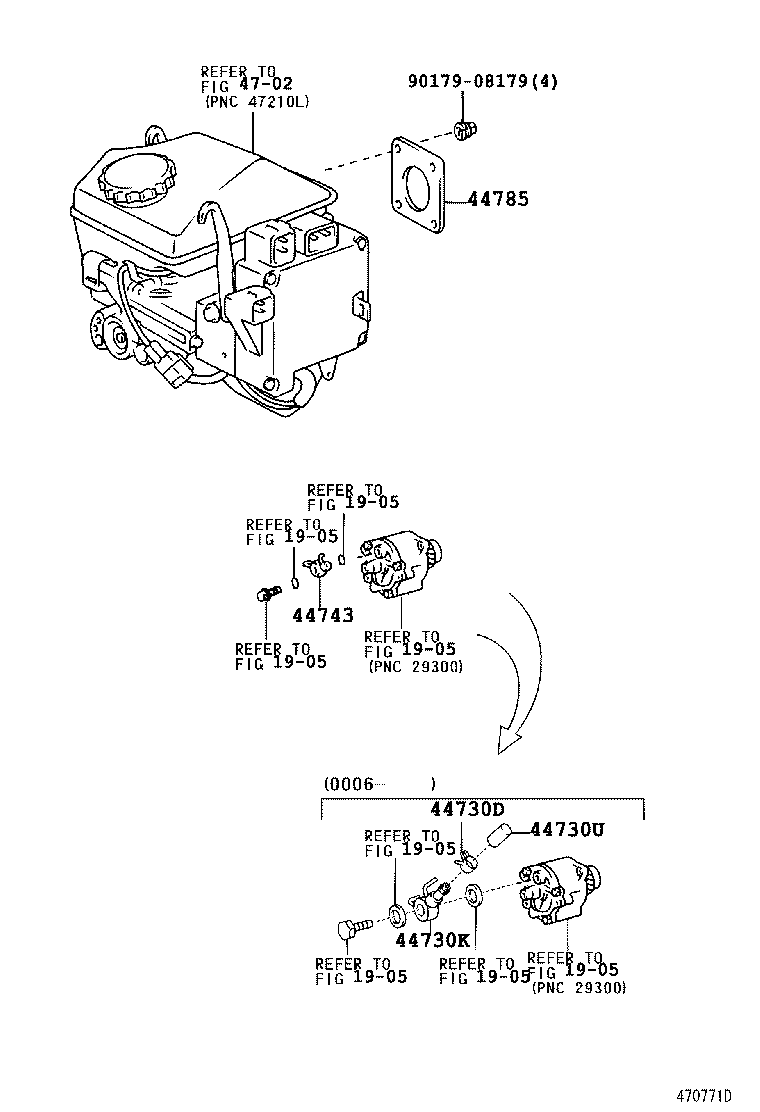

Click highlighted areas on diagram

diagram 1905 1905 1905 1905 1905 1905 1905 1905 44730D 44730K 44730U 44743 44785 4702 9017908179
Part # Description Qty Price
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09175

KCH16;KCH10..G

 1
90405-09175

KCH1#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09185

KCH10..Q

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

KCH1#,RCH11,VCH1#

 1
Common parts
90179-08179
Linked diagrams
1905
4702

(9508-9708)KCH1# ; (9708-9907)KCH16 ; (9708-9907)KCH10..G ; (9907- )KCH1#..G

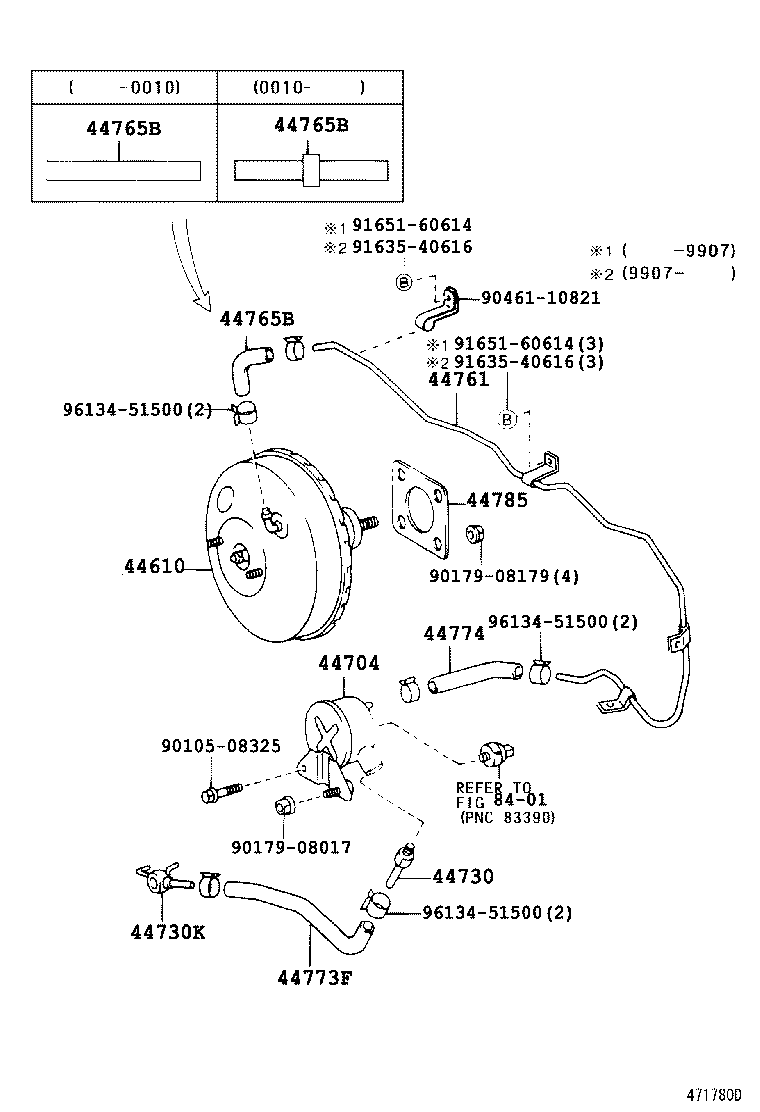

Click highlighted areas on diagram

diagram 44610 44704 44730 44730K 44761 44765B 44765B 44765B 44773F 44774 44785 8401 9010508325 9017908017 9017908179 9046110821 9163540616 9163540616 9165160614 9165160614 9613451500 9613451500 9613451500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-26580

KCH1#

 1
44610-26560

KCH16;KCH10..G

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-26170

KCH1#

 1
44704-26170

KCH16;KCH10..G

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050

KCH1#

 1
44730-60050

KCH16;KCH10..G

 1
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09175

KCH16;KCH10..G

 1
90405-09175

KCH1#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26370

KCH1#

 1
44761-26370

KCH16;KCH10..G

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
90445-17141

KCH1#

 1
90445-17141

KCH16;KCH10..G

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
90445-17141

KCH1#

 1
90445-17141

KCH16;KCH10..G

 1
44765B - HOSE, CONNECTOR TO BRAKE BOOSTER
90445-17141

KCH1#

 1
90445-17141

KCH16;KCH10..G

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-26120

KCH1#

 1
44773-26120

KCH16;KCH10..G

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26290

KCH1#

 1
44774-26290

KCH16;KCH10..G

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

KCH1#,RCH11,VCH1#

 1
Common parts
90105-08325
90179-08017
90179-08179
90461-10821
91635-40616
91651-60614
96134-51500
Linked diagrams
8401
