KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

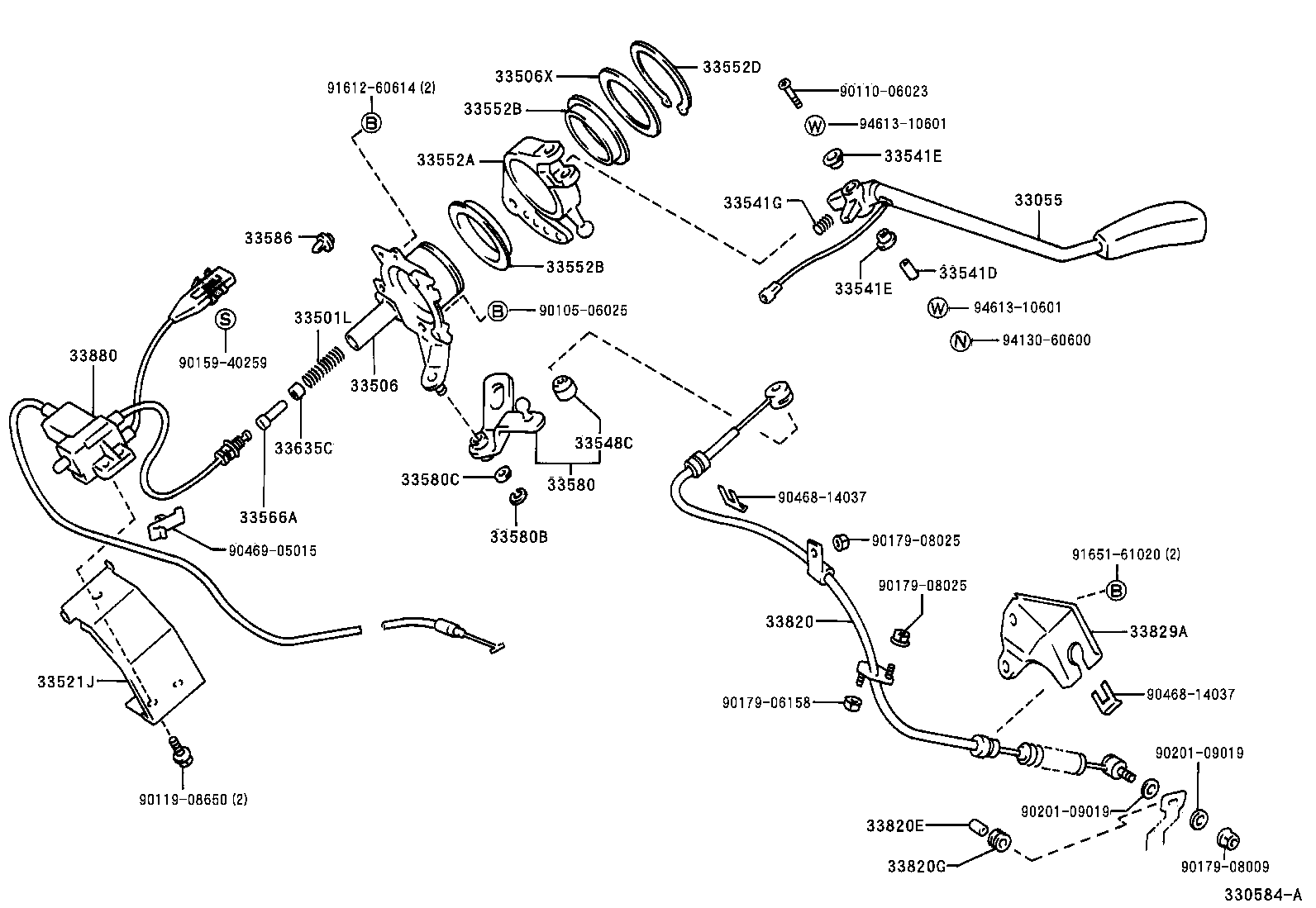

Click highlighted areas on diagram

diagram 33055 33501L 33506 33506X 33521J 33541D 33541E 33541E 33541G 33548C 33552A 33552B 33552B 33552D 33566A 33580 33580B 33580C 33586 33635C 33820 33820E 33820G 33829A 33880 8271114110 9011006023 9011908650 9015940259 9017906158 9017908009 9017908025 9017908025 9020109019 9020109019 9046814037 9046814037 91511C0635 91611B0614 9161260614 9165161020 9413060600 9461310601 9461310601
Part # Description Qty Price
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-26060

KCH1#,RCH11

 1
33055-26080

KCH1#,RCH11,VCH1#

 1
33501L - SPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)
90501-06085

KCH1#,RCH11,VCH1#

 1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-26050

KCH1#,RCH11,VCH1#

 1
33506X - SPACER (FOR SHIFT LEVER ARM)
90560-47002

KCH1#,RCH11,VCH1#

厚さ=1.2,内径=47.5

 1
90560-47001

KCH1#,RCH11,VCH1#

厚さ=1.0,内径=47.5

 1
33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33521-26060

KCH1#,RCH11

 1
33521-26110

KCH1#,RCH11,VCH1#

 1
33541D - COLLAR (FOR COLUMN SHIFT LEVER)
90387-06062

KCH1#,RCH11,VCH1#

 1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017

KCH1#,RCH11,VCH1#

 2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017

KCH1#,RCH11,VCH1#

 2
33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
90501-16146

KCH1#,RCH11,VCH1#

 1
33548C - BUSH, SHIFT LEVER (FOR COLUMN SHIFT)
33548-12021

KCH1#,RCH11,VCH1#

 1
33552A - ARM, SHIFT LEVER
33552-26020

KCH1#,RCH11,VCH1#

 1
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001

KCH1#,RCH11,VCH1#

 2
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001

KCH1#,RCH11,VCH1#

 2
33552D - RING, SNAP (FOR SHIFT LEVER ARM)
90520-45010

KCH1#,RCH11,VCH1#

 1
33566A - PIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)
33566-26020

KCH1#,RCH11,VCH1#

 1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-26030

KCH1#,RCH11,VCH1#

 1
33580-26010

KCH1#,RCH11

 1
33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
96160-01000

KCH1#,RCH11,VCH1#

 1
33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK)
90560-11028

KCH1#,RCH11,VCH1#

 1
33586 - STOPPER, CONTROL SHIFT LEVER
33586-28012

KCH1#,VCH1#

 1
33586-28011

KCH1#,RCH11,VCH1#

 1
33635C - GUIDE, WIRE
33635-28040

KCH1#,RCH11,VCH1#

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-26080

KCH1#,RCH11

 1
33820-26140

KCH1#,RCH11

 1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26010

KCH1#,RCH11

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-26020

KCH1#,RCH11

 1
33880-26040

KCH1#,RCH11,VCH1#..G

ｶｲﾃﾝ ﾌﾛﾝﾄ ｼ-ﾄ

 1
33880-26030

KCH1#,RCH11,VCH1#

 1
Common parts
82711-14110
90110-06023
90119-08650
90159-40259
90179-06158
90179-08009
90179-08025
90201-09019
90468-14037
91511-C0635
91611-B0614
91612-60614
91651-61020
94130-60600
94613-10601

(9708-9907)G

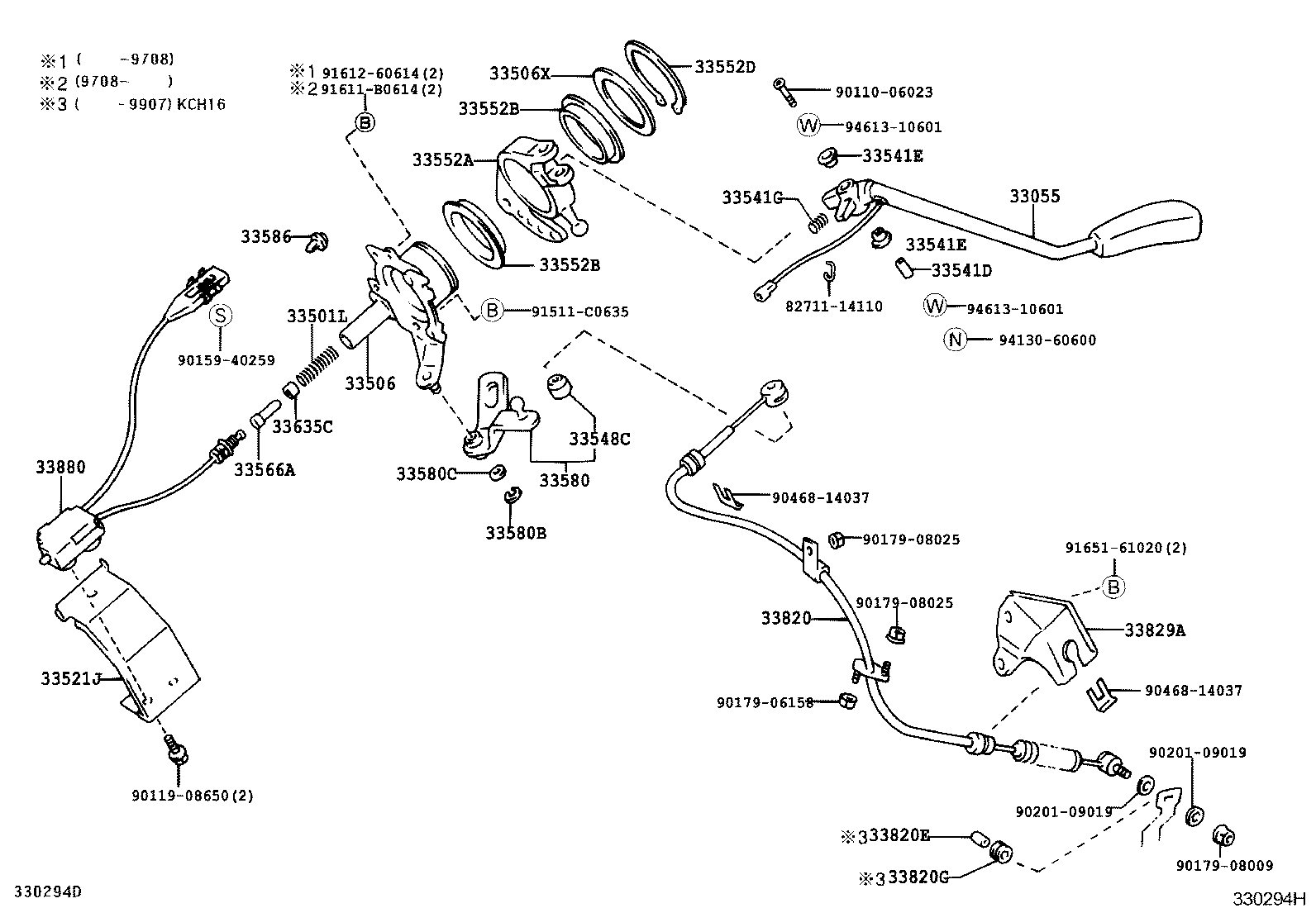

Click highlighted areas on diagram
