KCH10W-GFSQT (1995)

Toyota Granvia/Grand Hiace

Production Aug 1995 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )1KZTE

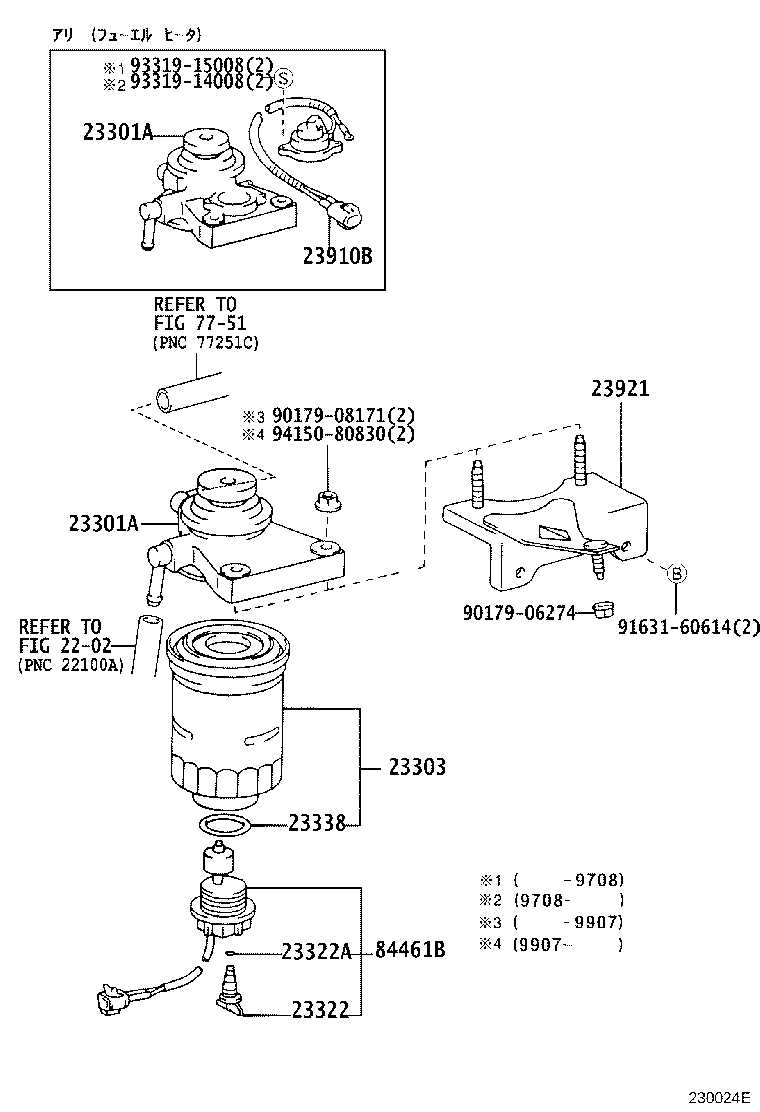

Click highlighted areas on diagram

diagram 2202 23301A 23301A 23303 23322 23322A 23338 23910B 23921 7751 84461B 9017906274 9017908171 9163160614 9331914008 9331915008 9415080830
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-67100

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23380-67250

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23380-67090

1KZTE..KCH1#

 1
23380-67240

1KZTE..KCH1#

 1
23301A - CAP ASSY, FUEL FILTER
23380-67100

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23380-67250

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23380-67090

1KZTE..KCH1#

 1
23380-67240

1KZTE..KCH1#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450

1KZTE..KCH1#

 1
23303-64010

1KZTE..KCH1#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

1KZTE..KCH1#

 1
23388-64470

1KZTE..KCH1#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KZTE..KCH1#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KZTE..KCH1#

 1
23910B - HEATER ASSY, FUEL
23910-54120

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23910-54070

1KZTE..KCH1#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
23921 - SUPPORT, FUEL FILTER
23921-54370

1KZTE..KCH1#

 1
84461B - SWITCH, LEVEL WARNING
84461-26080

KCH1#

 1
84461-26090

KCH1#

 1
Common parts
90179-06274
90179-08171
91631-60614
93319-14008
93319-15008
94150-80830
Linked diagrams
2202
7751
