GDH303W-RDTJY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

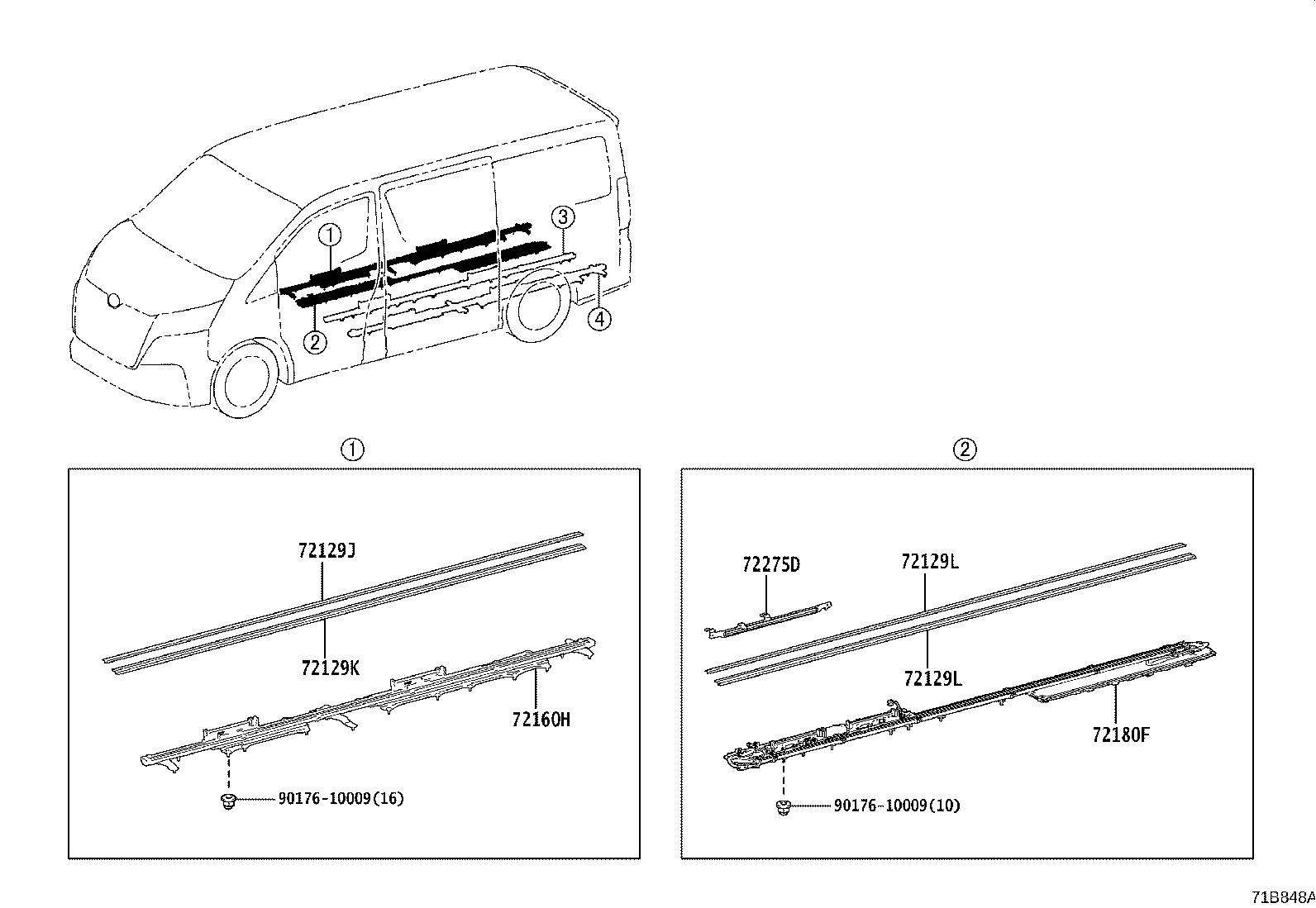

(1912- )G
Click highlighted areas on diagram
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-26190 |
GDH303 |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-26200 |
GDH303 |
1 | ||
| 72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER | ||||
| 72129-26290 |
GDH303..PREM |
2 | ||
| 72129-26330 |
GDH303..G |
2 | ||
| 72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER | ||||
| 72129-26290 |
GDH303..PREM |
2 | ||
| 72129-26330 |
GDH303..G |
2 | ||
| 72129M - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.1 | ||||
| 72129-26210 |
GDH303..G |
1 | ||
| 72129N - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.2 | ||||
| 72129-26220 |
GDH303..G |
1 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-26290 |
GDH303..PREM |
1 | ||
| 72160-26200 |
GDH303..G |
1 | ||
| 72180F - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-26110 |
GDH303..PREM |
1 | ||
| 72180-26080 |
GDH303..G |
1 | ||
| 72180G - TRACK ASSY, REAR SEAT, INNER RH REAR | ||||
| 72180-26090 |
GDH303..G |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-26050 |
GDH303 |
1 | ||
| 72275E - STOPPER, REAR SEAT TRACK SLIDE, RH NO.2 | ||||
| 72275-26050 |
GDH303..G |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||

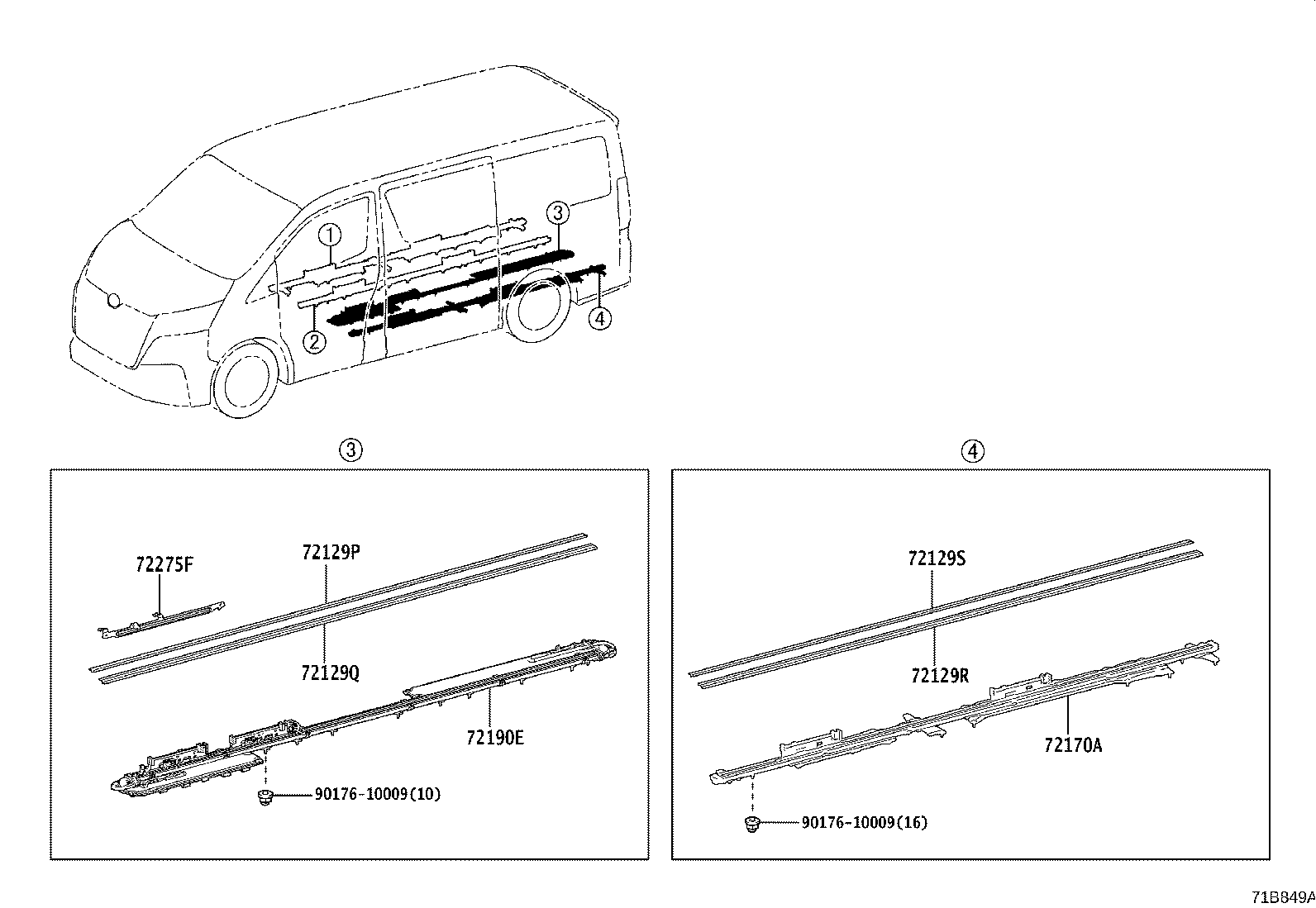

(1912- )G
Click highlighted areas on diagram
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-26290 |
GDH303..PREM |
1 | ||
| 72129-26240 |
GDH303..G |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-26290 |
GDH303..PREM |
1 | ||
| 72129-26260 |
GDH303..G |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-26190 |
GDH303 |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-26200 |
GDH303 |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-26330 |
GDH303..PREM |
1 | ||
| 72170-26250 |
GDH303..G |
1 | ||
| 72190E - TRACK ASSY, REAR SEAT, INNER LH | ||||
| 72190-26060 |
GDH303..G |
1 | ||
| 72190-26220 |
GDH303..PREM |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-26050 |
GDH303 |
1 | ||
| 72275G - STOPPER, REAR SEAT TRACK SLIDE, LH NO.2 | ||||
| 72275-26050 |
GDH303..G |
1 | ||
| 82807B - PROTECTOR SET, WIRING HARNESS | ||||
| 82807-26060 |
GDH303..G |
1 | ||
| Common parts | ||||
| 90176-06036 | ||||
| 90176-10009 | ||||
| 91553-80628 | ||||
(1912- )PREM
Click highlighted areas on diagram
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1 | ||||
| 72129-26190 |
GDH303 |
1 | ||
| 72129K - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2 | ||||
| 72129-26200 |
GDH303 |
1 | ||
| 72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER | ||||
| 72129-26290 |
GDH303..PREM |
2 | ||
| 72129-26330 |
GDH303..G |
2 | ||
| 72129L - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER | ||||
| 72129-26290 |
GDH303..PREM |
2 | ||
| 72129-26330 |
GDH303..G |
2 | ||
| 72160H - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-26290 |
GDH303..PREM |
1 | ||
| 72160-26200 |
GDH303..G |
1 | ||
| 72180F - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-26110 |
GDH303..PREM |
1 | ||
| 72180-26080 |
GDH303..G |
1 | ||
| 72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1 | ||||
| 72275-26050 |
GDH303 |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
(1912- )PREM
Click highlighted areas on diagram
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1 | ||||
| 72129-26290 |
GDH303..PREM |
1 | ||
| 72129-26240 |
GDH303..G |
1 | ||
| 72129Q - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2 | ||||
| 72129-26290 |
GDH303..PREM |
1 | ||
| 72129-26260 |
GDH303..G |
1 | ||
| 72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1 | ||||
| 72129-26190 |
GDH303 |
1 | ||
| 72129S - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2 | ||||
| 72129-26200 |
GDH303 |
1 | ||
| 72170A - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-26330 |
GDH303..PREM |
1 | ||
| 72170-26250 |
GDH303..G |
1 | ||
| 72190E - TRACK ASSY, REAR SEAT, INNER LH | ||||
| 72190-26060 |
GDH303..G |
1 | ||
| 72190-26220 |
GDH303..PREM |
1 | ||
| 72275F - STOPPER, REAR SEAT TRACK SLIDE, LH NO.1 | ||||
| 72275-26050 |
GDH303 |
1 | ||
| Common parts | ||||
| 90176-10009 | ||||
