GDH303W-RDTJY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

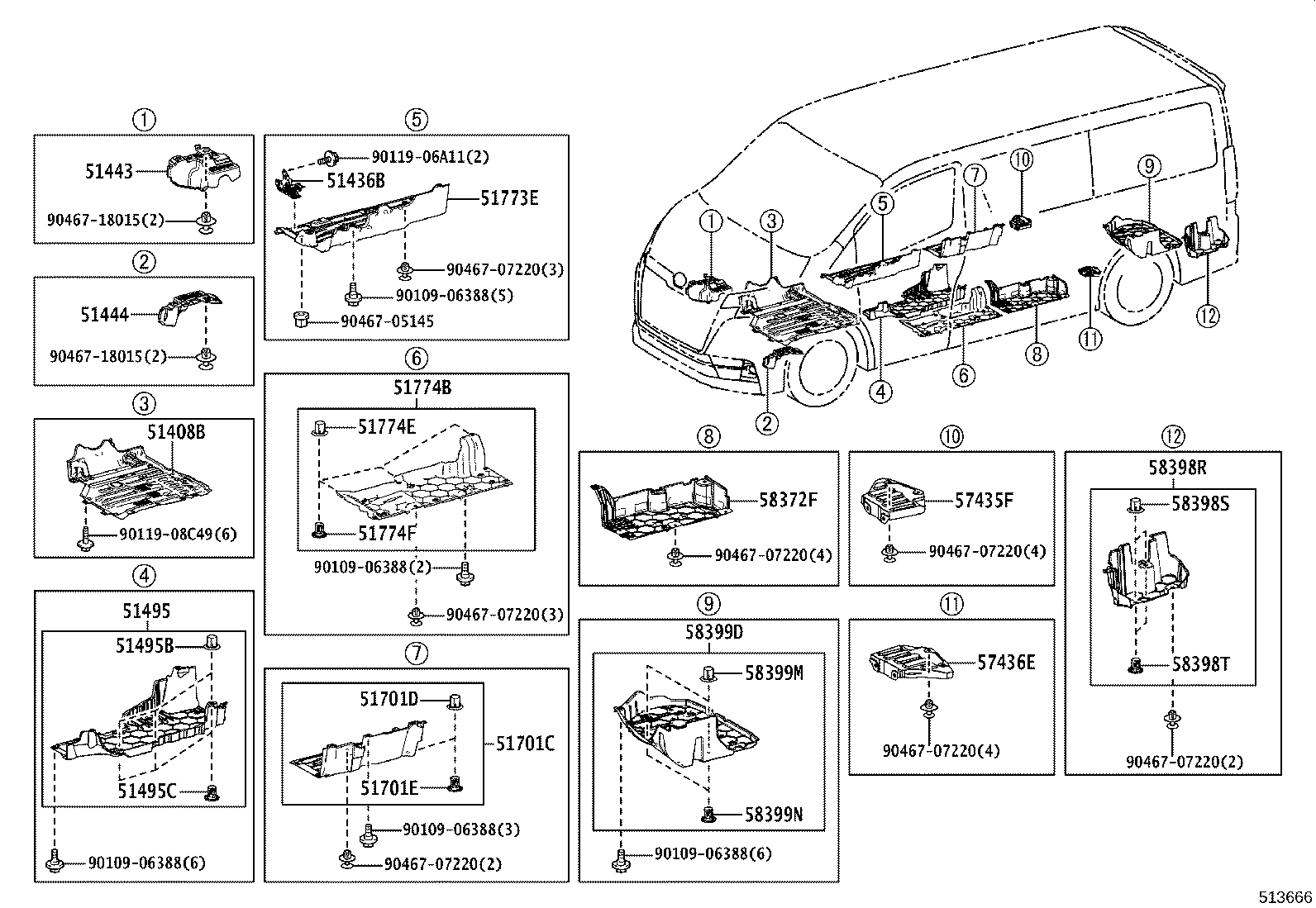

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
ｱﾝﾀﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-26090 |
GDH303 |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-26090 |
GDH303 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-26140 |
GDH303 |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-26100 |
GDH303 |
1 | ||
| 51495 - COVER, TRANSMISSION UNDER | ||||
| 51495-26010 |
GDH303 |
1 | ||
| 51495B - CLIP, TRANSMISSION UNDER COVER | ||||
| 90467-17026A0 |
GDH303 SUPER WHITE 2 |
3 | ||
| 51495C - CLIP, TRANSMISSION UNDER COVER | ||||
| 90467-17027C0 |
GDH303 BLACK |
3 | ||
| 51701C - COVER SUB-ASSY, STEP PLATE, RH | ||||
| 51701-26100 |
GDH303 |
1 | ||
| 51701D - CLIP, STEP PLATE COVER | ||||
| 90467-17026A0 |
GDH303 SUPER WHITE 2 |
1 | ||
| 51701E - CLIP, STEP PLATE COVER | ||||
| 90467-17027C0 |
GDH303 BLACK |
1 | ||
| 51773E - COVER, STEP PLATE, RH | ||||
| 51773-26060 |
GDH303 |
1 | ||
| 51774B - COVER, STEP PLATE, LH | ||||
| 51774-26090 |
GDH303 |
1 | ||
| 51774E - CLIP, STEP PLATE COVER | ||||
| 90467-17026A0 |
GDH303 SUPER WHITE 2 |
3 | ||
| 51774F - CLIP, STEP PLATE COVER | ||||
| 90467-17027C0 |
GDH303 BLACK |
3 | ||
| 57435F - PLATE, REAR STEP, LOWER RH | ||||
| 57435-26100 |
GDH303 |
1 | ||
| 57436E - PLATE, REAR STEP, LOWER LH | ||||
| 57436-26040 |
GDH303 |
1 | ||
| 58372F - COVER, REAR FLOOR STEP, NO.2 | ||||
| 58372-26030 |
GDH303 |
1 | ||
| 58398R - COVER, BODY LOWER BACK, LH | ||||
| 58398-26020 |
GDH303 |
1 | ||
| 58398S - CLIP, BODY LOWER BACK COVER | ||||
| 90467-17026A0 |
GDH303 SUPER WHITE 2 |
2 | ||
| 58398T - CLIP, BODY LOWER BACK COVER | ||||
| 90467-17027C0 |
GDH303 BLACK |
2 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-26010 |
GDH303 |
1 | ||
| 58399M - CLIP, FLOOR UNDER COVER, NO.1 | ||||
| 90467-17026A0 |
GDH303 SUPER WHITE 2 |
2 | ||
| 58399N - CLIP, FLOOR UNDER COVER, NO.2 | ||||
| 90467-17027C0 |
GDH303 BLACK |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06A11 | ||||
| 90119-08C49 | ||||
| 90467-05145 | ||||
| 90467-07220 | ||||
| 90467-18015 | ||||

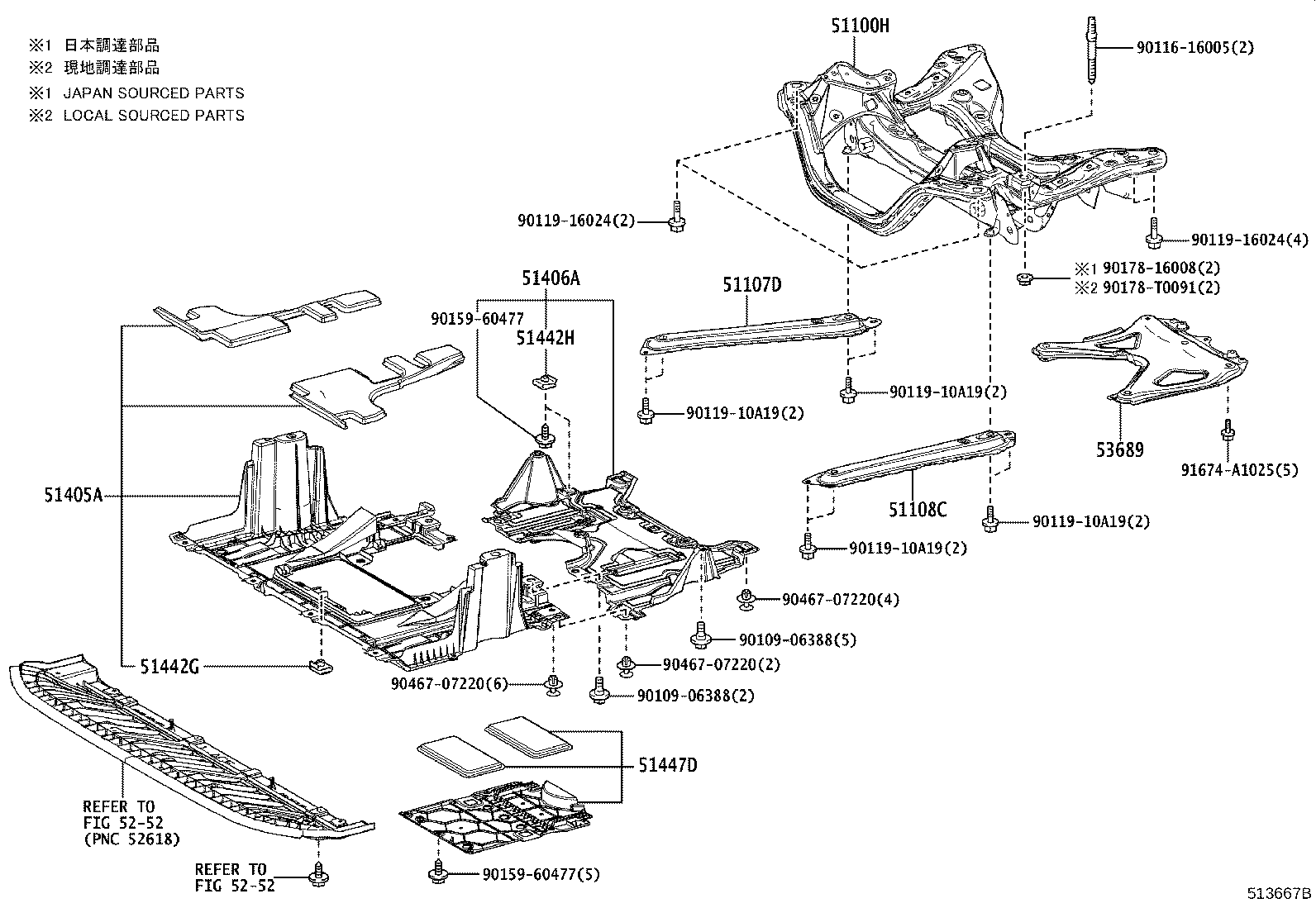

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100H - FRAME ASSY, FRONT | ||||
| 51100-26010 |
GDH303 |
1 | ||
| 51107D - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-26010 |
GDH303 |
1 | ||
| 51108C - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-26010 |
GDH303 |
1 | ||
| 51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1 | ||||
| 51405-26210 |
GDH303 |
1 | ||
| 51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2 | ||||
| 51406-26240 |
GDH303 |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-05176 |
GDH303 |
5 | ||
| 90179-06104 |
GDH303 |
5 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90179-06104 |
GDH303 |
1 | ||
| 90467-05176 |
GDH303 |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51409-26140 |
GDH303 |
1 | ||
| 53689 - BRACE, FRONT SUSPENSION, LOWER CENTER | ||||
| 53689-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90116-16005 | ||||
| 90119-10A19 | ||||
| 90119-16024 | ||||
| 90159-60477 | ||||
| 90178-16008 | ||||
| 90178-T0091 | ||||
| 90467-07220 | ||||
| 91674-A1025 | ||||
| Linked diagrams | ||||
| 5252 | ||||
