GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

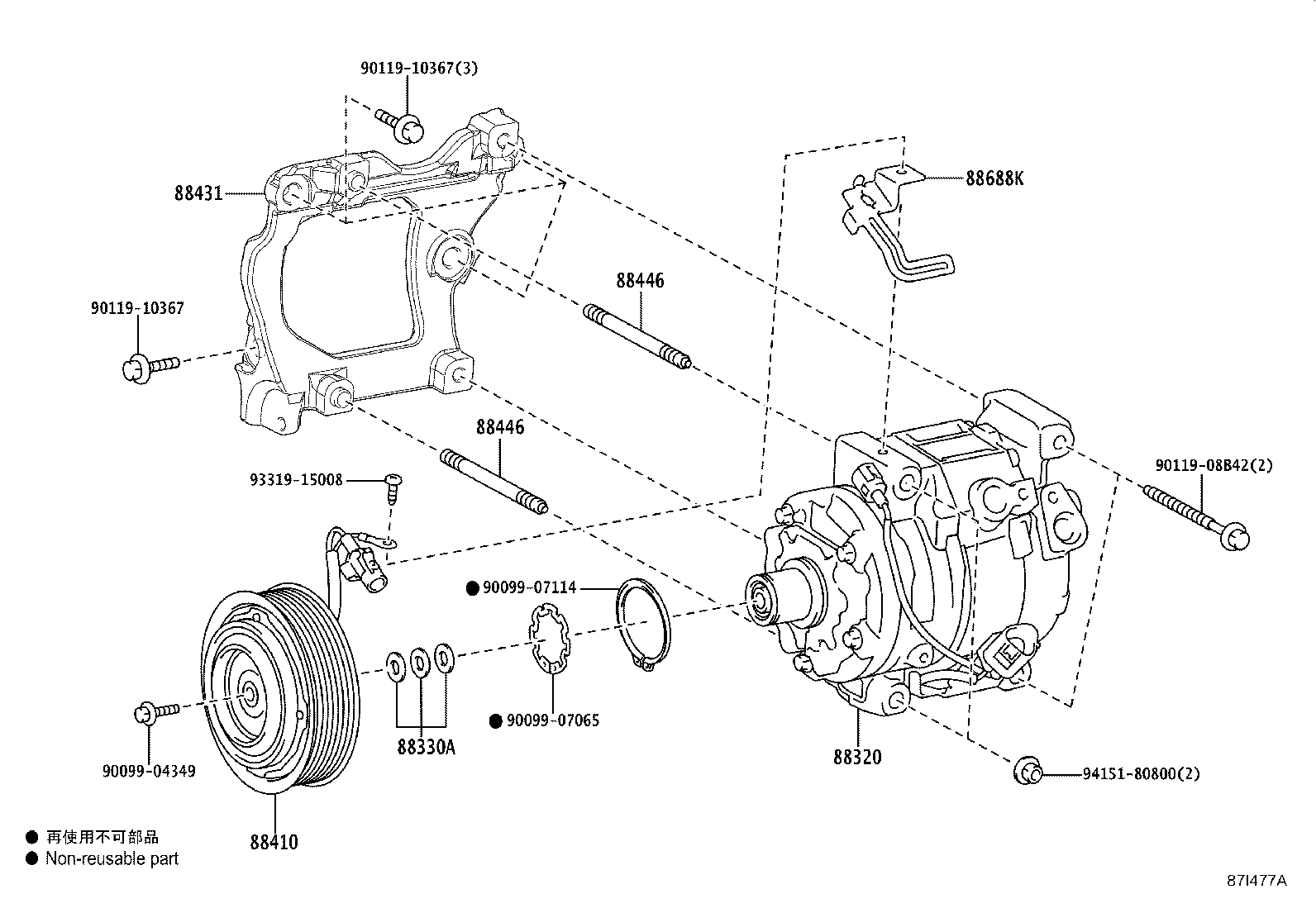

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26740 |
GDH303 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GDH303 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-60450 |
GDH303 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60330 |
GDH303 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60050 |
GDH303 |
2 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60050 |
GDH303 |
2 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-6B260 |
GDH303 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 90119-10367 | ||||
| 93319-15008 | ||||
| 94151-80800 | ||||
