GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(1912- )
Click highlighted areas on diagram
CONDENSER FAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793C - LABEL, COOLING FAN CAUTION | ||||
| 16793-31070 |
1GDFTV..GDH303 |
1 | ||
| 88453C - FAN, COOLING, NO.1 | ||||
| 88453-26030 |
GDH303 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-26120 |
GDH303 |
1 | ||
| 88467H - CUSHION, CONDENSER BRACKET, NO.1 | ||||
| 88467-20190 |
GDH303 |
2 | ||
| 88550L - MOTOR ASSY, COOLING FAN, NO.1 | ||||
| 88550-26120 |
GDH303 |
1 | ||
| 88590D - BLOWER ASSY, W/SHROUD, NO.1 | ||||
| 88590-26170 |
GDH303 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-26140 |
GDH303 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||

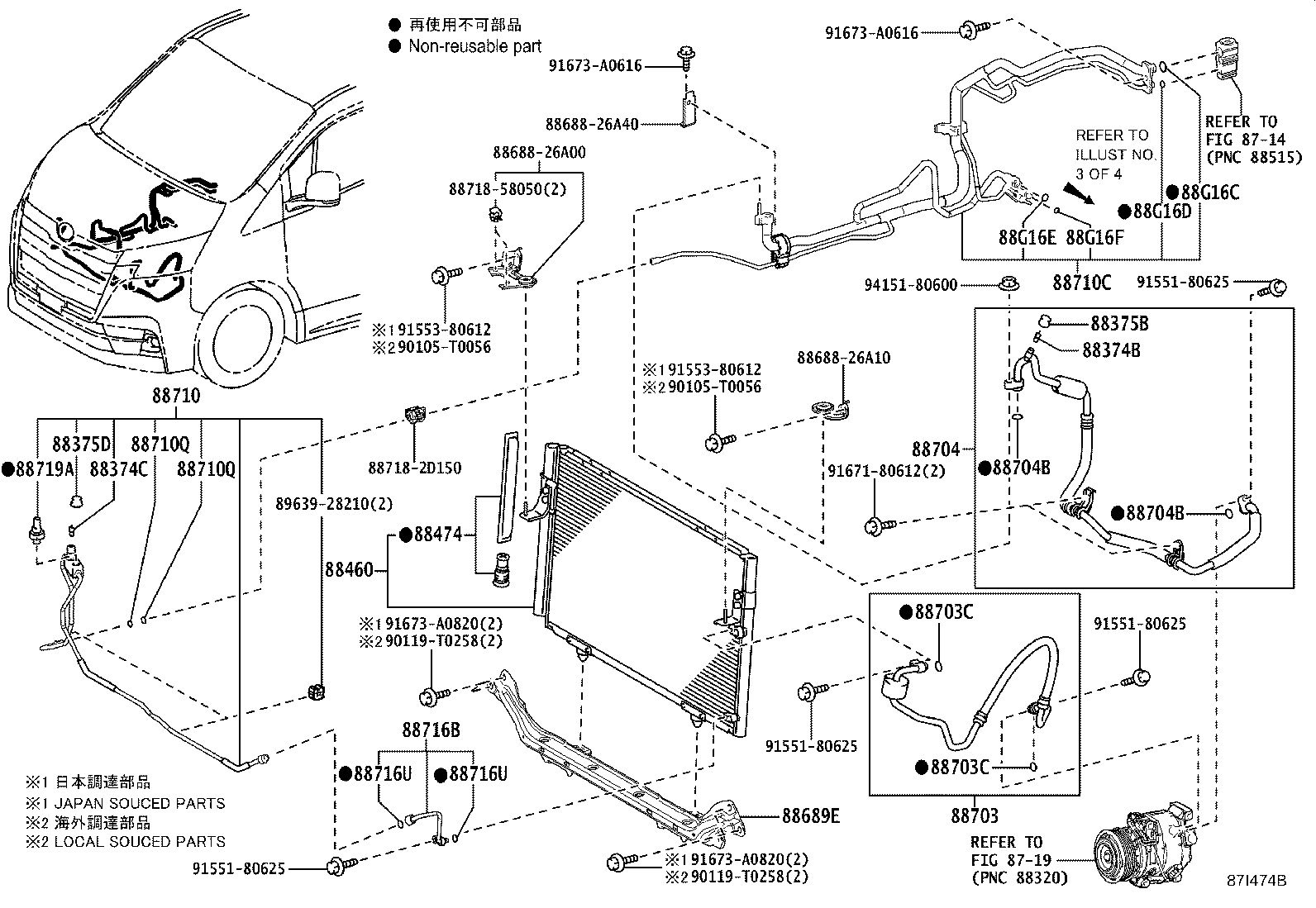

ILLUST NO. 2 OF 4(1912- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDH303 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDH303 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30310 |
GDH303 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30320 |
GDH303 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-26050 |
GDH303 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
GDH303 |
1 | ||
| 88689E - BRACKET, COOLER, NO.1 | ||||
| 88688-26A50 |
GDH303 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-26030 |
GDH303 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
2 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-26050 |
GDH303 |
1 | ||
| 88704-26060 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH303 内径=13.4,外径=18.2 |
2 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
GDH303 内径=13.4,外径=18.2 |
2 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26D70 |
GDH303 |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26D90 |
GDH303 |
1 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
2 | ||
| 88710Q - RING, O(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
2 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-26890 |
GDH303 |
1 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH303 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH303 |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
GDH303 |
1 | ||
| 88G16C - RING, O, NO.1(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14121 |
GDH303 内径=13.4,外径=18.2 |
1 | ||
| 88G16D - RING, O, NO.2(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
1 | ||
| 88G16E - RING, O, NO.3(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
1 | ||
| 88G16F - RING, O, NO.4(FOR TUBE ASSY, AIR CONDITIONER) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
1 | ||
| Common parts | ||||
| 88688-26A00 | ||||
| 88688-26A10 | ||||
| 88688-26A40 | ||||
| 88718-2D150 | ||||
| 88718-58050 | ||||
| 89639-28210 | ||||
| 90105-T0056 | ||||
| 90119-T0258 | ||||
| 91551-80625 | ||||
| 91553-80612 | ||||
| 91671-80612 | ||||
| 91673-A0616 | ||||
| 91673-A0820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

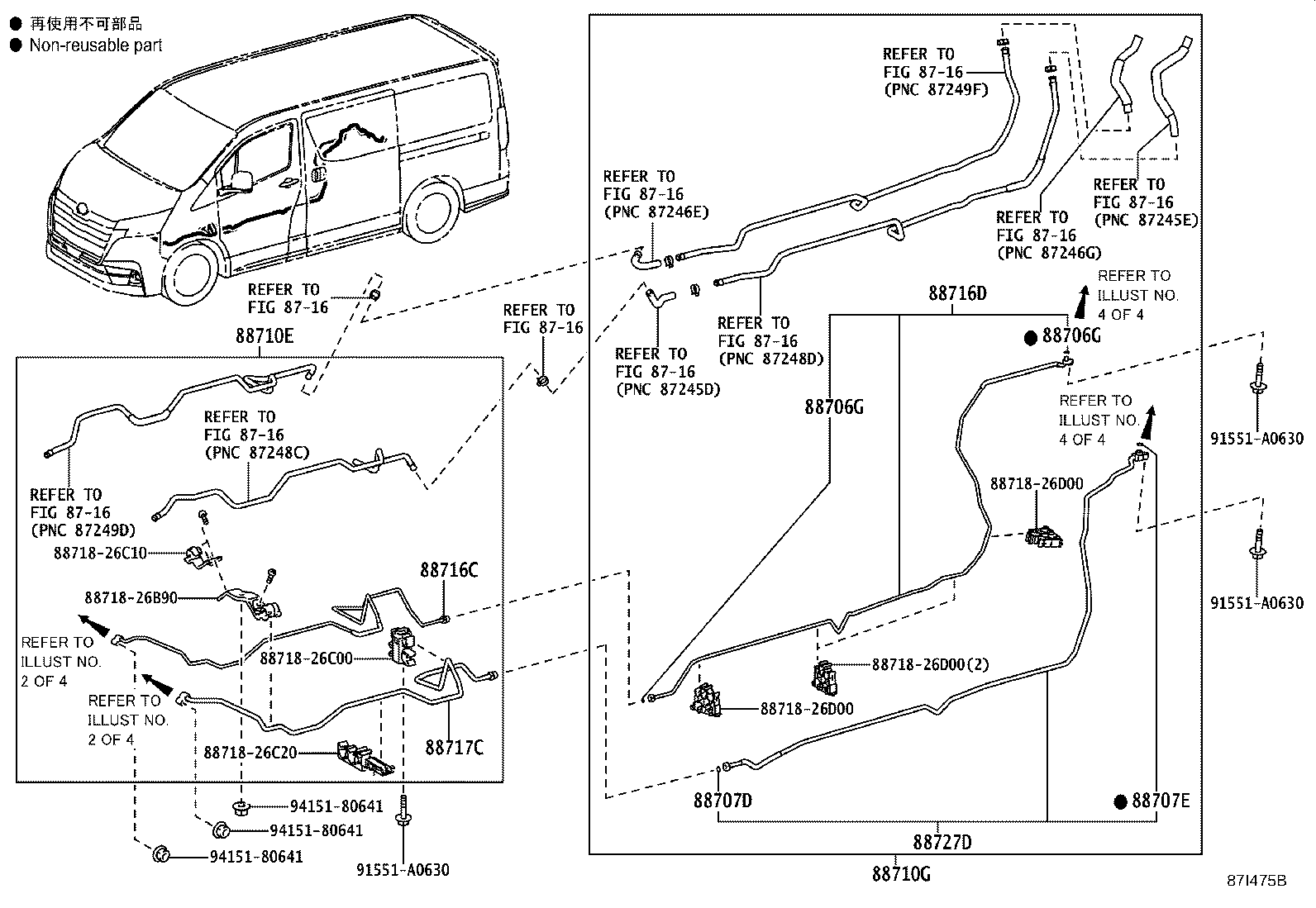

ILLUST NO. 3 OF 4(1912- )
Click highlighted areas on diagram
REAR(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
2 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
2 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
1 | ||
| 88707E - RING, O, NO.2(FOR SUCTION TUBE) | ||||
| 90099-14121 |
GDH303 内径=13.4,外径=18.2 |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-26B50 |
GDH303 |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-26B60 |
GDH303 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-26A50 |
GDH303 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-26A60 |
GDH303 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-26A60 |
GDH303 |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-26A70 |
GDH303 |
1 | ||
| Common parts | ||||
| 88718-26B90 | ||||
| 88718-26C00 | ||||
| 88718-26C10 | ||||
| 88718-26C20 | ||||
| 88718-26D00 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8716 | ||||

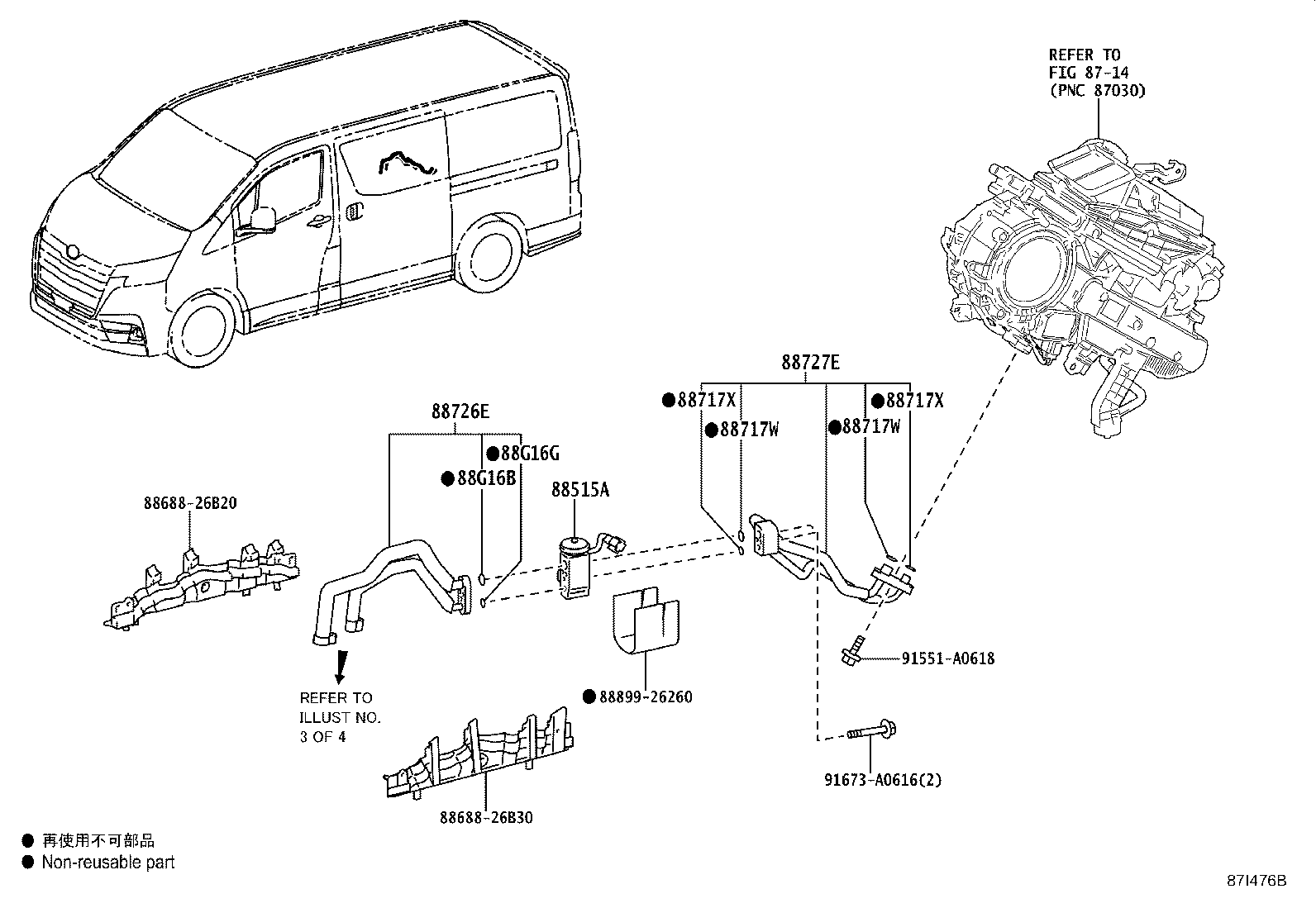

ILLUST NO. 4 OF 4(1912- )
Click highlighted areas on diagram
REAR(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-26130 |
GDH303 |
1 | ||
| 88717W - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2 | ||||
| 90099-14121 |
GDH303 |
1 | ||
| 88717W - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2 | ||||
| 90099-14121 |
GDH303 |
1 | ||
| 88717X - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3 | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
1 | ||
| 88717X - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.3 | ||||
| 90099-14120 |
GDH303 内径=10.8,外径=15.6 |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88710-26F40 |
GDH303 |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88710-26F50 |
GDH303 |
1 | ||
| 88G16B - RING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14121 |
GDH303 内径=13.4,外径=18.2 |
1 | ||
| 88G16G - RING, O, NO.3(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
GDH303 内径=6.7,外径=10.3 |
1 | ||
| Common parts | ||||
| 88688-26B20 | ||||
| 88688-26B30 | ||||
| 88899-26260 | ||||
| 91551-A0618 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
