GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

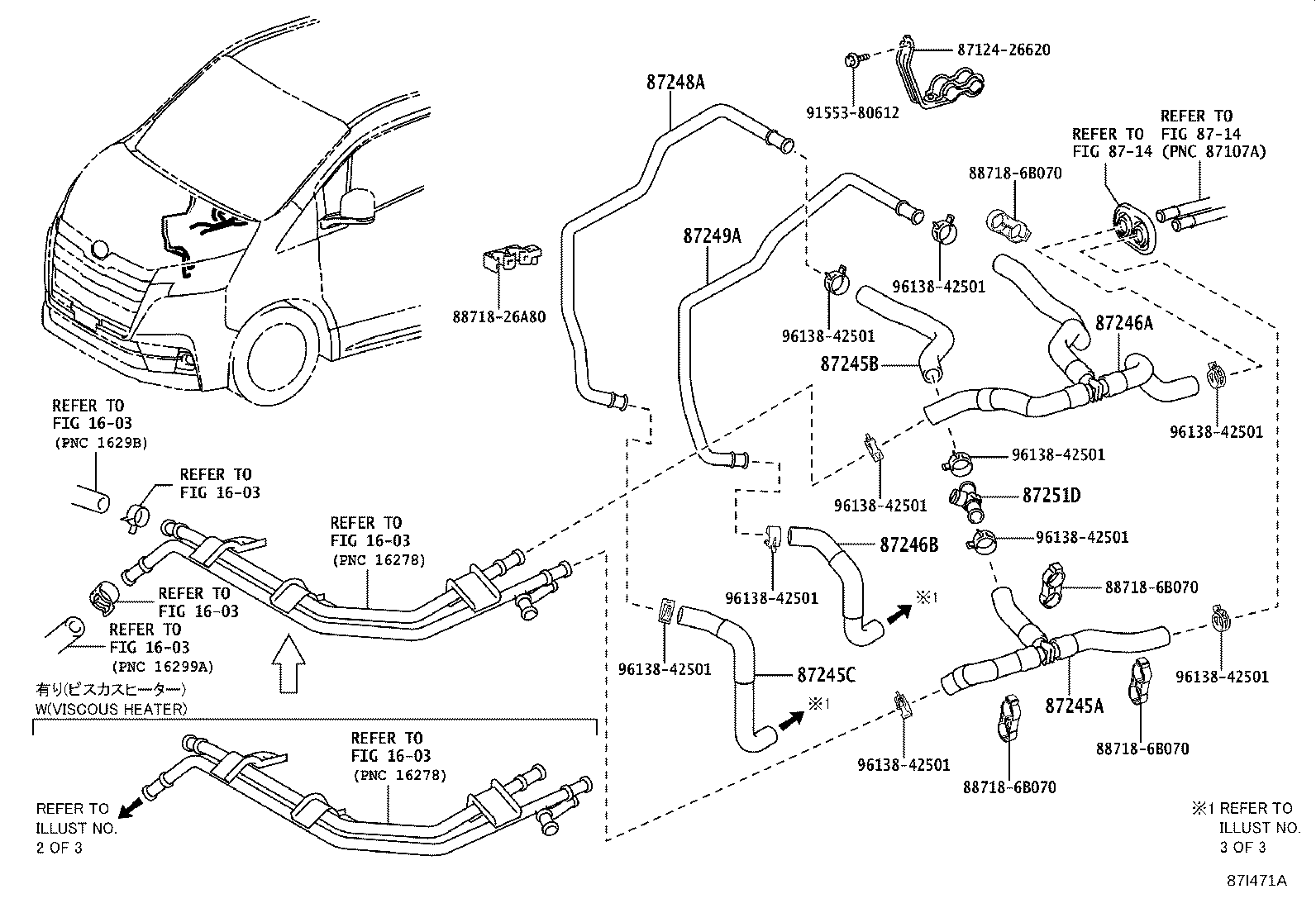

ILLUST NO. 1 OF 3(1912- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87209-26470 |
GDH303 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-26K60 |
GDH303 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-26K80 |
GDH303 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87209-26460 |
GDH303 |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87245-26K70 |
GDH303 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-26D80 |
GDH303 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-26D70 |
GDH303 |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87251-78010 |
GDH303 |
1 | ||
| Common parts | ||||
| 87124-26620 | ||||
| 88718-26A80 | ||||
| 88718-6B070 | ||||
| 91553-80612 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||

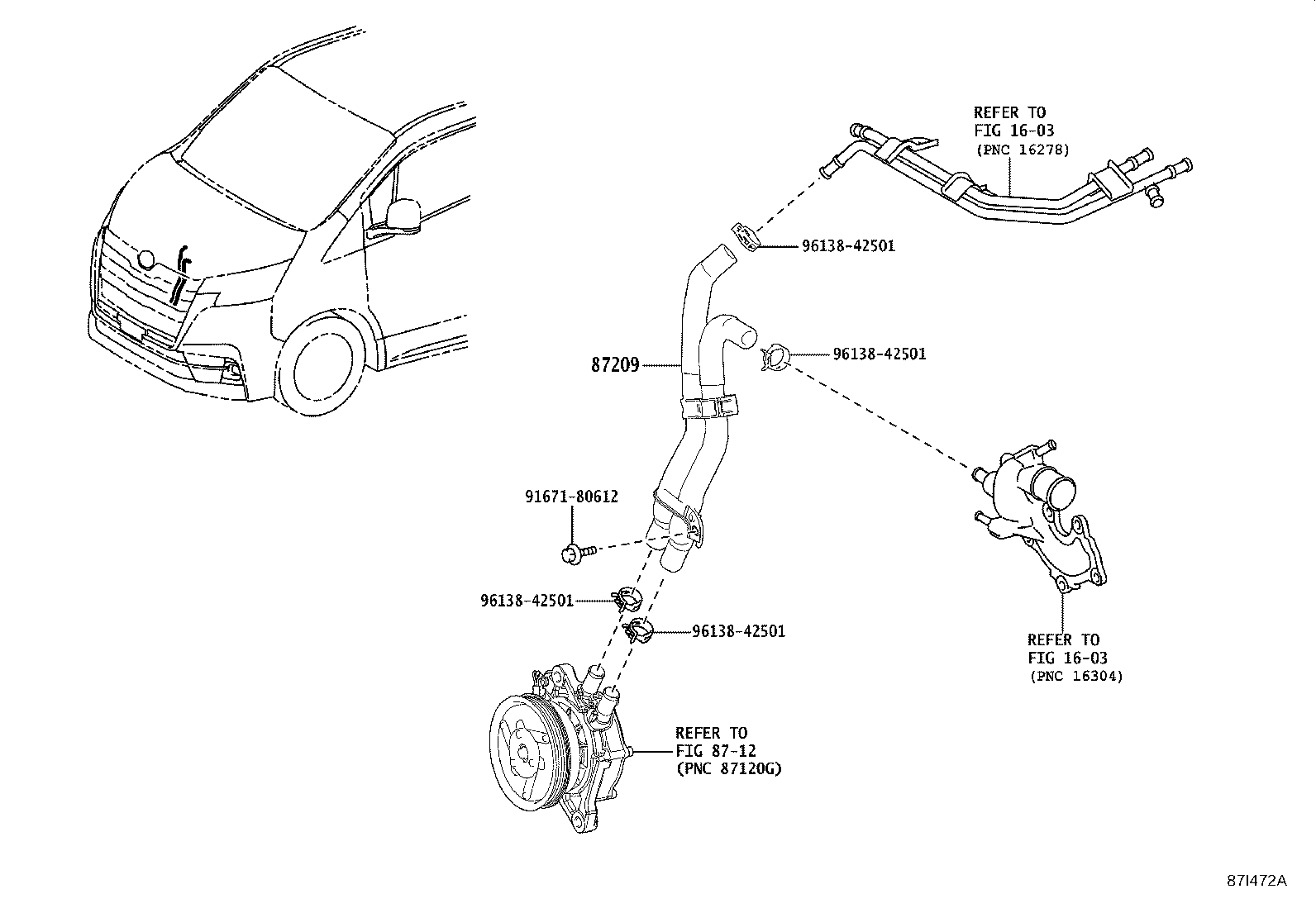

ILLUST NO. 2 OF 3(1912- )
Click highlighted areas on diagram
W(VISCOUS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-26310 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| Common parts | ||||
| 91671-80612 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||

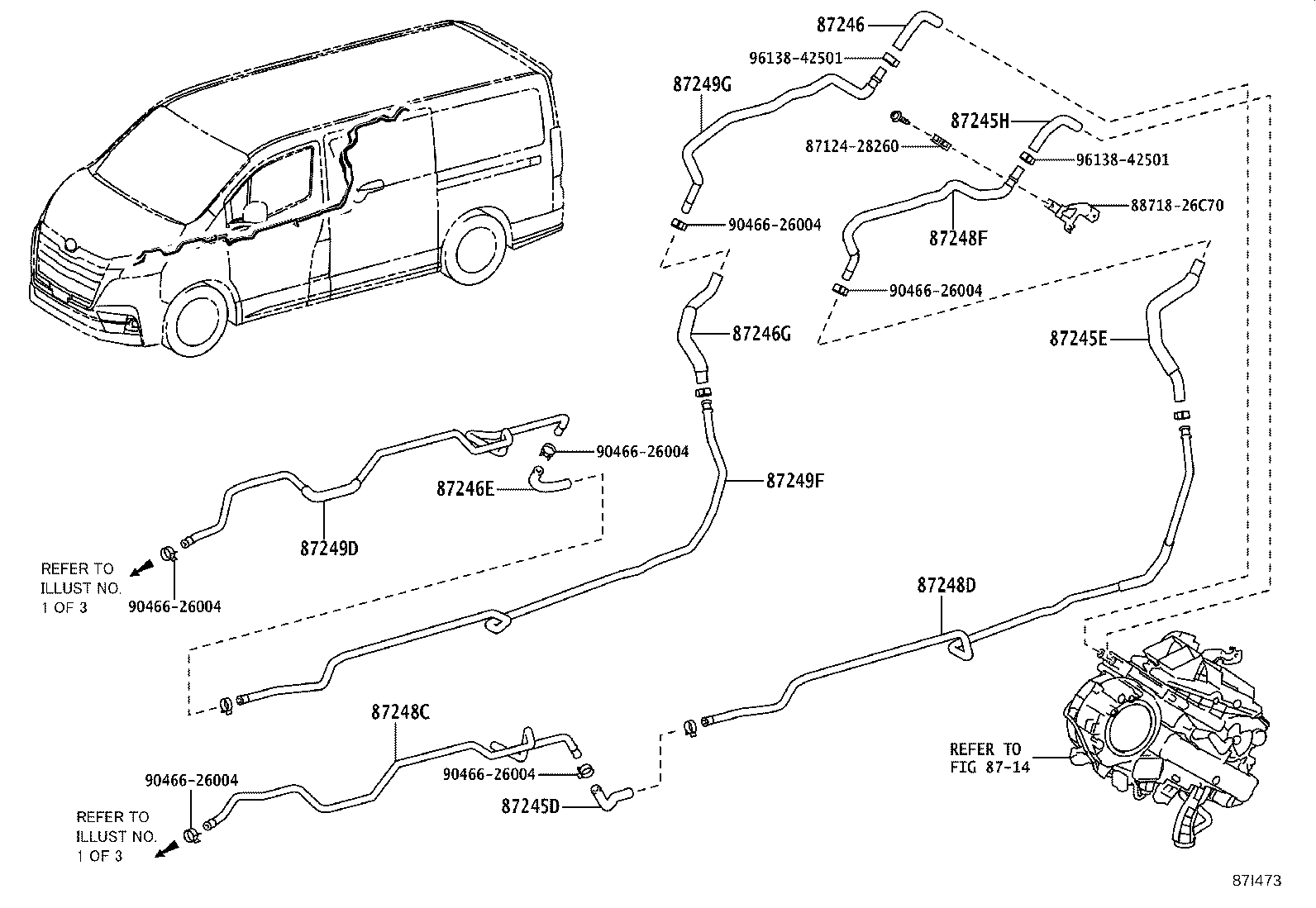

ILLUST NO. 3 OF 3(1912- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-26M30 |
GDH303 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-26N40 |
GDH303 |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-26M80 |
GDH303 |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-26M90 |
GDH303 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-26M40 |
GDH303 |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-26N50 |
GDH303 |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-26F70 |
GDH303 |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-26G10 |
GDH303 |
1 | ||
| 87248F - PIPE, HEATER WATER INLET, F | ||||
| 87248-26F90 |
GDH303 |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-26F80 |
GDH303 |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87248-26G20 |
GDH303 |
1 | ||
| 87249G - PIPE, HEATER WATER OUTLET, G | ||||
| 87248-26G00 |
GDH303 |
1 | ||
| Common parts | ||||
| 87124-28260 | ||||
| 88718-26C70 | ||||
| 90466-26004 | ||||
| 96138-42501 | ||||
| Linked diagrams | ||||
| 8714 | ||||
