GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(1912- )

Click highlighted areas on diagram

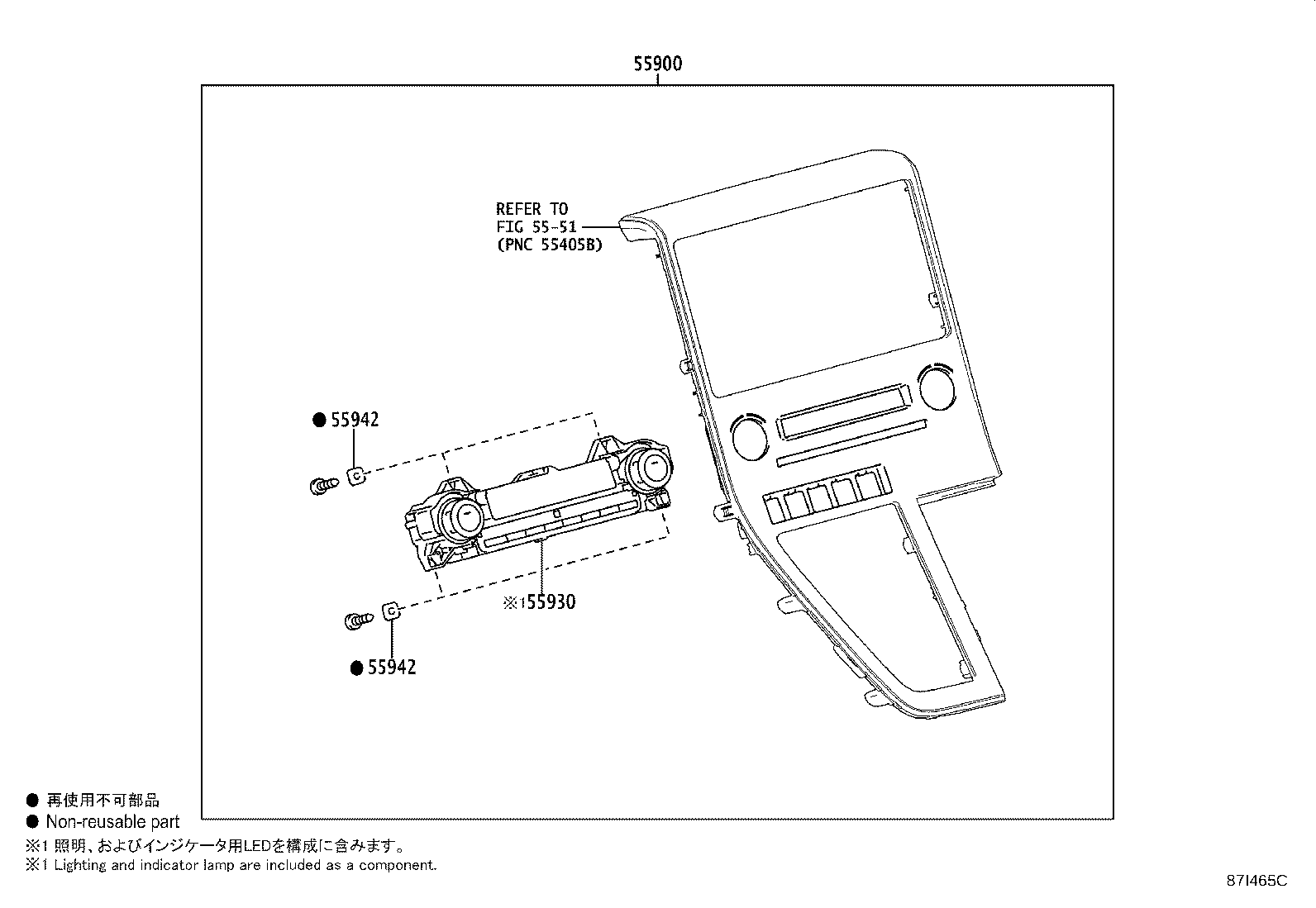

FRONT HEATER CONTROL

diagram 5551 55900 55930 55942 55942
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-26760

GDH303

 1
55930 - CONTROL ASSY, CENTER CLUSTER MODULE
55930-26020

GDH303

 1
55942 - GUARD, HEATER CONTROL
55942-26010

GDH303

 4
55942 - GUARD, HEATER CONTROL
55942-26010

GDH303

 4
Linked diagrams
5551

ILLUST NO. 2 OF 5(1912- )

Click highlighted areas on diagram

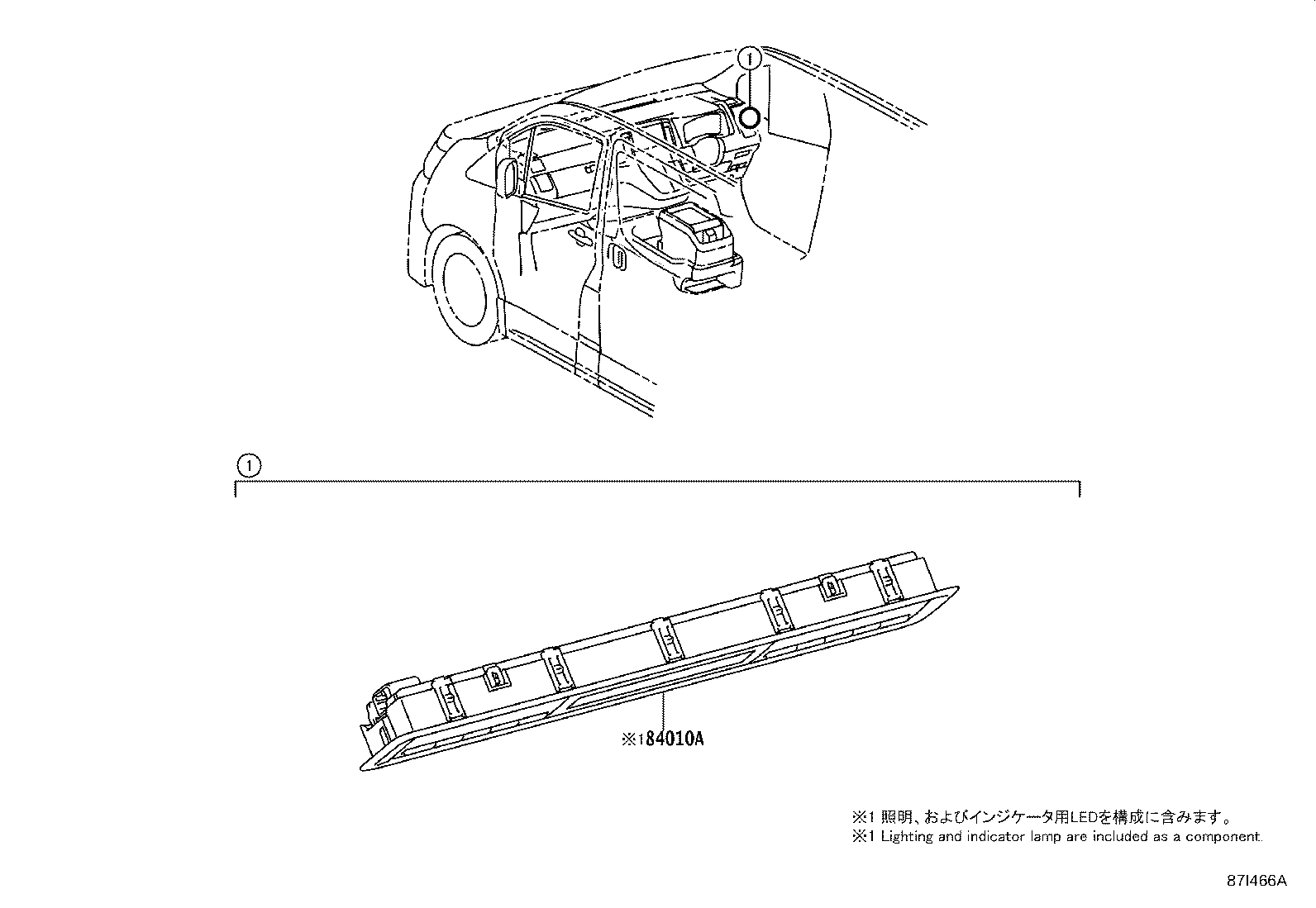

REAR HEATER CONTROL

diagram 84010A
Part # Description Qty Price
84010A - CONTROL & PANEL ASSY, INTEGRATION
84010-26130C0

GDH303

BLACK,TRIM2#

 1

ILLUST NO. 3 OF 5(1912- )

Click highlighted areas on diagram

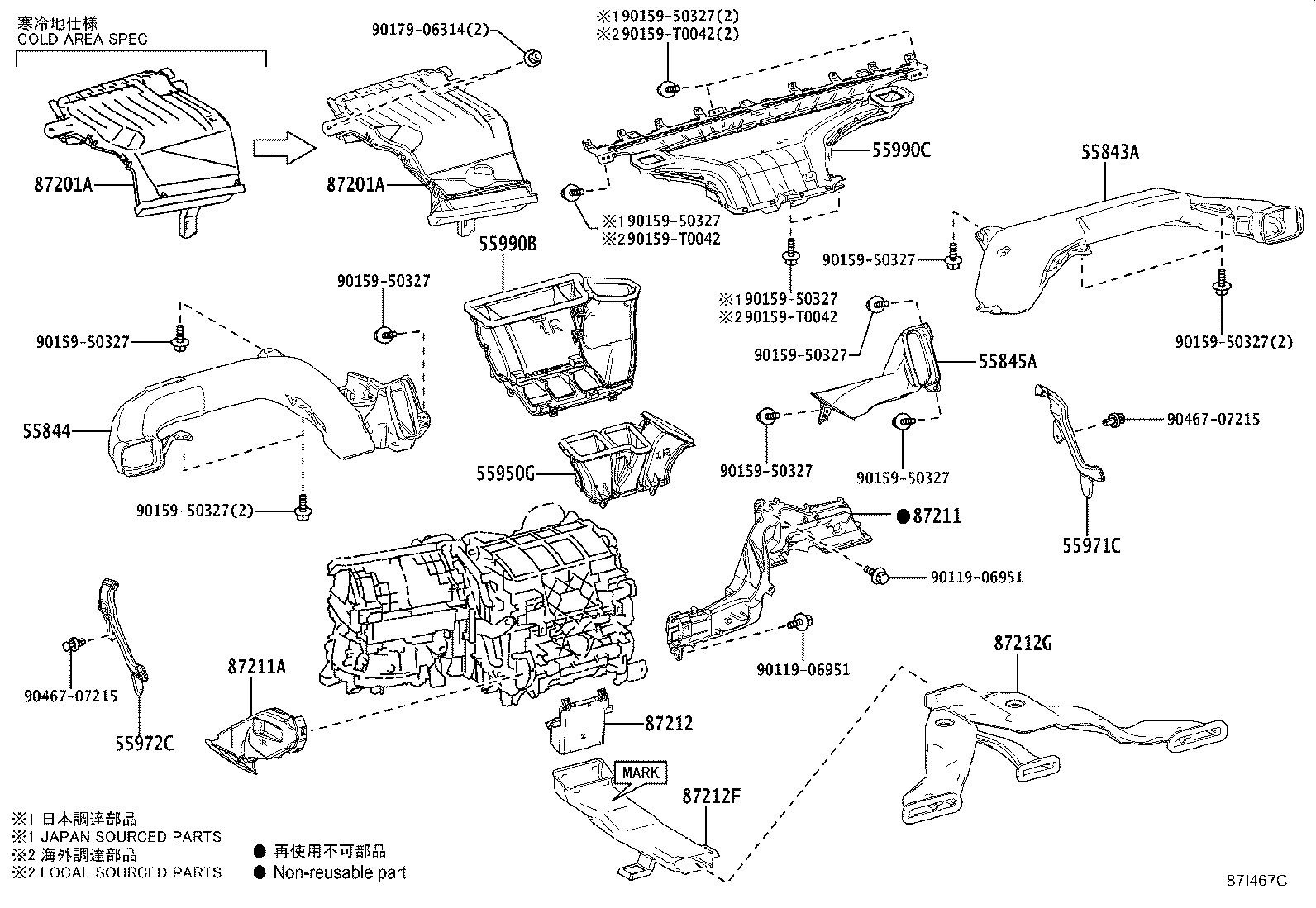

FRONT AIR DUCT

diagram 55843A 55844 55845A 55950G 55971C 55972C 55990B 55990C 87201A 87201A 87211 87211A 87212 87212F 87212G 9011906951 9011906951 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 9015950327 90159T0042 90159T0042 90159T0042 9017906314 9046707215 9046707215
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-26150

GDH303

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55085-26010

GDH303

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55844-26050

GDH303

 1
55950G - NOZZLE ASSY, DEFROSTER
55960-26010

GDH303

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-26070

GDH303

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-26070

GDH303

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-26010

GDH303

 1
55990C - NOZZLE ASSY, CENTER DEFROSTER
55950-26060

GDH303

 1
87201A - DUCT SUB-ASSY, AIR
87201-26100

GDH303

 1
87201-26120

GDH303

寒冷地仕様(−20℃地域)

 1
87201A - DUCT SUB-ASSY, AIR
87201-26100

GDH303

 1
87201-26120

GDH303

寒冷地仕様(−20℃地域)

 1
87211 - DUCT, AIR, NO.1
87211-26210

GDH303

 1
87211A - DUCT, AIR, NO.2
87211-26220

GDH303

 1
87212 - DUCT, AIR, REAR NO.1
87211-26250

GDH303

 1
87212F - DUCT, AIR, REAR NO.2
87212-26131

GDH303

ﾏｰｸ=87212−26131

 1
87212G - DUCT, AIR, REAR NO.3
87212-26100

GDH303

 1
Common parts
90119-06951
90159-50327
90159-T0042
90179-06314
90467-07215

ILLUST NO. 4 OF 5(1912- )

Click highlighted areas on diagram

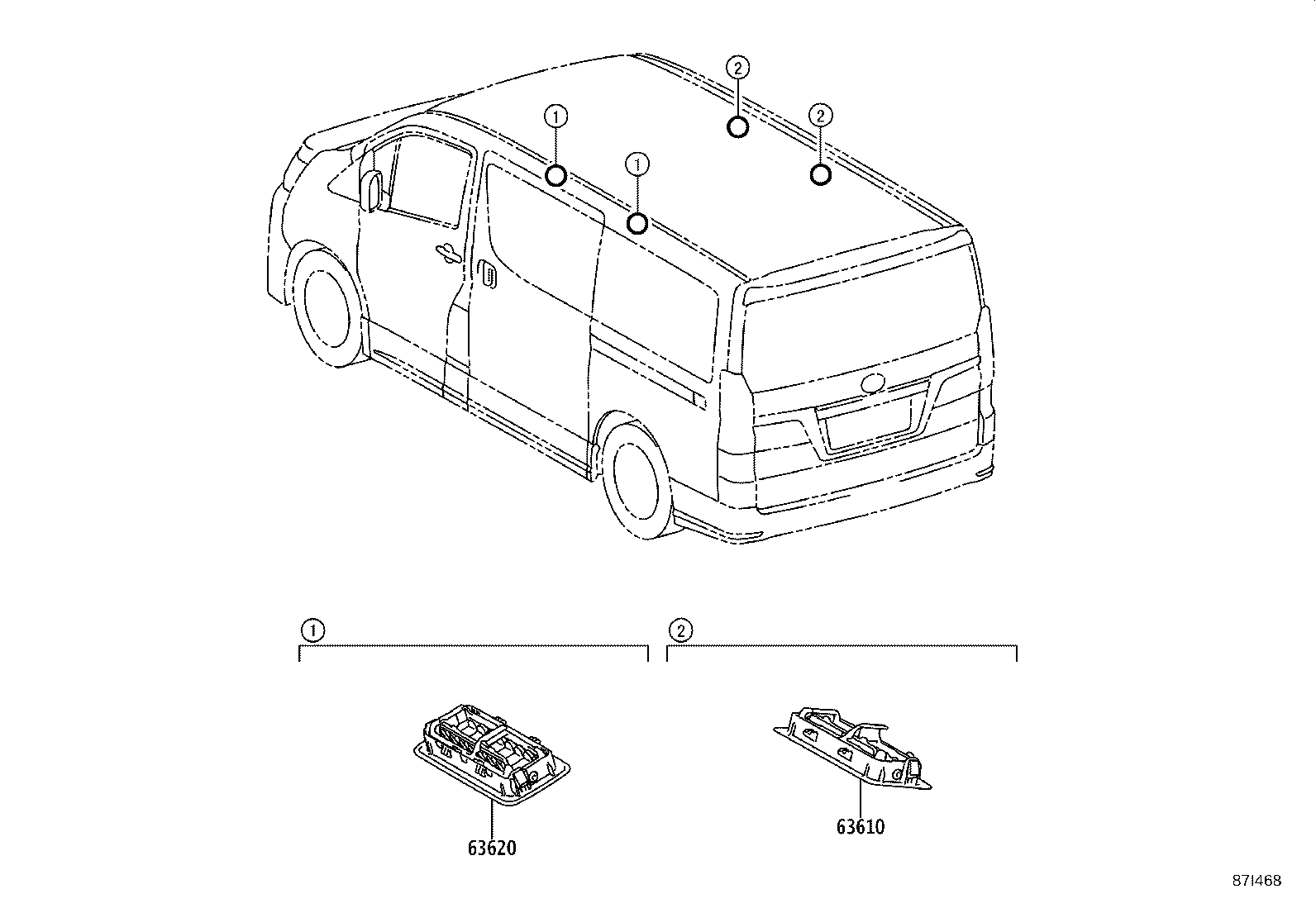

REAR AIR DUCT(1/2)

diagram 63610 63620
Part # Description Qty Price
63610 - REGISTER ASSY, AIR OUTLET, NO.1
63610-26170A0

GDH303..G

FROMAGE,TRIM2#

 2
63620 - REGISTER ASSY, AIR OUTLET, NO.2
63610-26240A0

GDH303..G

FROMAGE,TRIM2#

 2

ILLUST NO. 4 OF 5(1912- )

Click highlighted areas on diagram

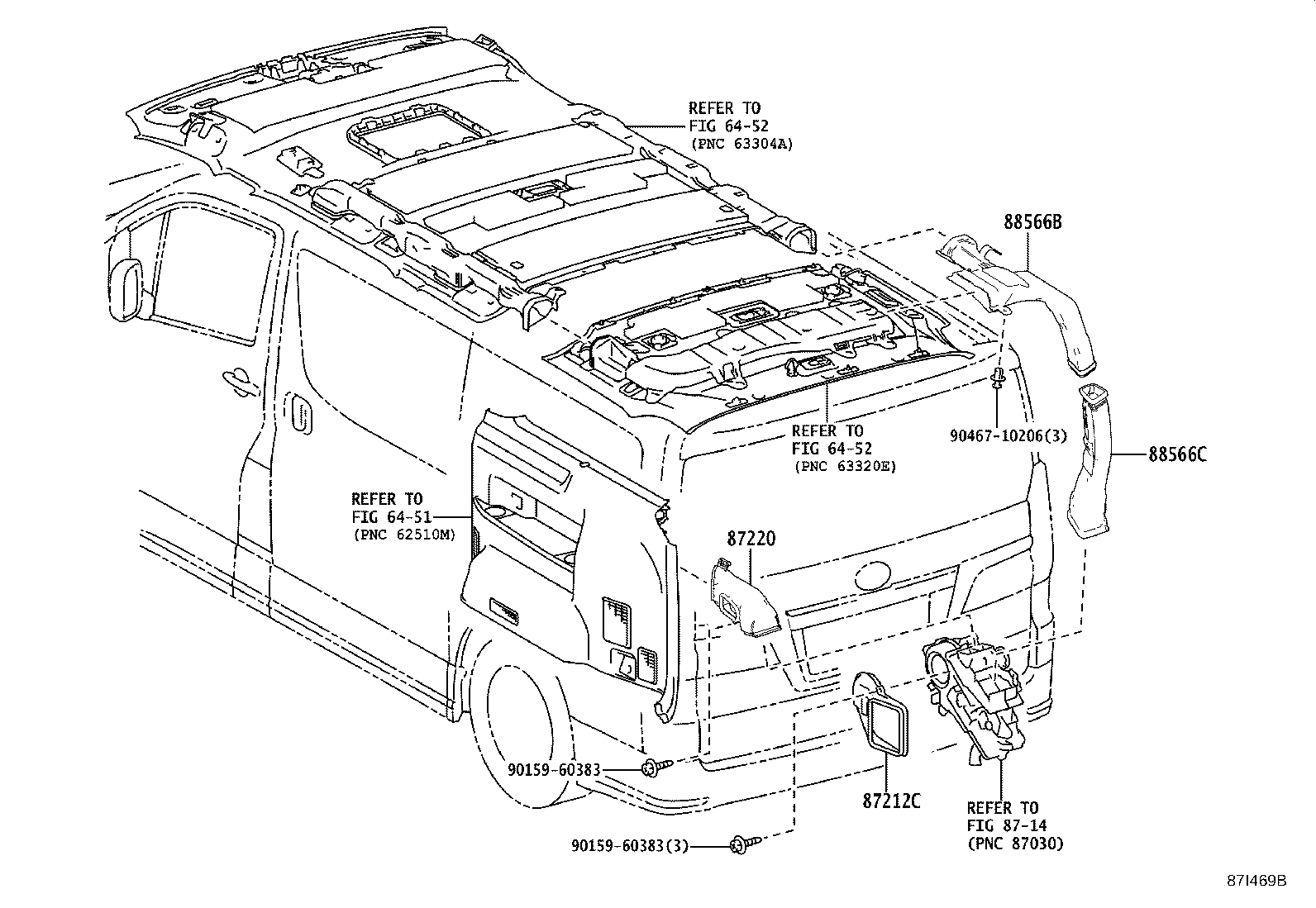

REAR AIR DUCT(2/2)

diagram 6451 6452 6452 8714 87212C 87220 88566B 88566C 9015960383 9015960383 9046710206
Part # Description Qty Price
87212C - DUCT, AIR, RR
87212-26160

GDH303

 1
87220 - DUCT ASSY, AIR
87220-26010

GDH303

 1
88566B - DUCT, COOLER AIR, NO.2
88566-26220

GDH303

 1
88566C - DUCT, COOLER AIR, NO.3
88566-26090

GDH303

 1
Common parts
90159-60383
90467-10206
Linked diagrams
6451
6452
8714

ILLUST NO. 5 OF 5(1912- )

Click highlighted areas on diagram

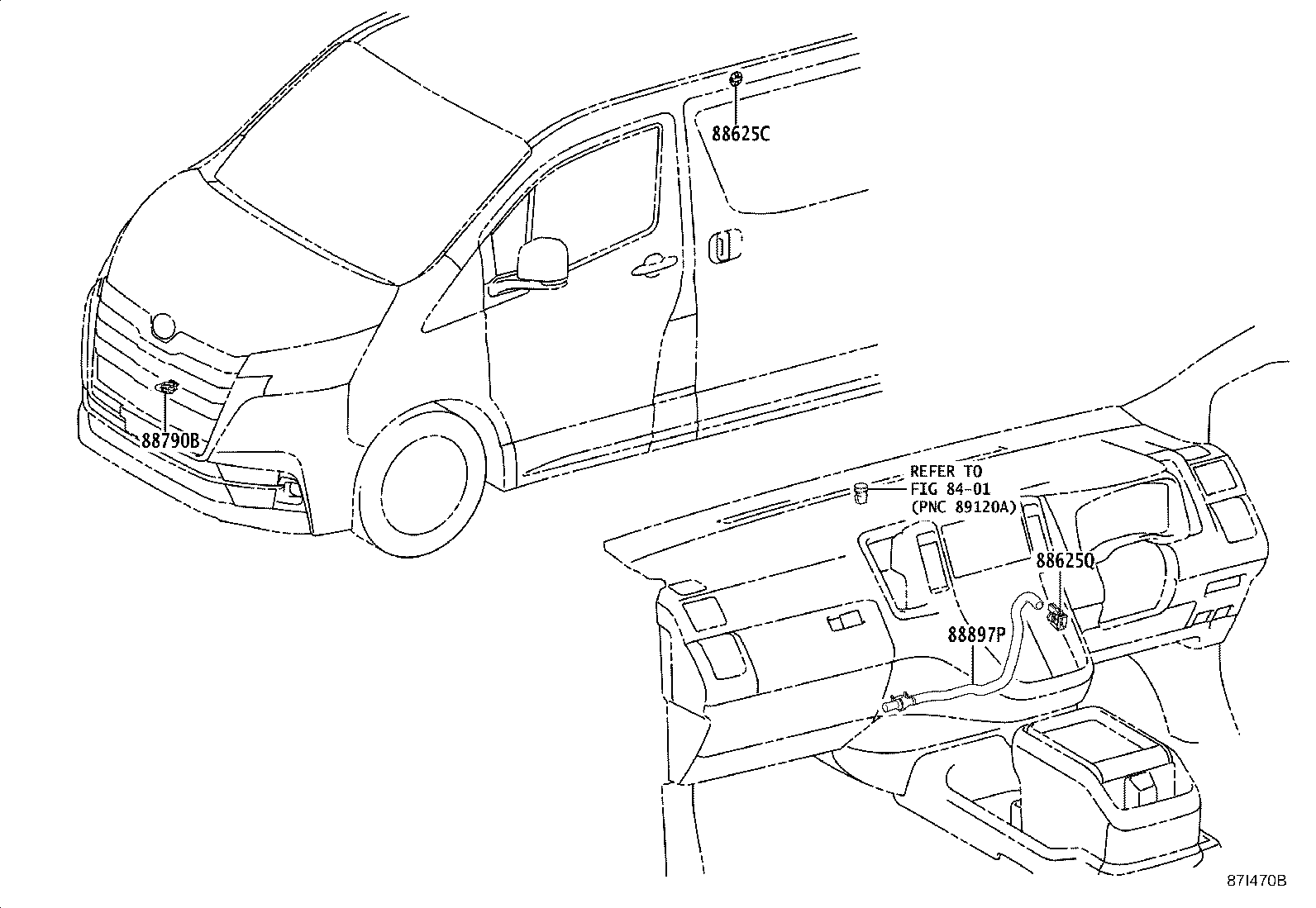

SENSOR

diagram 8401 88625C 88625Q 88790B 88897P
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-45020C1

GDH303

BLACK,TRIM2#

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GDH303

 1
88790B - THERMISTOR ASSY
88790-28100

GDH303

(J)

 1
88790-0K010

GDH303

(L)

 1
88897P - ASPIRATOR
88505-26030

GDH303

 1
Linked diagrams
8401
