GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

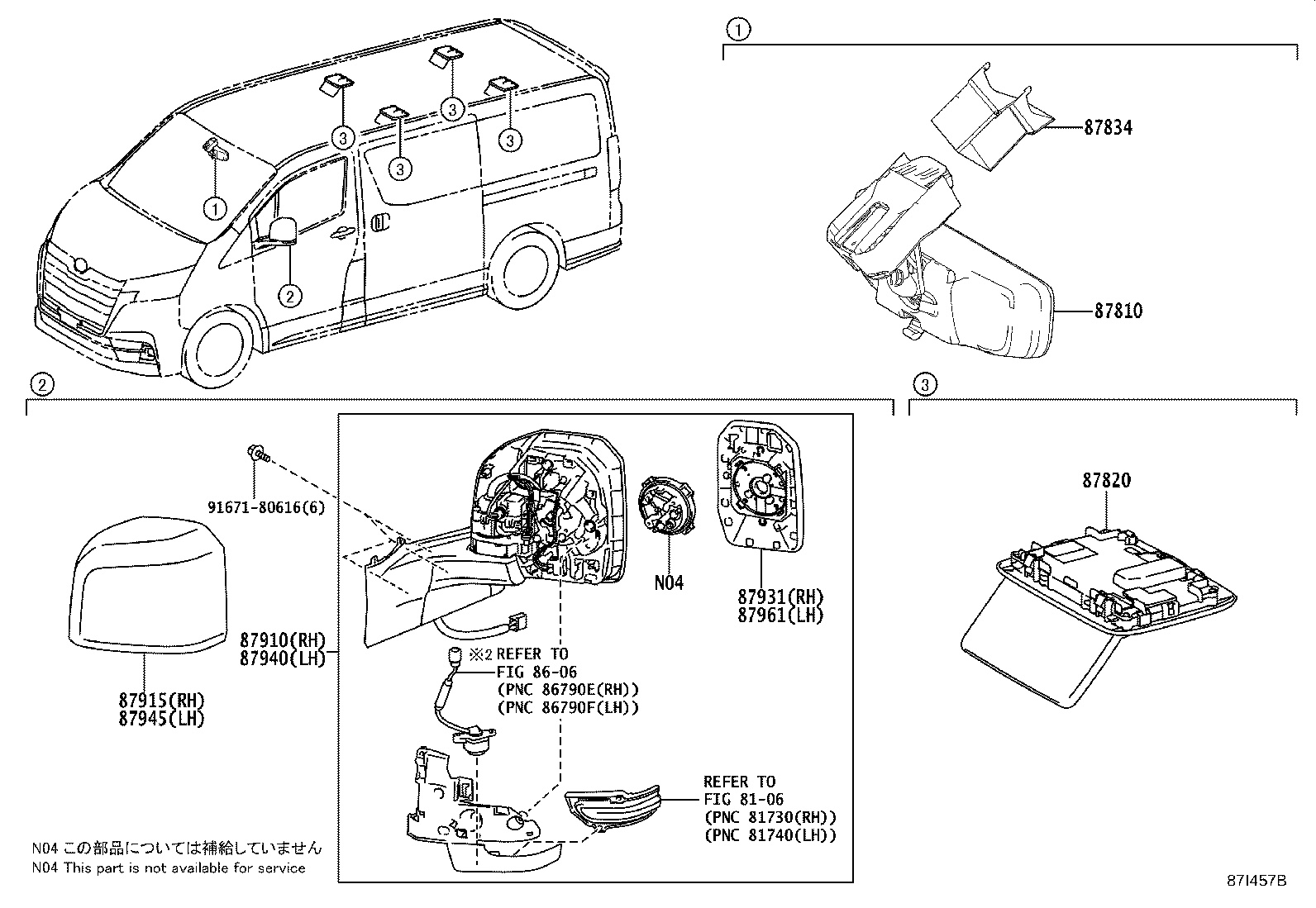

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WW90 |
GDH303 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87818-26040 |
GDH303 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-26740 |
GDH303 塗装不要 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-26030 |
GDH303 ﾒｯｷ |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-26730 |
GDH303 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-26820 |
GDH303 塗装不要 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-26050 |
GDH303 ﾒｯｷ |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-26810 |
GDH303 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
