GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

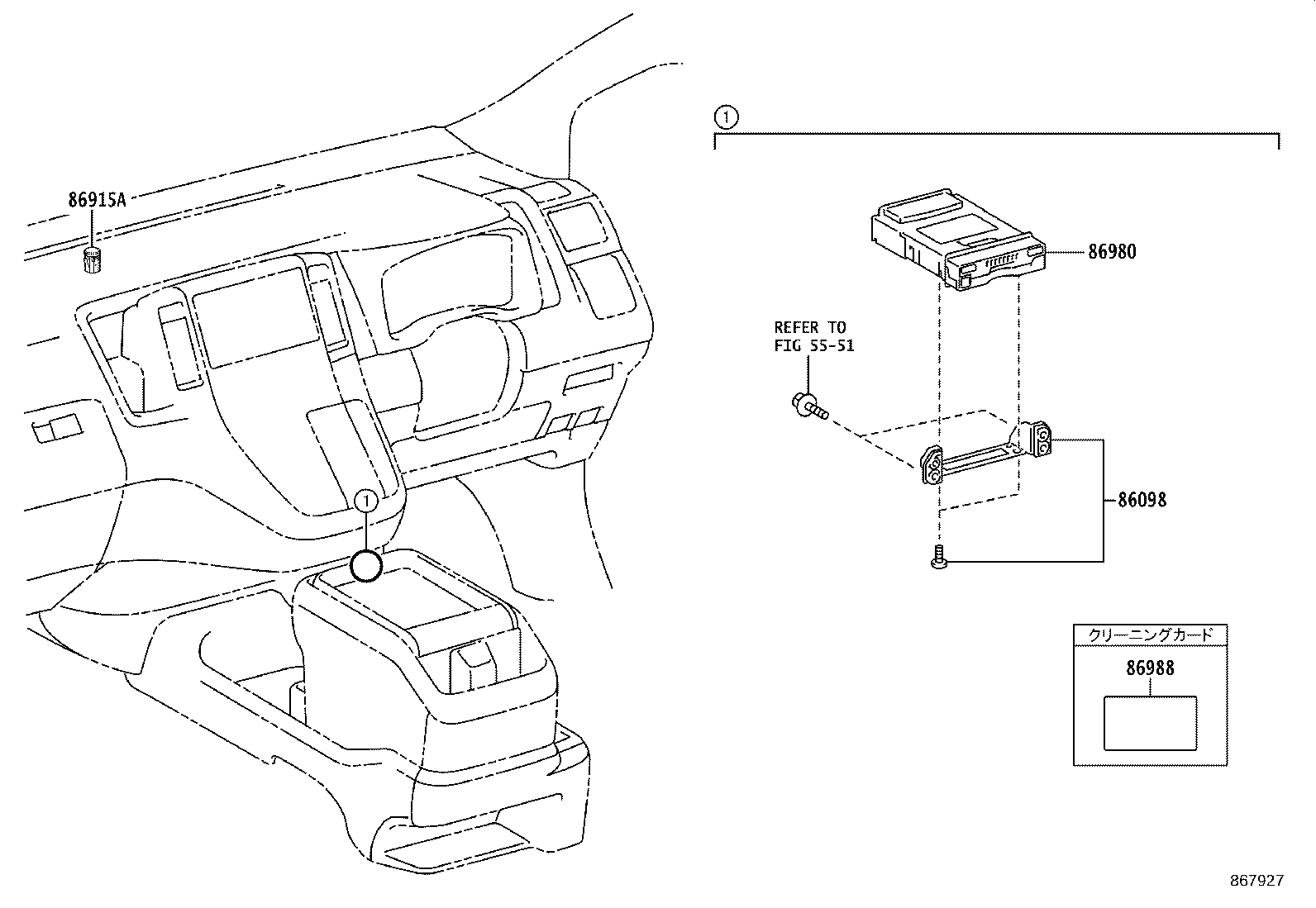

Click highlighted areas on diagram

diagram 5551 86098 86915A 86980 86988
Part # Description Qty Price
86098 - ACCESSORY SET, TOLL COLLECTION
86098-26010

GDH303

ETC−ETC&DOP DSRC

 1
86915A - TRANSCEIVER, OPTICAL BEACON
86915-60010

GDH303

ETC−ETC&DOP DSRC

 1
86980 - COMPUTER ASSY, TOLL COLLECTION
86980-K0010

GDH303

ETC−ETC&DOP DSRC

 1
86988 - CARD, TOLL COLLECTION CLEANING
86988-11010

GDH303

ETC−ETC&DOP DSRC

 1
Linked diagrams
5551
