GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

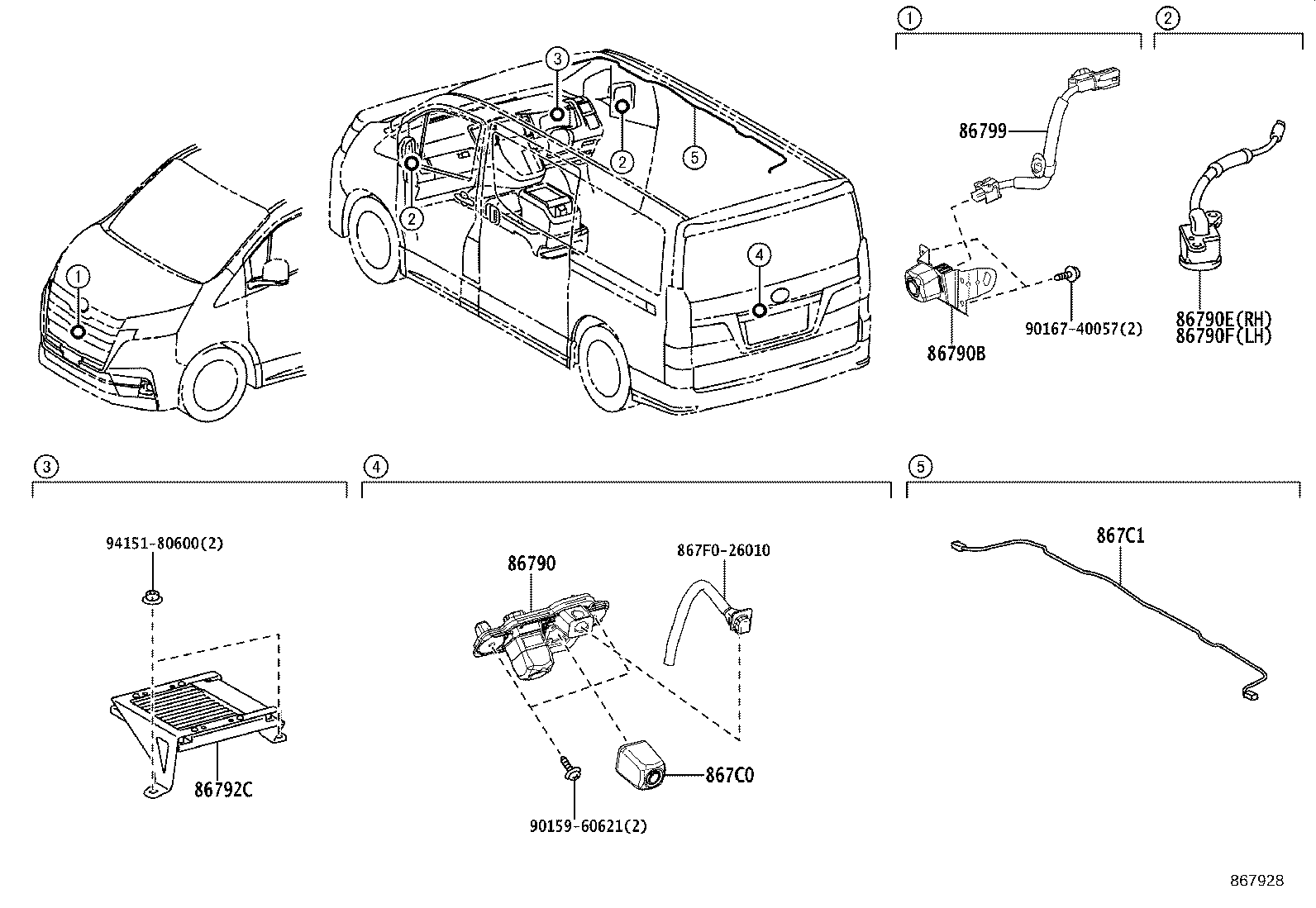

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 867B0-26030 |
GDH303 |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-26070 |
GDH303 |
1 | ||
| 86790E - CAMERA ASSY, TELEVISION, SIDE RH | ||||
| 86790-26090 |
GDH303 |
1 | ||
| 86790F - CAMERA ASSY, TELEVISION, SIDE LH | ||||
| 86790-26080 |
GDH303 |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-26080 |
GDH303 |
1 | ||
| 86799 - WIRE, TELEVISION CAMERA | ||||
| 86799-26060 |
GDH303 |
1 | ||
| 867C0 - CAMERA ASSY, INNER MIRROR | ||||
| 867C0-26010 |
GDH303 |
1 | ||
| 867C1 - WIRE, MIRROR CAMERA | ||||
| 867C1-26100 |
GDH303 |
1 | ||
| Common parts | ||||
| 867F0-26010 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 94151-80600 | ||||
