GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

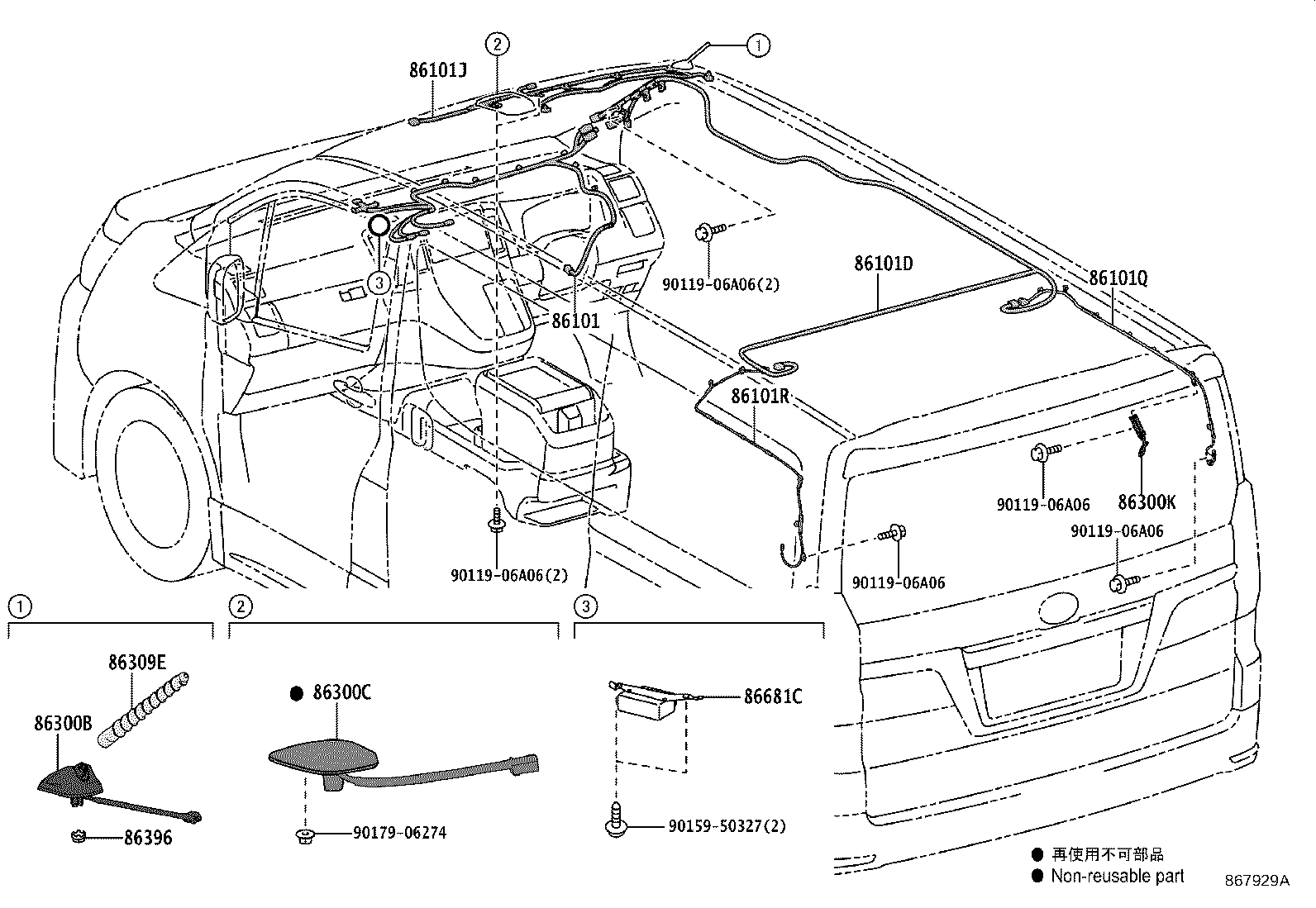

Click highlighted areas on diagram

diagram 86101 86101D 86101J 86101Q 86101R 86300B 86300C 86300K 86309E 86396 86681C 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9015950327 9017906274
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-26480

GDH303

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86101-26630

GDH303..G

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-26510

GDH303

 1
86101Q - CORD SUB-ASSY, ANTENNA, NO.4
86101-26530

GDH303

 1
86101R - CORD SUB-ASSY, ANTENNA, NO.5
86101-26550

GDH303

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-26240

GDH303

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86760-26010B3

GDH303

GRAY ME.,1G3

 1
86760-26010A1

GDH303

WHITE PEARL CS.,070 ,2QD

 1
86760-26010B2

GDH303

SILVER ME.,1F7

 1
86760-26010C1

GDH303

BLACK,202

 1
86300K - ANTENNA ASSY, AMPLIFIER, NO.3
86300-26230

GDH303

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-26030

GDH303

 1
86396 - NUT, ANTENNA
86396-47010

GDH303

 1
86681C - DIVIDER, ANTENNA
86681-26050

GDH303

 1
Common parts
90119-06A06
90159-50327
90179-06274
