GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

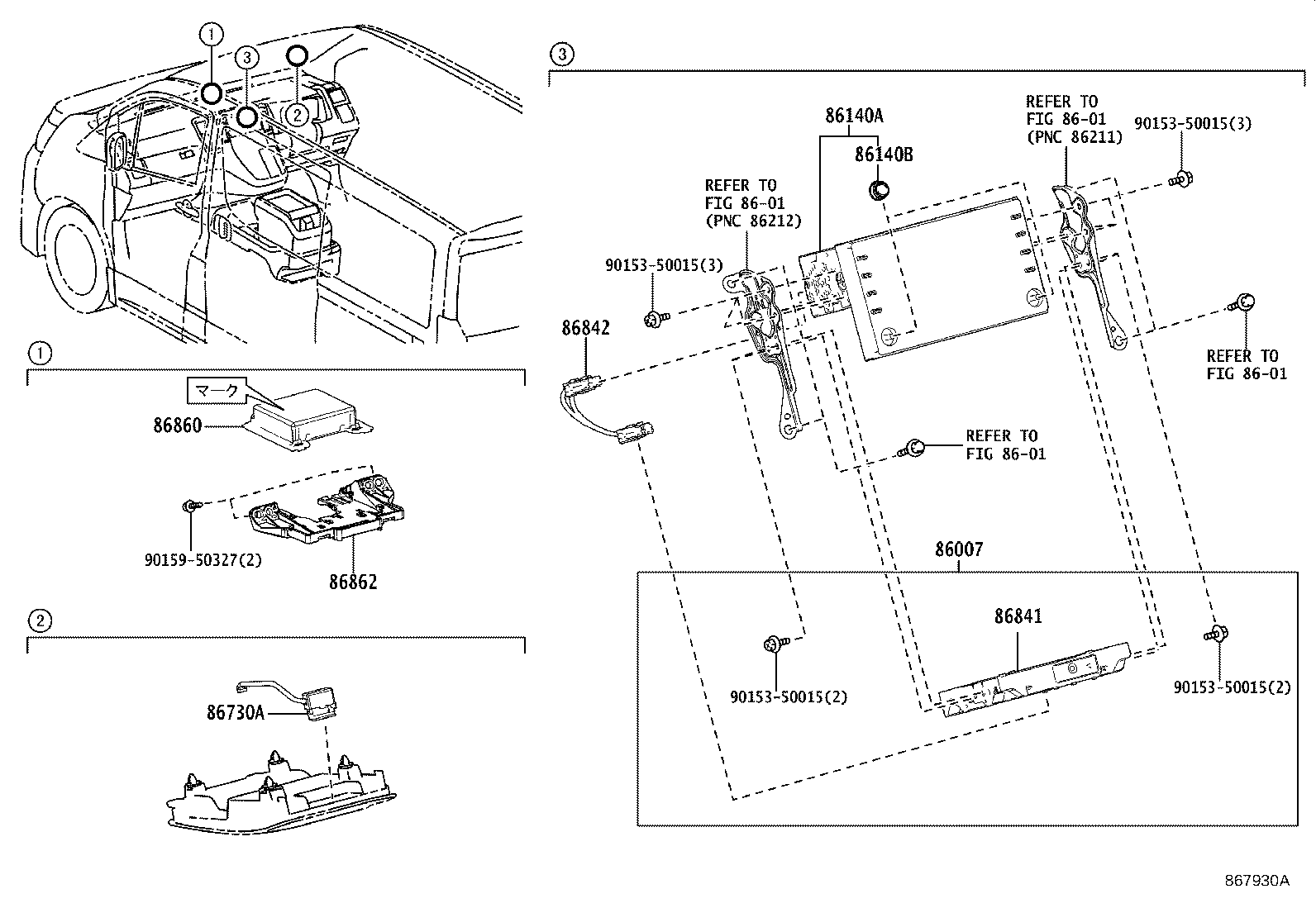

Click highlighted areas on diagram

diagram 86007 8601 8601 8601 8601 86140A 86140B 86730A 86841 86842 86860 86862 9015350015 9015350015 9015350015 9015350015 9015950327
Part # Description Qty Price
86007 - COMPUTER SET, NAVIGATION
86007-52020

GDH303

***,EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-26270

GDH303

DENSO TEN

 1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-23057

GDH303

 2
86730A - MICROPHONE ASSY, TELEPHONE
86730-30160

GDH303

 1
86841 - COMPUTER, NAVIGATION
86840-12030

GDH303

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86840-K0043

GDH303

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86840-K0042

GDH303

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86840-K0044

GDH303

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86842 - WIRE, NAVIGATION, NO.1
86842-76330

GDH303

EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り(DOPﾅﾋﾞﾊｲｸﾞﾚｰﾄﾞ)

 1
86860 - ANTENNA ASSY, NAVIGATION
86880-78010

GDH303

ﾏｰｸ無し

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020

GDH303

 1
Common parts
90153-50015
90159-50327
Linked diagrams
8601
