GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

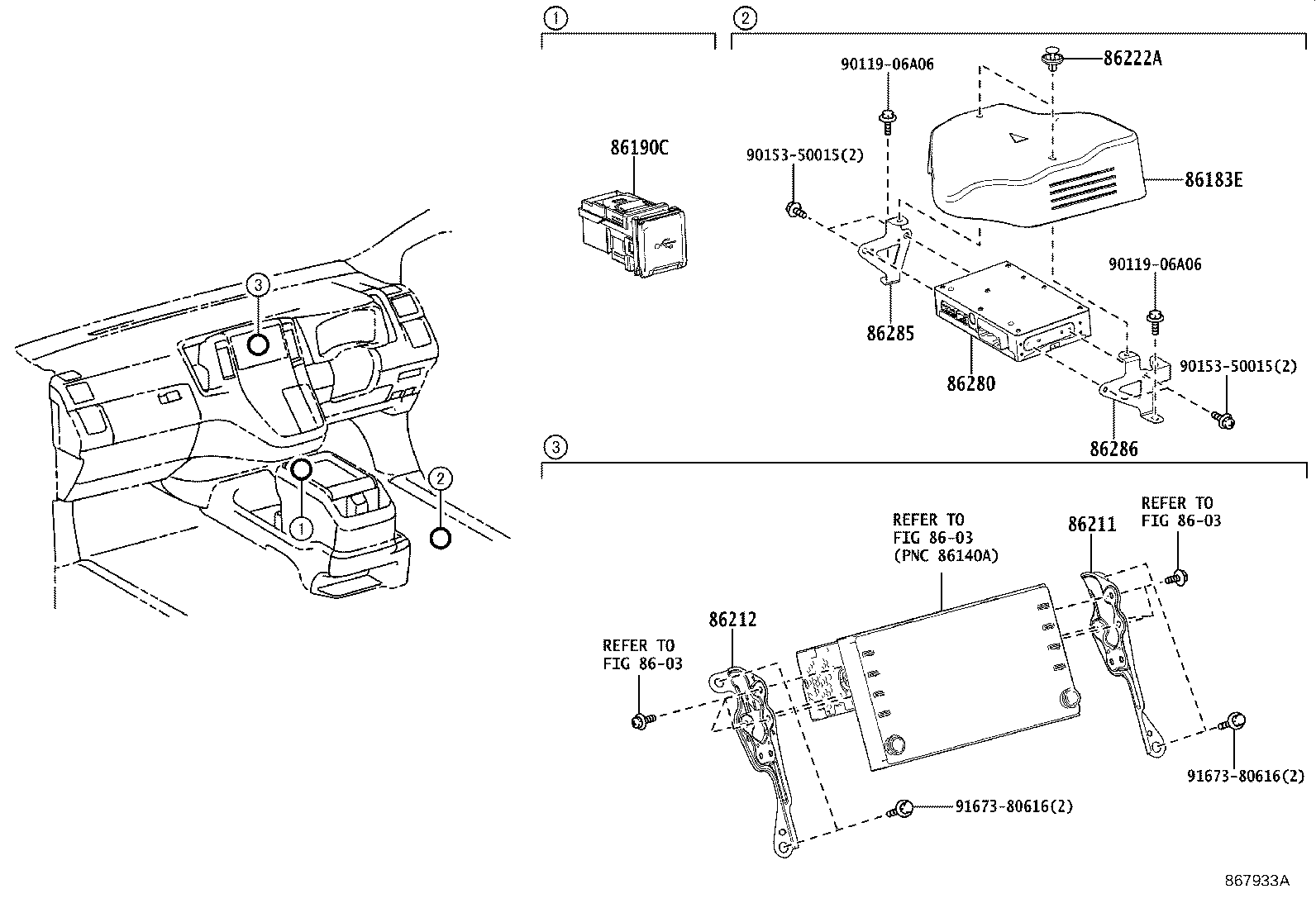

diagram 8603 8603 8603 86183E 86190C 86211 86212 86222A 86280 86285 86286 9011906A06 9011906A06 9015350015 9015350015 9167380616 9167380616
Part # Description Qty Price
86183E - COVER, AUDIO AMPLIFIER
86183-26030

GDH303

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-42031

GDH303

 1
86190-42030

GDH303

 1
86211 - BRACKET, RADIO, NO.1
86211-26120

GDH303

 1
86212 - BRACKET, RADIO, NO.2
86212-26110

GDH303

 1
86222A - CLIP, RADIO RECEIVER BRACKET NO.1
90467-07215

GDH303

 2
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-26200

GDH303

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-26080

GDH303

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-26030

GDH303

 1
Common parts
90119-06A06
90153-50015
91673-80616
Linked diagrams
8603

(1912- )

Click highlighted areas on diagram

DVDﾃﾞｯｷ(DOP)

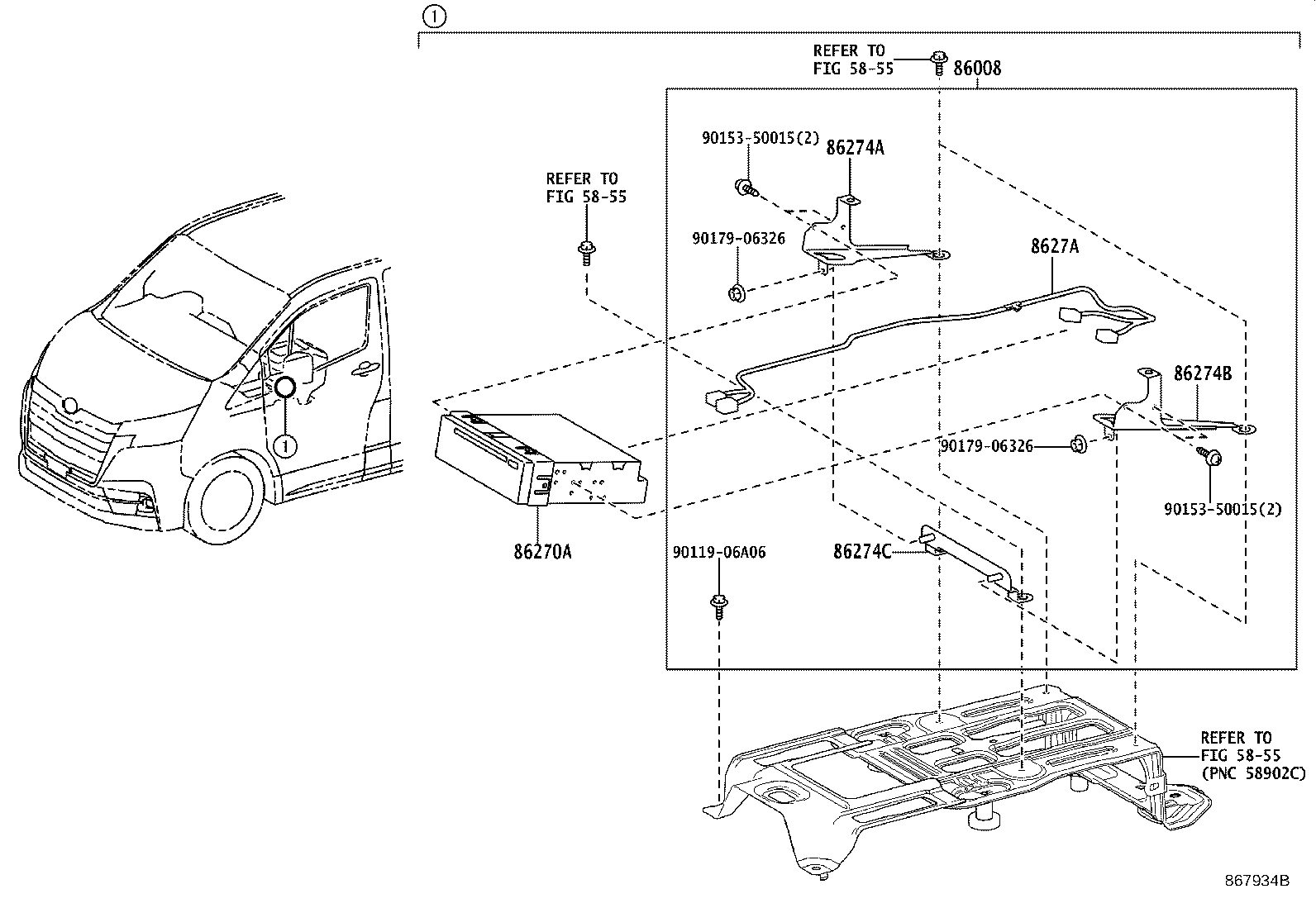

diagram 5855 5855 5855 86008 86270A 86274A 86274B 86274C 8627A 9011906A06 9015350015 9015350015 9017906326 9017906326
Part # Description Qty Price
86008 - DECK SET, DISC PLAYER
86008-26010

GDH303

***,ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
86270A - DISC PLAYER ASSY
86270-K0010

GDH303

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
86274A - BRACKET, DISC PLAYER
86211-26130

GDH303

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
86274B - BRACKET, DISC PLAYER
86212-26120

GDH303

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
86274C - BRACKET, DISC PLAYER
86215-26030

GDH303

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
8627A - WIRE, DISC PLAYER
8627A-26010

GDH303

ﾃﾚﾋﾞ&DVDﾌﾟﾚｰﾔ−有り(別体DVDﾃﾞｯｷ(DOP))

 1
Common parts
90119-06A06
90153-50015
90179-06326
Linked diagrams
5855

(1912- )

Click highlighted areas on diagram

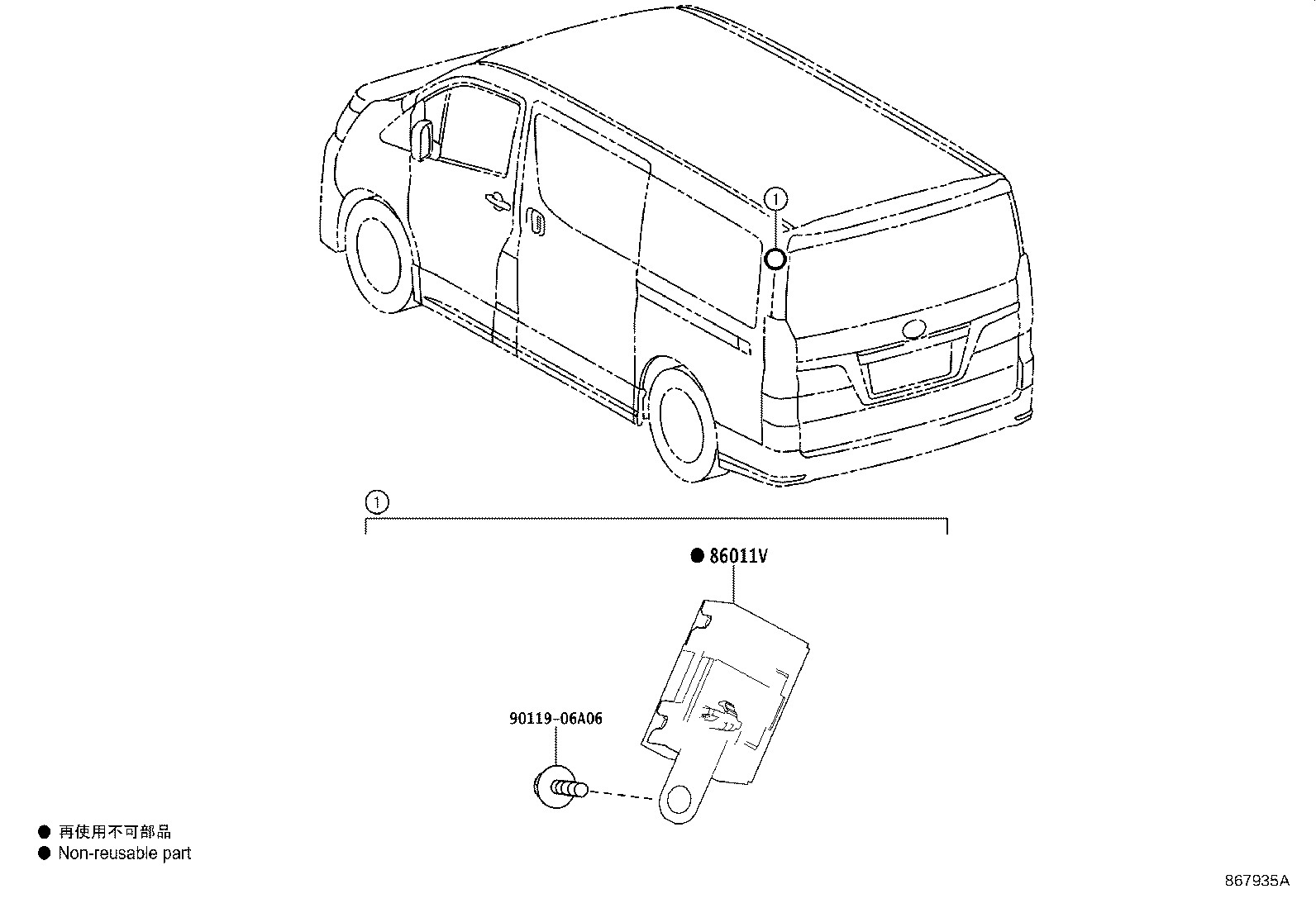

diagram 86011V 9011906A06
Part # Description Qty Price
86011V - CONDENSER, RADIO SETTING
90980-04204

GDH303

 1
Common parts
90119-06A06
