GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

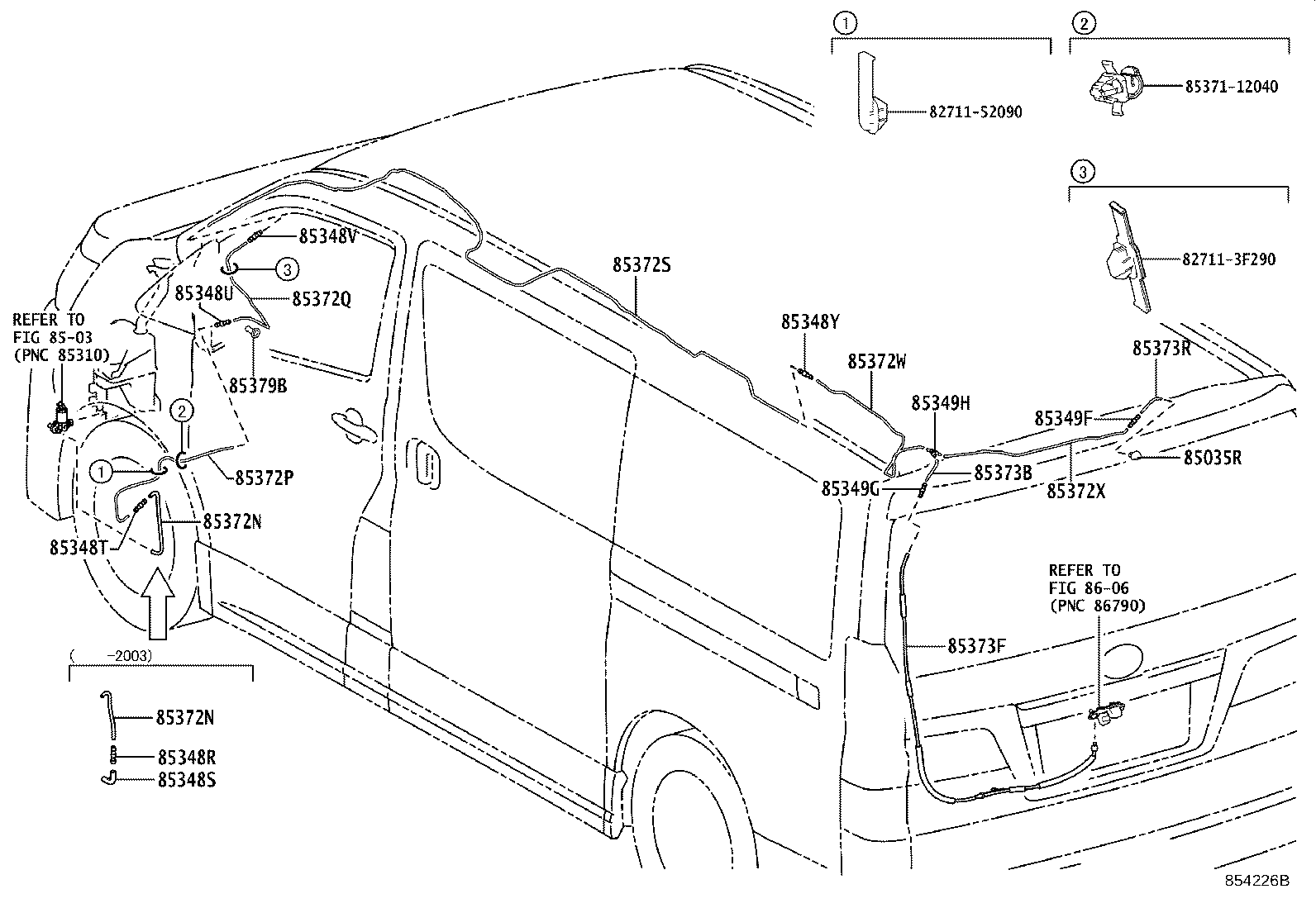

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-26060 |
GDH303 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
GDH303 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GDH303 |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85378-33410 |
GDH303 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62218 |
GDH303 長さ=270 |
1 | ||
| 90099-62133 |
GDH303 長さ=315 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62218 |
GDH303 長さ=270 |
1 | ||
| 90099-62133 |
GDH303 長さ=315 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62213 |
GDH303 長さ=760 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GDH303 長さ=720 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-62215 |
GDH303 長さ=3535 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GDH303 *H,L=920 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
GDH303 *H,L=750 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
GDH303 *H,L=100 |
1 | ||
| 85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8 | ||||
| 867F2-26010 |
GDH303 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GDH303 *H,L=100 |
1 | ||
| 85379B - GROMMET, WASHER, A | ||||
| 85379-12850 |
GDH303 |
1 | ||
| Common parts | ||||
| 82711-3F290 | ||||
| 82711-52090 | ||||
| 85371-12040 | ||||
| Linked diagrams | ||||
| 8503 | ||||
| 8606 | ||||
