GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

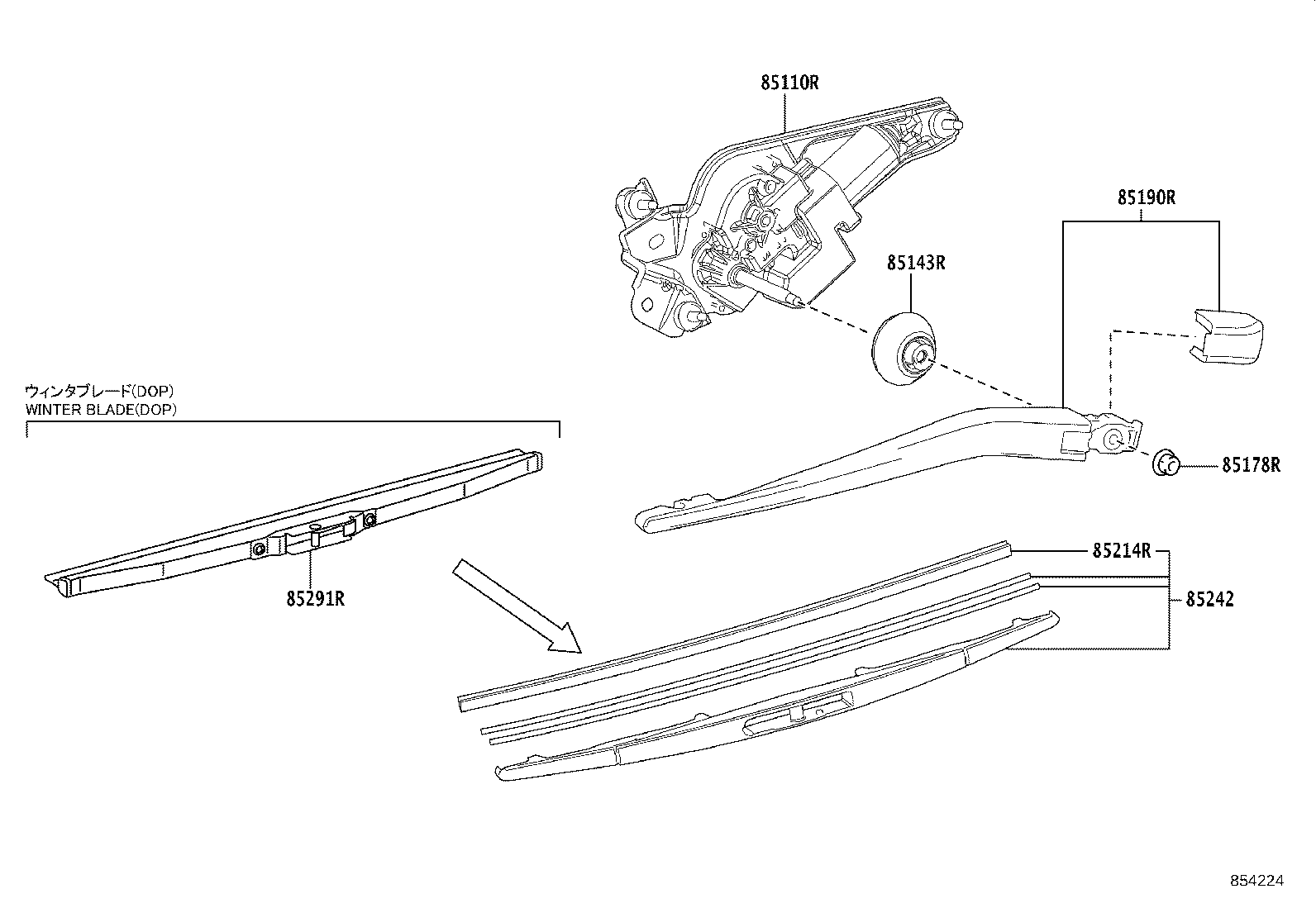

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-26130 |
GDH303 |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-26070 |
GDH303 |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
GDH303 |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-26080 |
GDH303 |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-26060 |
GDH303 |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-26060 |
GDH303 |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-26100 |
GDH303 ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP) |
1 | ||
