GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

diagram 85213B 85213C
Part # Description Qty Price
85213B - RUBBER, WIPER BLADE, RH(FOR GLASS COAT)
85213-50050

GDH303

 1
85213C - RUBBER, WIPER BLADE, LH(FOR GLASS COAT)
85213-60080

GDH303

 1

(1912- )

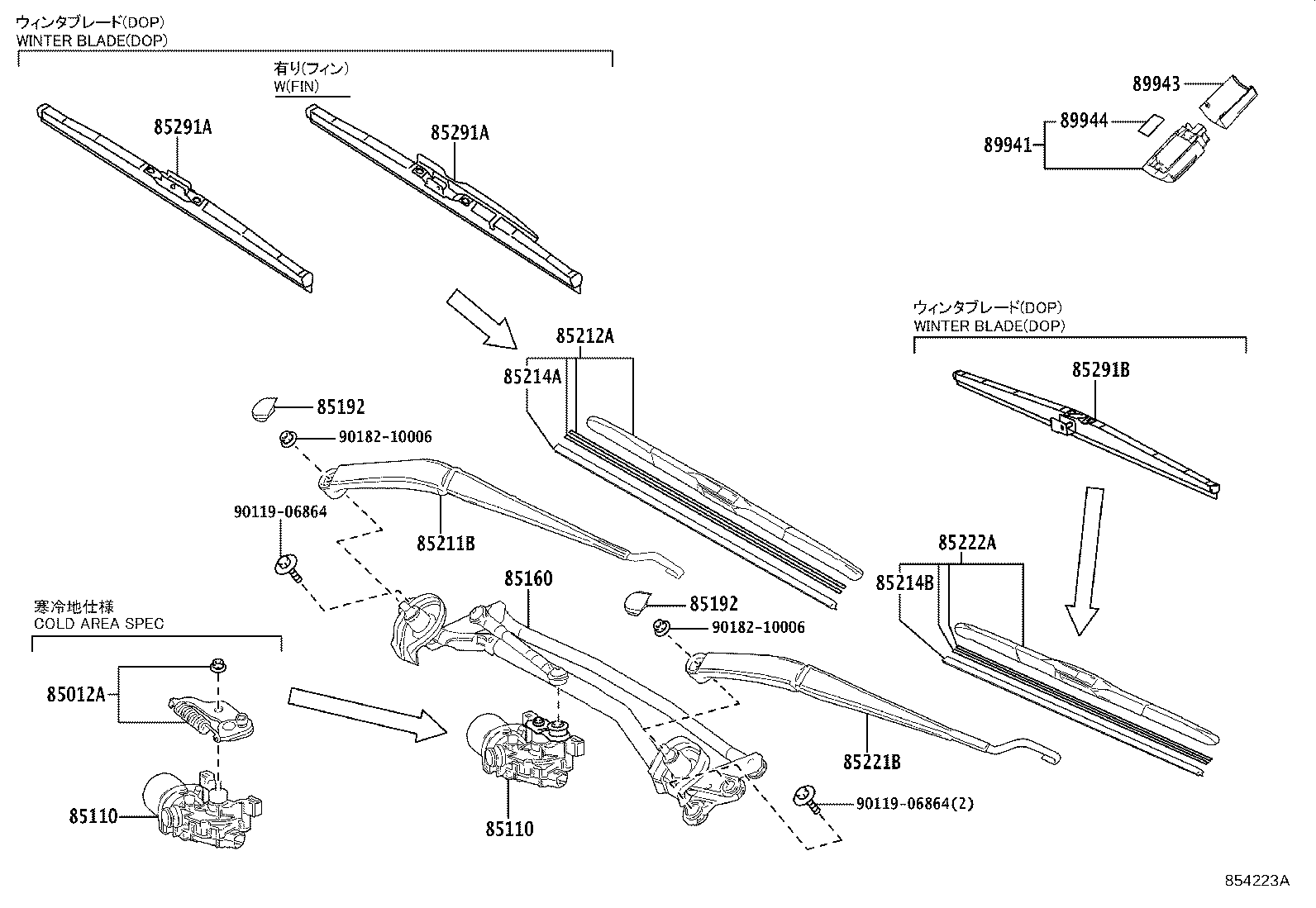

Click highlighted areas on diagram

diagram 85012A 85110 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 89941 89943 89944 9011906864 9011906864 9018210006 9018210006
Part # Description Qty Price
85012A - CRANK SUB-ASSY, FRONT WIPER
85012-50010

GDH303

寒冷地仕様(−20℃地域)

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-26280

GDH303

 1
85110-26300

GDH303

寒冷地仕様(−20℃地域)

 1
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-26280

GDH303

 1
85110-26300

GDH303

寒冷地仕様(−20℃地域)

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-26140

GDH303

 1
85150-26180

GDH303

寒冷地仕様(−20℃地域)

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

GDH303

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-13010

GDH303

 2
85211B - ARM, FRONT WIPER, RH
85211-26140

GDH303

 1
85212A - BLADE, FR WIPER, RH
85212-22450

GDH303

 1
85214A - RUBBER, WIPER, RH
85214-30380

GDH303

 1
85214B - RUBBER, WIPER, LH
85214-60120

GDH303

 1
85221B - ARM, FRONT WIPER, LH
85221-26130

GDH303

 1
85222A - BLADE, FR WIPER, LH
85222-26140

GDH303

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-53120

GDH303

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-53110

GDH303

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),無し(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-53120

GDH303

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-53110

GDH303

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),無し(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-24110

GDH303

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
89941 - SENSOR, RAIN
89941-30040

GDH303

 1
89943 - COVER, RAIN SENSOR
89943-30010

GDH303

 1
89944 - TAPE, RAIN SENSOR
89944-42020

GDH303

 1
Common parts
90119-06864
90182-10006
