GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

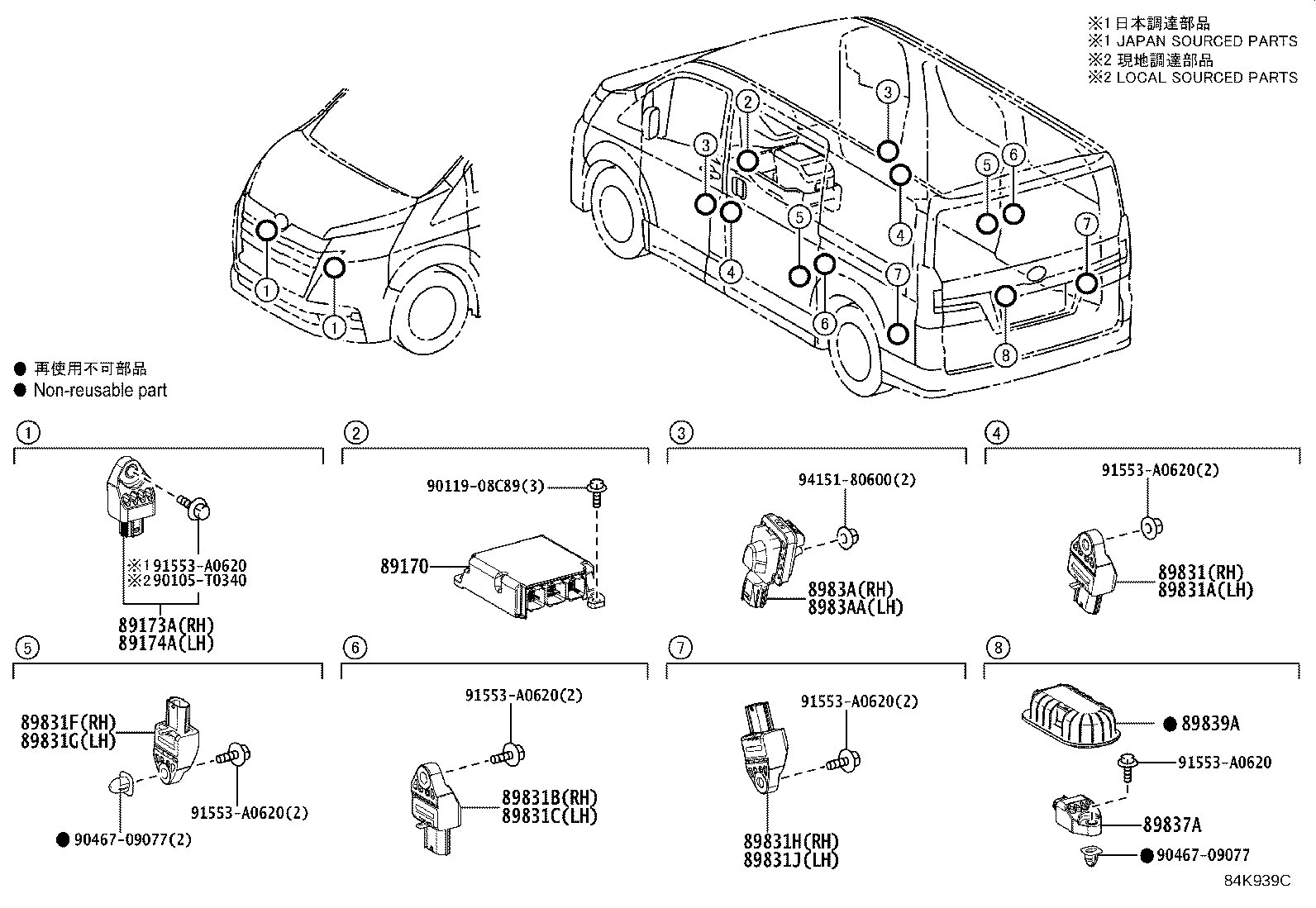

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-26530 |
GDH303 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-59325 |
GDH303 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-59325 |
GDH303 |
1 | ||
| 89831 - SENSOR, SIDE AIR BAG, RH, NO.1 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89831A - SENSOR, SIDE AIR BAG, LH, NO.1 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89831B - SENSOR, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89831C - SENSOR, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89831F - SENSOR, SIDE AIR BAG, RH, NO.3 | ||||
| 89831-58010 |
GDH303 |
1 | ||
| 89831G - SENSOR, SIDE AIR BAG, LH, NO.3 | ||||
| 89831-58010 |
GDH303 |
1 | ||
| 89831H - SENSOR, SIDE AIR BAG, RH, NO.4 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89831J - SENSOR, SIDE AIR BAG, LH, NO.4 | ||||
| 89831-28060 |
GDH303 |
1 | ||
| 89837A - SENSOR, REAR FLOOR SIDE AIR BAG | ||||
| 89837-28040 |
GDH303 |
1 | ||
| 89839A - COVER, REAR FLOOR SIDE AIR BAG SENSOR | ||||
| 89839-28020 |
GDH303 |
1 | ||
| 8983A - SENSOR, SIDE AIR BAG PRESSURE, RH | ||||
| 8983A-33010 |
GDH303 |
1 | ||
| 8983A-33011 |
GDH303 |
1 | ||
| 8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH | ||||
| 8983A-33010 |
GDH303 |
1 | ||
| 8983A-33011 |
GDH303 |
1 | ||
| Common parts | ||||
| 90105-T0340 | ||||
| 90119-08C89 | ||||
| 90467-09077 | ||||
| 91553-A0620 | ||||
| 94151-80600 | ||||
