GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

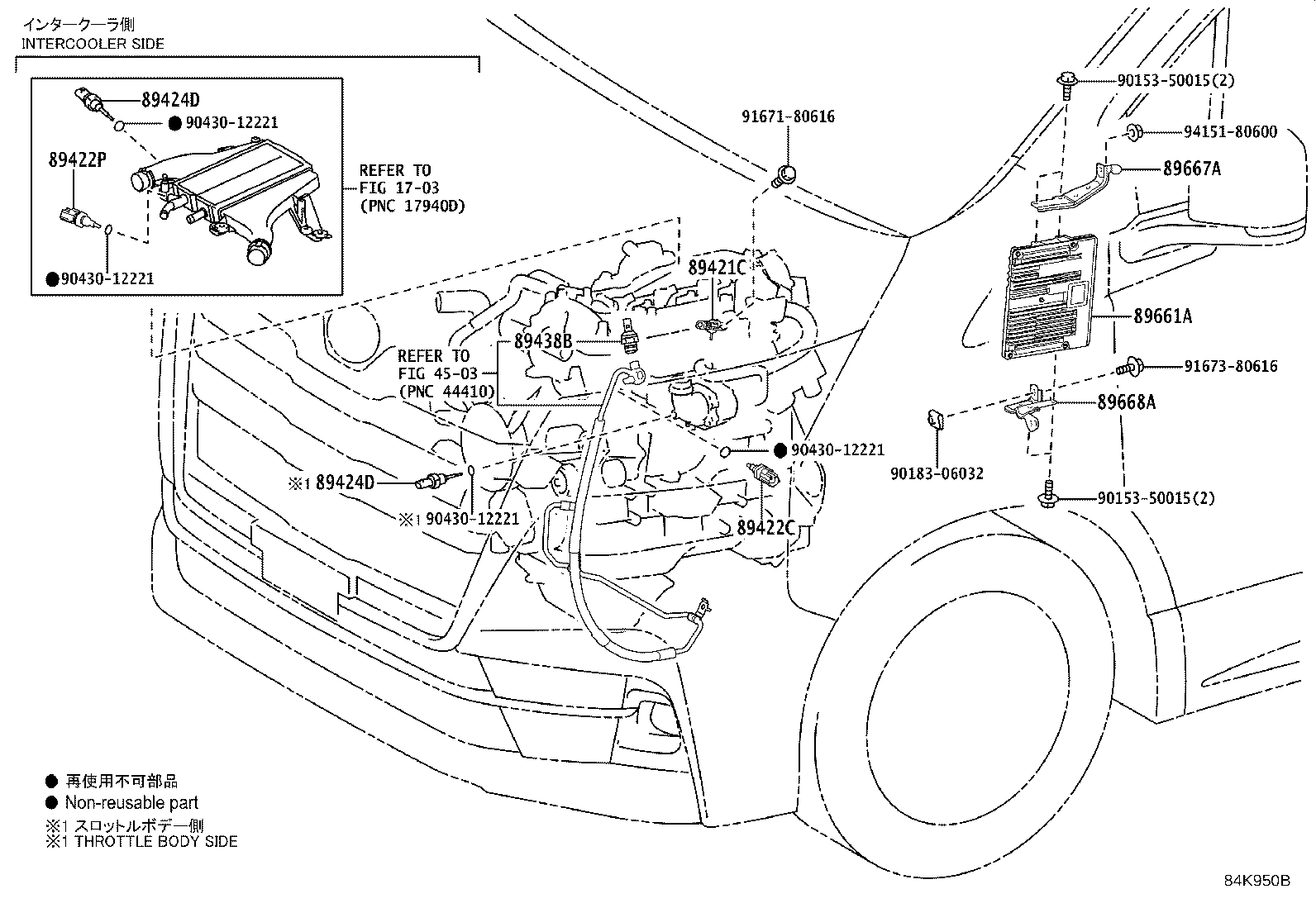

Click highlighted areas on diagram

diagram 1703 4503 89421C 89422C 89422P 89424D 89424D 89438B 89661A 89667A 89668A 9015350015 9015350015 9018306032 9043012221 9043012221 9043012221 9043012221 9167180616 9167380616 9415180600
Part # Description Qty Price
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030

GDH303

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030

GDH303

 1
89422P - SENSOR, WATER TEMPERATURE
89422-33030

GDH303

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60020

GDH303

ｲﾝﾀｰｸｰﾗ側,ｽﾛｯﾄﾙﾎﾞﾃﾞｰ側

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60020

GDH303

ｲﾝﾀｰｸｰﾗ側,ｽﾛｯﾄﾙﾎﾞﾃﾞｰ側

 1
89438B - SWITCH, POWER STEERING OIL PRESSURE
89438-71010

GDH303

 1
89661A - COMPUTER, ENGINE CONTROL
89661-26Y50

GDH303

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26200

GDH303

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26180

GDH303

 1
Common parts
90153-50015
90183-06032
90430-12221
91671-80616
91673-80616
94151-80600
Linked diagrams
1703
4503
