GDH303W-RDTGY (2019)
Toyota Granace

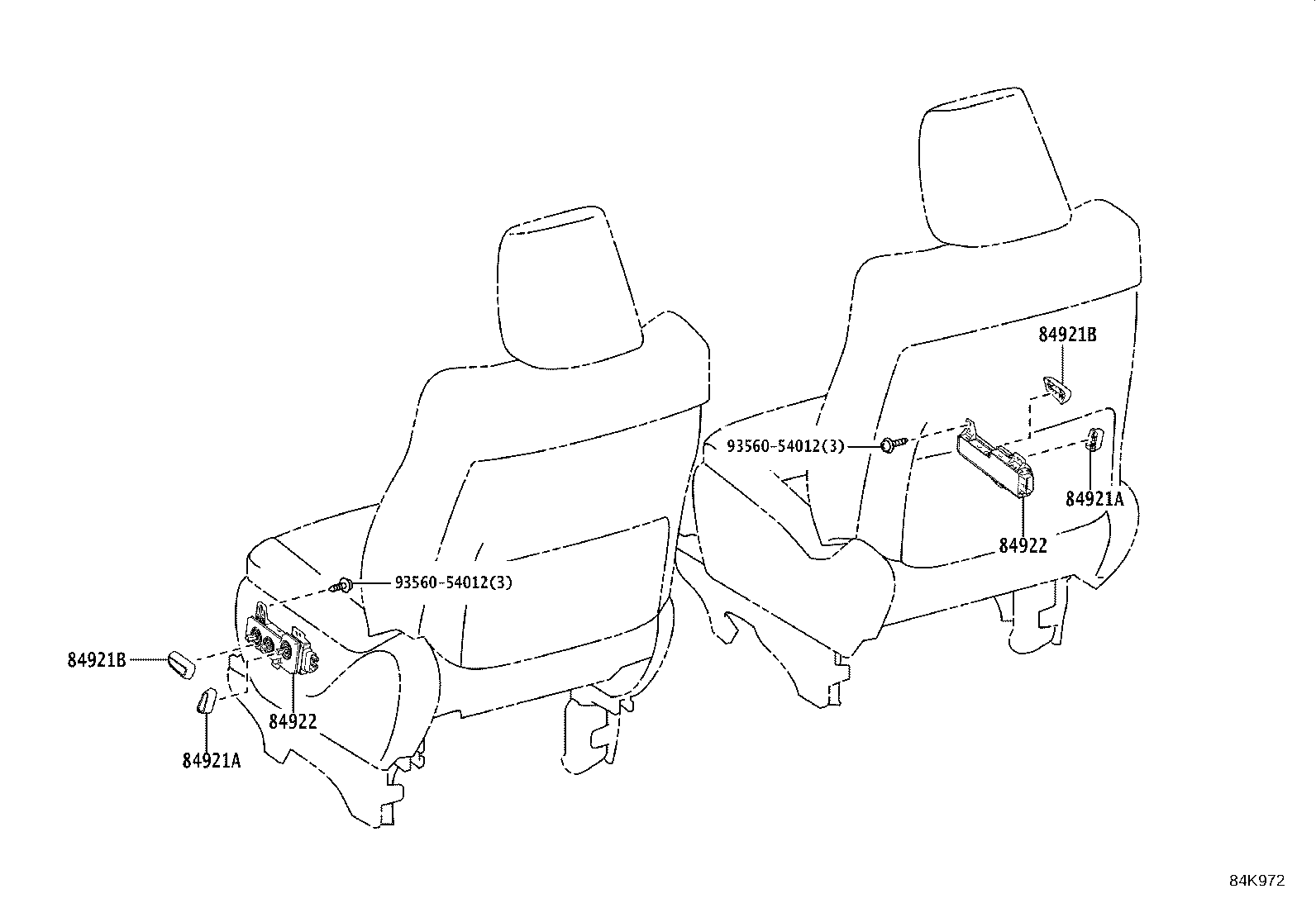

ILLUST NO. 7 OF 9(1912- )
ｼｰﾄ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-26020E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,左側 |
1 | ||
| 84923-26020C0 |
GDH303..G BLACK,TRIM21,22,左側 |
1 | ||
| 84923-26010C0 |
GDH303..G BLACK,TRIM21,22,右側 |
1 | ||
| 84923-26010E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,右側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-26020E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,左側 |
1 | ||
| 84923-26020C0 |
GDH303..G BLACK,TRIM21,22,左側 |
1 | ||
| 84923-26010C0 |
GDH303..G BLACK,TRIM21,22,右側 |
1 | ||
| 84923-26010E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,右側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-26020E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,左側 |
1 | ||
| 84923-26020C0 |
GDH303..G BLACK,TRIM21,22,左側 |
1 | ||
| 84923-26010C0 |
GDH303..G BLACK,TRIM21,22,右側 |
1 | ||
| 84923-26010E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,右側 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-26020E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,左側 |
1 | ||
| 84923-26020C0 |
GDH303..G BLACK,TRIM21,22,左側 |
1 | ||
| 84923-26010C0 |
GDH303..G BLACK,TRIM21,22,右側 |
1 | ||
| 84923-26010E0 |
GDH303..G NEUTRAL BEIGE,TRIM22,右側 |
1 | ||
| 85861 - COMPUTER, SEAT CLIMATE CONTROL | ||||
| 85861-26010 |
GDH303..G |
2 | ||
| 85861 - COMPUTER, SEAT CLIMATE CONTROL | ||||
| 85861-26010 |
GDH303..G |
2 | ||
| 85861 - COMPUTER, SEAT CLIMATE CONTROL | ||||
| 85861-26010 |
GDH303..G |
2 | ||
| 85861 - COMPUTER, SEAT CLIMATE CONTROL | ||||
| 85861-26010 |
GDH303..G |
2 | ||
| Common parts | ||||
| 94185-60600 | ||||

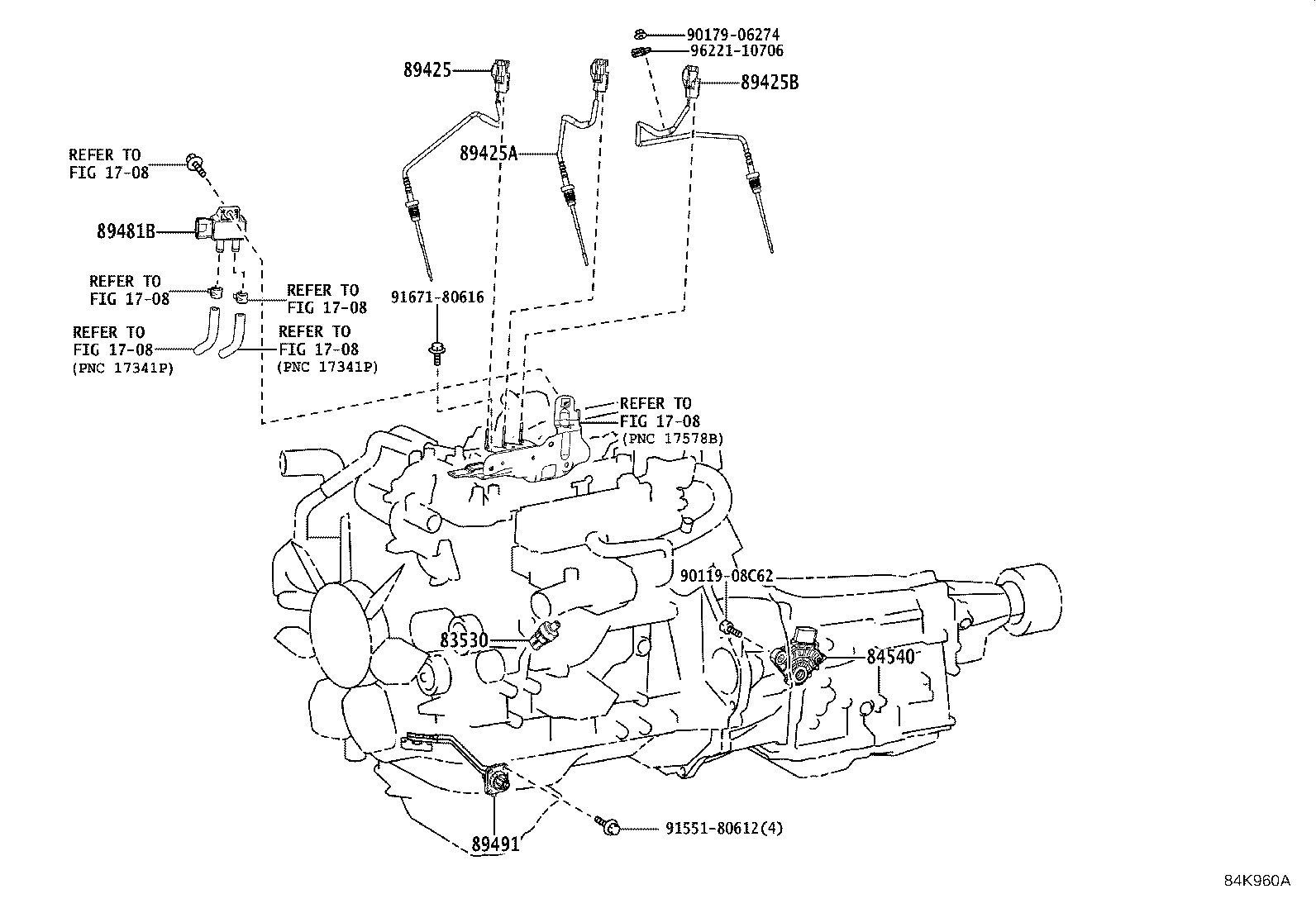

ILLUST NO. 1 OF 9(1912- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28010 |
GDH303 DENSO |
1 | ||
| 83530-60010 |
GDH303 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
GDH303 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-71070 |
GDH303 |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-71080 |
GDH303 |
1 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-71090 |
GDH303 |
1 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-71010 |
GDH303 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26190 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-08C62 | ||||
| 90179-06274 | ||||
| 91551-80612 | ||||
| 91671-80616 | ||||
| 96221-10706 | ||||
| Linked diagrams | ||||
| 1708 | ||||

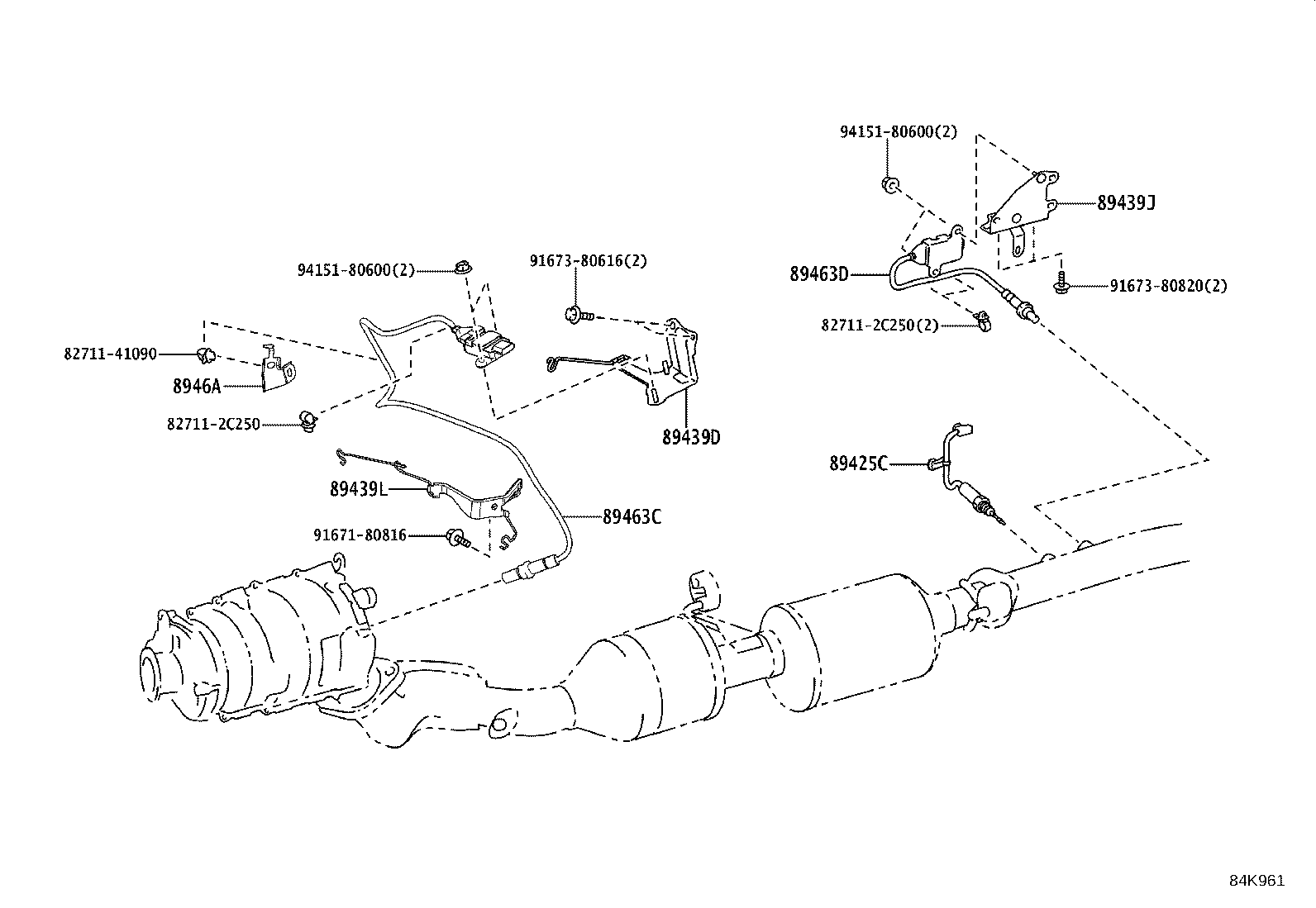

ILLUST NO. 1 OF 9(1912- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89425C - SENSOR, EXHAUST GAS TEMPERATURE, NO.4 | ||||
| 89425-71060 |
GDH303 |
1 | ||
| 89439D - BRACKET, SENSOR, NO.1 | ||||
| 89439-26180 |
GDH303 |
1 | ||
| 89439J - BRACKET, SENSOR, NO.2 | ||||
| 89439-26100 |
GDH303 |
1 | ||
| 89439L - BRACKET, SENSOR, NO.4 | ||||
| 89439-26090 |
GDH303 |
1 | ||
| 89463C - SENSOR, NITROGEN OXIDES, NO.1 | ||||
| 89463-26060 |
GDH303 |
1 | ||
| 89463D - SENSOR, NITROGEN OXIDES, NO.2 | ||||
| 89463-26020 |
GDH303 |
1 | ||
| 8946A - BRACKET, EXHAUST SENSOR CLAMP | ||||
| 8946A-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 82711-2C250 | ||||
| 82711-41090 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| 94151-80600 | ||||

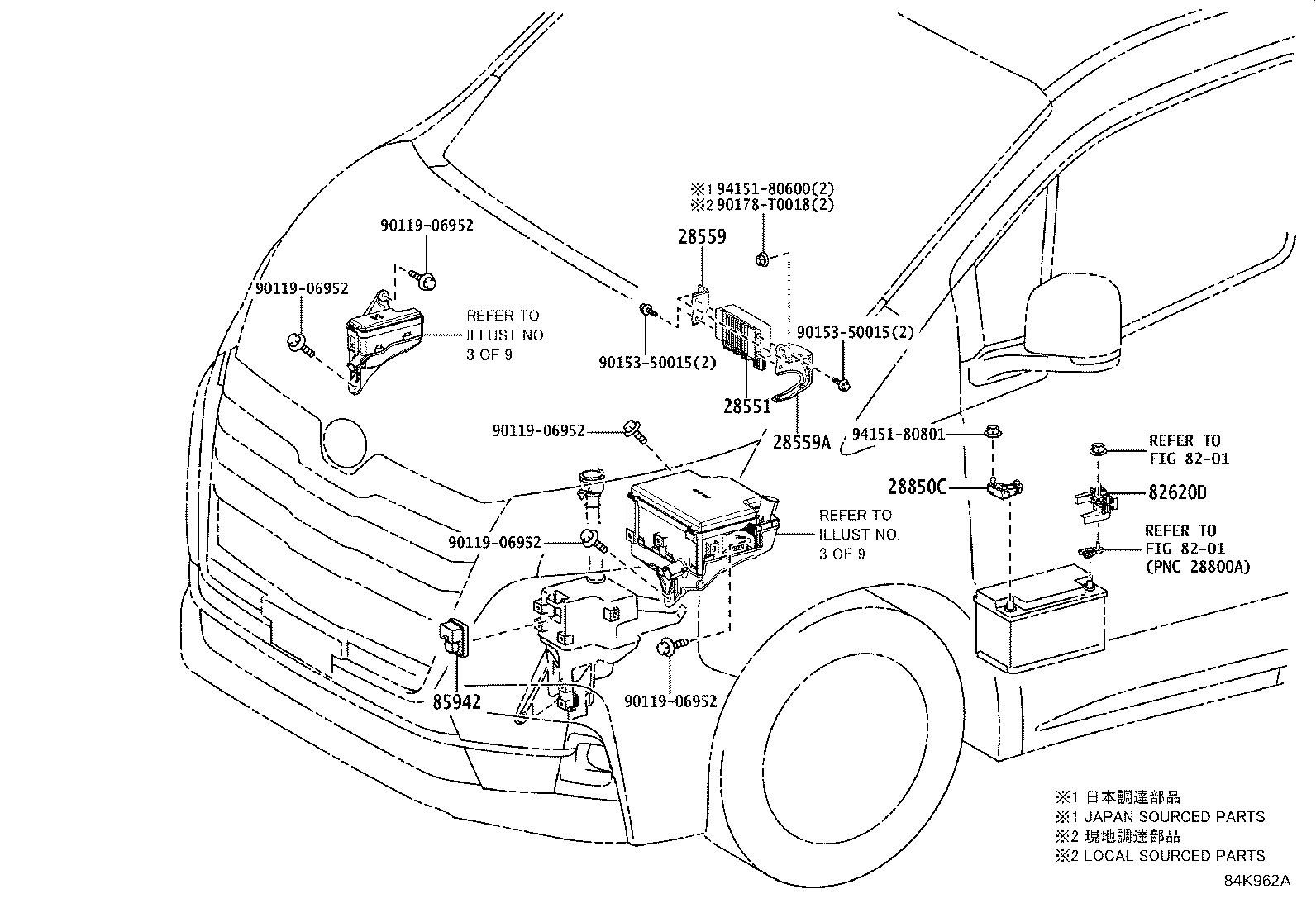

ILLUST NO. 2 OF 9(1912- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28551 - CONTROLLER, GLOW PLUG | ||||
| 28551-30010 |
1GDFTV..GDH303 |
1 | ||
| 28559 - BRACKET, GLOW PLUG CONTROLLER, NO.1 | ||||
| 28559-11030 |
1GDFTV..GDH303 |
1 | ||
| 28559A - BRACKET, GLOW PLUG CONTROLLER, NO.2 | ||||
| 28559-11040 |
1GDFTV..GDH303 |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-25020 |
1GDFTV..GDH303 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26520 |
GDH303 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-53020 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90153-50015 | ||||
| 90178-T0018 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8201 | ||||

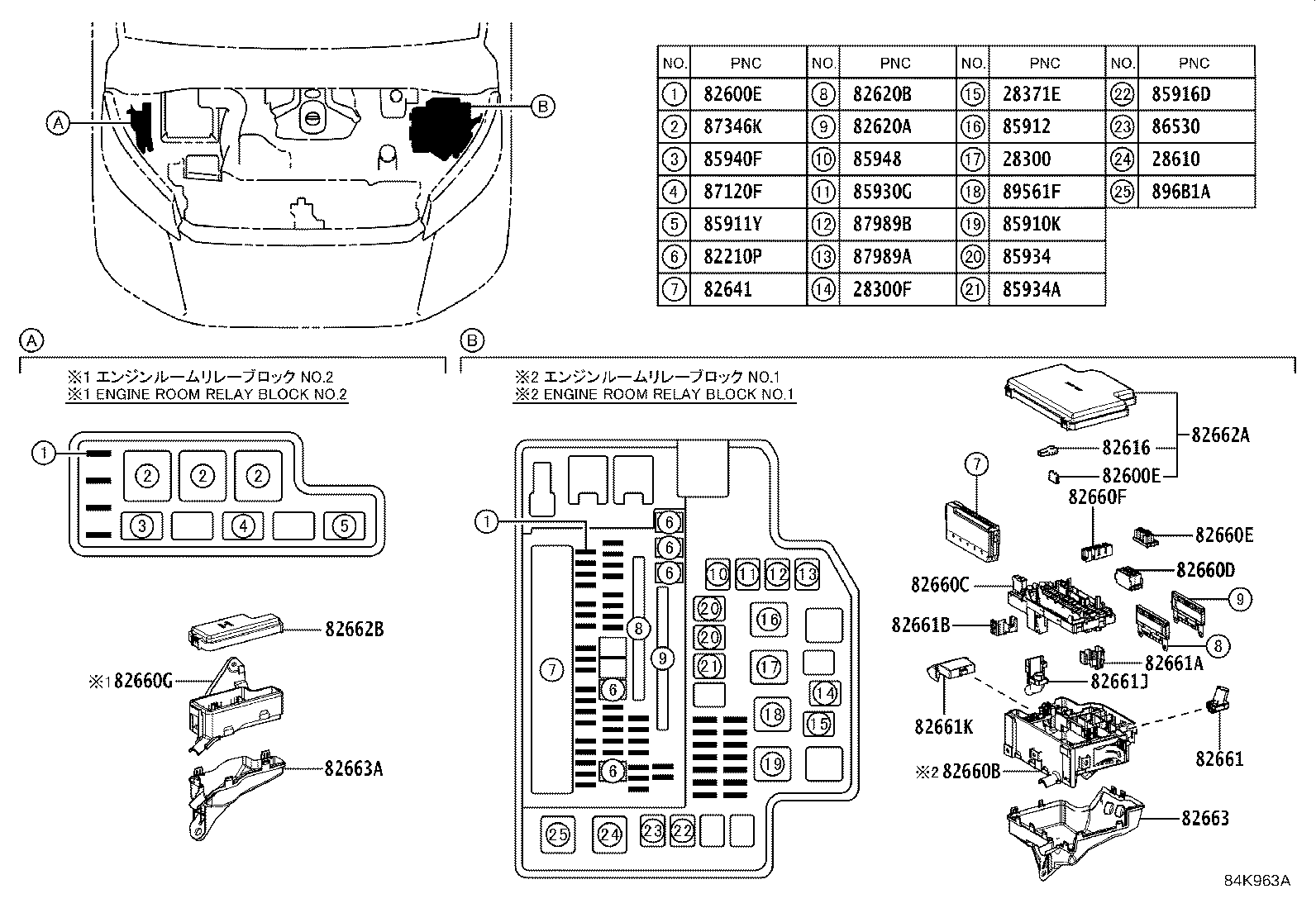

ILLUST NO. 3 OF 9(1912- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
1GDFTV..GDH303 |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
1GDFTV..GDH303 |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
1GDFTV..GDH303 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 90987-02025 |
1GDFTV..GDH303 (J) |
1 | ||
| 90987-T2002 |
1GDFTV..GDH303 (L) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GDH303 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
GDH303 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GDH303 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
GDH303 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
GDH303 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09023 |
GDH303 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
GDH303 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09024 |
GDH303 25A,ﾐﾆ ﾋｭｰｽﾞ,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09021 |
GDH303 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09021 |
GDH303 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09025 |
GDH303 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GDH303 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
GDH303 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
GDH303 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09020 |
GDH303 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09023 |
GDH303 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09024 |
GDH303 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09024 |
GDH303 25A,ﾐﾆ ﾋｭｰｽﾞ,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09021 |
GDH303 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09021 |
GDH303 10A,ﾐﾆ ﾋｭｰｽﾞ,赤,ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 90982-09025 |
GDH303 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
GDH303 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GDH303 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26570 |
GDH303 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-26580 |
GDH303 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-26070 |
GDH303 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26450 |
GDH303 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26460 |
GDH303 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26470 |
GDH303 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26470 |
GDH303 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-26480 |
GDH303 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-26490 |
GDH303 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-26500 |
GDH303 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-26200 |
GDH303 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-26210 |
GDH303 |
1 | ||
| 82661B - COVER, RELAY BLOCK, NO.3 | ||||
| 82661-26220 |
GDH303 |
1 | ||
| 82661J - COVER, RELAY BLOCK, NO.4 | ||||
| 82661-26170 |
GDH303 |
1 | ||
| 82661K - COVER, RELAY BLOCK, NO.5 | ||||
| 82661-26190 |
GDH303 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26460 |
GDH303 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-26480 |
GDH303 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26240 |
GDH303 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26250 |
GDH303 |
1 | ||
| 85910K - RELAY, REAR SEAT HEATER | ||||
| 90987-02025 |
GDH303 |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90987-02027 |
GDH303 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02025 |
GDH303 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GDH303 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
GDH303 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GDH303 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02028 |
GDH303 |
1 | ||
| 85940F - RELAY ASSY, WINDSHIELD DEICER | ||||
| 90987-02027 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 85948 - RELAY, WINDSHIELD WIPER | ||||
| 90987-02027 |
GDH303 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02024 |
GDH303 |
1 | ||
| 87120F - RELAY, VISCOUS HEATER | ||||
| 90987-02028 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
GDH303 |
3 | ||
| 87989A - RELAY, MIRROR NO.1 | ||||
| 90987-04004 |
GDH303 |
1 | ||
| 87989B - RELAY, MIRROR NO.2 | ||||
| 90987-04004 |
GDH303 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02025 |
GDH303 |
1 | ||
| 896B1A - RELAY, DCU MAIN | ||||
| 90987-02025 |
GDH303 |
1 | ||

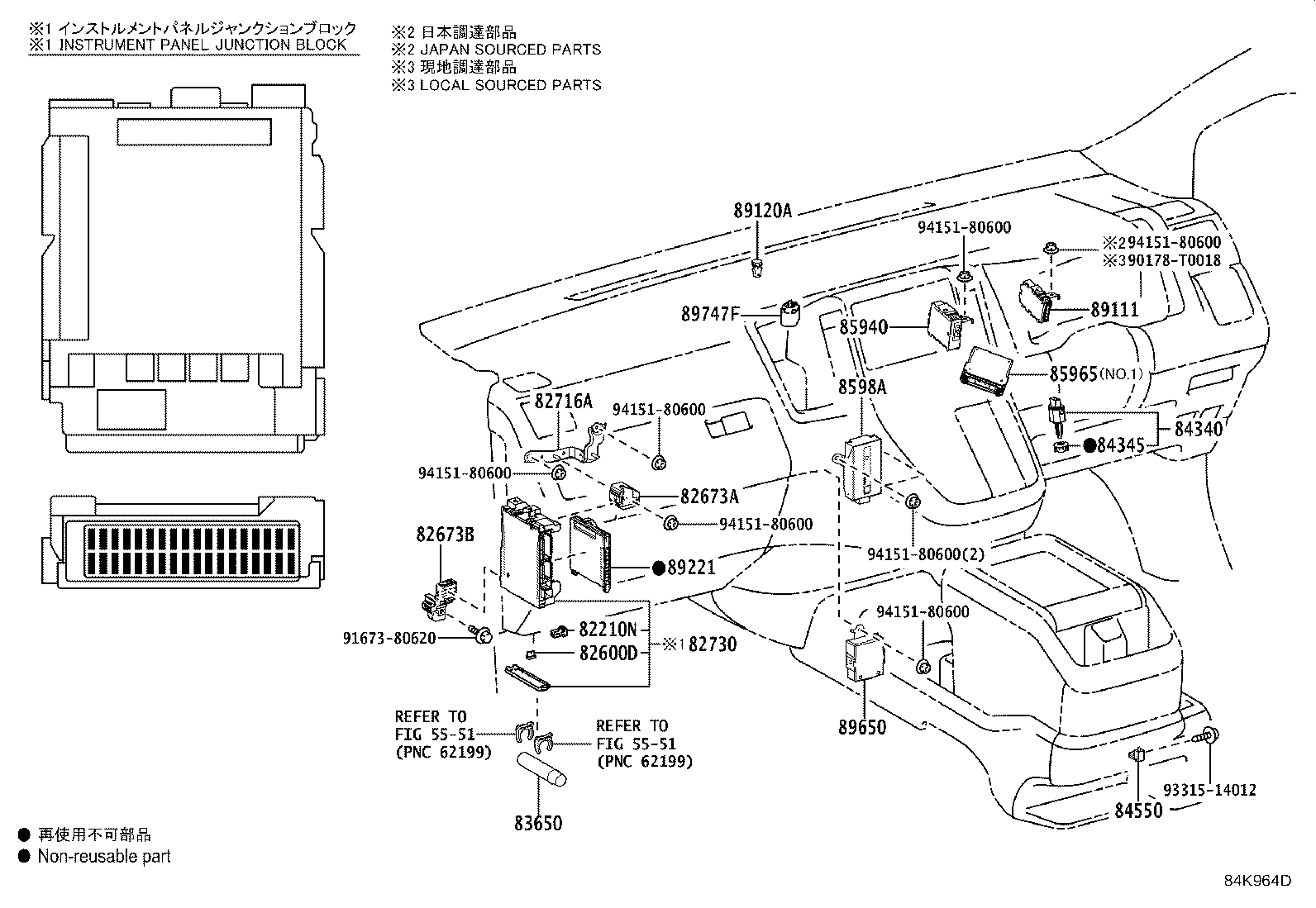

ILLUST NO. 4 OF 9(1912- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-26120 |
GDH303 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-26130 |
GDH303 |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-26R50 |
GDH303 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-26100 |
GDH303 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GDH303 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
GDH303 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GDH303 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
GDH303 東海理化,MATSUSHITA |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-26050 |
GDH303 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-26020 |
GDH303 NO.1 |
1 | ||
| 85965-26030 |
GDH303 NO.2 |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-26010 |
GDH303 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-26010 |
GDH303 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GDH303 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-26J10 |
GDH303 |
1 | ||
| 89220-V3G20 |
GDH303 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-26040 |
GDH303 JTEKT |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90178-T0018 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5551 | ||||

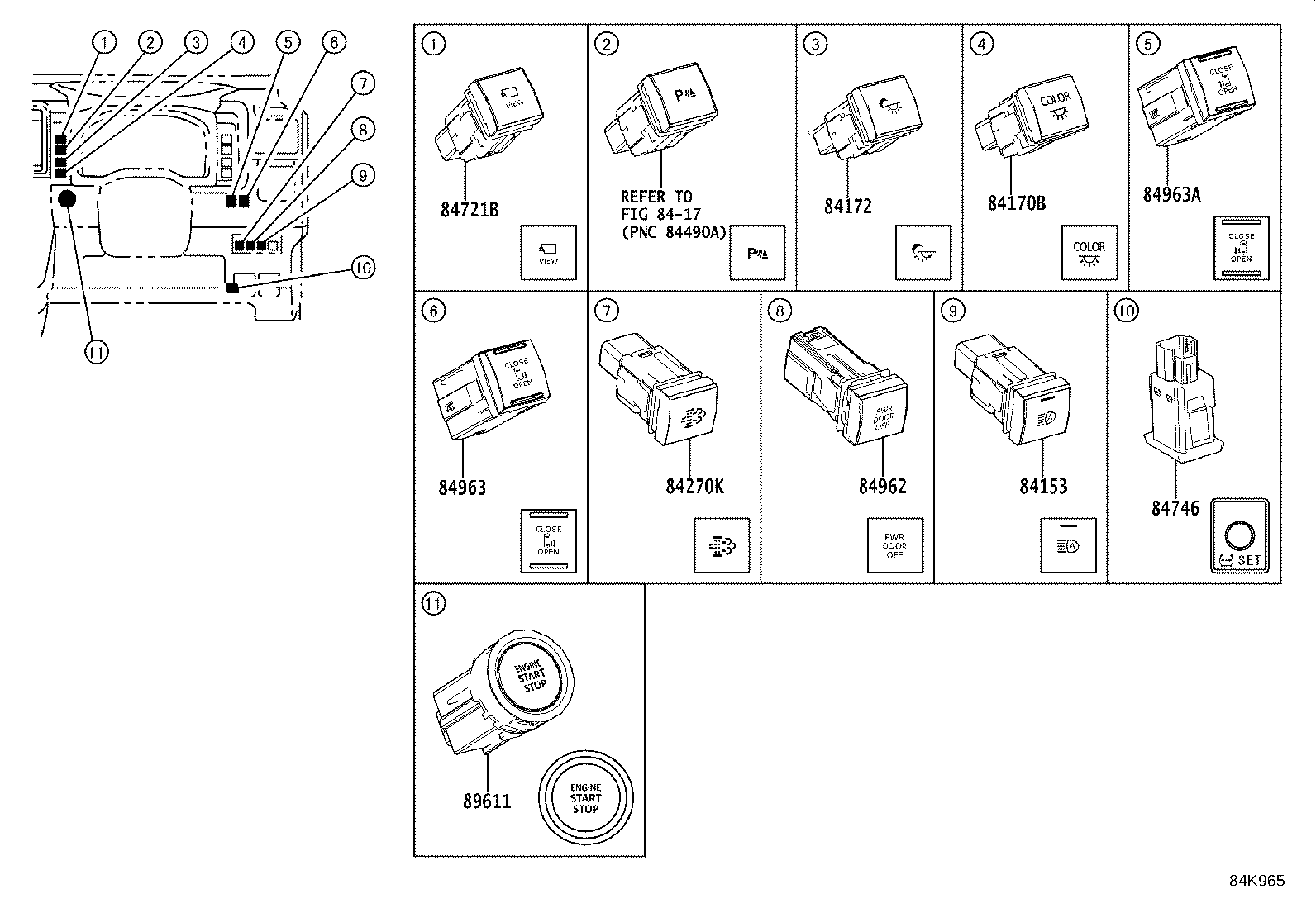

ILLUST NO. 5 OF 9(1912- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
GDH303 |
1 | ||
| 84170B - SWITCH ASSY, ROOM LAMP NO.2 | ||||
| 84172-26050 |
GDH303 |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84172-26040 |
GDH303 |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-60220 |
GDH303 |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-33010 |
GDH303 |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
GDH303 |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-26010 |
GDH303 |
1 | ||
| 84963 - SWITCH, POWER SLIDE DOOR CONTROL, NO.1 | ||||
| 84963-26041 |
GDH303 |
1 | ||
| 84963-26040 |
GDH303 |
1 | ||
| 84963A - SWITCH, POWER SLIDE DOOR CONTROL, NO.2 | ||||
| 84963-26030 |
GDH303 |
1 | ||
| 84963-26031 |
GDH303 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
GDH303 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 5 OF 9(1912- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83150C - INDICATOR ASSY | ||||
| 83150-26110 |
GDH303..G |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26140 |
GDH303 |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26050 |
GDH303 |
1 | ||
| 84470 - SWITCH ASSY, WARNING CANCELING | ||||
| 84470-33060 |
GDH303 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-26050 |
GDH303 左側 |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-26040 |
GDH303 右側 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84871-26020 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
GDH303 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
GDH303 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
GDH303 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
GDH303 |
3 | ||
| 85532-15010 |
GDH303 |
3 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42060 |
GDH303 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-26080C0 |
GDH303 BLACK |
1 | ||
| 85539C - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
GDH303 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-26050 |
GDH303 寒冷地仕様(−20℃地域)&ﾌﾛﾝﾄﾋｰﾀ−有り(PTCﾋｰﾀ&ﾋﾞｽｶｽﾋｰﾀ&2層ﾌﾞﾛﾜ) |
1 | ||

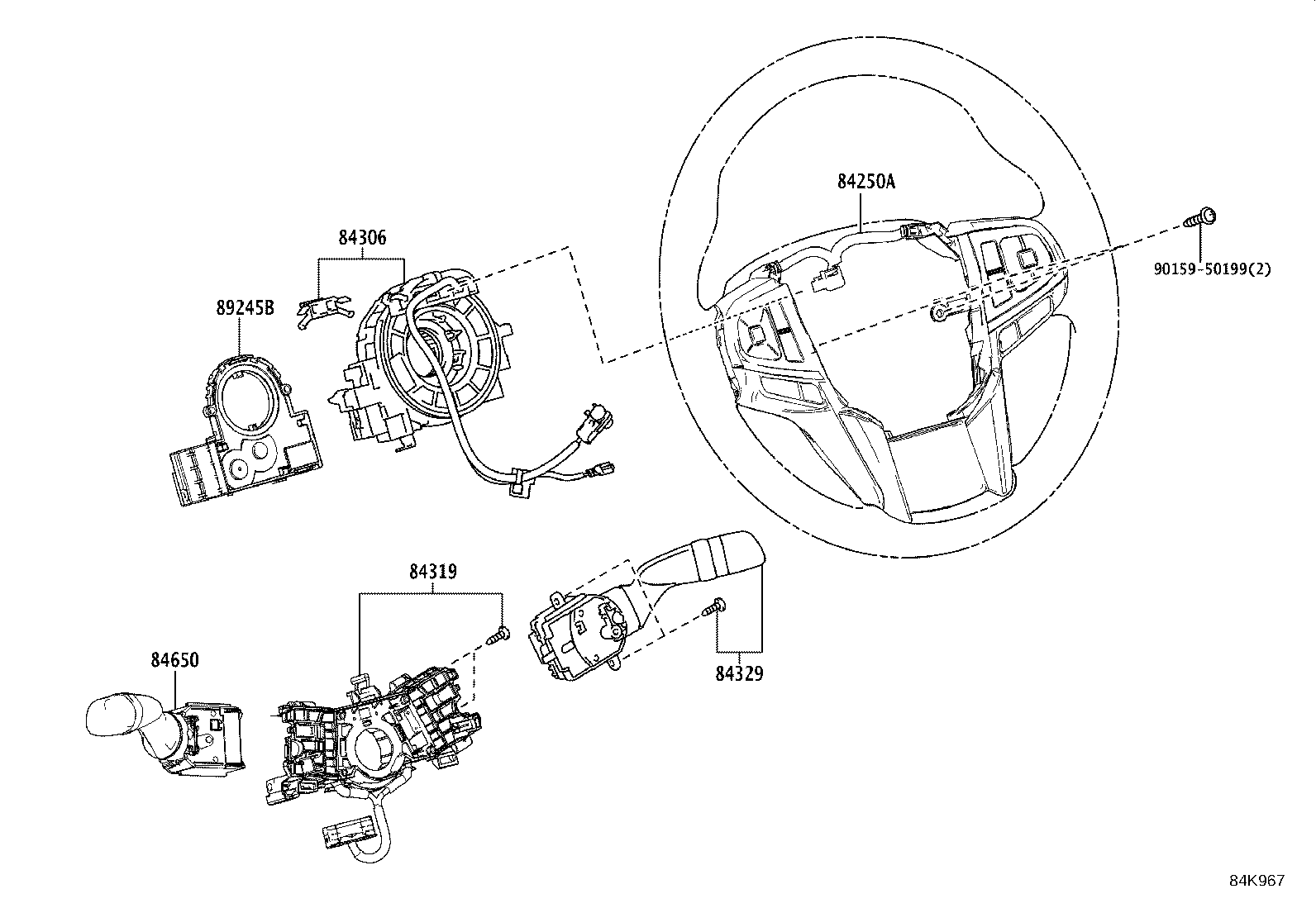

ILLUST NO. 6 OF 9(1912- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-26100C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-11020 |
GDH303 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
GDH303 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33030 |
GDH303 |
1 | ||
| 84329-33020 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42210 |
GDH303 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-50050 |
GDH303 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

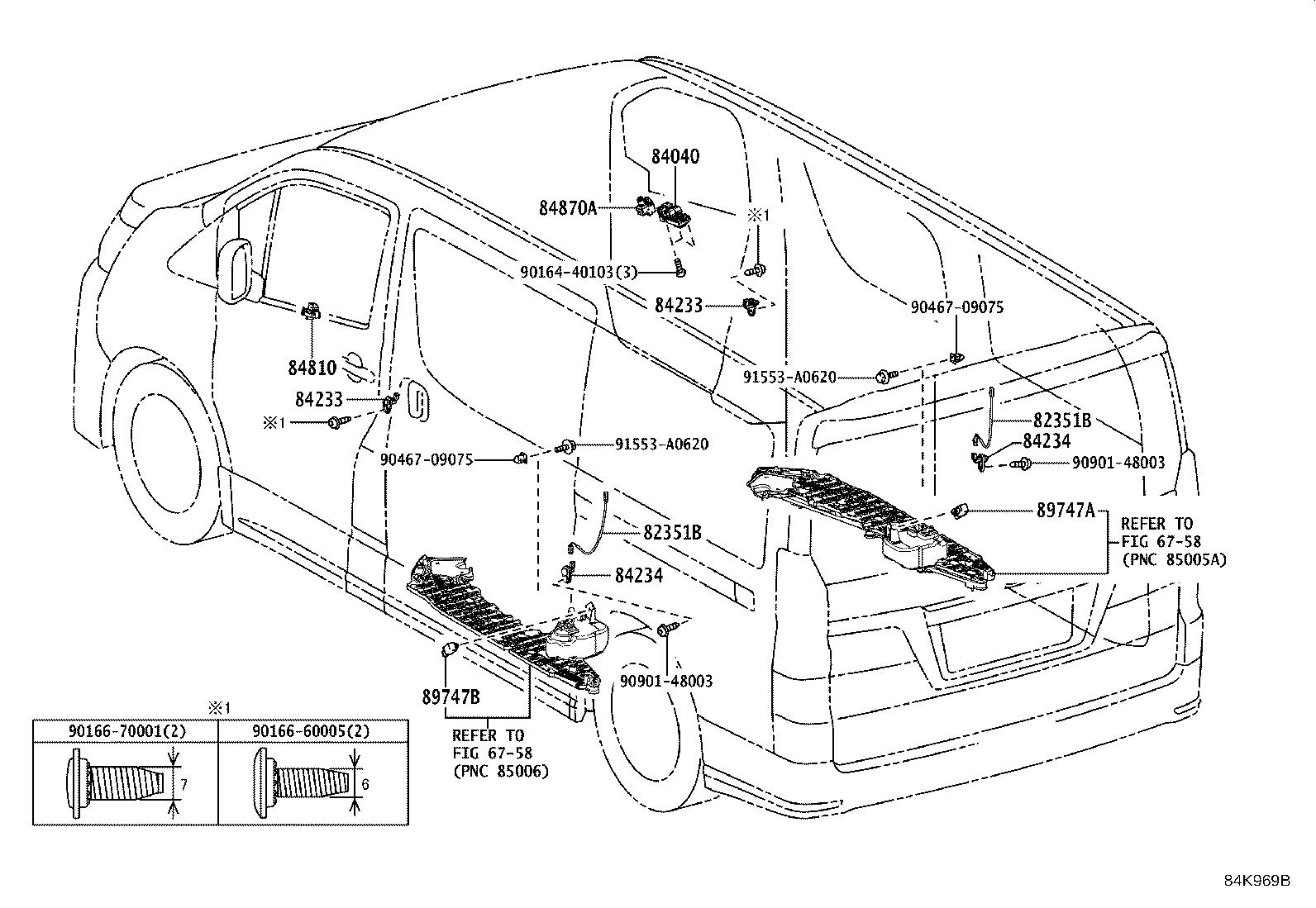

ILLUST NO. 8 OF 9(1912- )
ﾄﾞｱ & ﾙｰﾌ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26030 |
GDH303 |
2 | ||
| 82351B - WIRE,COURTESY LAMP | ||||
| 82351-26030 |
GDH303 |
2 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-26010 |
GDH303 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
GDH303 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52020 |
GDH303 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GDH303 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GDH303 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
GDH303 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47060 |
GDH303 |
1 | ||
| 89747A - BUZZER, POWER SLIDE DOOR WARNING, RH | ||||
| 89747-30040 |
GDH303 |
1 | ||
| 89747B - BUZZER, POWER SLIDE DOOR WARNING, LH | ||||
| 89747-30040 |
GDH303 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90467-09075 | ||||
| 90901-48003 | ||||
| 91553-A0620 | ||||
| Linked diagrams | ||||
| 6758 | ||||

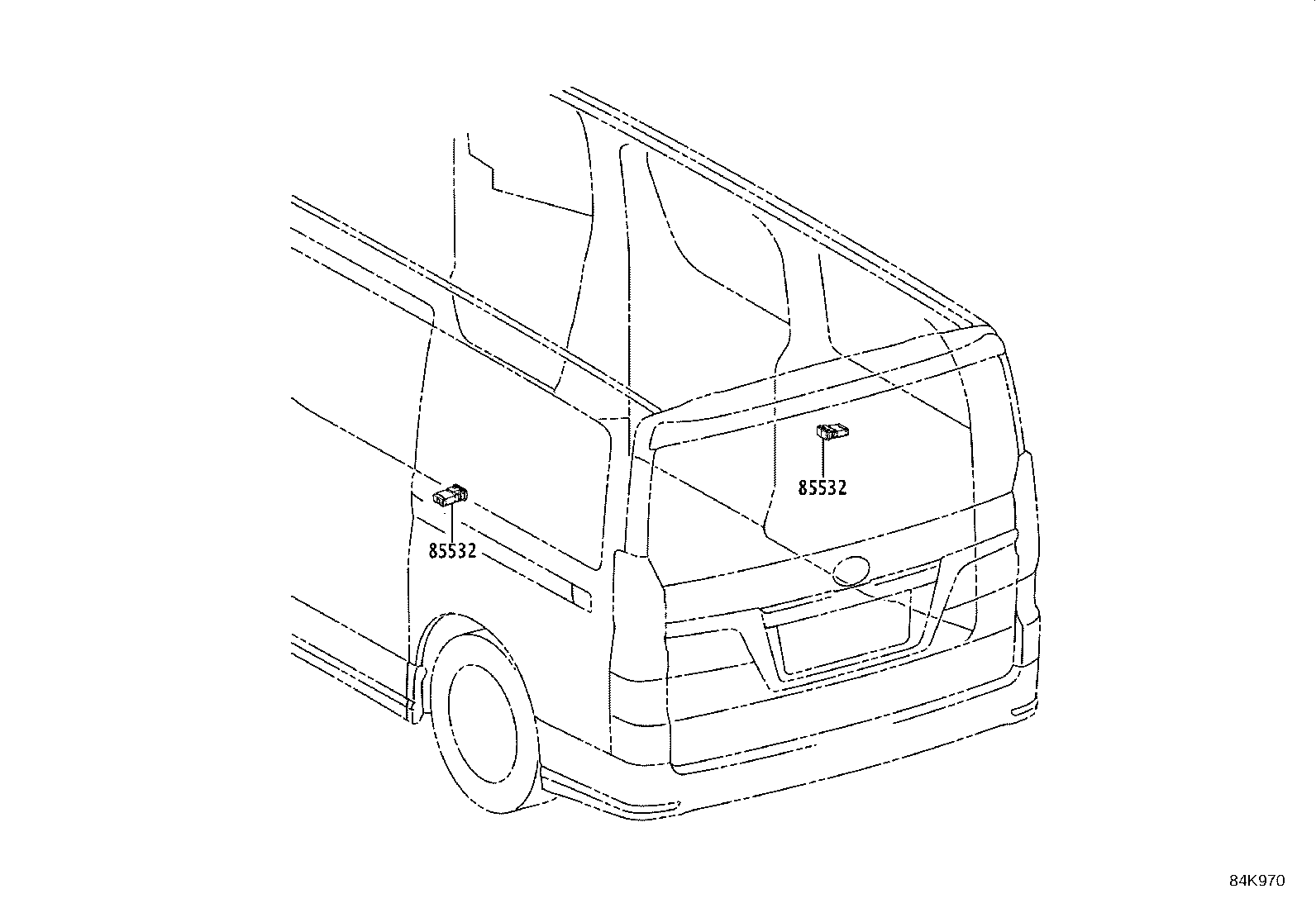

ILLUST NO. 8 OF 9(1912- )
ﾄﾞｱ & ﾙｰﾌ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
GDH303 |
3 | ||
| 85532-15010 |
GDH303 |
3 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
GDH303 |
3 | ||
| 85532-15010 |
GDH303 |
3 | ||

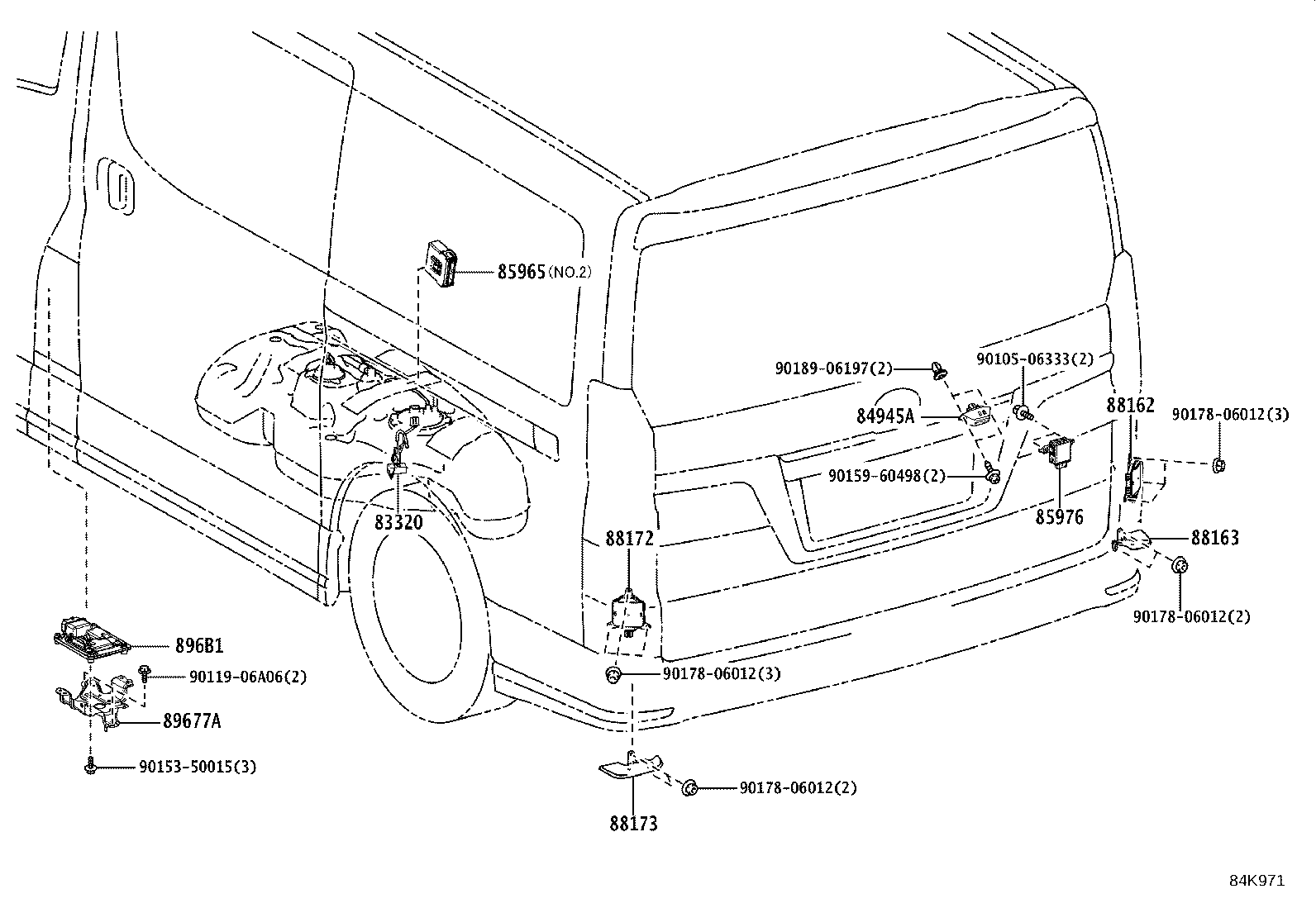

ILLUST NO. 9 OF 9(1912- )
ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-26490 |
GDH303 |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84905-26010 |
GDH303 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-26020 |
GDH303 NO.1 |
1 | ||
| 85965-26030 |
GDH303 NO.2 |
1 | ||
| 85976 - RELAY, BACK DOOR CLOSER | ||||
| 85976-26050 |
GDH303 |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-26010 |
GDH303 |
1 | ||
| 88162-26011 |
GDH303 |
1 | ||
| 88163 - COVER, BLIND SPOT MONITOR, RH | ||||
| 88163-26010 |
GDH303 |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-26011 |
GDH303 |
1 | ||
| 88162-26010 |
GDH303 |
1 | ||
| 88173 - COVER, BLIND SPOT MONITOR, LH | ||||
| 88173-26010 |
GDH303 |
1 | ||
| 89677A - BRACKET, UREA PUMP CONTROL, NO.1 | ||||
| 89677-26010 |
GDH303 |
1 | ||
| 896B1 - COMPUTER, UREA PUMP CONTROL | ||||
| 896B1-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90119-06A06 | ||||
| 90153-50015 | ||||
| 90159-60498 | ||||
| 90178-06012 | ||||
| 90189-06197 | ||||
ILLUST NO. 7 OF 9(1912- )
ｼｰﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
GDH303 BLACK,TRIM2#,右側 |
1 | ||
| 84921-33180C0 |
GDH303 BLACK,TRIM2#,左側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
GDH303 BLACK,TRIM2#,右側 |
1 | ||
| 84921-33180C0 |
GDH303 BLACK,TRIM2#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
GDH303 BLACK,TRIM2#,右側 |
1 | ||
| 84921-33170C0 |
GDH303 BLACK,TRIM2#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
GDH303 BLACK,TRIM2#,右側 |
1 | ||
| 84921-33170C0 |
GDH303 BLACK,TRIM2#,左側 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33170 |
GDH303 右側 |
1 | ||
| 84922-33180 |
GDH303 |
1 | ||
| 84922-33180 |
GDH303 左側 |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33170 |
GDH303 右側 |
1 | ||
| 84922-33180 |
GDH303 |
1 | ||
| 84922-33180 |
GDH303 左側 |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
