Toyota Granace GDH303 WIRING & CLAMP

GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999

Engine 1GDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

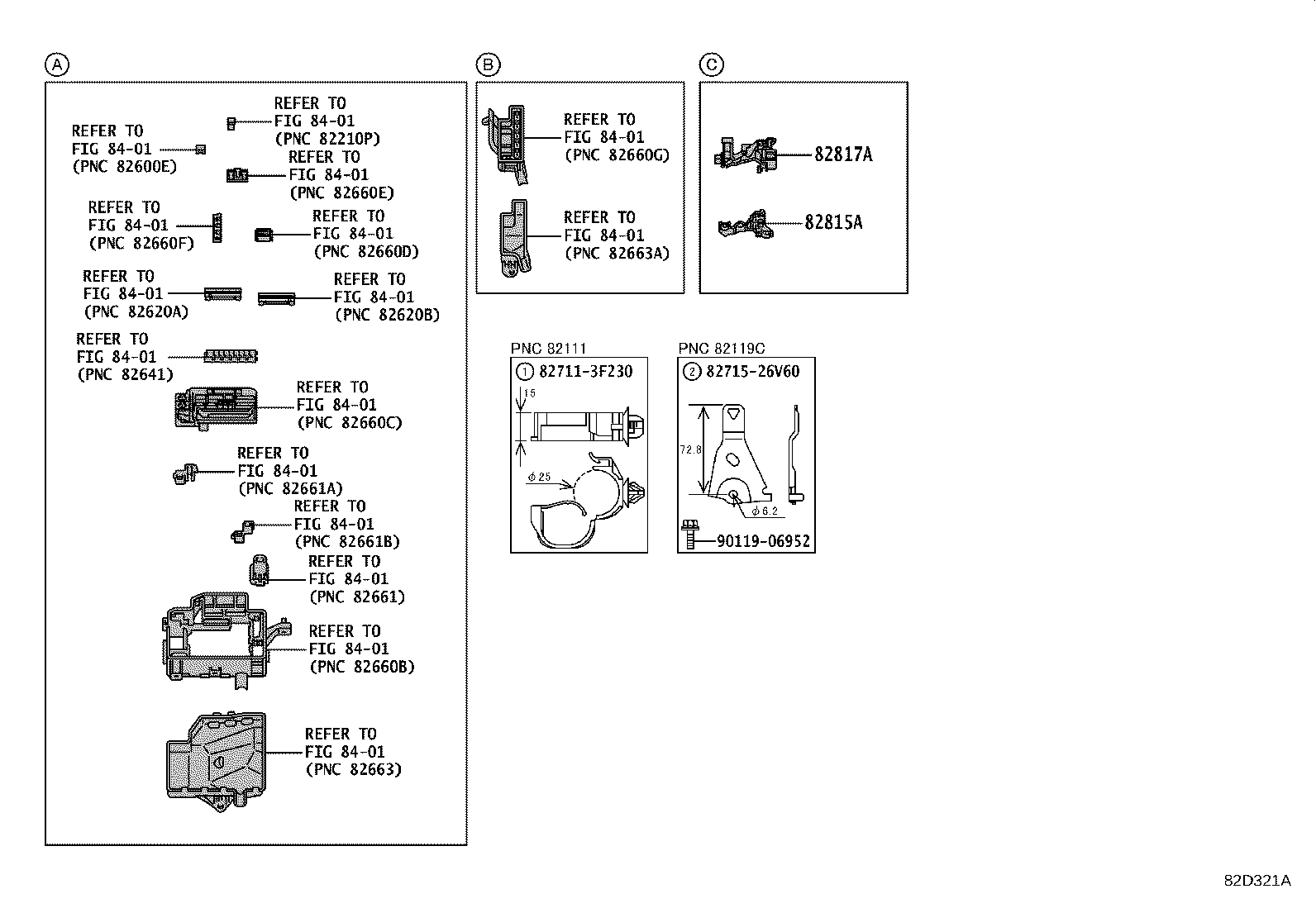

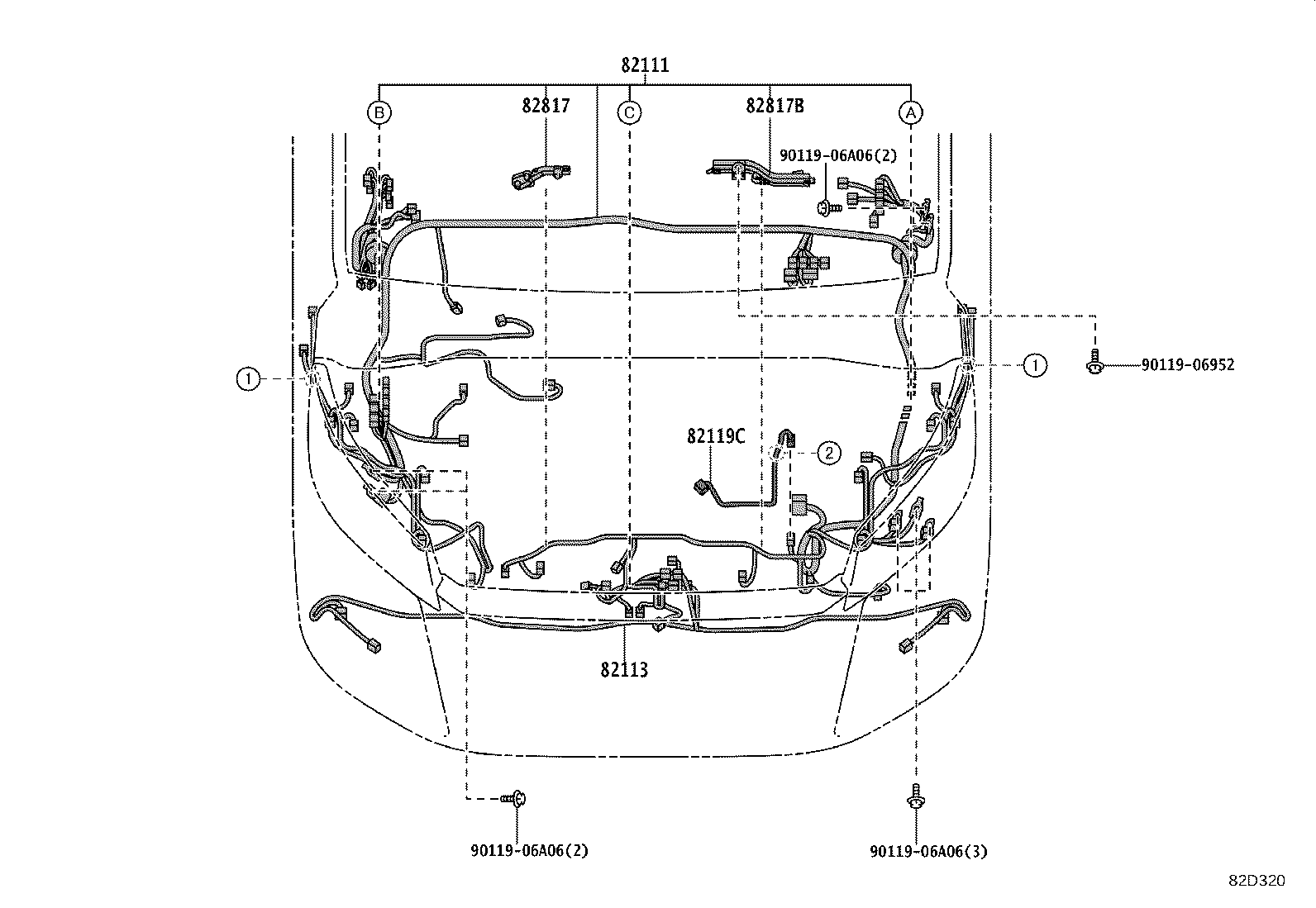

ILLUST NO. 1 OF11(1912- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ 1/2

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-V3270	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	06/2020 - 07/2021	1
82111-2ND40	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 06/2020	1
82111-2FN60	GDH303	12/2019 - 06/2020	1
82111-V3330	GDH303	06/2020 - 07/2021	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-26180	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82113-26250	GDH303	12/2019 - 12/2999	1
82119C - WIRE, ENGINE ROOM, NO.5
82119-26A20	GDH303	12/2019 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-26Y40	GDH303	12/2019 - 12/2999	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-2F750	GDH303	12/2019 - 12/2999	1
Common parts
90119-06952
90119-06A06

ILLUST NO. 2 OF11(1912- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ 2/2

Part #	Description	Period	Qty
82815A - COVER, WIRING HARNESS PROTECTOR
82815-26G00	GDH303	12/2019 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-26Y50	GDH303	12/2019 - 12/2999	1
Common parts
82711-3F230
82715-26V60
90119-06952
Linked diagrams
8401

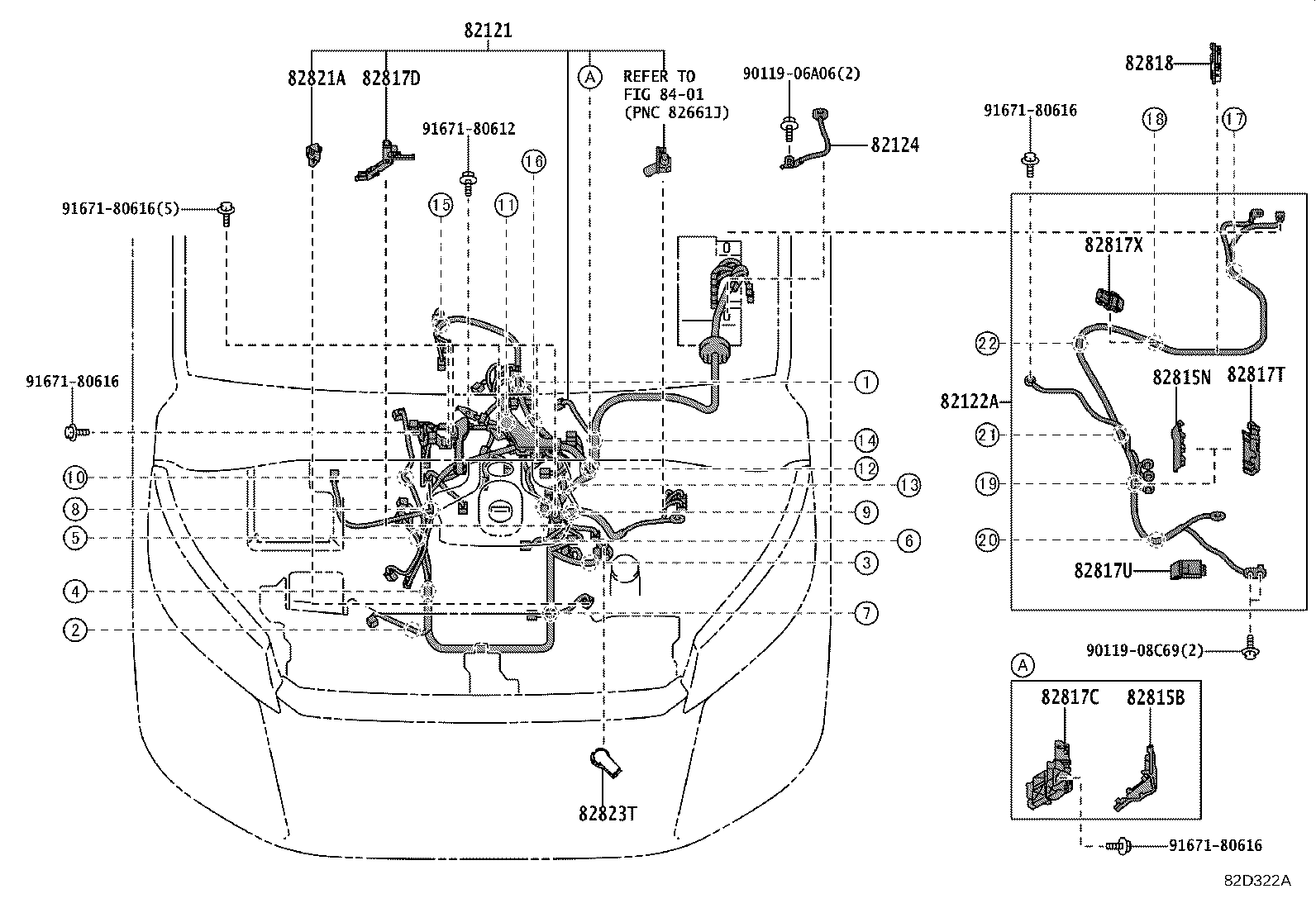

ILLUST NO. 3 OF11(1912- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ 1/2

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-26W20	GDH303 寒冷地仕様(−20℃地域)	12/2019 - 07/2021	1
82121-26W30	GDH303	12/2019 - 07/2021	1
82122A - WIRE, ENGINE, NO.2
82122-26A90	GDH303	12/2019 - 12/2999	1
82124 - WIRE, ENGINE, NO.4
82124-26220	GDH303	12/2019 - 12/2999	1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-26C10	GDH303	12/2019 - 12/2999	1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-26K00	GDH303	12/2019 - 12/2999	1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-26Q70	GDH303	12/2019 - 12/2999	1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-26Q80	GDH303	12/2019 - 12/2999	1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-2F760	GDH303	12/2019 - 12/2999	1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-26R00	GDH303	12/2019 - 12/2999	1
82817X - PROTECTOR, WIRING HARNESS, NO.17
82817-26X30	GDH303	12/2019 - 12/2999	1
82818 - PROTECTOR, WIRING HARNESS, NO.2
82817-26M40	GDH303	12/2019 - 12/2999	1
82821A - COVER, CONNECTOR
82821-12360	GDH303	12/2019 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-26020	GDH303	12/2019 - 12/2999	1
Common parts
90119-06A06
90119-08C69
91671-80612
91671-80616
Linked diagrams
8401

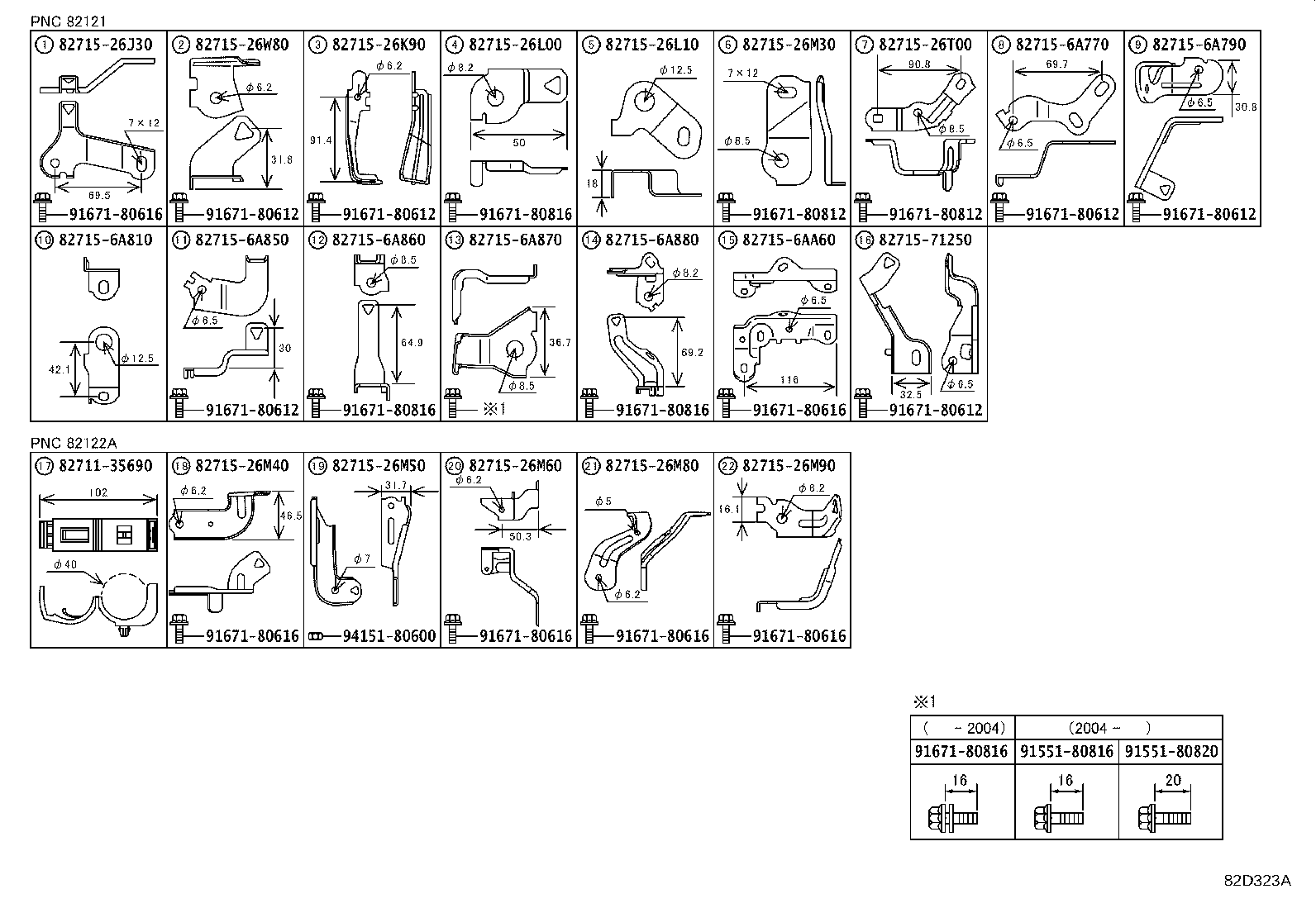

ILLUST NO. 4 OF11(1912- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝ 2/2

Part #	Description	Period	Qty	Price
Common parts
82711-35690
82715-26J30
82715-26K90
82715-26L00
82715-26L10
82715-26M30
82715-26M40
82715-26M50
82715-26M60
82715-26M80
82715-26M90
82715-26T00
82715-26W80
82715-6A770
82715-6A790
82715-6A810
82715-6A850
82715-6A860
82715-6A870
82715-6A880
82715-6AA60
82715-71250
91551-80816
91551-80820
91671-80612
91671-80616
91671-80812
91671-80816
94151-80600

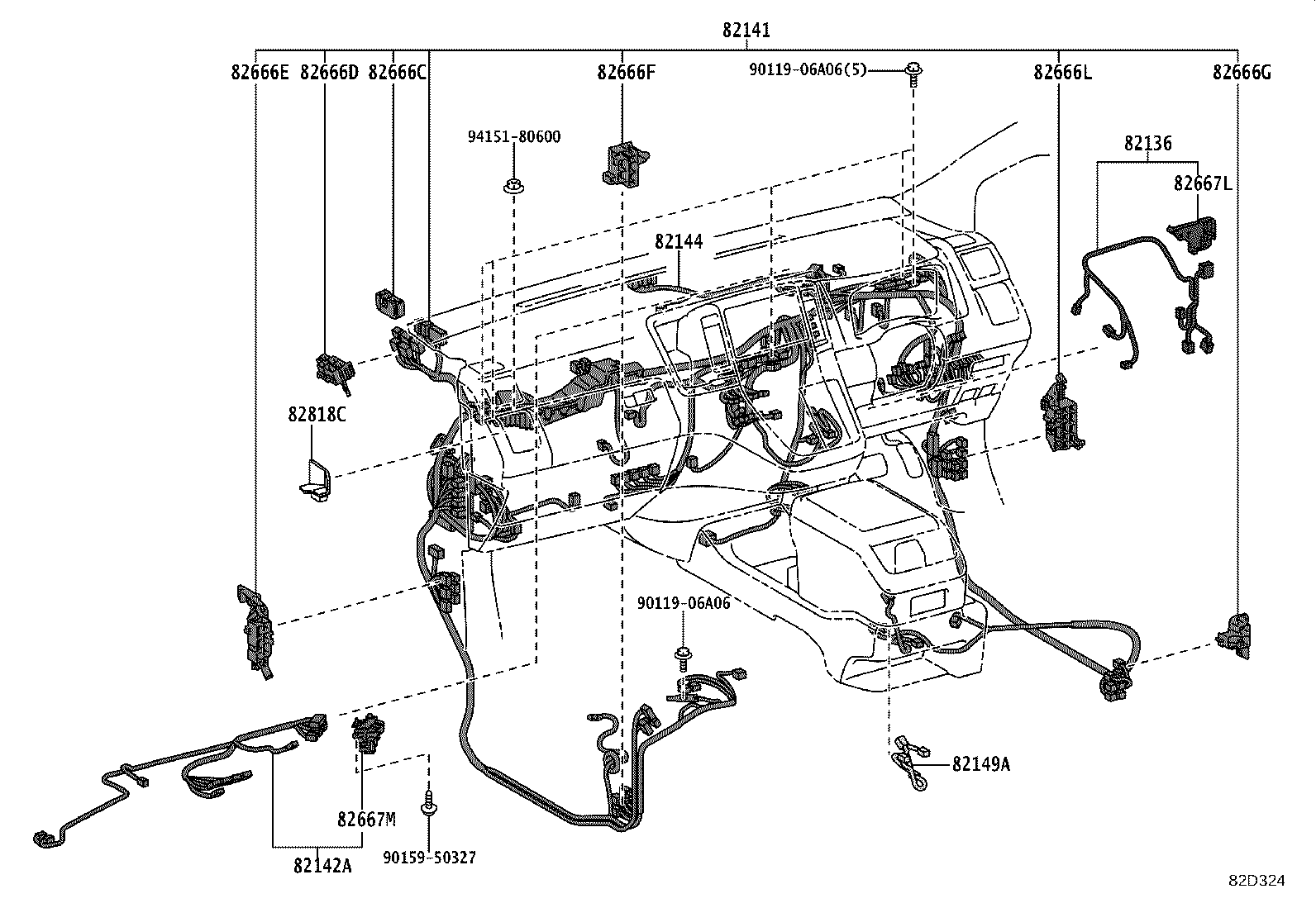

ILLUST NO. 5 OF11(1912- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82136 - WIRE, DASH
82136-26070	GDH303	12/2019 - 12/2999	1
82141 - WIRE, INSTRUMENT PANEL
82141-26V70	GDH303 ﾌﾛﾝﾄﾋｰﾀ−有り(PTCﾋｰﾀ&ﾋﾞｽｶｽﾋｰﾀ&2層ﾌﾞﾛﾜ)	12/2019 - 07/2021	1
82141-26V60	GDH303	12/2019 - 07/2021	1
82141-26J20	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82141-26J30	GDH303 ﾌﾛﾝﾄﾋｰﾀ−有り(PTCﾋｰﾀ&ﾋﾞｽｶｽﾋｰﾀ&2層ﾌﾞﾛﾜ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82142-26660	GDH303	12/2019 - 07/2021	1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-26070	GDH303	12/2019 - 12/2999	1
82149A - WIRE, INSTRUMENT PANEL, NO.5
82149-26010	GDH303	12/2019 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-26620	GDH303	12/2019 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-26610	GDH303	12/2019 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-26650	GDH303	12/2019 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-26660	GDH303	12/2019 - 12/2999	1
82666G - HOLDER, CONNECTOR NO.8
82666-26700	GDH303	12/2019 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-26690	GDH303	12/2019 - 12/2999	1
82667L - HOLDER, CONNECTOR, NO.26
82666-26A30	GDH303	12/2019 - 12/2999	1
82667M - HOLDER, CONNECTOR, NO.27
82666-26A40	GDH303	12/2019 - 12/2999	1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-26M60	GDH303	12/2019 - 12/2999	1
Common parts
90119-06A06
90159-50327
94151-80600

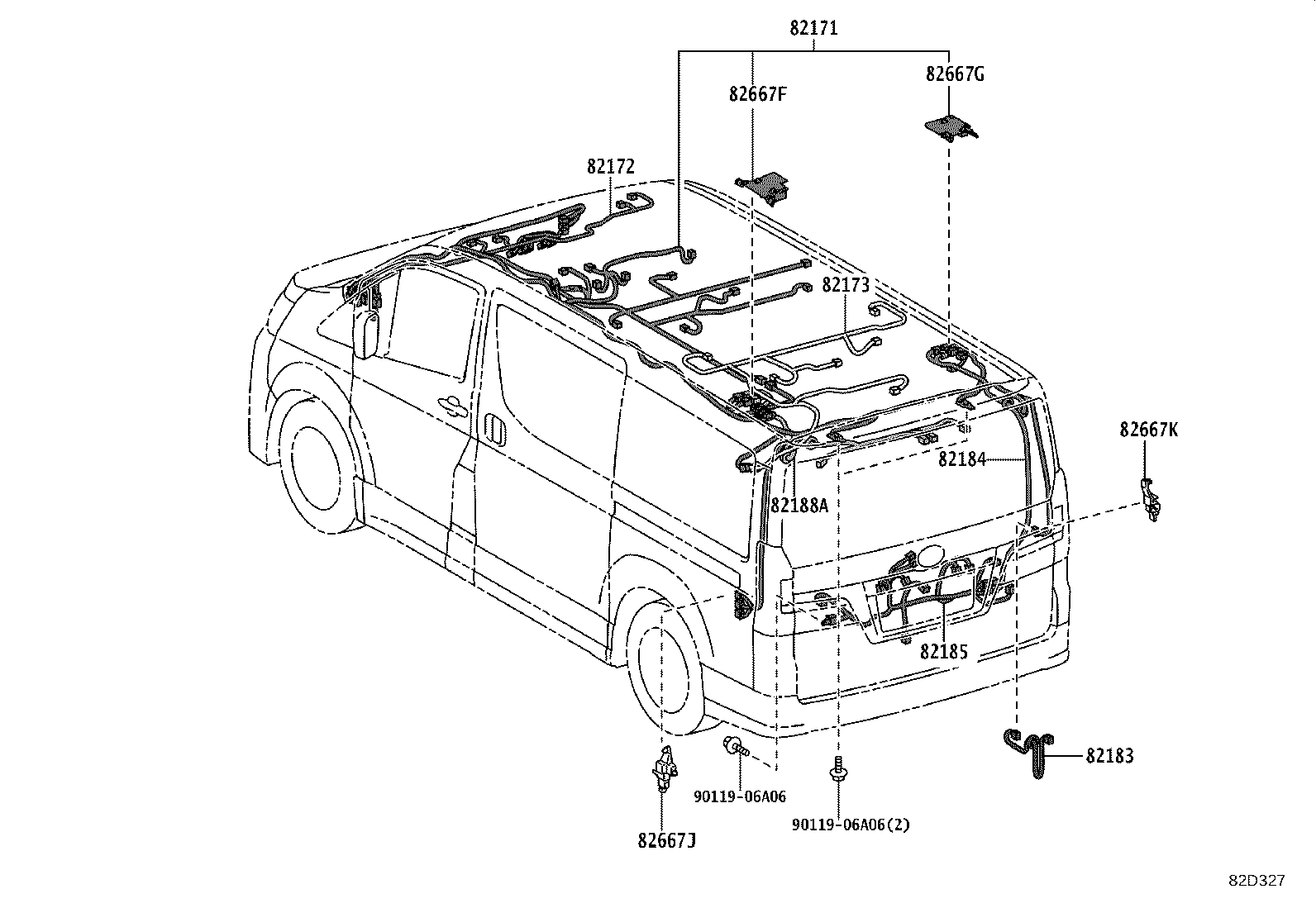

ILLUST NO. 8 OF11(1912- )

Click highlighted areas on diagram

ﾙｰﾌ

Part #	Description	Period	Qty
82171 - WIRE, ROOF, NO.1
82171-2FD80	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82171-2FF70	GDH303	12/2019 - 12/2999	1
82172 - WIRE, ROOF, NO.2
82172-2F760	GDH303..G	12/2019 - 07/2021	1
82173 - WIRE, ROOF, NO.3
82173-26250	GDH303..G	12/2019 - 12/2999	1
82183 - WIRE, LUGGAGE ROOM, NO.3
82183-26330	GDH303	12/2019 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-26730	GDH303	06/2020 - 12/2999	1
82184-26760	GDH303	12/2019 - 05/2020	1
82185 - WIRE, BACK DOOR, NO.2
82185-26C30	GDH303	12/2019 - 05/2020	1
82185-26C00	GDH303	06/2020 - 12/2999	1
82188A - WIRE, BACK DOOR, NO.3
82188-26460	GDH303	12/2019 - 12/2999	1
82667F - HOLDER, CONNECTOR, NO.21
82666-26B10	GDH303	12/2019 - 12/2999	1
82667G - HOLDER, CONNECTOR, NO.22
82666-26B20	GDH303	12/2019 - 12/2999	1
82667J - HOLDER, CONNECTOR, NO.24
82666-26C30	GDH303	12/2019 - 12/2999	1
82667K - HOLDER, CONNECTOR, NO.25
82666-26C40	GDH303	12/2019 - 12/2999	1
Common parts
90119-06A06

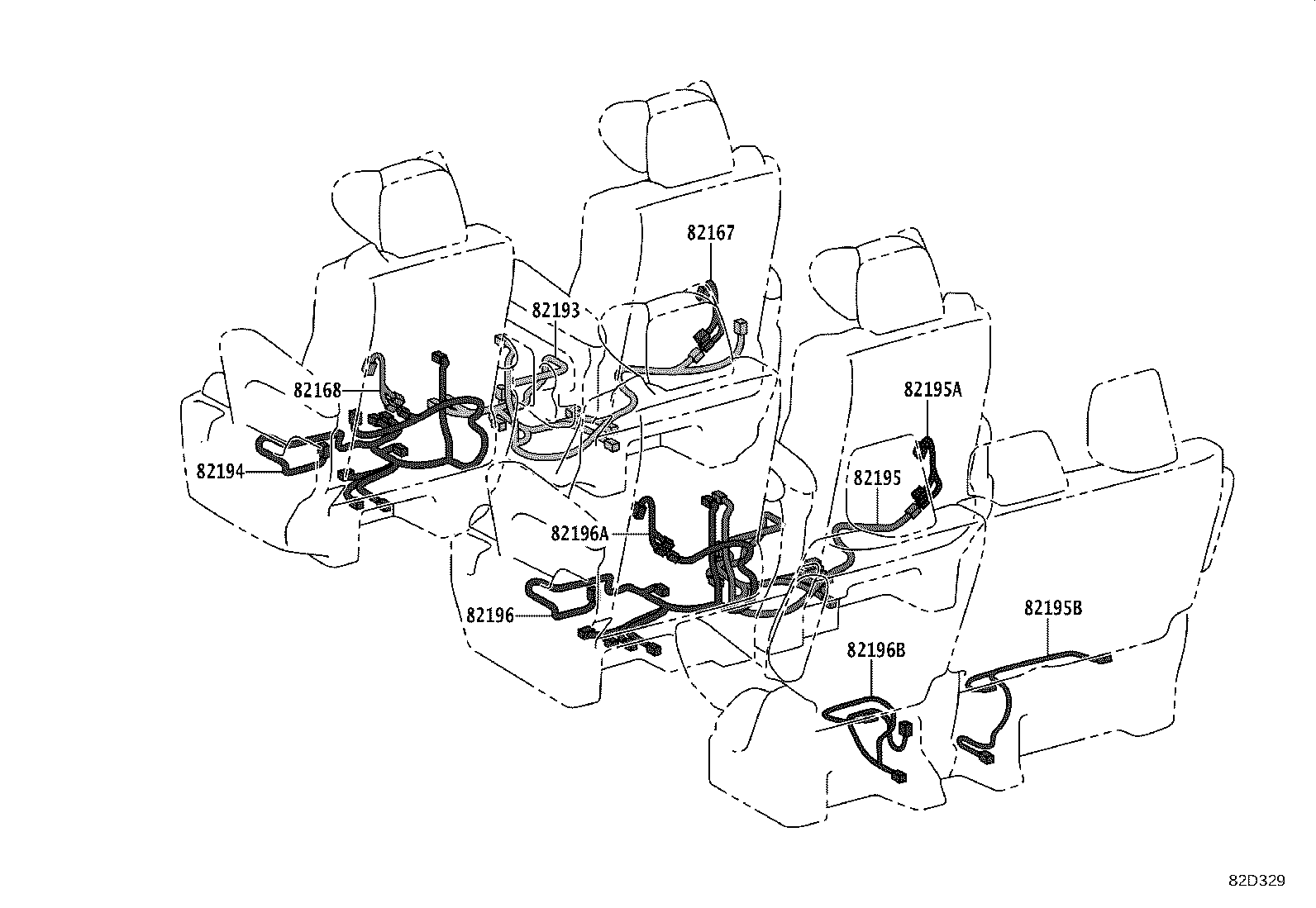

ILLUST NO.10 OF11(1912- )

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

Part #	Description	Period	Qty
82167 - WIRE, SEAT, NO.1
82167-26080	GDH303	12/2019 - 12/2999	1
82168 - WIRE, SEAT, NO.2
82168-26100	GDH303	12/2019 - 12/2999	1
82193 - WIRE, REAR SEAT, RH
82193-26010	GDH303	12/2019 - 12/2999	1
82194 - WIRE, REAR SEAT, LH
82194-26010	GDH303	12/2019 - 12/2999	1
82195B - WIRE, REAR SEAT, RH NO.4
82193-26070	GDH303..G	12/2019 - 12/2999	1
82196B - WIRE, REAR SEAT, LH NO.4
82194-26080	GDH303..G	12/2019 - 12/2999	1

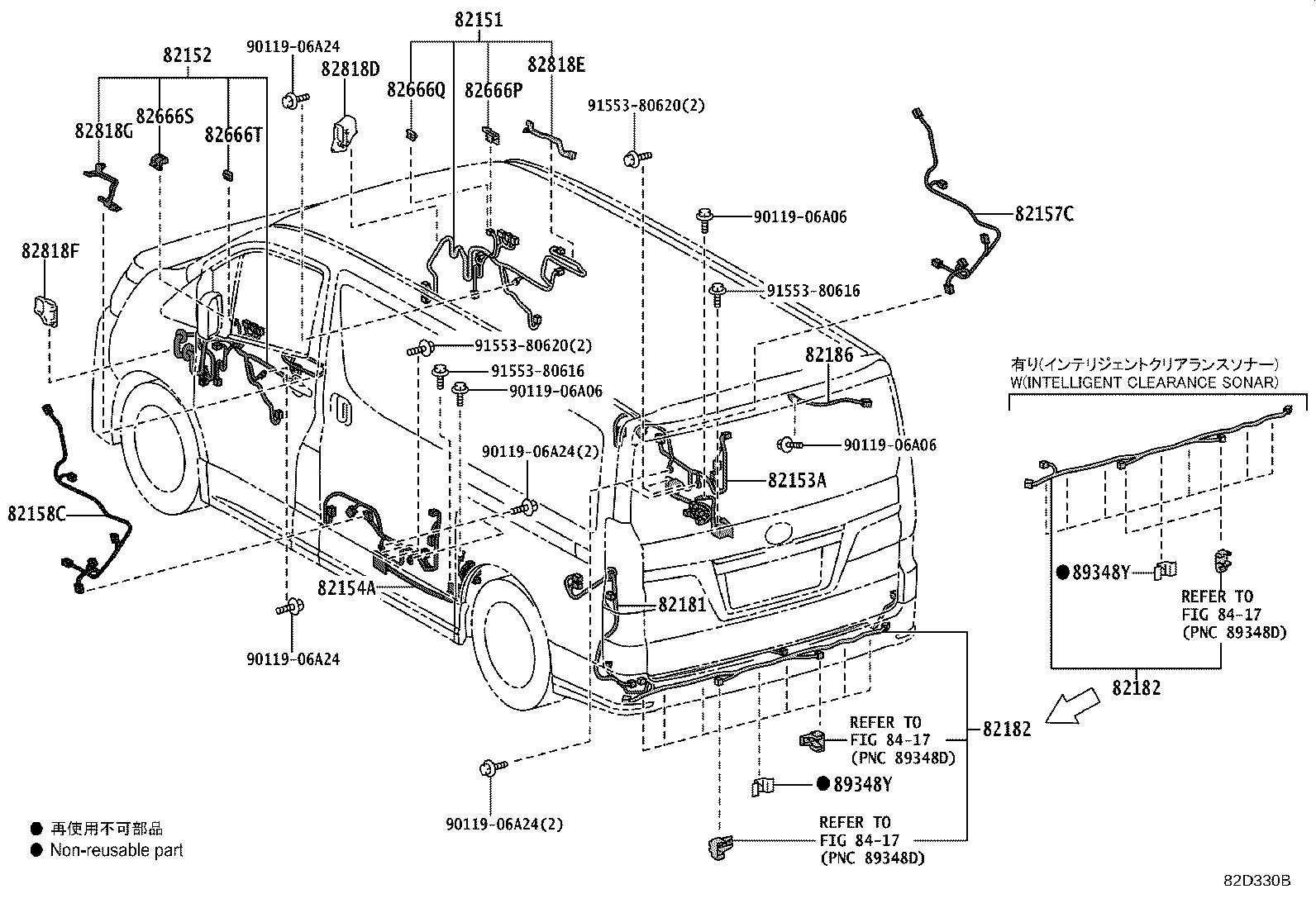

ILLUST NO. 6 OF11(1912- )

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-26700	GDH303	12/2019 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-26650	GDH303	12/2019 - 12/2999	1
82153A - WIRE, REAR DOOR, RH
82053-26100	GDH303	12/2019 - 12/2999	1
82154A - WIRE, REAR DOOR, LH
82054-26090	GDH303	12/2019 - 12/2999	1
82157C - WIRE, REAR DOOR, RH NO.2
82157-26090	GDH303	12/2019 - 12/2999	1
82158C - WIRE, REAR DOOR, LH NO.2
82158-26090	GDH303	12/2019 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-26310	GDH303	12/2019 - 12/2999	1
82181-26210	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-26090	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82182-26170	GDH303	12/2019 - 12/2999	1
82182 - WIRE, LUGGAGE ROOM, NO.2
82182-26090	GDH303 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り	12/2019 - 07/2021	1
82182-26170	GDH303	12/2019 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-26120	GDH303	12/2019 - 12/2999	1
82666P - HOLDER, CONNECTOR NO.11
82666-26B80	GDH303	12/2019 - 12/2999	1
82666Q - HOLDER, CONNECTOR NO.12
82666-21040	GDH303	12/2019 - 12/2999	1
82666S - HOLDER, CONNECTOR NO.13
82666-26B90	GDH303	12/2019 - 12/2999	1
82666T - HOLDER, CONNECTOR NO.14
82666-21040	GDH303	12/2019 - 12/2999	1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-26M80	GDH303	12/2019 - 12/2999	1
82818E - PROTECTOR, WIRING HARNESS, NO.6
82817-26Y60	GDH303	12/2019 - 12/2999	1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-26U90	GDH303	12/2019 - 12/2999	1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-26Y70	GDH303	12/2019 - 12/2999	1
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	GDH303	12/2019 - 12/2999	7
89348Y - CLIP, ULTRASONIC SENSOR, REAR
89348-50050	GDH303	12/2019 - 12/2999	7
Common parts
90119-06A06
90119-06A24
91553-80616
91553-80620
Linked diagrams
8417

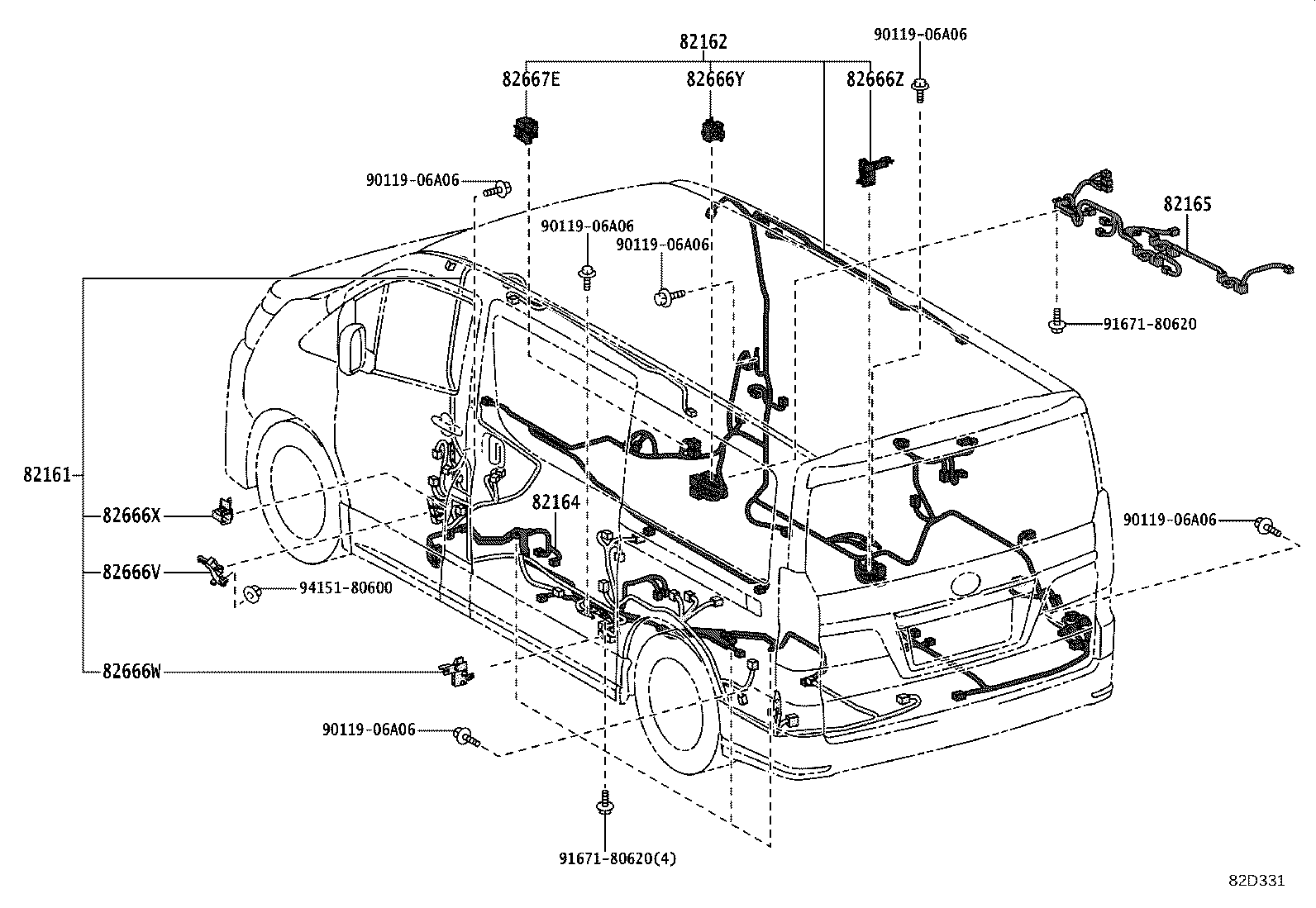

ILLUST NO. 7 OF11(1912- )

Click highlighted areas on diagram

ﾌﾛｱ

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-26P20	GDH303..G	12/2019 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-26E10	GDH303..G	12/2019 - 12/2999	1
82164 - WIRE, FRAME
82164-26B00	GDH303	12/2019 - 12/2999	1
82165 - WIRE, FRAME, NO.2
82165-26640	GDH303	12/2019 - 12/2999	1
82666V - HOLDER, CONNECTOR NO.15
82666-26A50	GDH303	12/2019 - 12/2999	1
82666W - HOLDER, CONNECTOR NO.16
82666-26A60	GDH303	12/2019 - 12/2999	1
82666X - HOLDER, CONNECTOR NO.17
82666-26A70	GDH303	12/2019 - 12/2999	1
82666Y - HOLDER, CONNECTOR NO.18
82666-26A80	GDH303	12/2019 - 12/2999	1
82666Z - HOLDER, CONNECTOR NO.19
82666-26A90	GDH303	12/2019 - 12/2999	1
82667E - HOLDER, CONNECTOR, NO.20
82666-26B00	GDH303	12/2019 - 12/2999	1
Common parts
90119-06A06
91671-80620
94151-80600

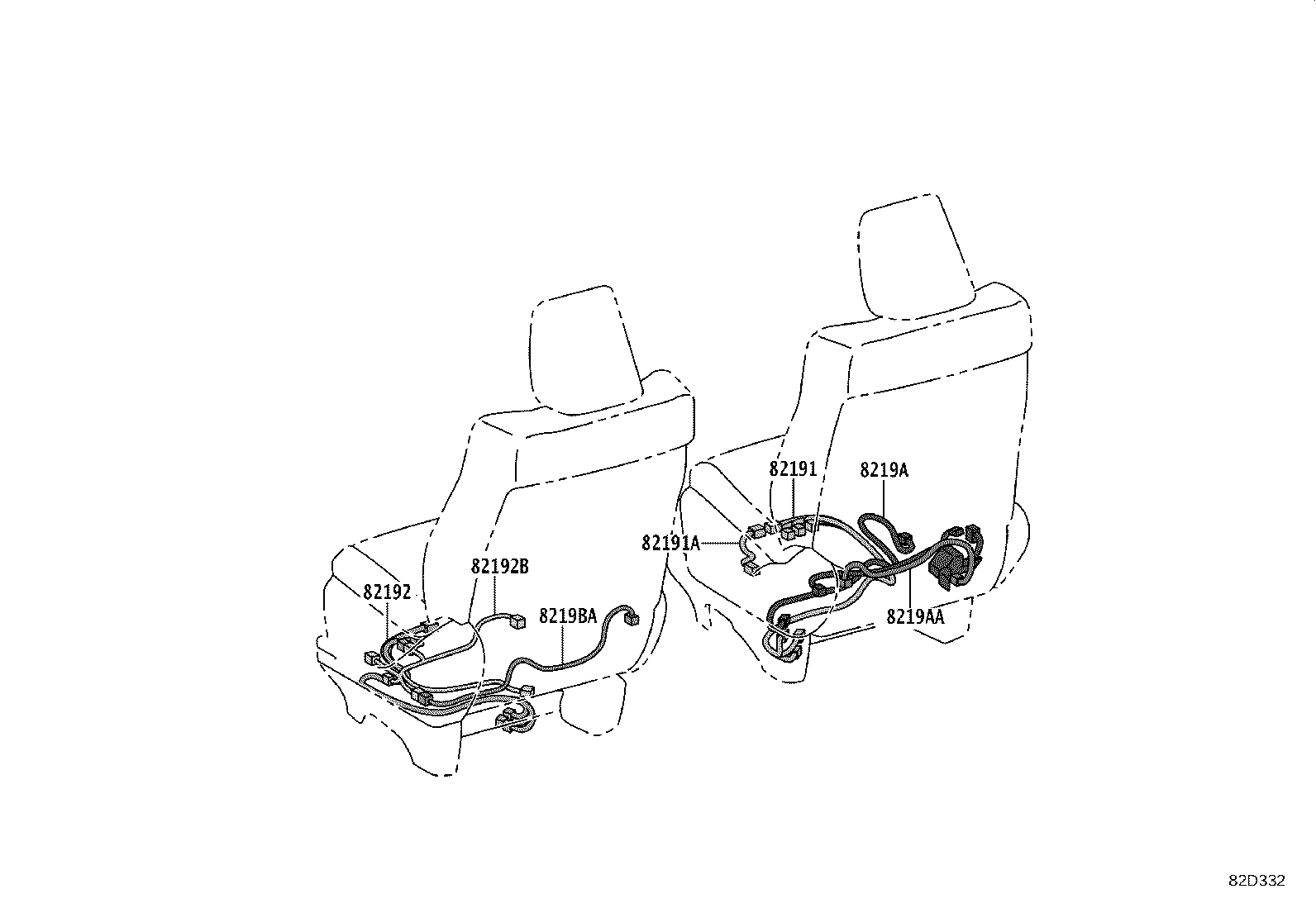

ILLUST NO. 9 OF11(1912- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｼｰﾄ

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-26260	GDH303	12/2019 - 12/2999	1
82191A - WIRE, FRONT SEAT, RH
82191-11090	GDH303	12/2019 - 12/2999	1
82192 - WIRE, FRONT SEAT, LH
82192-26160	GDH303	12/2019 - 12/2999	1
82192B - WIRE, FRONT SEAT, LH NO.2
82192-26090	GDH303	12/2019 - 07/2021	1
8219A - WIRE, FRONT SEAT, RH NO.2
82191-26250	GDH303	12/2019 - 12/2999	1
8219AA - WIRE, FRONT SEAT, RH NO.3
8219A-33100	GDH303	12/2019 - 12/2999	1
8219BA - WIRE, FRONT SEAT, LH NO.3
8219B-33100	GDH303	12/2019 - 07/2021	1

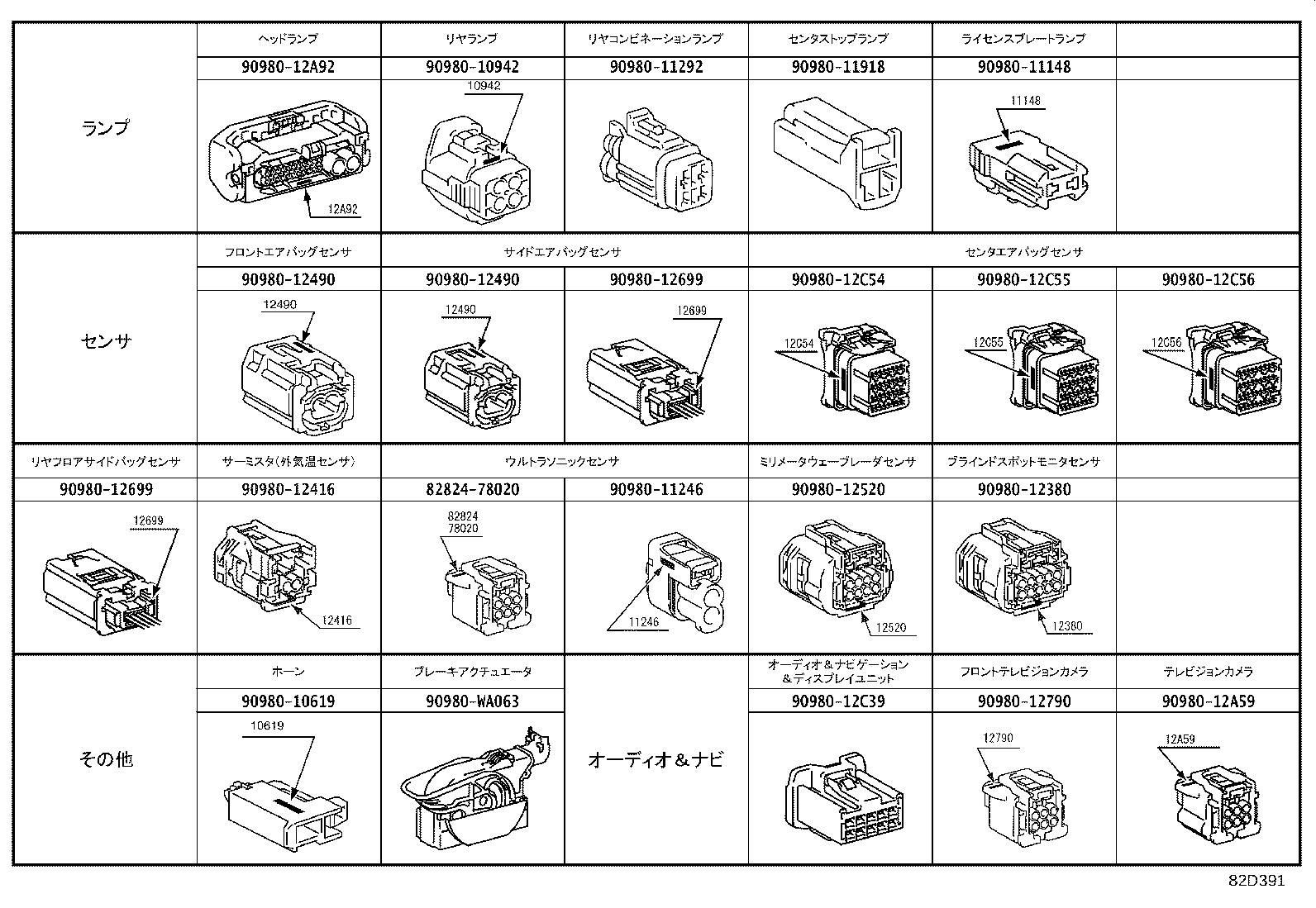

ILLUST NO.11 OF11(1912- )

Click highlighted areas on diagram

ｺﾈｸﾀ

Part #	Description	Period	Qty	Price
Common parts
82824-78020
90980-10619
90980-10942
90980-11148
90980-11246
90980-11292
90980-11918
90980-12380
90980-12416
90980-12490
90980-12520
90980-12699
90980-12790
90980-12A59
90980-12A92
90980-12C39
90980-12C54
90980-12C55
90980-12C56
90980-WA063
