GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

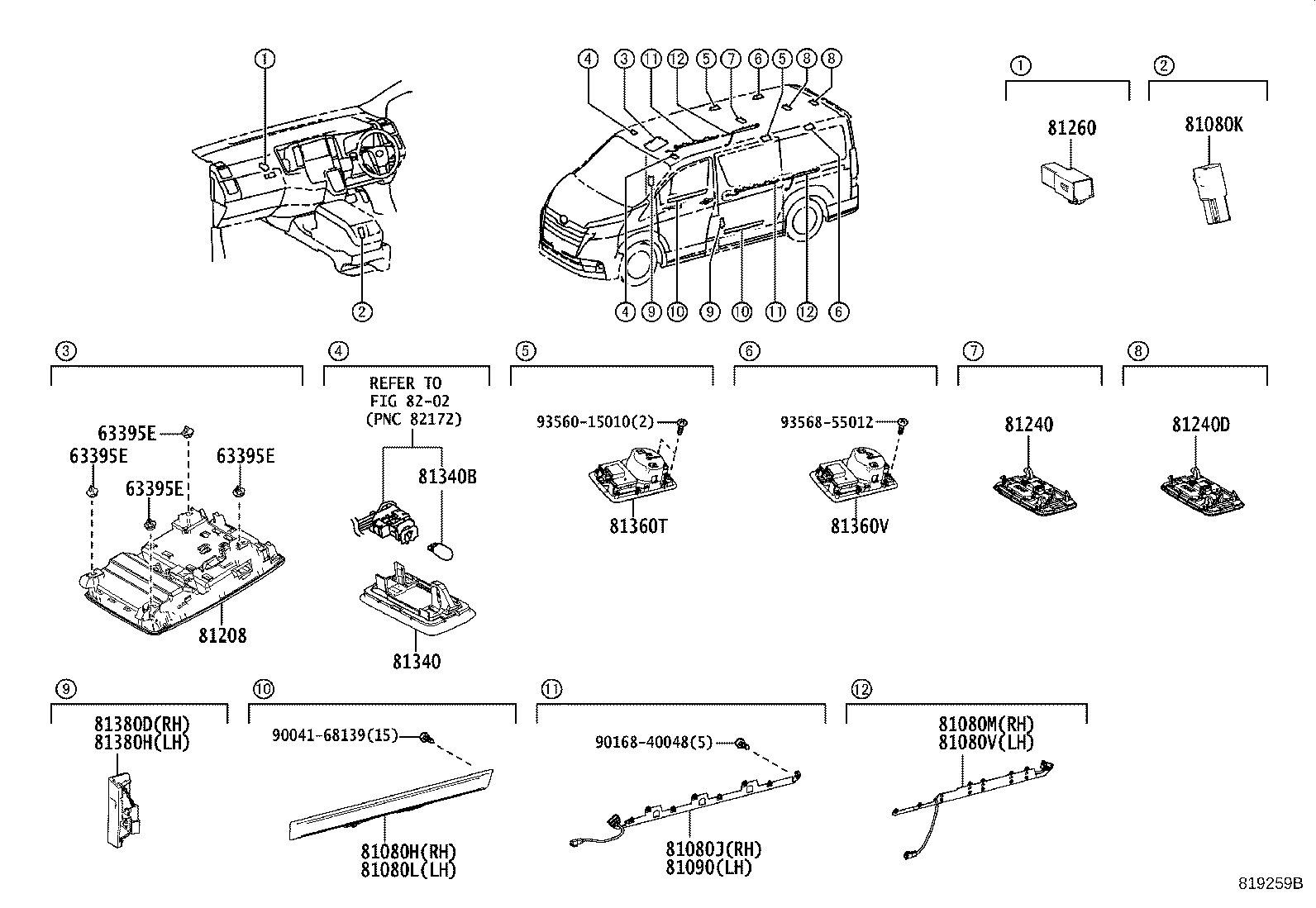

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81080H 81080J 81080K 81080L 81080M 81080V 81090 81208 81240 81240D 81260 81340 81340B 81360T 81360V 81380D 81380H 8202 9004168139 9016840048 9356015010 9356855012
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

GDH303

 4
90467-09245

GDH303

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GDH303

 4
90467-09245

GDH303

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GDH303

 4
90467-09245

GDH303

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

GDH303

 4
90467-09245

GDH303

 4
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080-26240C0

GDH303

BLACK,TRIM2#

 1
81080J - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-26120

GDH303

 1
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81080-58100

GDH303

 1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080-26240C0

GDH303

BLACK,TRIM2#

 1
81080M - LAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080-26140

GDH303

 1
81080V - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81090-26090

GDH303

 1
81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81090-26070

GDH303

 1
81208 - LAMP SUB-ASSY, MAP
81208-26140C0

GDH303

BLACK,TRIM2#

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-48030A0

GDH303..G

FROMAGE,TRIM2#

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-48030A0

GDH303..G

FROMAGE,TRIM2#

 2
81260 - LAMP ASSY, GLOVE BOX
81080-58100

GDH303

 1
81340 - LAMP ASSY, VANITY
81340-30110

GDH303

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

GDH303

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-26040A0

GDH303..G

FROMAGE,TRIM2#

 2
81360V - LAMP ASSY, SPOT, NO.2
81360-26040A0

GDH303..G

FROMAGE,TRIM2#

 2
81380D - LAMP ASSY, STEP
81380-26010C0

GDH303

BLACK,TRIM2#

 1
81380H - LAMP ASSY, STEP
81380-26020C0

GDH303

BLACK,TRIM2#

 1
Common parts
90041-68139
90168-40048
93560-15010
93568-55012
Linked diagrams
8202
