GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

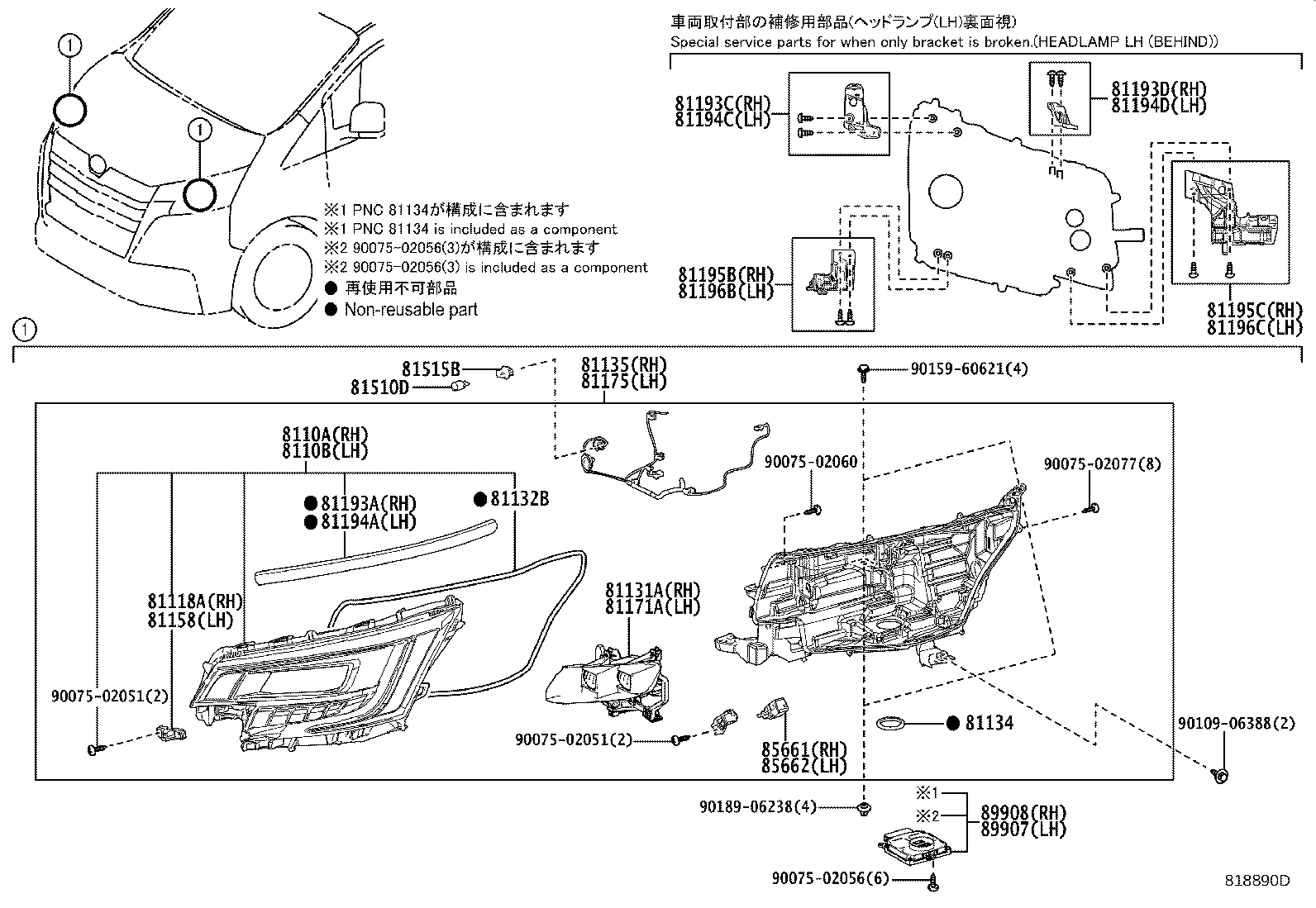

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-26C80 |
GDH303 |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-26C80 |
GDH303 |
1 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-26C80 |
GDH303 |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-26C80 |
GDH303 |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
GDH303 |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23003 |
GDH303 |
2 | ||
| 90075-23003 |
GDH303 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-26D30 |
GDH303 |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-26C80 |
GDH303 |
1 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-26C80 |
GDH303 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-26D30 |
GDH303 |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-26C40 |
GDH303 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-26010 |
GDH303 |
1 | ||
| 81193D - RETAINER, RH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81193-26030 |
GDH303 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-26C40 |
GDH303 |
1 | ||
| 81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81194-26010 |
GDH303 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-26030 |
GDH303 |
1 | ||
| 81195B - RETAINER, RH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-26010 |
GDH303 |
1 | ||
| 81195C - RETAINER, RH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-26050 |
GDH303 |
1 | ||
| 81196B - RETAINER, LH HEADLAMP PROTECTOR, LOWER RH | ||||
| 81196-26010 |
GDH303 |
1 | ||
| 81196C - RETAINER, LH HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-26050 |
GDH303 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GDH303 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GDH303 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48050 |
GDH303 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-48050 |
GDH303 |
1 | ||
| 89907 - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 89907-26030 |
GDH303 |
1 | ||
| 89907-V3030 |
GDH303 |
1 | ||
| 89908 - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 89908-V3030 |
GDH303 |
1 | ||
| 89908-26030 |
GDH303 |
1 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02056 | ||||
| 90075-02060 | ||||
| 90075-02077 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
