GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(1912- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-26A40 |
GDH303 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-26730 |
GDH303 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-26110 |
GDH303 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-26010 |
GDH303 |
4 | ||
| Linked diagrams | ||||
| 2202 | ||||

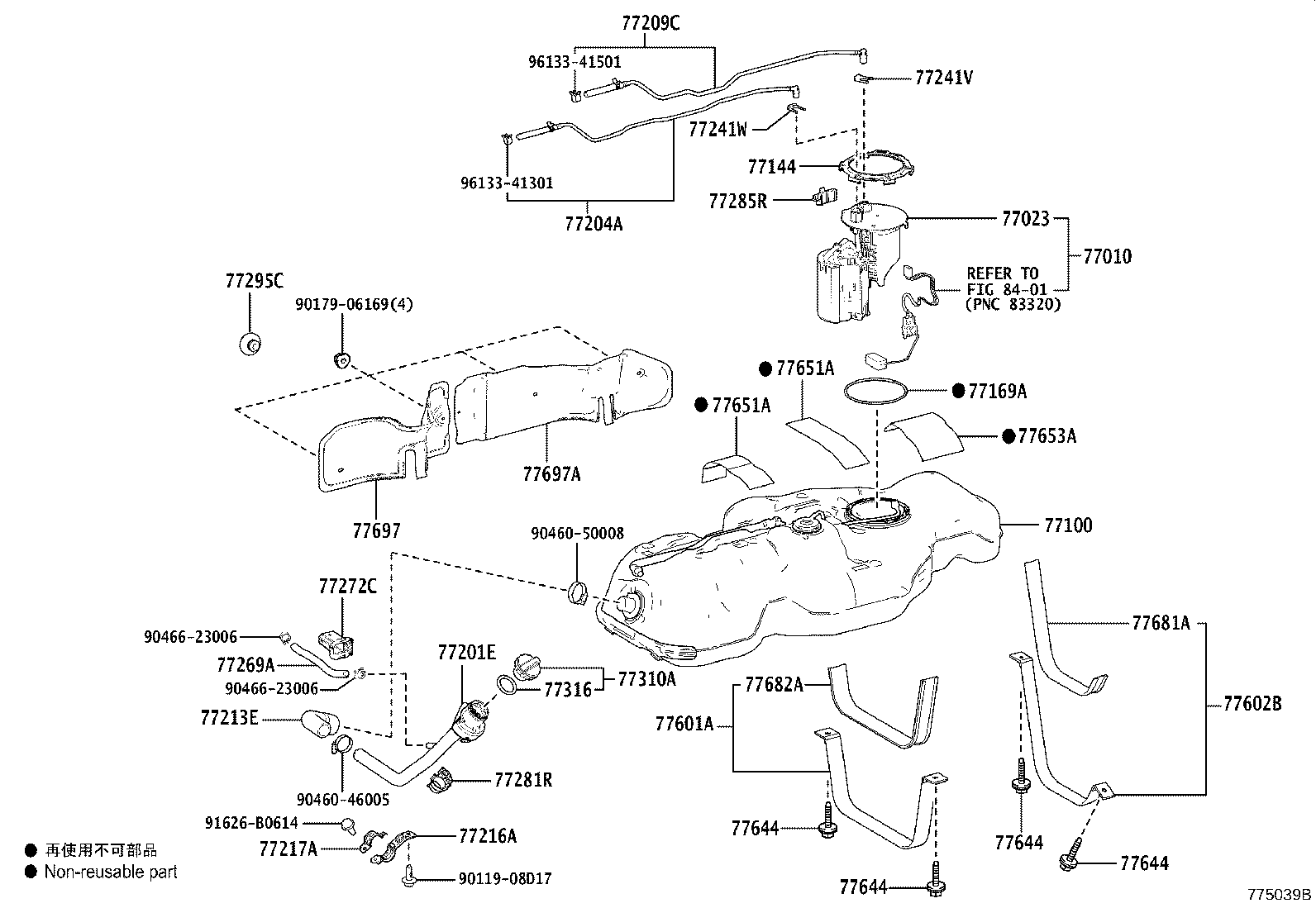

ILLUST NO. 1 OF 3(1912- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-26060 |
GDH303 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-26030 |
GDH303 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-26740 |
GDH303 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GDH303 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47040 |
GDH303 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-26320 |
GDH303 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-26080 |
GDH303 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-26180 |
GDH303 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-26150 |
GDH303 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-26070 |
GDH303 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-26090 |
GDH303 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GDH303 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-35450 |
GDH303 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-26020 |
GDH303 |
1 | ||
| 77272C - SUPPORT, BREATHER TUBE, NO.3 | ||||
| 77272-26060 |
GDH303 |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-47060 |
GDH303 |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GDH303 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
GDH303 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12030 |
GDH303 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GDH303 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26120 |
GDH303 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-26080 |
GDH303 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GDH303 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GDH303 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GDH303 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10995 |
GDH303 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
GDH303 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26070 |
GDH303 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-42010 |
GDH303 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-42010 |
GDH303 |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-71010 |
GDH303 |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-26010 |
GDH303 |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77698-26020 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90179-06169 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90466-23006 | ||||
| 91626-B0614 | ||||
| 96133-41301 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||

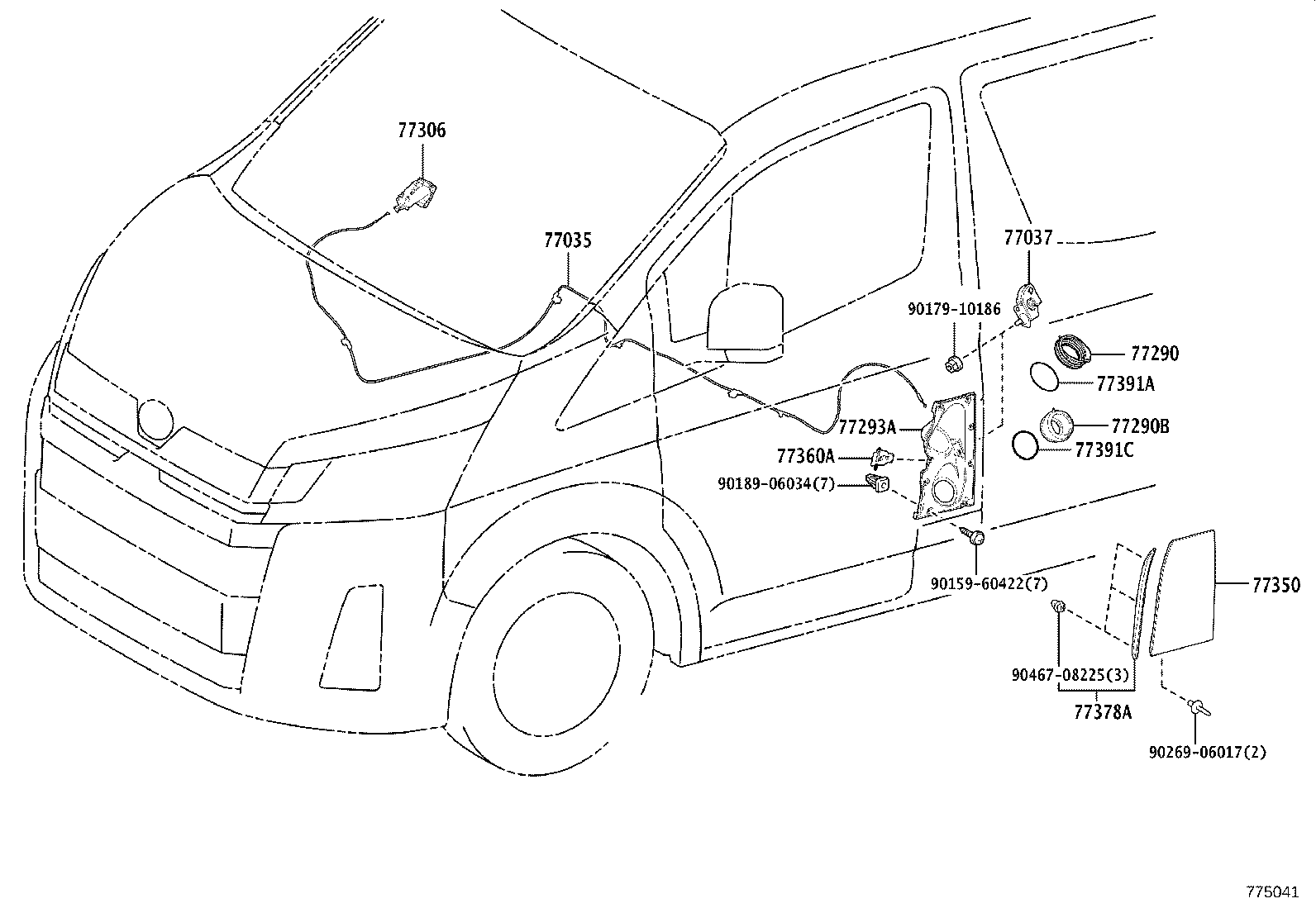

ILLUST NO. 3 OF 3(1912- )
Click highlighted areas on diagram
ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-26160 |
GDH303 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-26020 |
GDH303 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-26040 |
GDH303 |
1 | ||
| 77290B - SHIELD ASSY, UREA TANK FILLER PIPE | ||||
| 77290-26030 |
GDH303 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-26030 |
GDH303 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C1 |
GDH303 BLACK,TRIM2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-26060 |
GDH303 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-26020 |
GDH303 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77399-26010 |
GDH303 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GDH303 |
1 | ||
| 77391C - RING, UREA INLET BOX | ||||
| 77391-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90159-60422 | ||||
| 90179-10186 | ||||
| 90189-06034 | ||||
| 90269-06017 | ||||
| 90467-08225 | ||||
