GDH303W-RDTGY (2019)
Toyota Granace

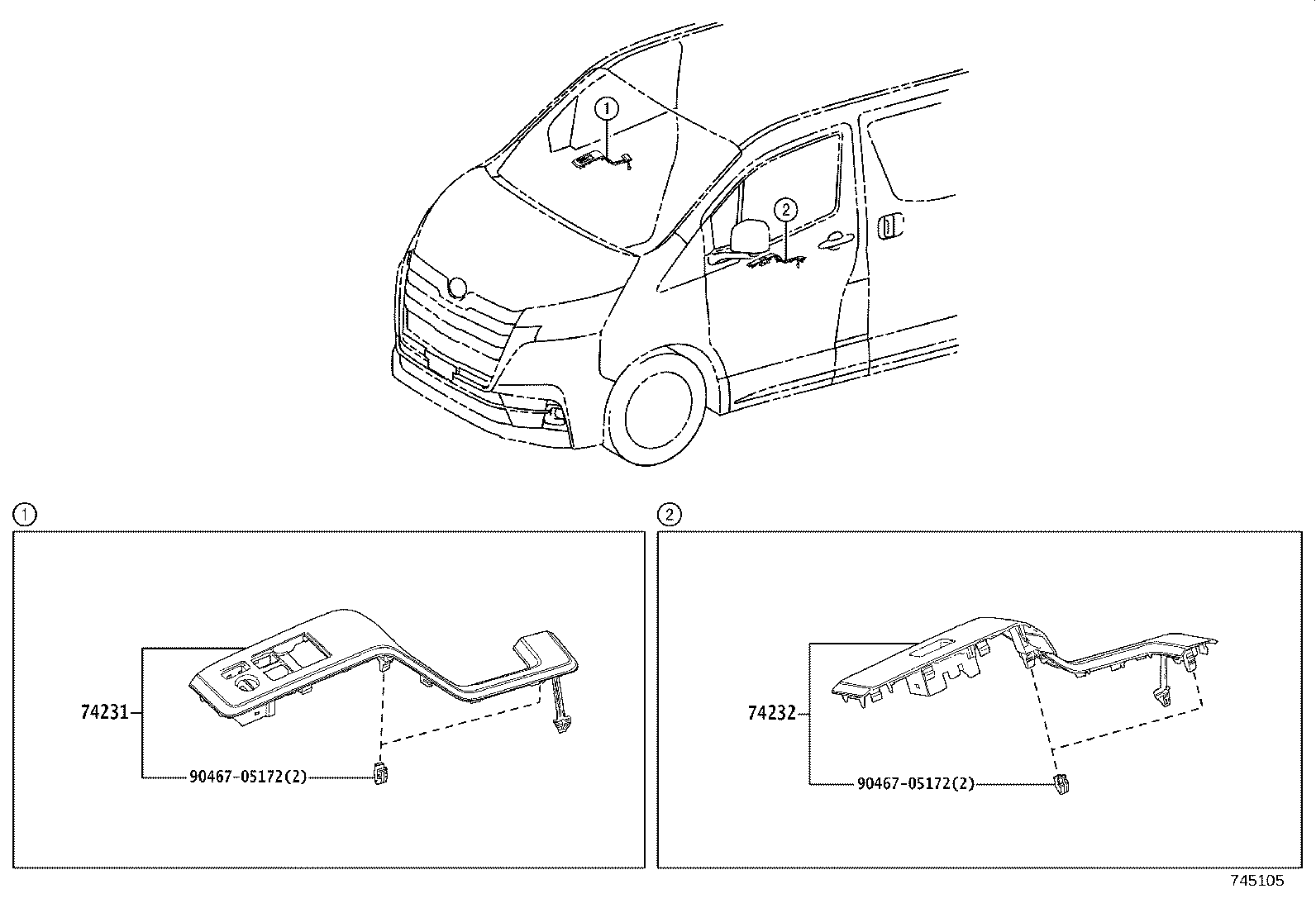

ILLUST NO. 1 OF 2(1912- )
ｱｰﾑﾚｽﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-26400 |
GDH303 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-26250 |
GDH303 |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||

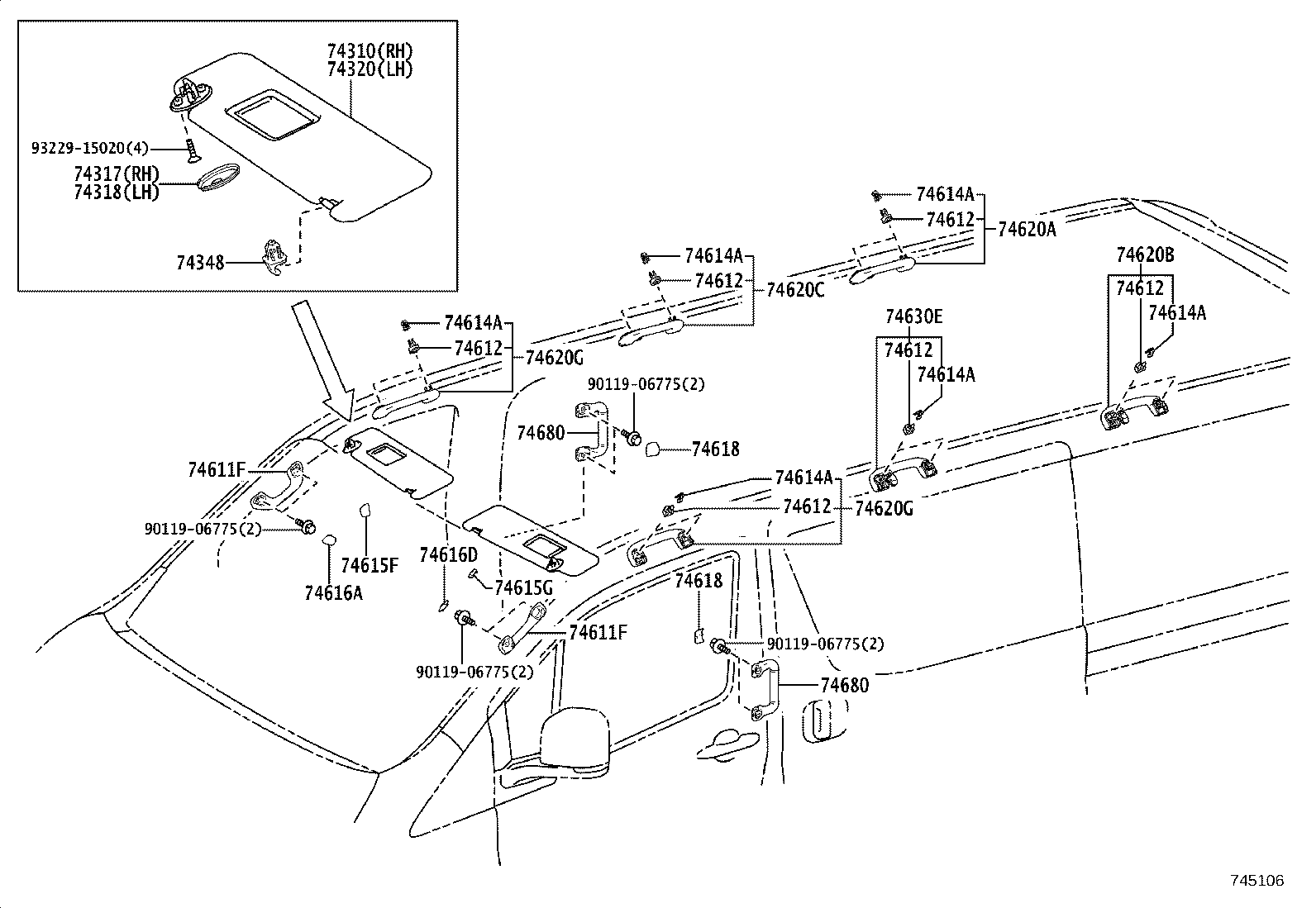

ILLUST NO. 2 OF 2(1912- )
ﾊﾞｲｻﾞ&ｱｼｽﾄｸﾞﾘｯﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-26J80A1 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-6002001 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-6002001 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-26F90A1 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3304003 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-60010A3 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-60010A3 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-47070A0 |
GDH303..G FROMAGE,TRIM2# |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74614A - PLATE, ASSIST GRIP LOCK | ||||
| 74614-12020 |
GDH303 |
12 | ||
| 74615F - PLUG, FRONT ASSIST GRIP, UPR RH | ||||
| 74615-60040A3 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74615G - PLUG, FRONT ASSIST GRIP, UPR LH | ||||
| 74616-60040A3 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74616A - PLUG, FRONT ASSIST GRIP, LOWER RH | ||||
| 74616-60040A3 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74616D - PLUG, FRONT ASSIST GRIP, LWR LH | ||||
| 74615-60040A3 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74618 - PLUG, FRONT ASSIST GRIP | ||||
| 74617-26030 |
GDH303 |
4 | ||
| 74618 - PLUG, FRONT ASSIST GRIP | ||||
| 74617-26030 |
GDH303 |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74610-26070A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74610-26080A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-26070A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74620G - GRIP ASSY, ASSIST, FRONT | ||||
| 74610-12140A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74620G - GRIP ASSY, ASSIST, FRONT | ||||
| 74610-12140A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-26080A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-26030 |
GDH303..G |
2 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-26030 |
GDH303..G |
2 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 93229-15020 | ||||
