GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

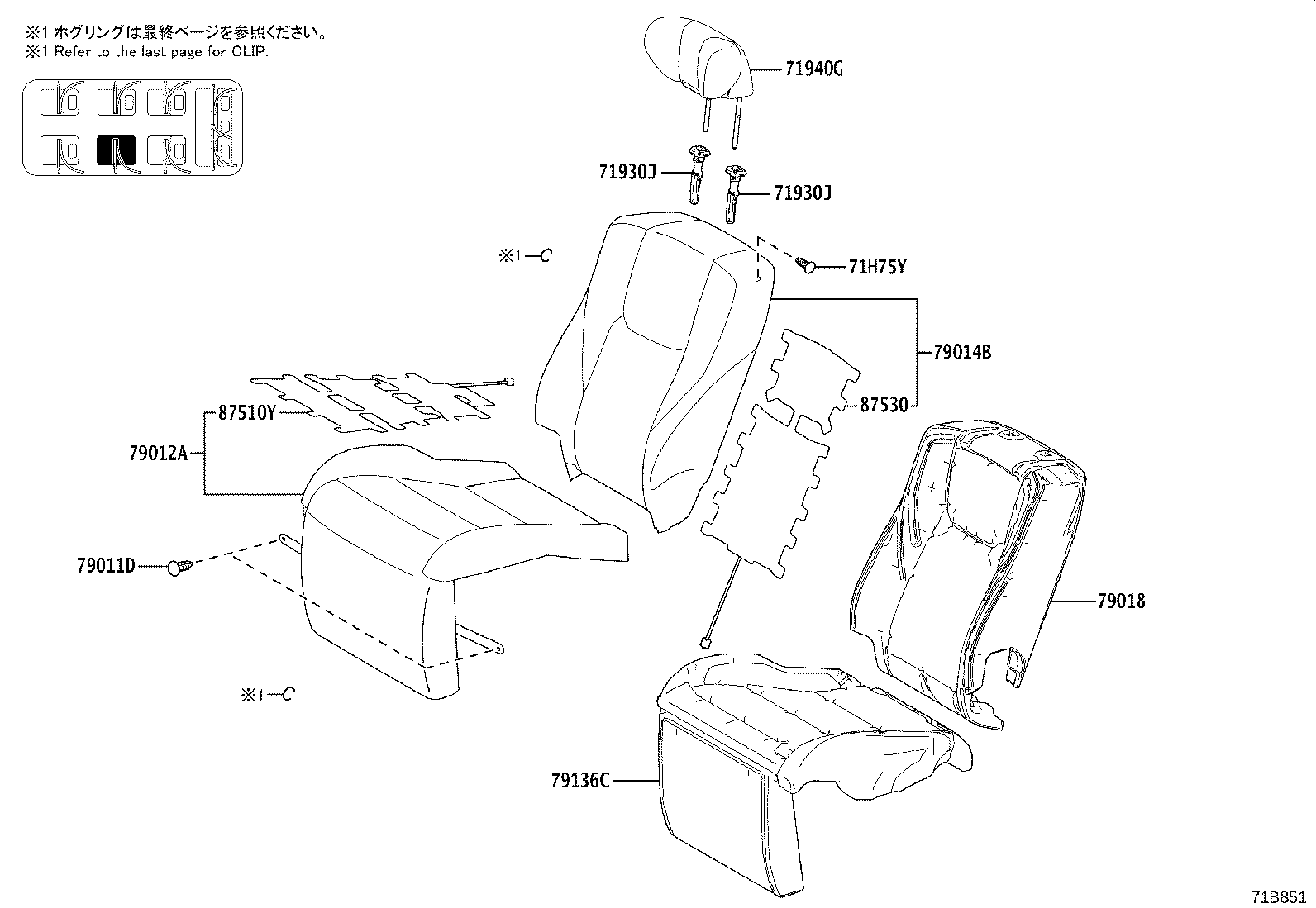

ILLUST NO. 4 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾚﾌﾄ)

diagram 71930J 71930J 71940G 71H75Y 79011D 79012A 79014B 79018 79136C 87510Y 87530
Part # Description Qty Price
71930J - SUPPORT ASSY, NO.1 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 2
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 2
71930J - SUPPORT ASSY, NO.1 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 2
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 2
71940G - HEADREST ASSY, NO.1 SEAT, LH
71940-26690C2

GDH303..G

BLACK,TRIM21

 1
71940-26690E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
79011D - CLIP, NO.1 SEAT CUSHION COVER, LH
90467-05161C9

GDH303

BLACK,TRIM2#

 2
90467-05161C0

GDH303

BLACK

 2
79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-26490C2

GDH303..G

BLACK,TRIM21

 1
79012-26490E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-26490E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79014-26490C3

GDH303..G

BLACK,TRIM21

 1
79018 - PAD SUB-ASSY, NO.1 SEAT BACK, LH
79018-26070

GDH303

 1
79136C - PAD, NO.1 SEAT CUSHION, LH
79016-26030

GDH303

 1
87510Y - HEATER ASSY, REAR NO.1 SEAT CUSHION, LH
87510-26030

GDH303

 1
87530 - HEATER ASSY, REAR NO.1 SEAT BACK, LH
87530-26010

GDH303

 1

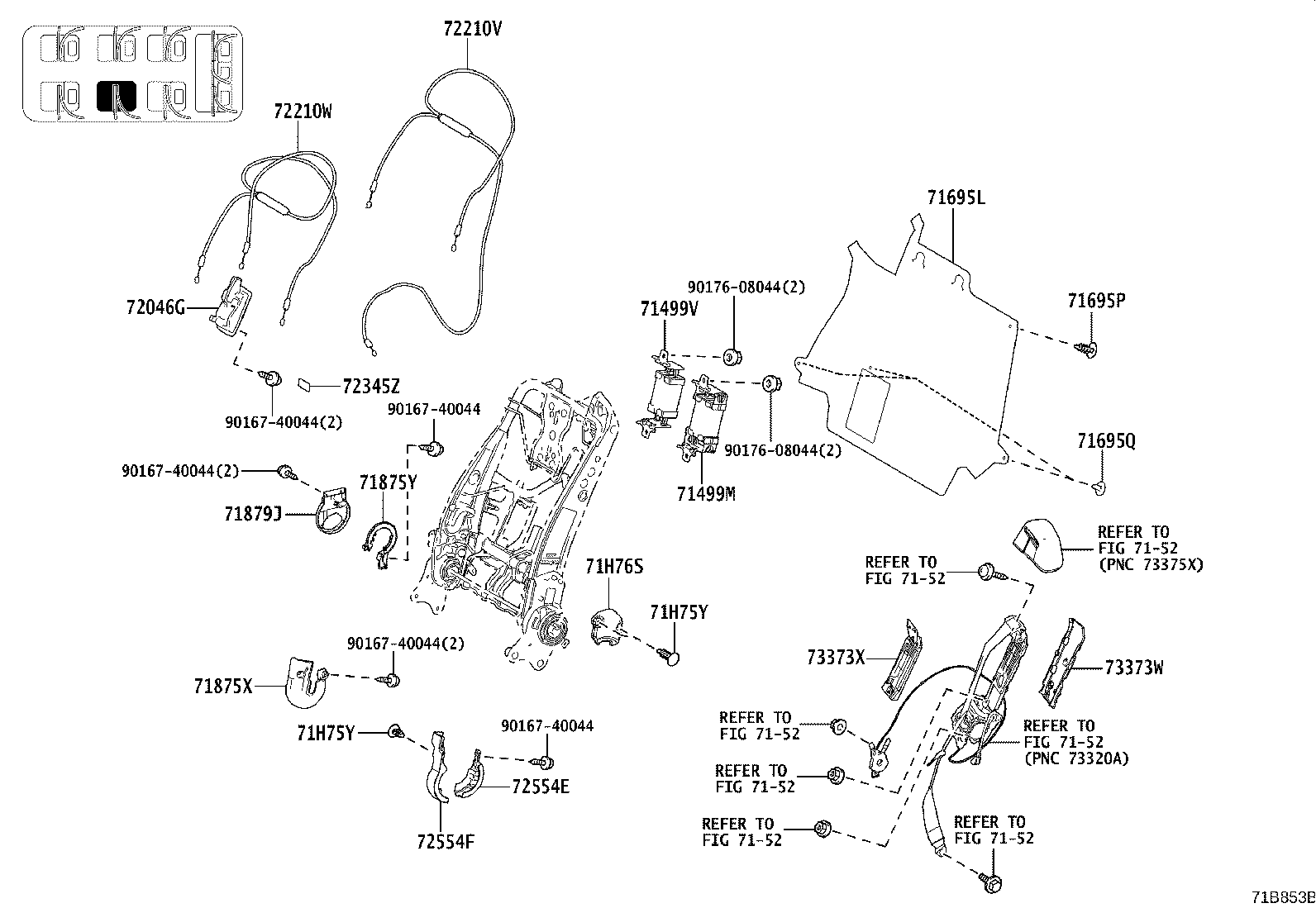

ILLUST NO. 6 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾚﾌﾄ)

diagram 71499M 71499V 7152 7152 7152 7152 7152 7152 7152 71695L 71695P 71695Q 71875X 71875Y 71879J 71H75Y 71H75Y 71H76S 72046G 72210V 72210W 72345Z 72554E 72554F 73373W 73373X 9016740044 9016740044 9016740044 9016740044 9016740044 9017608044 9017608044
Part # Description Qty Price
71499M - DAMPER, NO.1 SEAT BACK SPRING, LH
71499-58060

GDH303

 1
71499V - DAMPER, NO.1 SEAT BACK SPRING, LH NO.2
71499-58170

GDH303

 1
71695L - PROTECTOR, NO.1 SEAT BACK, LH
71696-26030

GDH303

 1
71695P - CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 LH
90467-05161C0

GDH303

BLACK

 1
90467-05161C9

GDH303

BLACK,TRIM2#

 1
71695Q - CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 LH
90467-07042A3

GDH303

FLAXEN

 3
71875X - COVER, RECLINING ADJUSTER INSIDE, RH
71875-26510C0

GDH303

BLACK,TRIM2#

 1
71875Y - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT B
71875-26340C0

GDH303

BLACK,TRIM2#

 1
71879J - COVER, REAR NO.1 SEAT RECLINING, INNER LH
71879-26040C0

GDH303

BLACK,TRIM2#

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71H76S - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT B
71876-26350C0

GDH303

BLACK,TRIM2#

 1
72046G - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.2(FOR LH S
72046-58040C1

GDH303..G

BLACK,TRIM21

 1
72046-58040E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72210V - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.1
72210-26240

GDH303

 1
72210W - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH NO.2
72210-26270

GDH303

 1
72345Z - CAP, NO.1 SEAT STAND FRAME, NO.2(FOR LH SEAT)
72345-58030E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72345-58030C1

GDH303..G

BLACK,TRIM21

 1
72554E - PROTECTOR, RECLINING COVER, LH NO.1
72554-26040C0

GDH303

BLACK,TRIM2#

 1
72554F - PROTECTOR, RECLINING COVER, LH NO.2
72554-26050C0

GDH303

BLACK,TRIM2#

 1
73373W - COVER, NO.1 SEAT SHOULDER BELT, LH NO.2
73373-26180

GDH303

 1
73373X - COVER, NO.1 SEAT SHOULDER BELT, LH NO.1
73373-26190

GDH303

 1
Common parts
90167-40044
90176-08044
Linked diagrams
7152

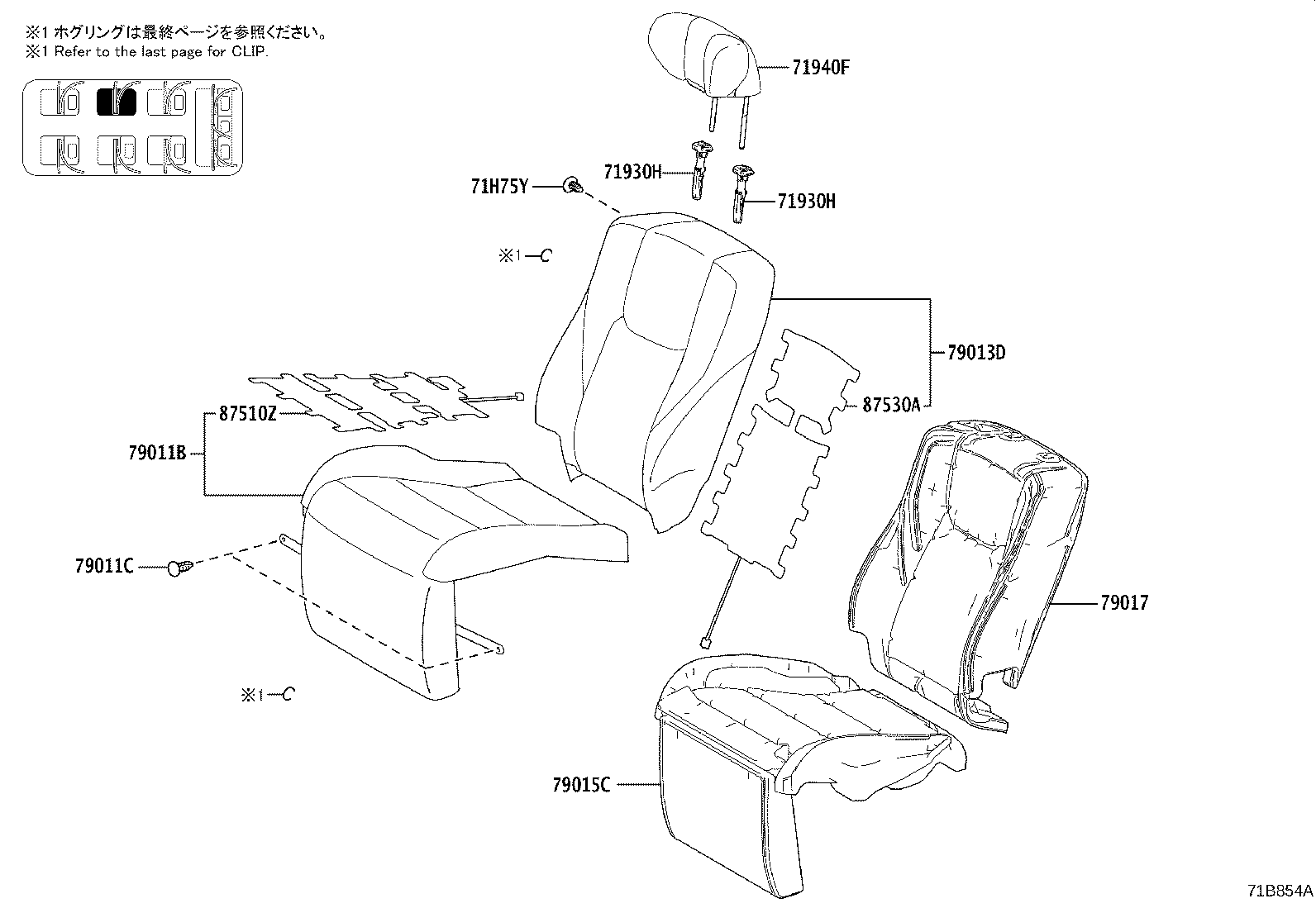

ILLUST NO. 1 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾗｲﾄ)

diagram 71930H 71930H 71940F 71H75Y 79011B 79011C 79013D 79015C 79017 87510Z 87530A
Part # Description Qty Price
71930H - SUPPORT ASSY, NO.1 SEAT HEADREST, RH
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 2
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 2
71930H - SUPPORT ASSY, NO.1 SEAT HEADREST, RH
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 2
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 2
71940F - HEADREST ASSY, NO.1 SEAT, RH
71940-26690E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71940-26690C2

GDH303..G

BLACK,TRIM21

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-26F80E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79011-26F80C2

GDH303..G

BLACK,TRIM21

 1
79011C - CLIP, NO.1 SEAT CUSHION COVER, RH
90467-05161C9

GDH303

BLACK,TRIM2#

 2
90467-05161C0

GDH303

BLACK

 2
79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-26L40E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79013-26L40C3

GDH303..G

BLACK,TRIM21

 1
79015C - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH
79015-26060

GDH303

 1
79017 - PAD SUB-ASSY, NO.1 SEAT BACK, RH
79017-26150

GDH303

 1
87510Z - HEATER ASSY, REAR NO.1 SEAT CUSHION, RH
87510-26030

GDH303

 1
87530A - HEATER ASSY, REAR NO.1 SEAT BACK, RH
87530-26010

GDH303

 1

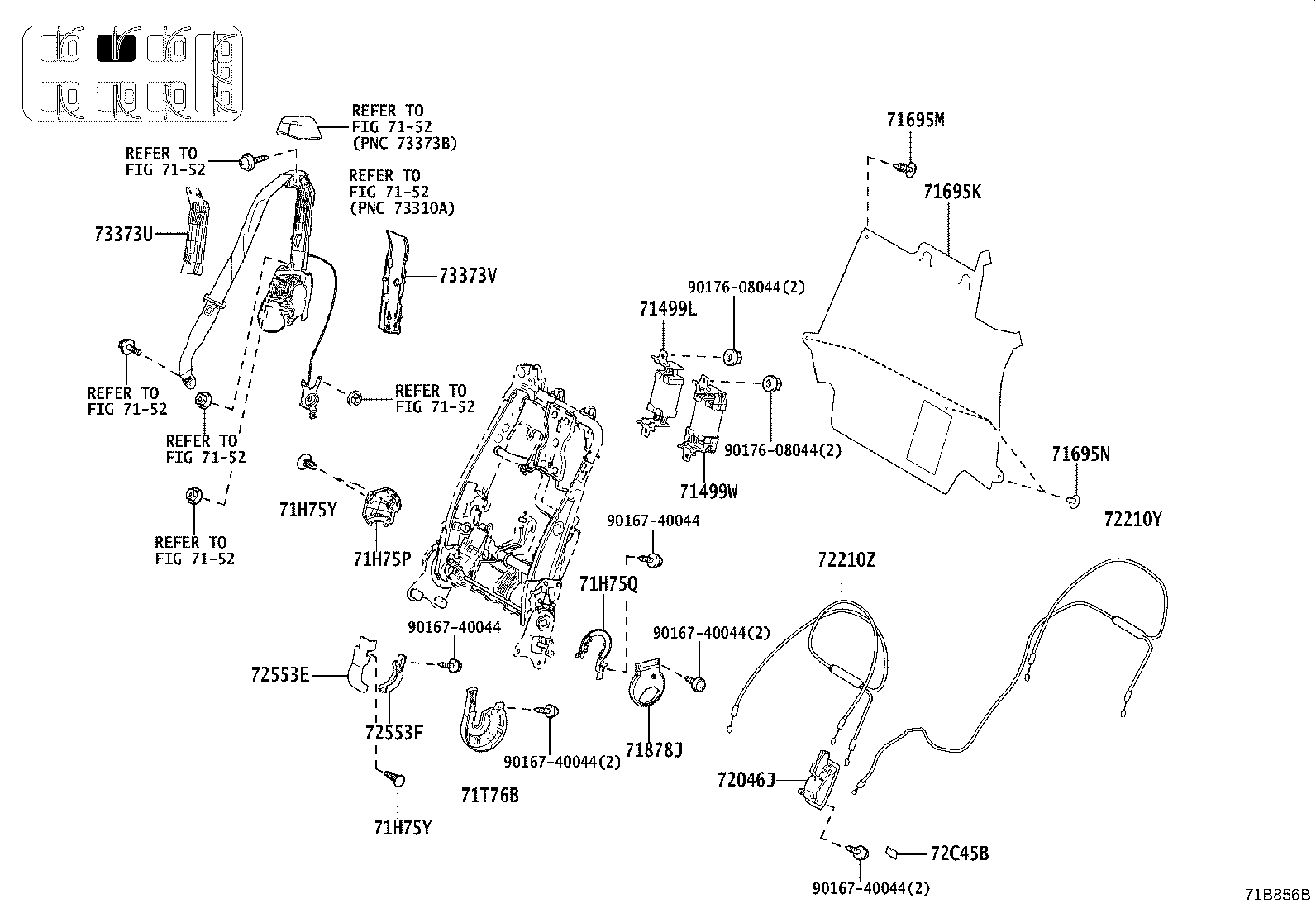

ILLUST NO. 3 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾗｲﾄ)

diagram 71499L 71499W 7152 7152 7152 7152 7152 7152 7152 71695K 71695M 71695N 71878J 71H75P 71H75Q 71H75Y 71H75Y 71T76B 72046J 72210Y 72210Z 72553E 72553F 72C45B 73373U 73373V 9016740044 9016740044 9016740044 9016740044 9016740044 9017608044 9017608044
Part # Description Qty Price
71499L - DAMPER, NO.1 SEAT BACK SPRING, RH
71499-58060

GDH303

 1
71499W - DAMPER, NO.1 SEAT CUSHION SPRING, RH NO.2
71499-58170

GDH303

 1
71695K - PROTECTOR, NO.1 SEAT BACK, RH
71695-26120

GDH303

 1
71695M - CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH
90467-05161C9

GDH303

BLACK,TRIM2#

 1
90467-05161C0

GDH303

BLACK

 1
71695N - CLIP, REAR NO.1 SEAT PROTECTOR, NO.2 RH
90467-07042A3

GDH303

FLAXEN

 3
71878J - COVER, REAR NO.1 SEAT RECLINING, INNER RH
71878-26050C0

GDH303

BLACK,TRIM2#

 1
71H75P - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT B
71875-26330C0

GDH303

BLACK,TRIM2#

 1
71H75Q - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT B
71876-26360C0

GDH303

BLACK,TRIM2#

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71T76B - COVER, RECLINING ADJUSTER INSIDE, LH
71876-26530C0

GDH303

BLACK,TRIM2#

 1
72046J - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.2(FOR RH S
72046-58040C1

GDH303..G

BLACK,TRIM21

 1
72046-58040E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72210Y - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1
72210-26240

GDH303

 1
72210Z - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2
72210-26270

GDH303

 1
72553E - PROTECTOR, RECLINING COVER, RH NO.1
72553-26050C0

GDH303

BLACK,TRIM2#

 1
72553F - PROTECTOR, RECLINING COVER, RH NO.2
72553-26060C0

GDH303

BLACK,TRIM2#

 1
72C45B - CAP, NO.1 SEAT STAND FRAME, NO.2(FOR RH SEAT)
72345-58030E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72345-58030C1

GDH303..G

BLACK,TRIM21

 1
73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1
73373-26170

GDH303

 1
73373V - COVER, NO.1 SEAT SHOULDER BELT, RH NO.2
73373-26160

GDH303

 1
Common parts
90167-40044
90176-08044
Linked diagrams
7152

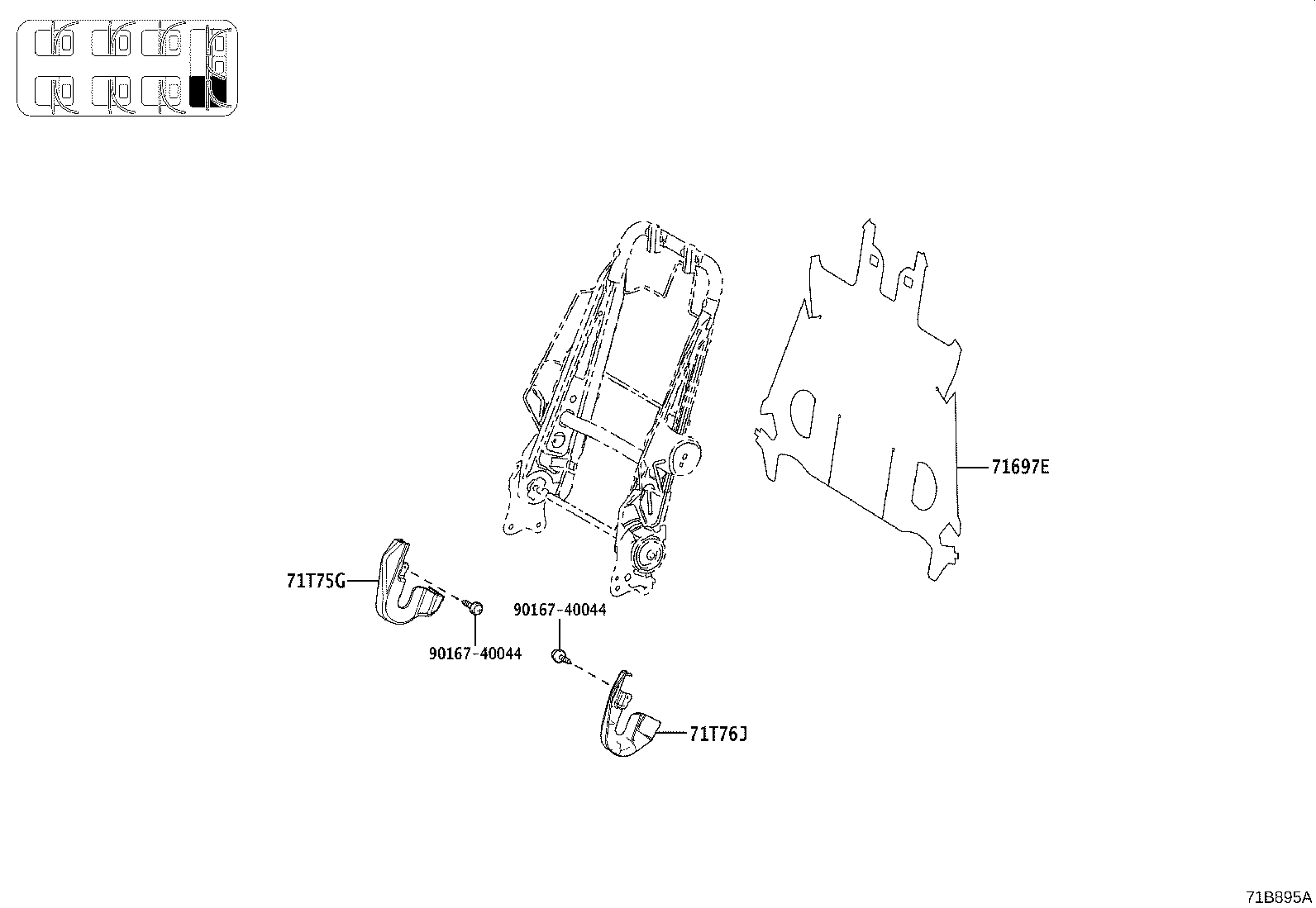

ILLUST NO. 6 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾚﾌﾄ)

diagram 71697E 71T75G 71T76J 9016740044 9016740044
Part # Description Qty Price
71697E - PROTECTOR, NO.3 SEAT BACK, LH
71697-26050

GDH303..G

 1
71T75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR NO.3 LH SEAT B
71875-26180

GDH303..G

 1
71T76J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR NO.3 LH SEAT B
71876-26200

GDH303..G

 1
Common parts
90167-40044

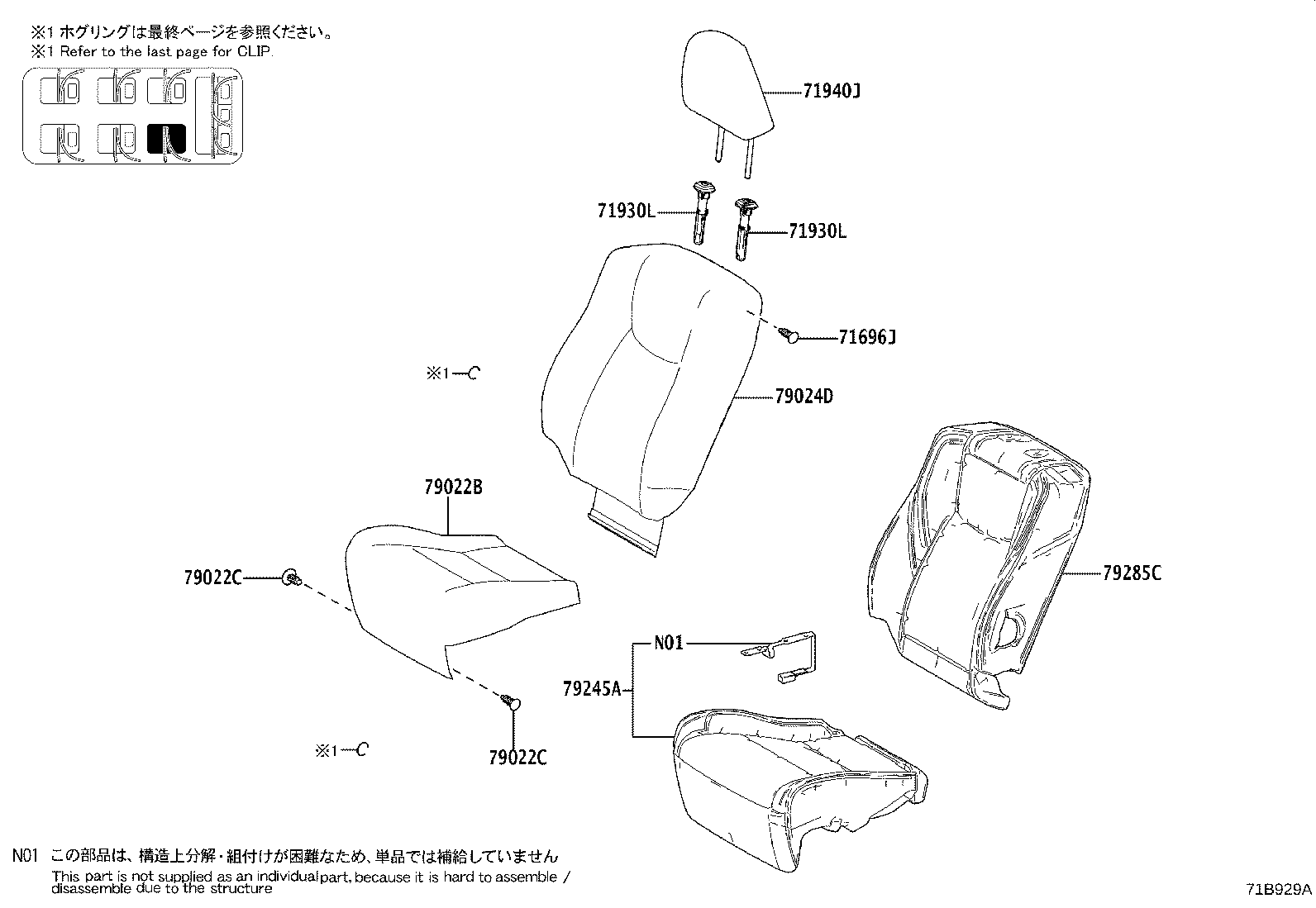

ILLUST NO. 4 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾚﾌﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 71696J 71930L 71930L 71940J 79022B 79022C 79022C 79024D 79245A 79285C
Part # Description Qty Price
71696J - CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.2
90467-05161C0

GDH303..G

BLACK

 1
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 1
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71940J - HEADREST ASSY, NO.2 SEAT, LH
71940-26670C1

GDH303..G

BLACK,TRIM21

 1
71940-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-26600C1

GDH303..G

BLACK,TRIM21

 1
79022-26600E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79022C - CLIP, NO.2 SEAT CUSHION COVER, LH
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
79022C - CLIP, NO.2 SEAT CUSHION COVER, LH
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79024-26380E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79024-26380C2

GDH303..G

BLACK,TRIM21

 1
79245A - PAD, NO.2 SEAT CUSHION, LH
79026-26030

GDH303..G

 1
79285C - PAD, NO.2 SEAT BACK, LH
79285-26100

GDH303..G

 1

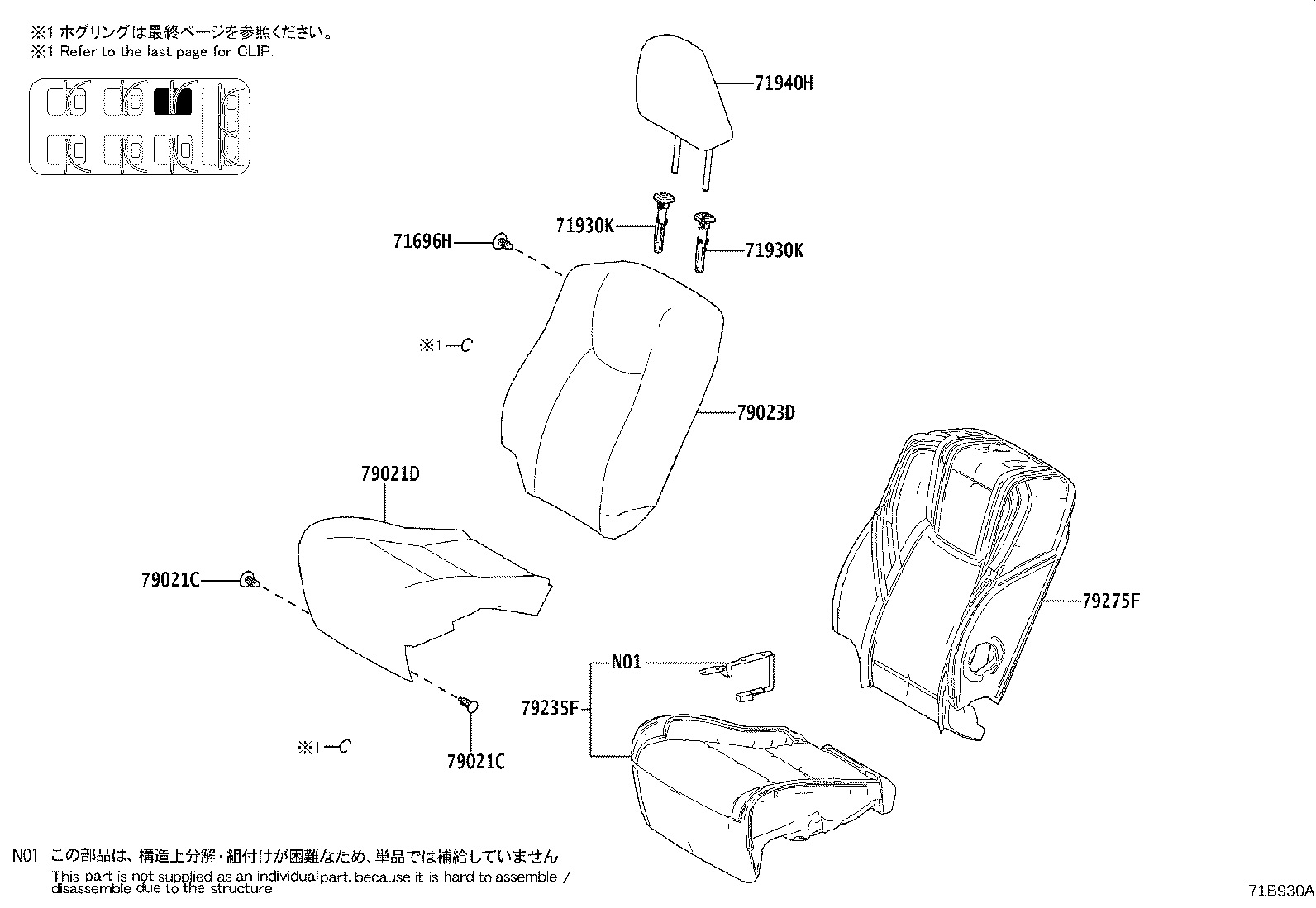

ILLUST NO. 1 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾗｲﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 71696H 71930K 71930K 71940H 79021C 79021C 79021D 79023D 79235F 79275F
Part # Description Qty Price
71696H - CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
90467-05161C0

GDH303..G

BLACK

 1
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 1
71930K - SUPPORT ASSY, NO.2 SEAT HEADREST, RH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930K - SUPPORT ASSY, NO.2 SEAT HEADREST, RH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71940H - HEADREST ASSY, NO.2 SEAT, RH
71940-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71940-26670C1

GDH303..G

BLACK,TRIM21

 1
79021C - CLIP, NO.2 SEAT CUSHION COVER, RH
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
79021C - CLIP, NO.2 SEAT CUSHION COVER, RH
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-26A90C1

GDH303..G

BLACK,TRIM21

 1
79021-26A90E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-26880E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79023-26880C2

GDH303..G

BLACK,TRIM21

 1
79235F - PAD, NO.2 SEAT CUSHION, RH
79025-26040

GDH303..G

 1
79275F - PAD, NO.2 SEAT BACK, RH
79275-26180

GDH303..G

 1

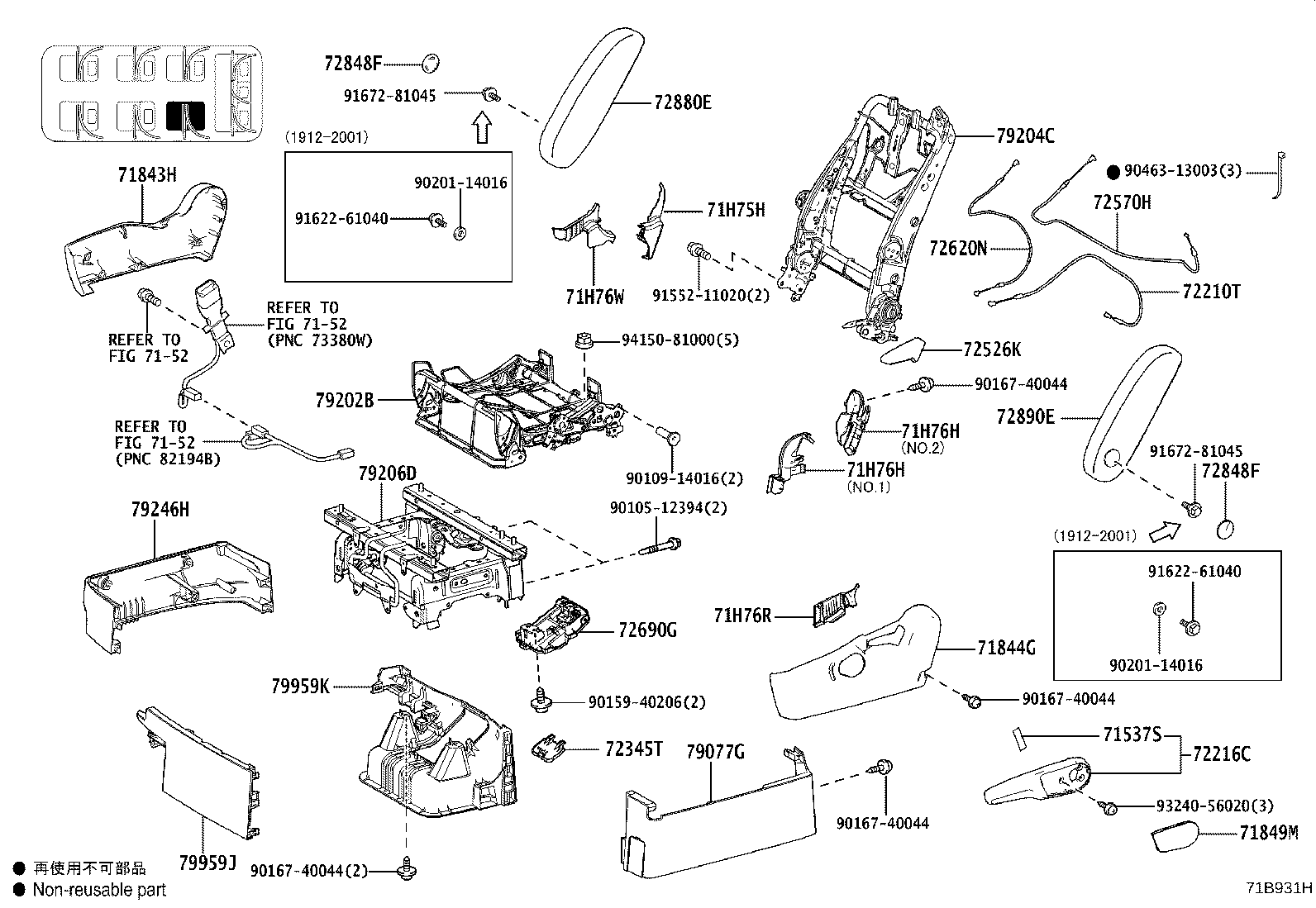

ILLUST NO. 5 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾚﾌﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 7152 7152 7152 71537S 71843H 71844G 71849M 71H75H 71H76H 71H76H 71H76R 71H76W 72210T 72216C 72345T 72526K 72570H 72620N 72690G 72848F 72848F 72880E 72890E 79077G 79202B 79204C 79206D 79246H 79959J 79959K 9010512394 9010914016 9015940206 9016740044 9016740044 9016740044 9016740044 9020114016 9020114016 9046313003 9155211020 9162261040 9162261040 9167281045 9167281045 9324056020 9415081000
Part # Description Qty Price
71537S - PROTECTOR, REAR NO.2 SEAT CUSHION, LH
71537-28080

GDH303..G

 1
71843H - COVER, NO.2 SEAT RECLINING, NO.2 RH INNER
71843-26060C0

GDH303..G

BLACK,TRIM2#

 1
71844G - COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER
71844-26060C0

GDH303..G

BLACK,TRIM2#

 1
71849M - CAP, NO.2 SEAT ADJUSTER COVER, LH
71849-26030C0

GDH303..G

BLACK,TRIM2#

 1
71H75H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH S
71875-58490C1

GDH303..G

BLACK,TRIM2#

 1
71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S
71876-26220C0

GDH303..G

BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照

 1
71876-26210C0

GDH303..G

BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照

 1
71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S
71876-26220C0

GDH303..G

BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照

 1
71876-26210C0

GDH303..G

BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照

 1
71H76R - COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT)
71876-28440C1

GDH303..G

BLACK,TRIM2#

 1
71H76W - COVER, RECLINING ADJUSTER INSIDE, LH NO.5(FOR LH SEAT)
71876-58440C1

GDH303..G

BLACK,TRIM2#

 1
72210T - CABLE ASSY, NO.2 SEAT SLIDE, LH
72210-26210

GDH303..G

 1
72216C - LEVER, NO.2 SEAT TRACK HANDLE CONTROL, LH
72216-28020C1

GDH303..G

BLACK,TRIM2#

 1
72345T - CAP, NO.2 SEAT STAND FRAME, LH
72345-26200C0

GDH303..G

BLACK,TRIM2#

 1
72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH
72526-28130C1

GDH303..G

BLACK,TRIM2#

 1
72570H - CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, LH
72570-26080

GDH303..G

 1
72620N - CABLE ASSY, NO.2 SEAT WALK-IN, LH
72620-26100

GDH303..G

 1
72690G - LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH
72690-26060C0

GDH303

BLACK,TRIM2#

 1
72848F - CAP, NO.2 SEAT ARMREST, NO.1 LH
72848-28030C3

GDH303..G

BLACK,TRIM21

 2
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 2
72848F - CAP, NO.2 SEAT ARMREST, NO.1 LH
72848-28030C3

GDH303..G

BLACK,TRIM21

 2
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 2
72880E - ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT)
72880-26440C1

GDH303..G

BLACK,TRIM21

 1
72880-26440E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72890E - ARMREST ASSY, NO.2 SEAT, C LH(FOR LH SEAT)
72890-26450C1

GDH303..G

BLACK,TRIM21

 1
72890-26450E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79077G - COVER SUB-ASSY, NO.2 SEAT LEG, LH OUTER
79077-26020C0

GDH303..G

BLACK,TRIM2#

 1
79202B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH
79202-26030

GDH303..G

 1
79204C - FRAME SUB-ASSY, NO.2 SEAT BACK, LH
79204-26040

GDH303..G

 1
79206D - LEG SUB-ASSY, NO.2 SEAT, LH
79206-26270

GDH303..G

 1
79246H - COVER, NO.2 SEAT LEG, LH
79246-26030C0

GDH303..G

BLACK,TRIM2#

 1
79959J - COVER, NO.2 SEAT LEG, LH NO.1
79959-26340C0

GDH303..G

BLACK,TRIM2#

 1
79959K - COVER, NO.2 SEAT LEG, LH NO.2
79959-26350C0

GDH303..G

BLACK,TRIM2#

 1
Common parts
90105-12394
90109-14016
90159-40206
90167-40044
90201-14016
90463-13003
91552-11020
91622-61040
91672-81045
93240-56020
94150-81000
Linked diagrams
7152

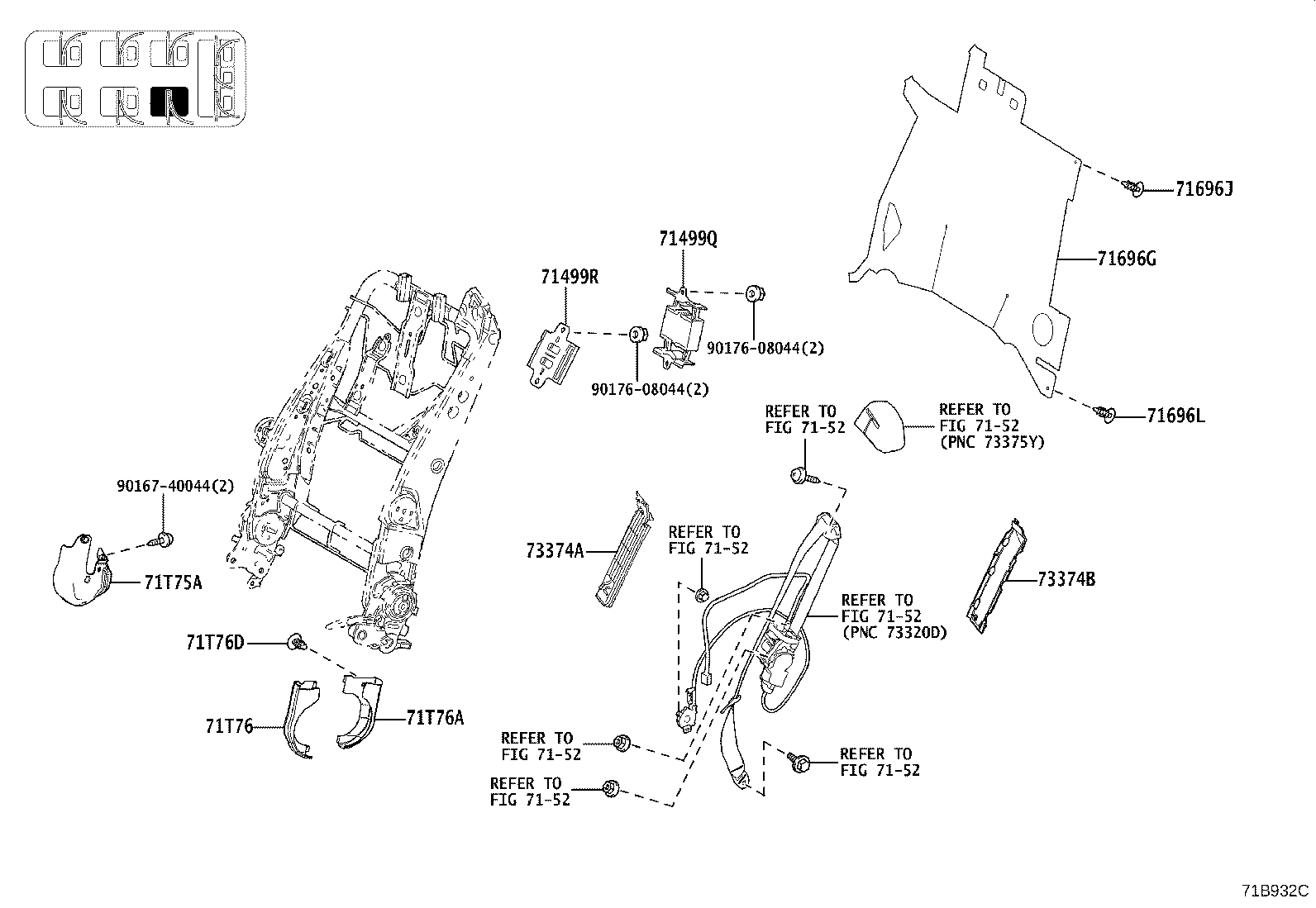

ILLUST NO. 6 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾚﾌﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 71499Q 71499R 7152 7152 7152 7152 7152 7152 7152 71696G 71696J 71696L 71T75A 71T76 71T76A 71T76D 73374A 73374B 9016740044 9017608044 9017608044
Part # Description Qty Price
71499Q - DAMPER, NO.2 SEAT BACK SPRING, LH NO.1
71499-26090

GDH303..G

 1
71499R - DAMPER, NO.2 SEAT BACK SPRING, LH NO.2
71499-26120

GDH303..G

 1
71696G - PROTECTOR, NO.2 SEAT BACK, LH
71696-26020

GDH303..G

 1
71696J - CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.2
90467-05161C0

GDH303..G

BLACK

 1
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 1
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
71696L - CLIP, NO.2 SEAT BACK PROTECTOR, LH NO.1
90467-07042A3

GDH303..G

FLAXEN

 1
71T75A - COVER, RECLINING ADJUSTER INSIDE, RH NO.2
71875-28490C1

GDH303..G

BLACK,TRIM2#

 1
71T76 - COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT B
71876-26510C0

GDH303..G

BLACK,TRIM2#

 1
71T76A - COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR LH SEAT B
71876-26520C0

GDH303..G

BLACK,TRIM2#

 1
71T76D - CLIP, RECLINING ADJUSTER INSIDE COVER, LH
90467-08186C3

GDH303..G

BLACK,TRIM21

 1
90467-08186E9

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
73374A - COVER, NO.2 SEAT SHOULDER BELT, LH NO.1
73373-28070

GDH303..G

 1
73374B - COVER, NO.2 SEAT SHOULDER BELT, LH NO.2
73373-28050

GDH303..G

 1
Common parts
90167-40044
90176-08044
Linked diagrams
7152

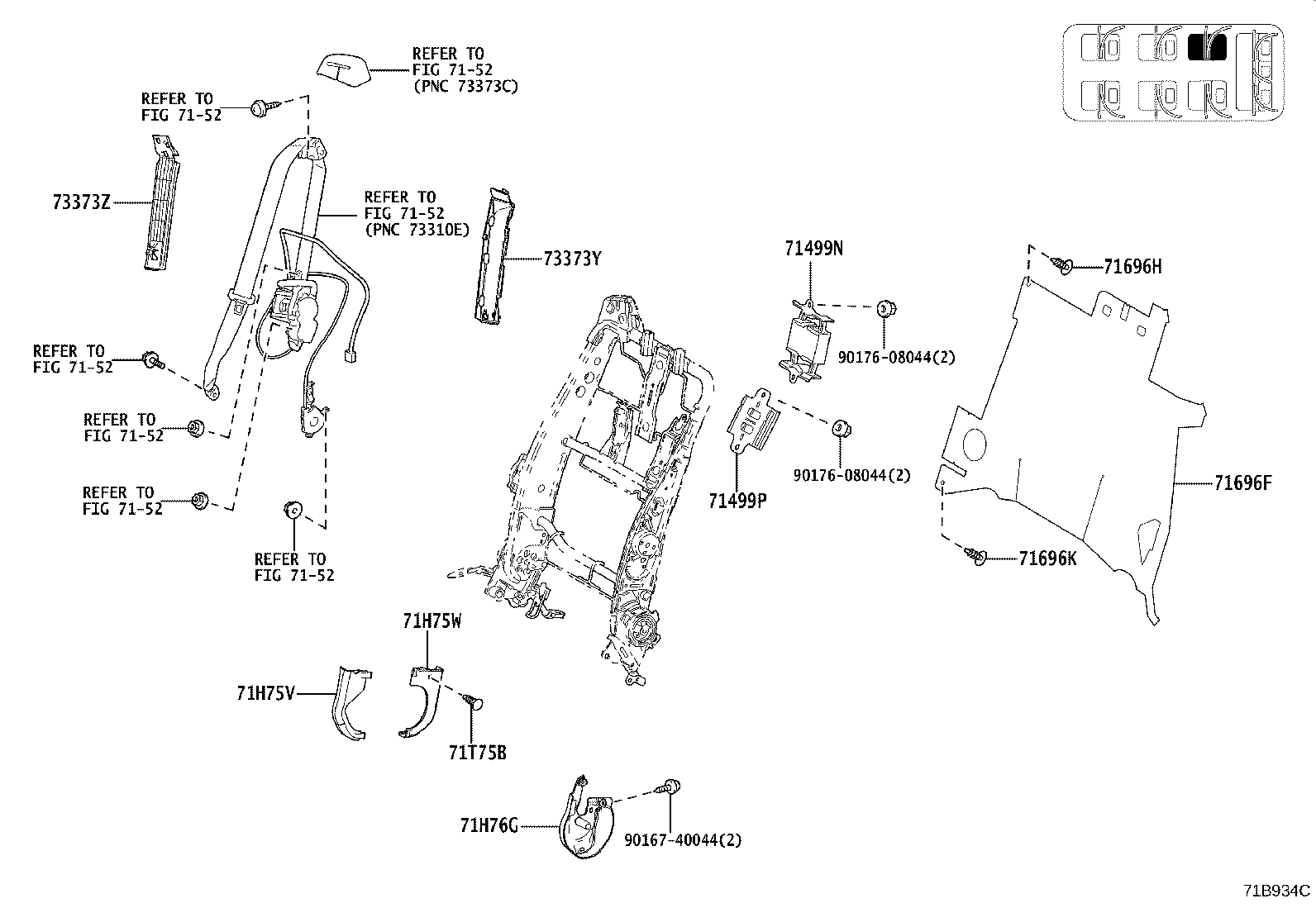

ILLUST NO. 3 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾗｲﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 71499N 71499P 7152 7152 7152 7152 7152 7152 7152 71696F 71696H 71696K 71H75V 71H75W 71H76G 71T75B 73373Y 73373Z 9016740044 9017608044 9017608044
Part # Description Qty Price
71499N - DAMPER, NO.2 SEAT BACK SPRING, RH NO.1
71499-26090

GDH303..G

 1
71499P - DAMPER, NO.2 SEAT BACK SPRING, RH NO.2
71499-26120

GDH303..G

 1
71696F - PROTECTOR, NO.2 SEAT BACK, RH
71696-26010

GDH303..G

 1
71696H - CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 2
90467-05161C0

GDH303..G

BLACK

 1
90467-05161C0

GDH303..G

BLACK

 2
90467-05161C9

GDH303..G

BLACK,TRIM2#

 1
71696K - CLIP, NO.2 SEAT BACK PROTECTOR, RH NO.1
90467-07042A3

GDH303..G

FLAXEN

 1
71H75V - COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR RH SEAT B
71875-26500C0

GDH303..G

BLACK,TRIM2#

 1
71H75W - COVER, RECLINING ADJUSTER INSIDE, RH NO.4(FOR RH SEAT B
71875-26490C0

GDH303..G

BLACK,TRIM2#

 1
71H76G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH S
71876-28370C1

GDH303..G

BLACK,TRIM2#

 1
71T75B - CLIP, RECLINING ADJUSTER INSIDE COVER, RH
90467-08186E9

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
90467-08186C3

GDH303..G

BLACK,TRIM21

 1
73373Y - COVER, NO.2 SEAT SHOULDER BELT, RH NO.1
73373-28040

GDH303..G

 1
73373Z - COVER, NO.2 SEAT SHOULDER BELT, RH NO.2
73373-28060

GDH303..G

 1
Common parts
90167-40044
90176-08044
Linked diagrams
7152

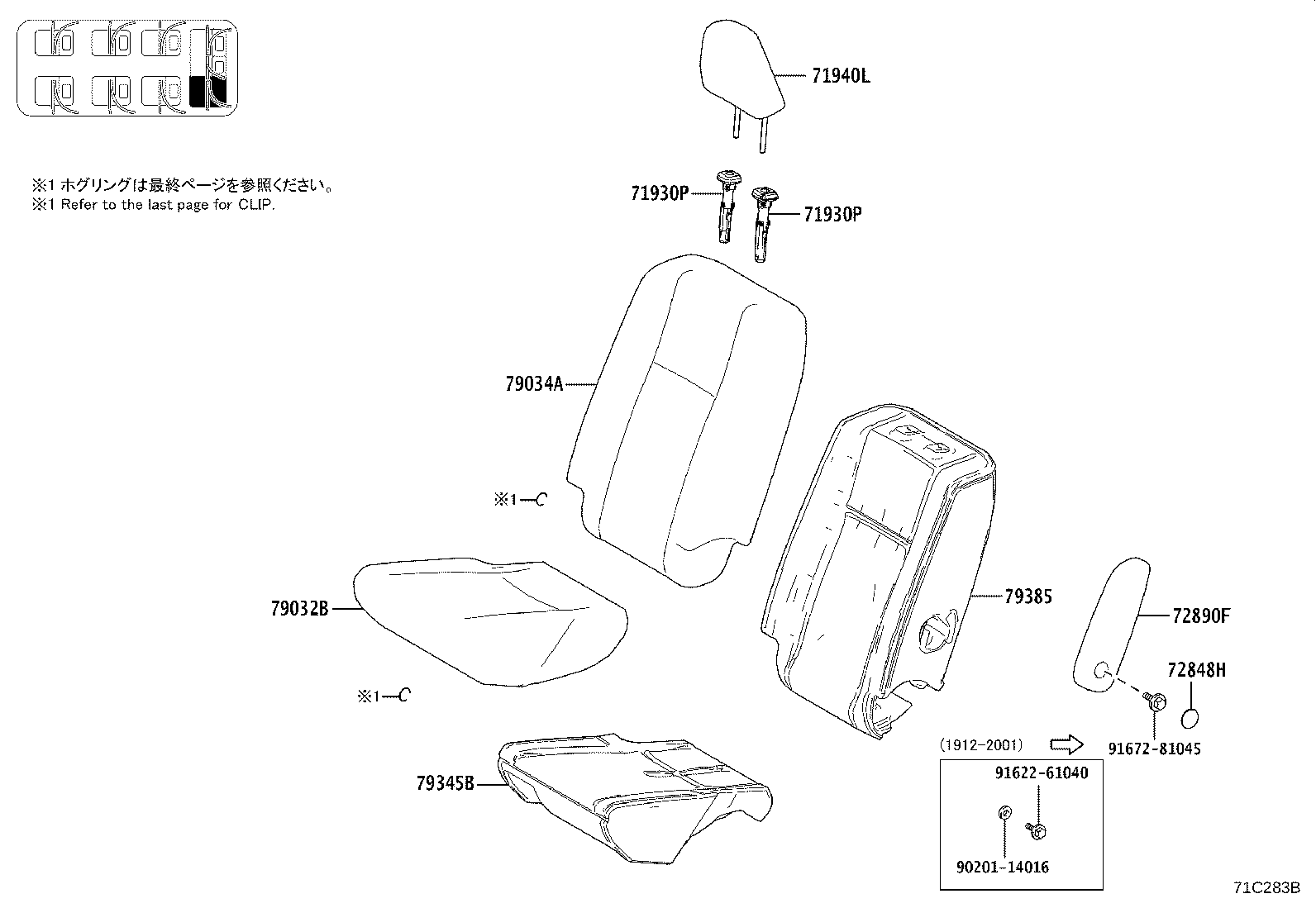

ILLUST NO. 4 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾚﾌﾄ)

diagram 71930P 71930P 71940L 72848H 72890F 79032B 79034A 79345B 79385 9020114016 9162261040 9167281045
Part # Description Qty Price
71930P - SUPPORT ASSY, NO.3 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71930P - SUPPORT ASSY, NO.3 SEAT HEADREST, LH
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71940L - HEADREST ASSY, NO.3 SEAT, LH
71940-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71940-26670C1

GDH303..G

BLACK,TRIM21

 1
72848H - CAP, NO.3 SEAT ARMREST, NO.1 LH
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72848-28030C3

GDH303..G

BLACK,TRIM21

 1
72890F - ARMREST ASSY, NO.3 SEAT, C LH(FOR LH SEAT)
72890-26480E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72890-26480C2

GDH303..G

BLACK,TRIM21

 1
79032B - COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH
79032-26310C3

GDH303..G

BLACK,TRIM21

 1
79032-26310E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79034A - COVER SUB-ASSY, NO.3 SEAT BACK, LH
79034-26090C3

GDH303..G

BLACK,TRIM21

 1
79034-26090E2

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79345B - PAD, NO.3 SEAT CUSHION, LH
79036-V3010

GDH303..G

 1
79385 - PAD, NO.3 SEAT BACK, LH
79385-26050

GDH303..G

 1
Common parts
90201-14016
91622-61040
91672-81045

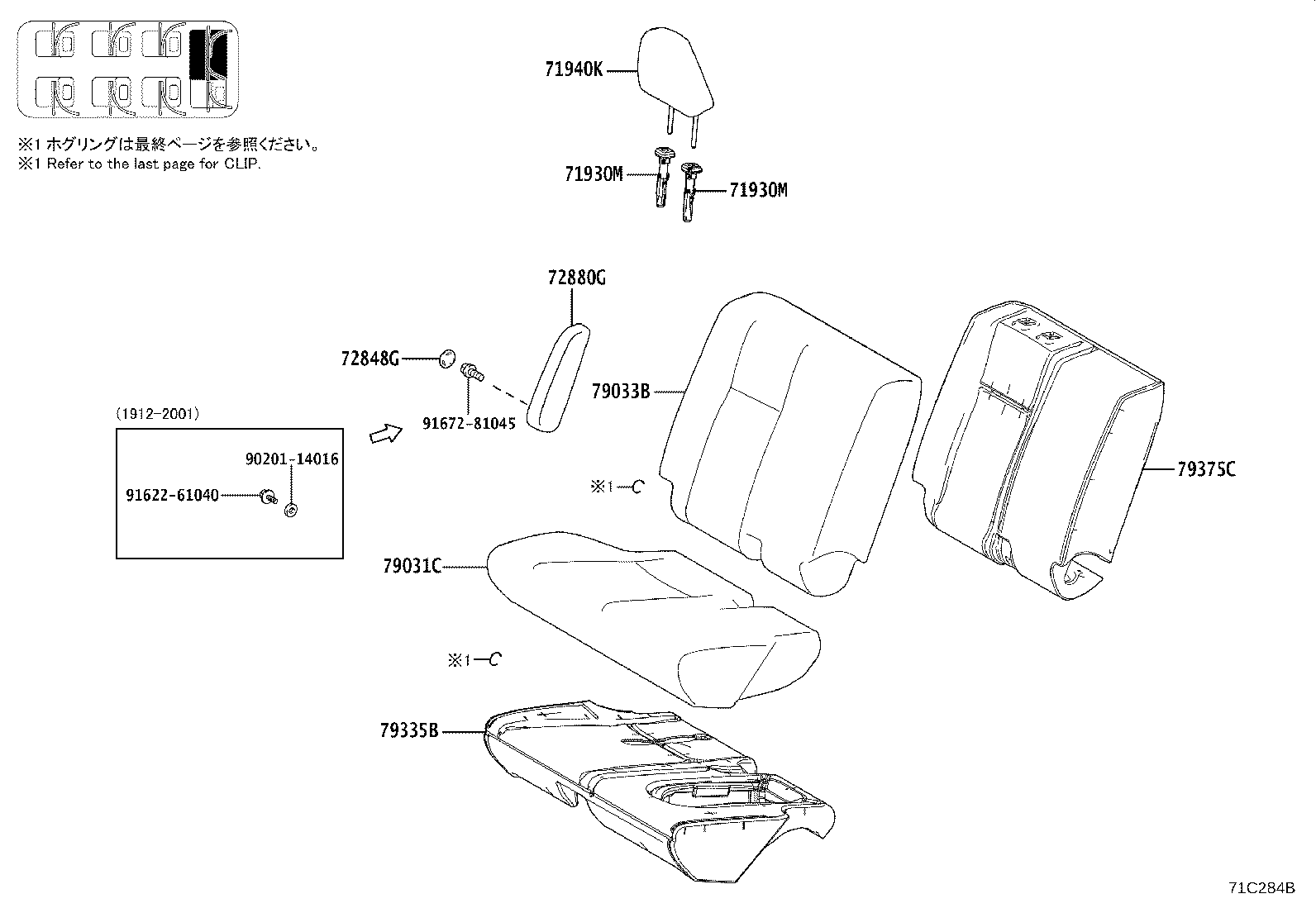

ILLUST NO. 1 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾗｲﾄ)

diagram 71930M 71930M 71940K 72848G 72880G 79031C 79033B 79335B 79375C 9020114016 9162261040 9167281045
Part # Description Qty Price
71930M - SUPPORT ASSY, NO.3 SEAT HEADREST, RH
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71930M - SUPPORT ASSY, NO.3 SEAT HEADREST, RH
71931-47010C8

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-4402021

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47010L6

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71930-44020L2

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71940K - HEADREST ASSY, NO.3 SEAT, RH
71940-26670C1

GDH303..G

BLACK,TRIM21

 1
71940-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72848G - CAP, NO.3 SEAT ARMREST, NO.1 RH
72848-28030C3

GDH303..G

BLACK,TRIM21

 1
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72880G - ARMREST ASSY, NO.3 SEAT, C RH(FOR RH SEAT)
72880-26460C2

GDH303..G

BLACK,TRIM21

 1
72880-26460E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79031C - COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH
79031-26B30C0

GDH303..G

BLACK,TRIM21

 1
79031-26B30E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79033B - COVER SUB-ASSY, NO.3 SEAT BACK, RH
79033-26720E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79033-26720C0

GDH303..G

BLACK,TRIM21

 1
79335B - PAD, NO.3 SEAT CUSHION, RH
79035-V3030

GDH303..G

 1
79375C - PAD, NO.3 SEAT BACK, RH
79375-26140

GDH303..G

 1
Common parts
90201-14016
91622-61040
91672-81045

ILLUST NO. 2 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾗｲﾄ)

diagram 71396L 7152 7152 71697F 71697H 71697H 71697H 71834P 71868T 71878G 71879G 71H67 71H75S 71H75T 71H76U 71H76V 72057E 72057F 72215C 72345U 72345V 72525Q 72570J 72620P 7270252070 72813B 73315B 7889928040 79076P 79078B 79236H 79301C 79305E 79337A 8202 9015940206 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9038612038 9046313003 9046313003 9155180816
Part # Description Qty Price
71396L - CUSHION, NO.3 SEAT SUPPORT, REAR RH
71396-28030B0

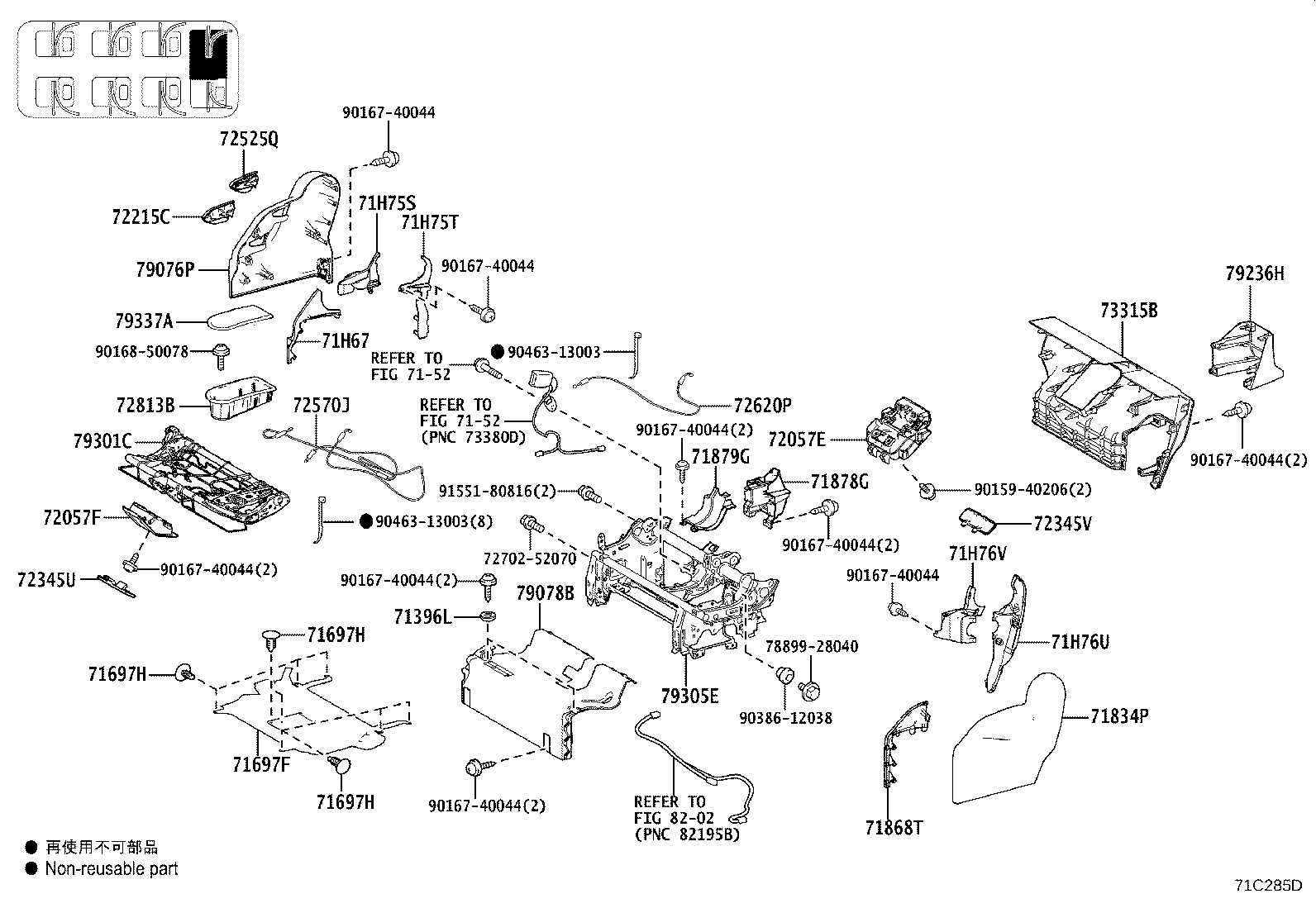

GDH303..G

DK.GRAY

 2
71697F - PROTECTOR, REAR SEAT CUSHION, NO.3 RH
71697-26080

GDH303..G

 1
71697H - CLIP, NO.3 SEAT CUSHION PROTECTOR, RH
90467-07042A3

GDH303..G

FLAXEN

 8
71697H - CLIP, NO.3 SEAT CUSHION PROTECTOR, RH
90467-07042A3

GDH303..G

FLAXEN

 8
71697H - CLIP, NO.3 SEAT CUSHION PROTECTOR, RH
90467-07042A3

GDH303..G

FLAXEN

 8
71834P - COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR RH SEAT)
71834-26290C0

GDH303..G

BLACK,TRIM2#

 1
71868T - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH
71868-26120C0

GDH303..G

BLACK,TRIM2#

 1
71878G - COVER, NO.3 SEAT RECLINING, INNER RH
71878-26030C0

GDH303..G

BLACK,TRIM2#

 1
71879G - COVER, NO.3 SEAT RECLINING, INNER LH
71879-26030C0

GDH303..G

BLACK,TRIM2#

 1
71H67 - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH
71867-26100C0

GDH303..G

BLACK,TRIM2#

 1
71H75S - COVER, RECLINING ADJUSTER INSIDE, RH NO.4(FOR RH SEAT)
71875-26240C0

GDH303..G

BLACK,TRIM2#

 1
71H75T - COVER, RECLINING ADJUSTER INSIDE, RH NO.5(FOR RH SEAT)
71875-26250C0

GDH303..G

BLACK,TRIM2#

 1
71H76U - COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR RH SEAT)
71876-26270C0

GDH303..G

BLACK,TRIM2#

 1
71H76V - COVER, RECLINING ADJUSTER INSIDE, LH NO.4(FOR RH SEAT)
71876-28340C1

GDH303..G

BLACK,TRIM2#

 1
72057E - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1
72057-26010C1

GDH303..G

BLACK,TRIM2#

 1
72057F - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2
72057-26030C0

GDH303..G

BLACK,TRIM2#

 1
72215C - LEVER, NO.3 SEAT TRACK HANDLE CONTROL, RH
72215-28010C1

GDH303..G

BLACK,TRIM2#

 1
72345U - CAP, SEAT STAND FRAME, RH NO.3
72345-26190C0

GDH303..G

BLACK,TRIM2#

 1
72345V - CAP, SEAT STAND FRAME, RH NO.4
72345-26210C0

GDH303..G

BLACK,TRIM2#

 1
72525Q - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH
72525-28140C1

GDH303..G

BLACK,TRIM2#

 1
72570J - CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, RH NO.1
72570-26100

GDH303..G

 1
72620P - CABLE ASSY, NO.3 SEAT SLIDE, RH
72620-26110

GDH303..G

 1
72813B - BOX, REAR SEAT CUSHION
72813-52010C1

GDH303..G

BLACK,TRIM2#

 1
73315B - COVER, REAR NO.3 SEAT BELT, INNER RH
73315-26010C0

GDH303..G

BLACK,TRIM2#

 1
79076P - COVER SUB-ASSY, NO.3 SEAT LEG, RH
79076-26140C0

GDH303..G

BLACK,TRIM2#

 1
79078B - COVER SUB-ASSY, NO.3 SEAT LEG, RH
79078-26020C0

GDH303..G

BLACK,TRIM2#

 1
79236H - COVER, NO.3 SEAT LEG, RH
79236-26060C0

GDH303..G

BLACK,TRIM2#

 1
79301C - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH
79301-26190

GDH303..G

 1
79305E - LEG SUB-ASSY, NO.3 SEAT, RH
79305-26460

GDH303..G

 1
79337A - CARPET, NO.2 SEAT CUSHION UNDER, RH
79337-26100

GDH303..G

 1
Common parts
72702-52070
78899-28040
90159-40206
90167-40044
90168-50078
90386-12038
90463-13003
91551-80816
Linked diagrams
7152
8202

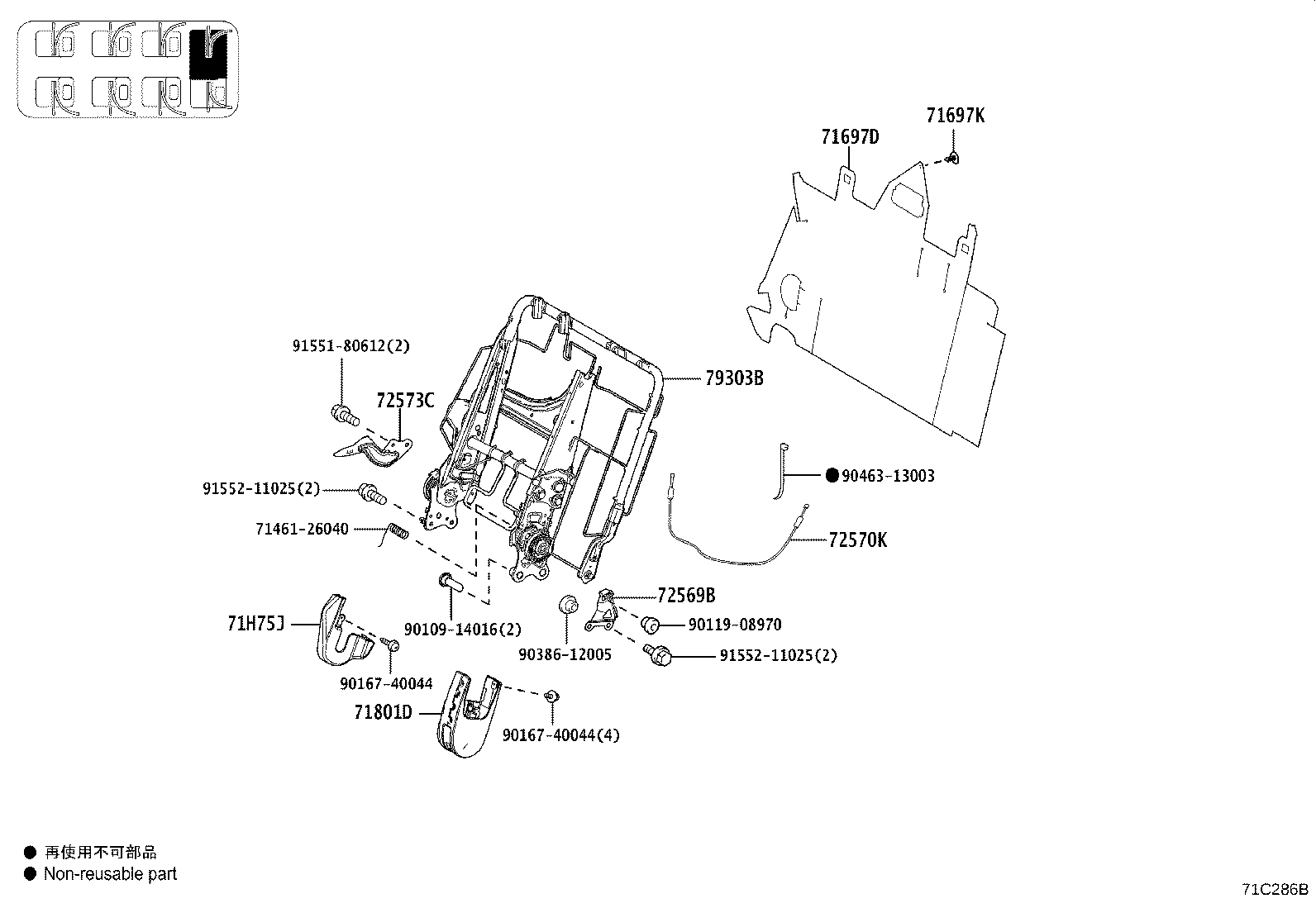

ILLUST NO. 3 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾗｲﾄ), ｼｰﾄﾊﾞｯｸ

diagram 7146126040 71697D 71697K 71801D 71H75J 72569B 72570K 72573C 79303B 9010914016 9011908970 9016740044 9016740044 9038612005 9046313003 9155180612 9155211025 9155211025
Part # Description Qty Price
71697D - PROTECTOR, NO.3 SEAT BACK, RH
71697-26060

GDH303..G

 1
71697K - CLIP, NO.3 SEAT BACK PROTECTOR, RH
90467-07042A3

GDH303..G

FLAXEN

 1
71801D - COVER SUB-ASSY, NO.3 SEAT RECLINING ADJUSTER, RH
71801-26010C0

GDH303..G

BLACK,TRIM2#

 1
71H75J - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 RH S
71875-26180

GDH303..G

 1
72569B - PLATE, SEAT BACK STOPPER
72569-28040

GDH303..G

 1
72570K - CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, RH NO.2
72570-28090

GDH303..G

 2
72573C - LEVER, NO.3 SEAT RECLINING CONTROL, RH
72573-28010

GDH303..G

 1
79303B - FRAME SUB-ASSY, NO.3 SEAT BACK, RH
79303-26240

GDH303..G

 1
Common parts
71461-26040
90109-14016
90119-08970
90167-40044
90386-12005
90463-13003
91551-80612
91552-11025

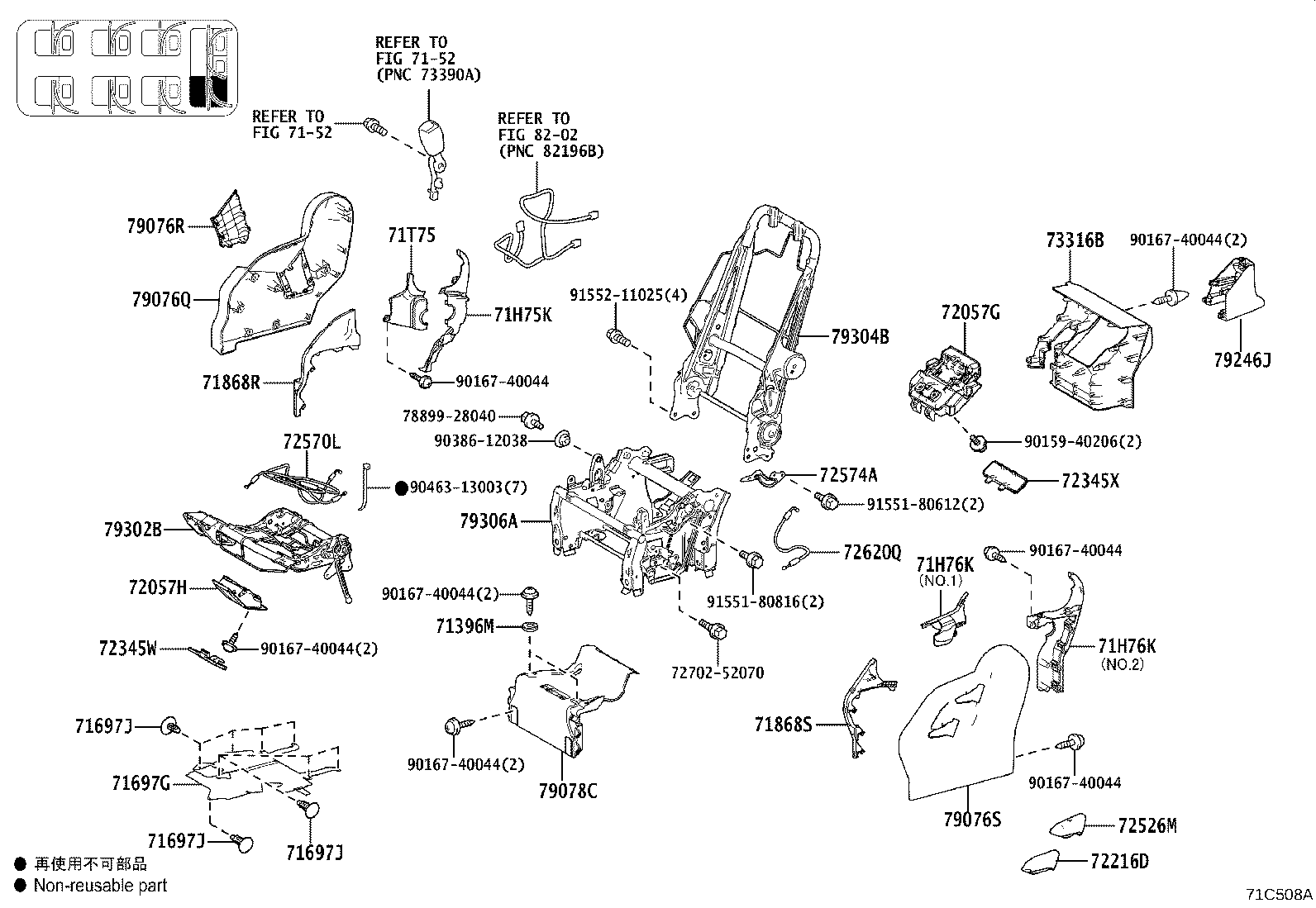

ILLUST NO. 5 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.3ｼｰﾄ(ﾚﾌﾄ)

diagram 71396M 7152 7152 71697G 71697J 71697J 71697J 71868R 71868S 71H75K 71H76K 71H76K 71T75 72057G 72057H 72216D 72345W 72345X 72526M 72570L 72574A 72620Q 7270252070 73316B 7889928040 79076Q 79076R 79076S 79078C 79246J 79302B 79304B 79306A 8202 9015940206 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9038612038 9046313003 9155180612 9155180816 9155211025
Part # Description Qty Price
71396M - CUSHION, NO.3 SEAT SUPPORT, REAR LH
71396-28030B0

GDH303..G

DK.GRAY

 2
71697G - PROTECTOR, REAR SEAT CUSHION, NO.3 LH
71697-26020

GDH303..G

 1
71697J - CLIP, NO.3 SEAT CUSHION PROTECTOR, LH
90467-07042A3

GDH303..G

FLAXEN

 8
71697J - CLIP, NO.3 SEAT CUSHION PROTECTOR, LH
90467-07042A3

GDH303..G

FLAXEN

 8
71697J - CLIP, NO.3 SEAT CUSHION PROTECTOR, LH
90467-07042A3

GDH303..G

FLAXEN

 8
71868R - SHIELD, NO.3 SEAT CUSHION, INNER NO.1 RH
71867-26110C0

GDH303..G

BLACK,TRIM2#

 1
71868S - SHIELD, NO.3 SEAT CUSHION, INNER NO.1 LH
71868-26130C0

GDH303..G

BLACK,TRIM2#

 1
71H75K - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 LH S
71875-26270C0

GDH303..G

BLACK,TRIM2#

 1
71H76K - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 LH S
71876-26290C0

GDH303..G

BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照

 1
71876-26280C0

GDH303..G

BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照

 1
71H76K - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 LH S
71876-26290C0

GDH303..G

BLACK,TRIM2#,NO.2:ｲﾗｽﾄ参照

 1
71876-26280C0

GDH303..G

BLACK,TRIM2#,NO.1:ｲﾗｽﾄ参照

 1
71T75 - COVER, RECLINING ADJUSTER INSIDE, RH
71875-28450C1

GDH303..G

BLACK,TRIM2#

 1
72057G - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1
72057-26010C1

GDH303..G

BLACK,TRIM2#

 1
72057H - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.2
72057-26030C0

GDH303..G

BLACK,TRIM2#

 1
72216D - LEVER, NO.3 SEAT TRACK HANDLE CONTROL, LH
72216-28010C1

GDH303..G

BLACK,TRIM2#

 1
72345W - CAP, SEAT STAND FRAME, LH NO.3
72345-26190C0

GDH303..G

BLACK,TRIM2#

 1
72345X - CAP, SEAT STAND FRAME, LH NO.4
72345-26210C0

GDH303..G

BLACK,TRIM2#

 1
72526M - HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, LH
72526-28140C1

GDH303..G

BLACK,TRIM2#

 1
72570L - CABLE ASSY, NO.3 SEAT RECLINING ADJUSTING, LH
72570-26110

GDH303..G

 1
72574A - LEVER, RECLINING CONTROL, LH
72574-28010

GDH303..G

 1
72620Q - CABLE ASSY, NO.3 SEAT SLIDE, LH
72620-26120

GDH303..G

 1
73316B - COVER, REAR NO.3 SEAT BELT, INNER LH
73316-26010C0

GDH303..G

BLACK,TRIM2#

 1
79076Q - COVER SUB-ASSY, NO.3 SEAT LEG, INNER NO.1
79076-26090C0

GDH303..G

BLACK,TRIM2#

 1
79076R - COVER SUB-ASSY, NO.3 SEAT LEG, INNER NO.2
79076-26100C0

GDH303..G

BLACK,TRIM2#

 1
79076S - COVER SUB-ASSY, NO.3 SEAT LEG, LH
79076-26150C0

GDH303..G

BLACK,TRIM2#

 1
79078C - COVER SUB-ASSY, NO.3 SEAT LEG, LH
79078-26030C0

GDH303..G

BLACK,TRIM2#

 1
79246J - COVER, NO.3 SEAT LEG, LH
79246-26040C0

GDH303..G

BLACK,TRIM2#

 1
79302B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH
79302-26030

GDH303..G

 1
79304B - FRAME SUB-ASSY, NO.3 SEAT BACK, LH
79304-26050

GDH303..G

 1
79306A - LEG SUB-ASSY, NO.3 SEAT, LH
79306-26230

GDH303..G

 1
Common parts
72702-52070
78899-28040
90159-40206
90167-40044
90386-12038
90463-13003
91551-80612
91551-80816
91552-11025
Linked diagrams
7152
8202

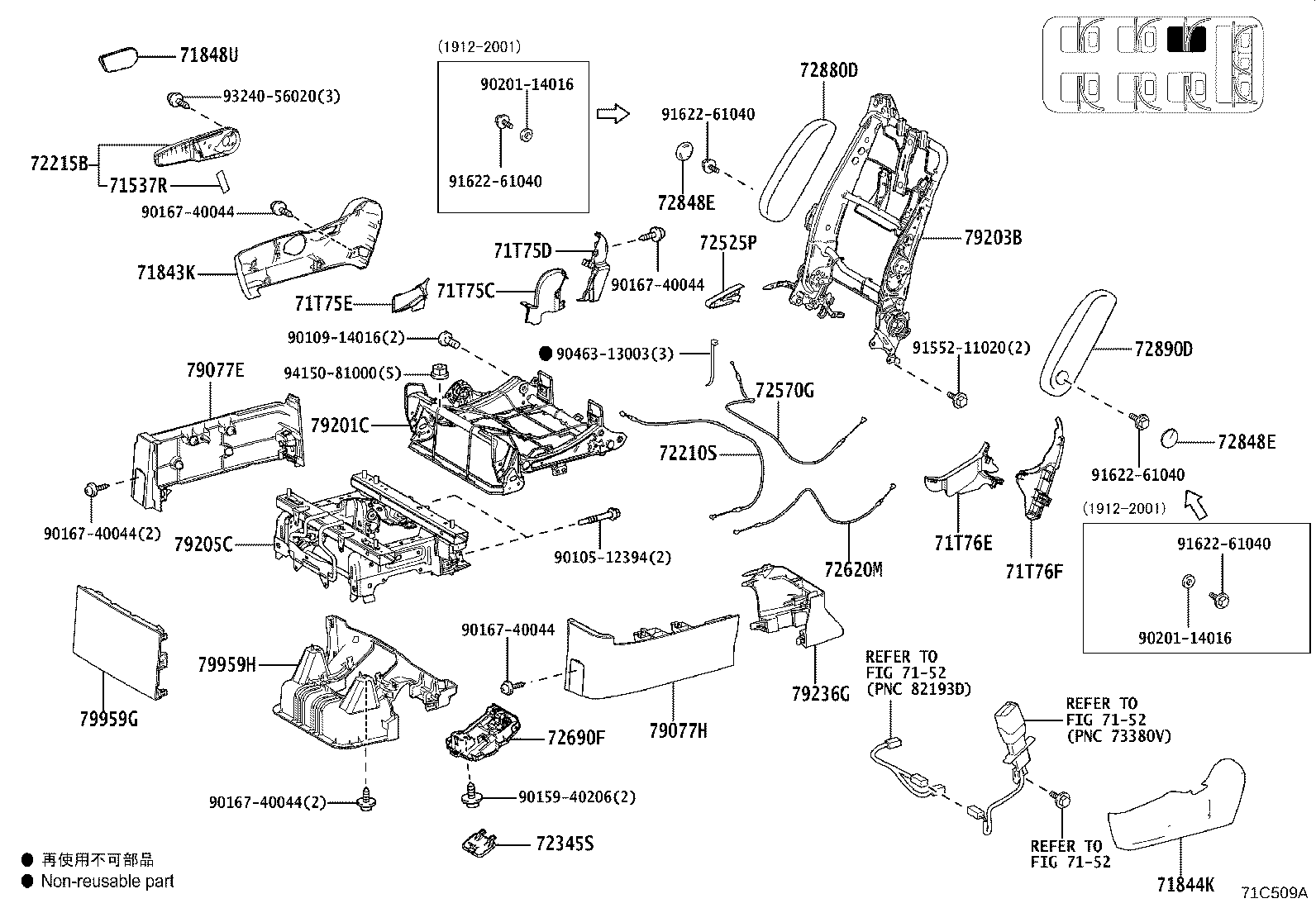

ILLUST NO. 2 OF 6(1912- )G

Click highlighted areas on diagram

ﾘﾔNO.2ｼｰﾄ(ﾗｲﾄ), ﾏﾆｭｱﾙｼｰﾄ

diagram 7152 7152 7152 71537R 71843K 71844K 71848U 71T75C 71T75D 71T75E 71T76E 71T76F 72210S 72215B 72345S 72525P 72570G 72620M 72690F 72848E 72848E 72880D 72890D 79077E 79077H 79201C 79203B 79205C 79236G 79959G 79959H 9010512394 9010914016 9015940206 9016740044 9016740044 9016740044 9016740044 9016740044 9020114016 9046313003 9155211020 9162261040 9162261040 9162261040 9324056020 9415081000
Part # Description Qty Price
71537R - PROTECTOR, REAR NO.2 SEAT CUSHION, RH
71537-28080

GDH303..G

 1
71843K - COVER, REAR NO.2 SEAT RECLINING, NO.2 RH
71843-26070C0

GDH303..G

BLACK,TRIM2#

 1
71844K - COVER, REAR NO.2 SEAT RECLINING, NO.2 LH
71844-26070C0

GDH303..G

BLACK,TRIM2#

 1
71848U - CAP, NO.2 SEAT ADJUSTER COVER, RH
71848-28070C1

GDH303..G

BLACK,TRIM2#

 1
71T75C - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR NO.2 RH S
71875-26200C0

GDH303..G

BLACK,TRIM2#

 1
71T75D - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR NO.2 RH S
71875-26210C0

GDH303..G

BLACK,TRIM2#

 1
71T75E - COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR NO.2 RH S
71875-28380C1

GDH303..G

BLACK,TRIM2#

 1
71T76E - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR NO.2 RH S
71876-58360C1

GDH303..G

BLACK,TRIM2#

 1
71T76F - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR NO.2 RH S
71876-58530C1

GDH303..G

BLACK,TRIM2#

 1
72210S - CABLE ASSY, NO.2 SEAT SLIDE, RH
72210-26210

GDH303..G

 1
72215B - LEVER, NO.2 SEAT TRACK HANDLE CONTROL, RH
72215-28020C1

GDH303..G

BLACK,TRIM2#

 1
72345S - CAP, NO.2 SEAT STAND FRAME, RH
72345-26200C0

GDH303

BLACK,TRIM2#

 1
72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH
72525-28130C1

GDH303..G

BLACK,TRIM2#

 1
72570G - CABLE ASSY, NO.2 SEAT RECLINING ADJUSTING, RH
72570-26080

GDH303..G

 1
72620M - CABLE ASSY, NO.2 SEAT WALK-IN, RH
72620-26100

GDH303..G

 1
72690F - LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH
72690-26060C0

GDH303

BLACK,TRIM2#

 1
72848E - CAP, NO.2 SEAT ARMREST, NO.1 RH
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 2
72848-28030C3

GDH303..G

BLACK,TRIM21

 2
72848E - CAP, NO.2 SEAT ARMREST, NO.1 RH
72848-28030L1

GDH303..G

NEUTRAL BEIGE,TRIM22

 2
72848-28030C3

GDH303..G

BLACK,TRIM21

 2
72880D - ARMREST ASSY, NO.2 SEAT, C RH(FOR RH SEAT)
72880-26430E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72880-26430C1

GDH303..G

BLACK,TRIM21

 1
72890D - ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT)
72890-26440C1

GDH303..G

BLACK,TRIM21

 1
72890-26440E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
79077E - COVER SUB-ASSY, NO.2 SEAT LEG, RH OUTER
79077-26030C0

GDH303..G

BLACK,TRIM2#

 1
79077H - COVER SUB-ASSY, NO.2 SEAT LEG, RH INNER
79077-26040C0

GDH303..G

BLACK,TRIM2#

 1
79201C - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH
79201-26110

GDH303..G

 1
79203B - FRAME SUB-ASSY, NO.2 SEAT BACK, RH
79203-26090

GDH303..G

 1
79205C - LEG SUB-ASSY, NO.2 SEAT, RH
79205-26440

GDH303..G

 1
79236G - COVER, NO.2 SEAT LEG, RH
79236-26050C0

GDH303..G

BLACK,TRIM2#

 1
79959G - COVER, NO.2 SEAT LEG, RH NO.1
79959-26200C0

GDH303..G

BLACK,TRIM2#

 1
79959H - COVER, NO.2 SEAT LEG, RH NO.2
79959-26210C0

GDH303..G

BLACK,TRIM2#

 1
Common parts
90105-12394
90109-14016
90159-40206
90167-40044
90201-14016
90463-13003
91552-11020
91622-61040
93240-56020
94150-81000
Linked diagrams
7152

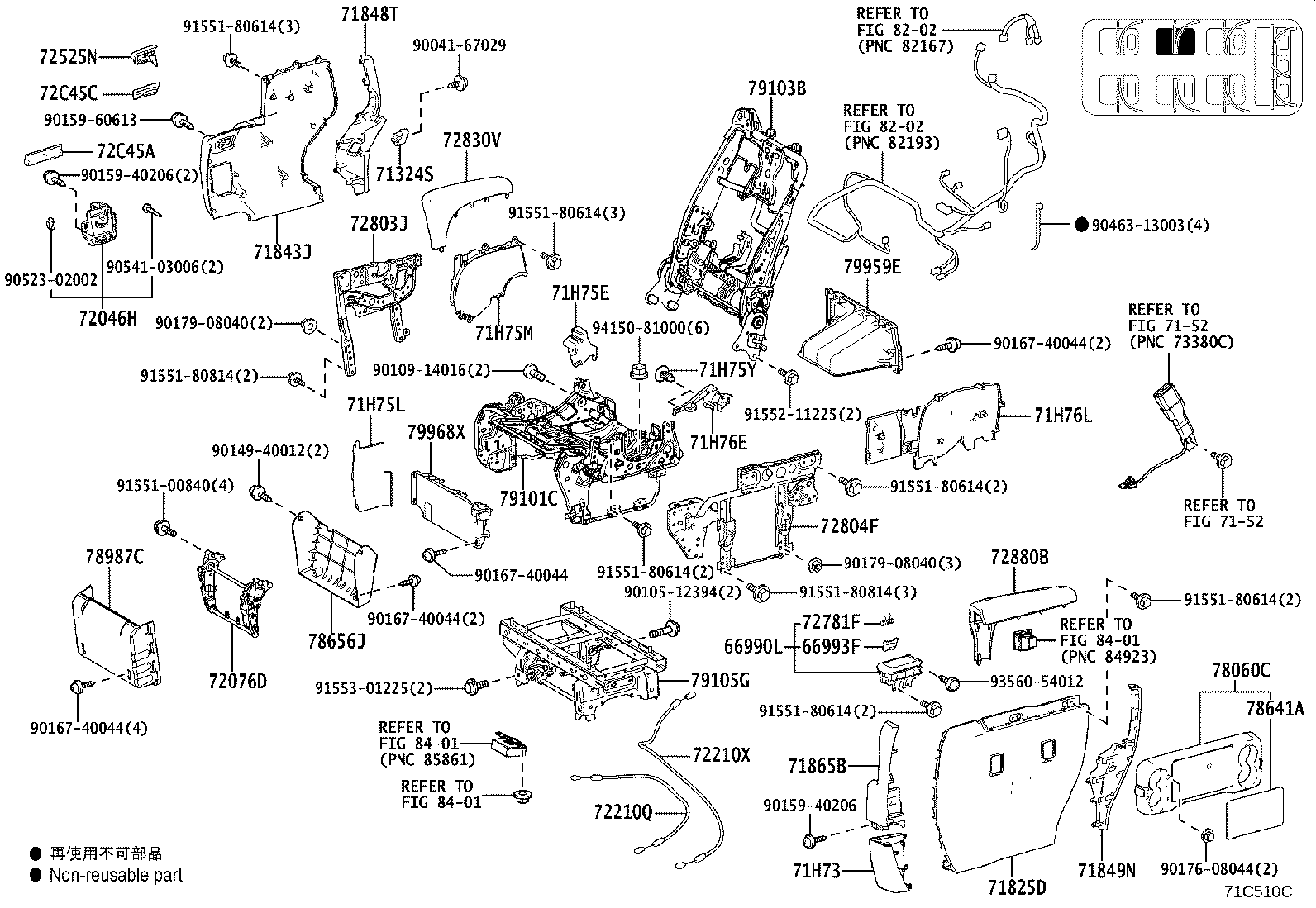

ILLUST NO. 2 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾗｲﾄ)

diagram 66990L 66993F 71324S 7152 7152 71825D 71843J 71848T 71849N 71865B 71H73 71H75E 71H75L 71H75M 71H75Y 71H76E 71H76L 72046H 72076D 72210Q 72210X 72525N 72781F 72803J 72804F 72830V 72880B 72C45A 72C45C 78060C 78641A 78656J 78987C 79101C 79103B 79105G 79959E 79968X 8202 8202 8401 8401 8401 9004167029 9010512394 9010914016 9014940012 9015940206 9015940206 9015960613 9016740044 9016740044 9016740044 9016740044 9017608044 9017908040 9017908040 9046313003 9052302002 9054103006 9155100840 9155180614 9155180614 9155180614 9155180614 9155180614 9155180614 9155180814 9155180814 9155211225 9155301225 9356054012 9415081000
Part # Description Qty Price
66990L - HOLDER ASSY, REAR NO.1 SEAT CUP, RH
66990-26010C0

GDH303

BLACK,TRIM2#

 1
66993F - PLATE, REAR NO.1 SEAT CUP HOLDER, RH
66993-58010C1

GDH303

BLACK,TRIM2#

 1
71324S - CUSHION, REAR NO.1 SEAT, RH
71324-26130

GDH303

 1
71825D - MOULDING, REAR NO.1 SEAT CUSHION, RH
71825-26020C0

GDH303

BLACK,TRIM2#

 1
71843J - COVER, REAR NO.1 SEAT RECLINING, NO.2 RH
71843-26040C0

GDH303

BLACK,TRIM2#

 1
71848T - CAP, NO.1 SEAT ADJUSTER COVER, RH
71848-26060C0

GDH303

BLACK,TRIM2#

 1
71849N - CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)
71849-26060C0

GDH303

BLACK,TRIM2#

 1
71865B - BEZEL, REAR NO.1 SEAT COVER, NO.1(FOR RH SEAT)
71865-26020C0

GDH303

BLACK,TRIM2#

 1
71H73 - SHIELD, REAR SEAT CUSHION, LOWER RH
71873-26030C0

GDH303

BLACK,TRIM2#

 1
71H75E - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH S
71875-26320C0

GDH303

BLACK,TRIM2#

 1
71H75L - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)
71875-26350C0

GDH303

BLACK,TRIM2#

 1
71H75M - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)
71875-26280C0

GDH303

BLACK,TRIM2#

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71H76E - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH S
71876-26370C0

GDH303

BLACK,TRIM2#

 1
71H76L - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)
71876-26330C0

GDH303

BLACK,TRIM2#

 1
72046H - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR RH S
72046-58050C1

GDH303

BLACK,TRIM2#

 1
72076D - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SE
72076-58020

GDH303

 1
72210Q - CABLE ASSY, NO.1 SEAT SLIDE, RH
72210-26220

GDH303

 1
72210X - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
72210-26230

GDH303

 1
72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72525-26180C0

GDH303

BLACK,TRIM2#

 1
72781F - SPRING, REAR NO.1 SEAT PLATE, RH
72781-58010

GDH303

 1
72803J - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR RH SEAT)
72803-26080

GDH303

 1
72804F - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR RH SEAT)
72804-26090

GDH303

 1
72830V - ARMREST ASSY, REAR NO.1 SEAT, RH
72830-26480E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72830-26480C1

GDH303..G

BLACK,TRIM21

 1
72880B - ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)
72880-26490C1

GDH303..G

BLACK,TRIM21

 1
72880-26490E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72C45A - CAP, NO.1 SEAT STAND FRAME, NO.1(FOR RH SEAT)
72345-58070C1

GDH303

BLACK,TRIM2#

 1
72C45C - CAP, NO.1 SEAT STAND FRAME, NO.3(FOR RH SEAT)
72345-26220C0

GDH303

BLACK,TRIM2#

 1
78060C - TABLE ASSY, NO.1 SEAT SIDE
78060-26100C0

GDH303

BLACK,TRIM2#

 1
78641A - BOARD, REAR NO.1 SEAT SIDE TABLE
78641-26080C0

GDH303

BLACK,TRIM2#

 1
78656J - COVER, REAR SEAT LEGREST, RH
78656-58020C1

GDH303

BLACK,TRIM2#

 1
78987C - COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH
78987-58010

GDH303

 1
79101C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79101-26260

GDH303

 1
79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79103-26340

GDH303

 1
79105G - LEG SUB-ASSY, NO.1 SEAT, RH
79105-26620

GDH303

 1
79959E - COVER, NO.1 SEAT LEG, RH
79959-26230C0

GDH303

BLACK,TRIM2#

 1
79968X - COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR RH SEAT)
79968-26140C0

GDH303

BLACK,TRIM2#

 1
Common parts
90041-67029
90105-12394
90109-14016
90149-40012
90159-40206
90159-60613
90167-40044
90176-08044
90179-08040
90463-13003
90523-02002
90541-03006
91551-00840
91551-80614
91551-80814
91552-11225
91553-01225
93560-54012
94150-81000
Linked diagrams
7152
8202
8401

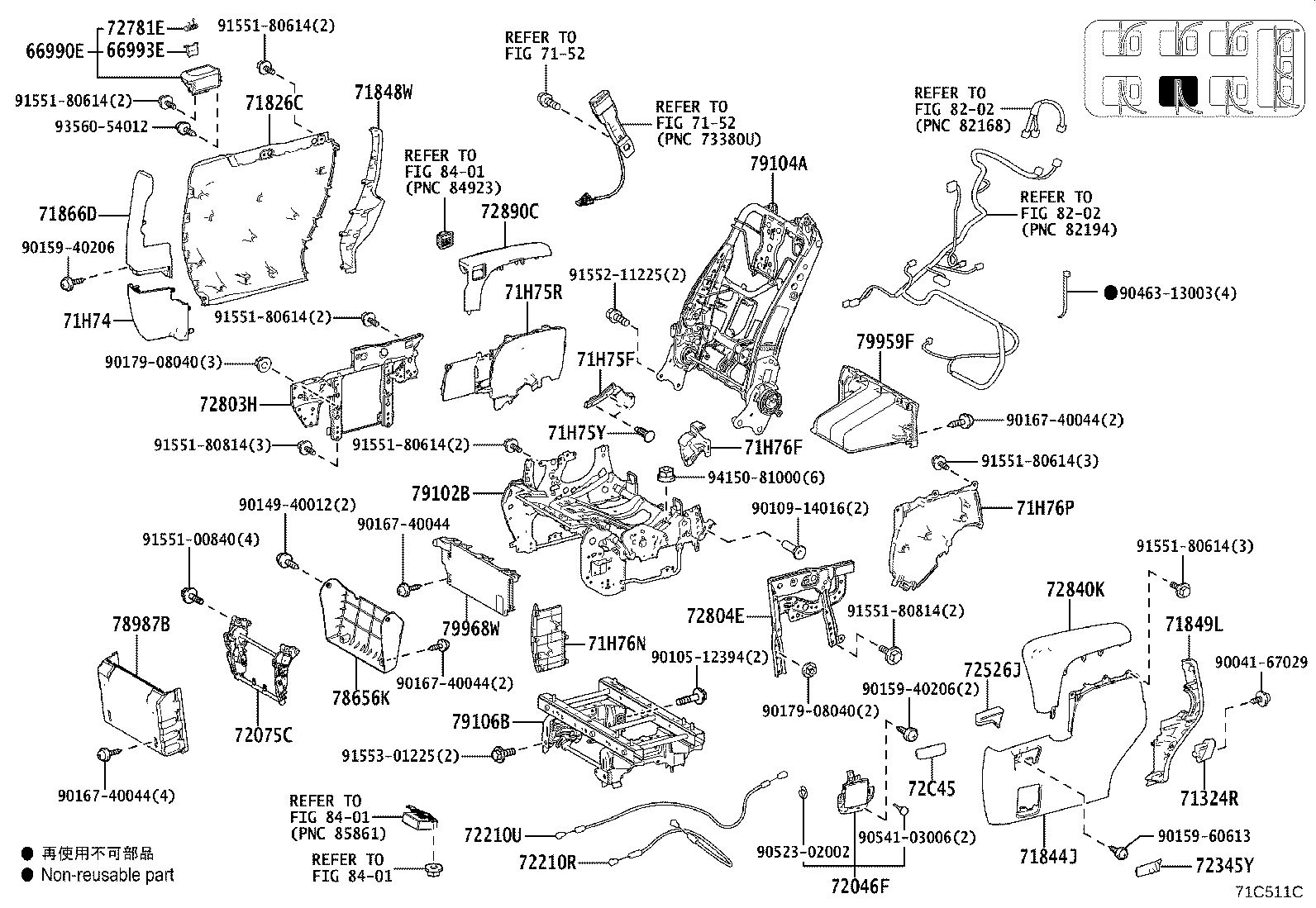

ILLUST NO. 5 OF 6(1912- )

Click highlighted areas on diagram

ﾘﾔNO.1ｼｰﾄ(ﾚﾌﾄ)

diagram 66990E 66993E 71324R 7152 7152 71826C 71844J 71848W 71849L 71866D 71H74 71H75F 71H75R 71H75Y 71H76F 71H76N 71H76P 72046F 72075C 72210R 72210U 72345Y 72526J 72781E 72803H 72804E 72840K 72890C 72C45 78656K 78987B 79102B 79104A 79106B 79959F 79968W 8202 8202 8401 8401 8401 9004167029 9010512394 9010914016 9014940012 9015940206 9015940206 9015960613 9016740044 9016740044 9016740044 9016740044 9017908040 9017908040 9046313003 9052302002 9054103006 9155100840 9155180614 9155180614 9155180614 9155180614 9155180614 9155180614 9155180814 9155180814 9155211225 9155301225 9356054012 9415081000
Part # Description Qty Price
66990E - HOLDER ASSY, REAR NO.1 SEAT CUP, LH
66990-26020C0

GDH303

BLACK,TRIM2#

 1
66993E - PLATE, REAR NO.1 SEAT CUP HOLDER, LH
66993-58010C1

GDH303

BLACK,TRIM2#

 1
71324R - CUSHION, REAR NO.1 SEAT, LH
71324-26140

GDH303

 1
71826C - MOULDING, REAR SEAT CUSHION, LH
71826-26020C0

GDH303

BLACK,TRIM2#

 1
71844J - COVER, REAR NO.1 SEAT RECLINING, NO.2 LH
71844-26040C0

GDH303

BLACK,TRIM2#

 1
71848W - CAP, NO.1 SEAT ADJUSTER COVER, RH(FOR LH SEAT)
71848-26070C0

GDH303

BLACK,TRIM2#

 1
71849L - CAP, NO.1 SEAT ADJUSTER COVER, LH
71849-26050C0

GDH303

BLACK,TRIM2#

 1
71866D - BEZEL, REAR NO.1 SEAT COVER, NO.2(FOR LH SEAT)
71866-26010C0

GDH303

BLACK,TRIM2#

 1
71H74 - SHIELD, REAR SEAT CUSHION, LOWER LH
71874-26030C0

GDH303

BLACK,TRIM2#

 1
71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S
71875-26310C0

GDH303

BLACK,TRIM2#

 1
71H75R - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)
71875-26370C0

GDH303

BLACK,TRIM2#

 1
71H75Y - CLIP, REAR SEAT RECLINING COVER
90467-05161C9

GDH303

BLACK,TRIM2#

 10
90467-05161C0

GDH303

BLACK

 10
71H76F - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH S
71876-26310C0

GDH303

BLACK,TRIM2#

 1
71H76N - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)
71876-26300C0

GDH303

BLACK,TRIM2#

 1
71H76P - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)
71876-26340C0

GDH303

BLACK,TRIM2#

 1
72046F - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR LH S
72046-26020C0

GDH303

BLACK,TRIM2#

 1
72075C - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR LH SE
72075-58010

GDH303

 1
72210R - CABLE ASSY, NO.1 SEAT SLIDE, LH
72210-26220

GDH303

 1
72210U - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH
72210-26230

GDH303

 1
72345Y - CAP, NO.1 SEAT STAND FRAME, NO.1(FOR LH SEAT)
72345-26230C0

GDH303

BLACK,TRIM2#

 1
72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH
72526-26110C0

GDH303

BLACK,TRIM2#

 1
72781E - SPRING, REAR NO.1 SEAT PLATE, LH
72781-58010

GDH303

 1
72803H - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR LH SEAT)
72803-26090

GDH303

 1
72804E - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR LH SEAT)
72804-26100

GDH303

 1
72840K - ARMREST ASSY, REAR NO.1 SEAT, LH
72840-26250C1

GDH303..G

BLACK,TRIM21

 1
72840-26250E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
72890C - ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)
72890-26500E1

GDH303..G

NEUTARAL BEIGE,TRIM22

 1
72890-26500C1

GDH303..G

BLACK,TRIM21

 1
72C45 - CAP, NO.1 SEAT STAND FRAME, NO.3(FOR LH SEAT)
72345-58070C1

GDH303

BLACK,TRIM2#

 1
78656K - COVER, REAR SEAT LEGREST, LH
78656-58020C1

GDH303

BLACK,TRIM2#

 1
78987B - COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH
78987-58010

GDH303

 1
79102B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79102-26060

GDH303

 1
79104A - FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79104-26150

GDH303

 1
79106B - LEG SUB-ASSY, NO.1 SEAT, LH
79106-26400

GDH303

 1
79959F - COVER, NO.1 SEAT LEG, LH
79959-26240C0

GDH303

BLACK,TRIM2#

 1
79968W - COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR LH SEAT)
79968-26150C0

GDH303

BLACK,TRIM2#

 1
Common parts
90041-67029
90105-12394
90109-14016
90149-40012
90159-40206
90159-60613
90167-40044
90179-08040
90463-13003
90523-02002
90541-03006
91551-00840
91551-80614
91551-80814
91552-11225
91553-01225
93560-54012
94150-81000
Linked diagrams
7152
8202
8401

(1912- )

Click highlighted areas on diagram

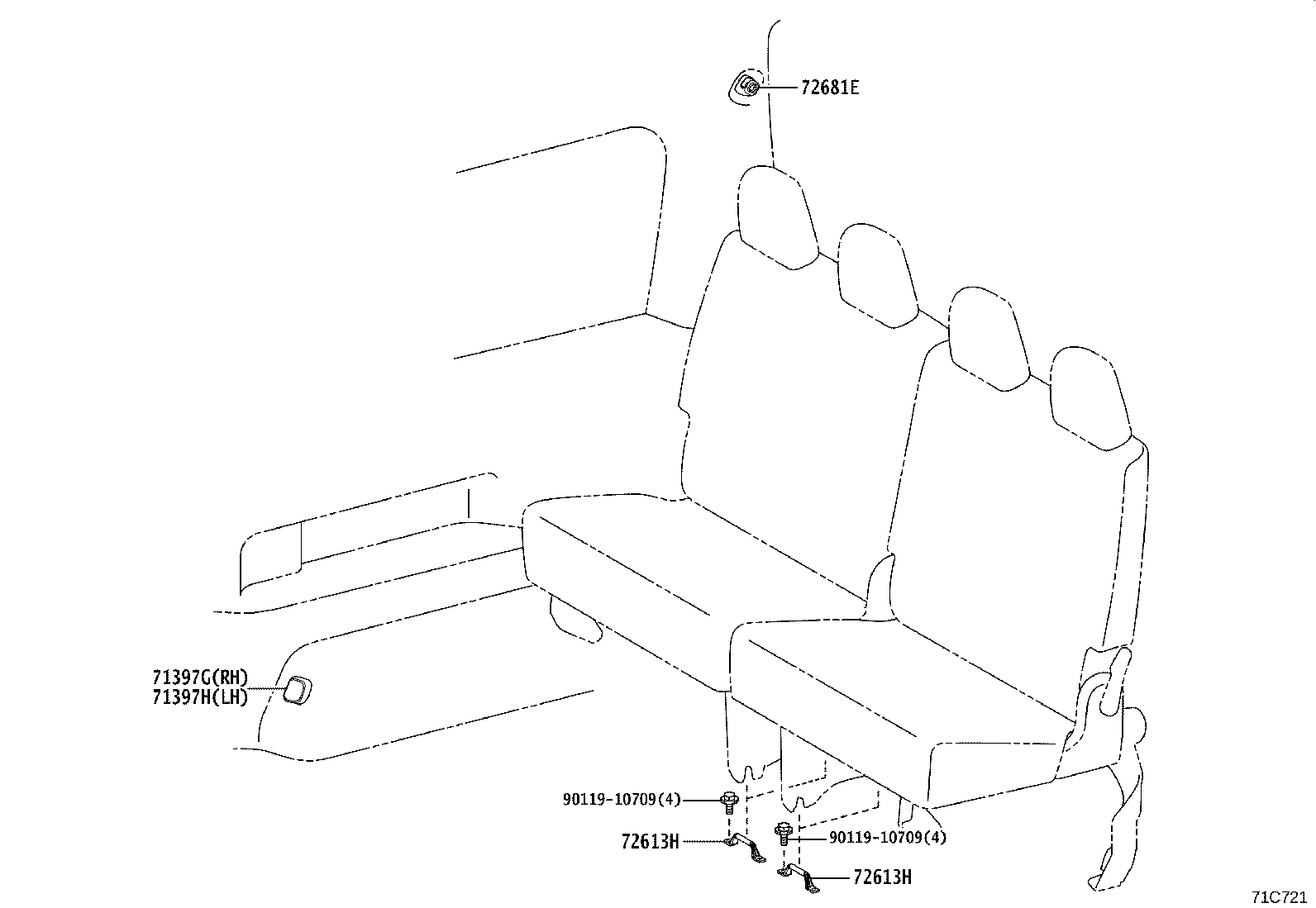

diagram 71397G 71397H
Part # Description Qty Price
71397G - STOPPER, REAR SEAT, RH
71397-26180

GDH303

 1
71397H - STOPPER, REAR SEAT, LH
71397-26190

GDH303

 1
