GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

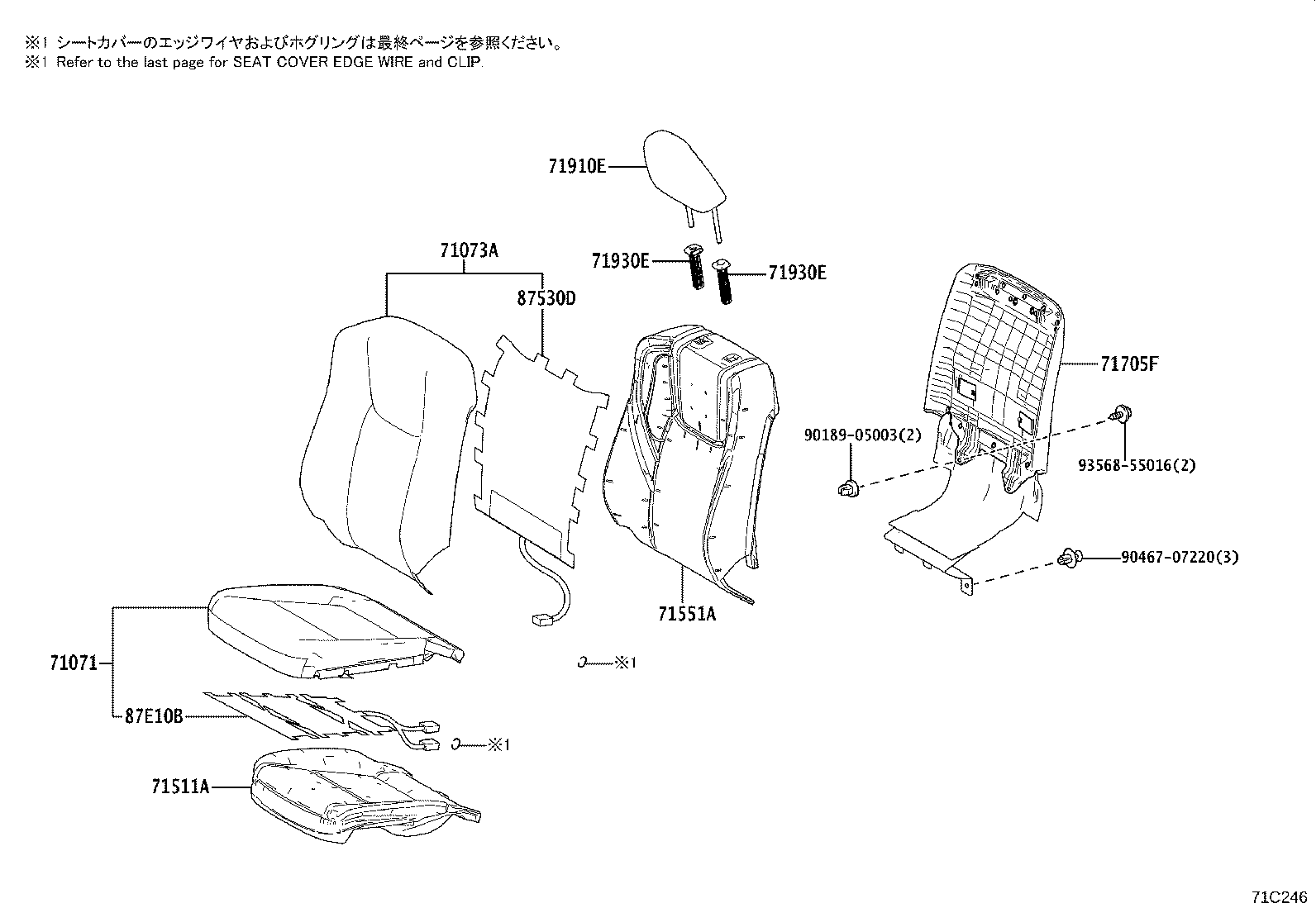

ILLUST NO. 1 OF 4(1912- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

diagram 71071 71073A 71511A 71551A 71705F 71910E 71930E 71930E 87530D 87E10B 9018905003 9046707220 9356855016
Part # Description Qty Price
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-26E70C0

GDH303..G

BLACK,TRIM21

 1
71071-26E70E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH
71073-26D70C0

GDH303..G

BLACK,TRIM21

 1
71073-26D70E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71511A - PAD, FRONT SEAT CUSHION, RH
71511-26260

GDH303

 1
71551A - PAD, FRONT SEAT BACK, RH
71551-26410

GDH303

 1
71705F - BOARD SUB-ASSY, FRONT SEAT BACK, RH
71705-26090C1

GDH303

BLACK,TRIM2#

 1
71910E - HEADREST ASSY, FRONT SEAT, RH
71910-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71910-26670C2

GDH303..G

BLACK,TRIM21

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71930-47050C5

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47030C4

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-47050E0

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47030E0

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH
71930-47050C5

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47030C4

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-47050E0

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71931-47030E0

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
87530D - HEATER ASSY, FRONT SEAT BACK, RH
87530-26030

GDH303

 1
87E10B - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-26080

GDH303

 1
Common parts
90189-05003
90467-07220
93568-55016

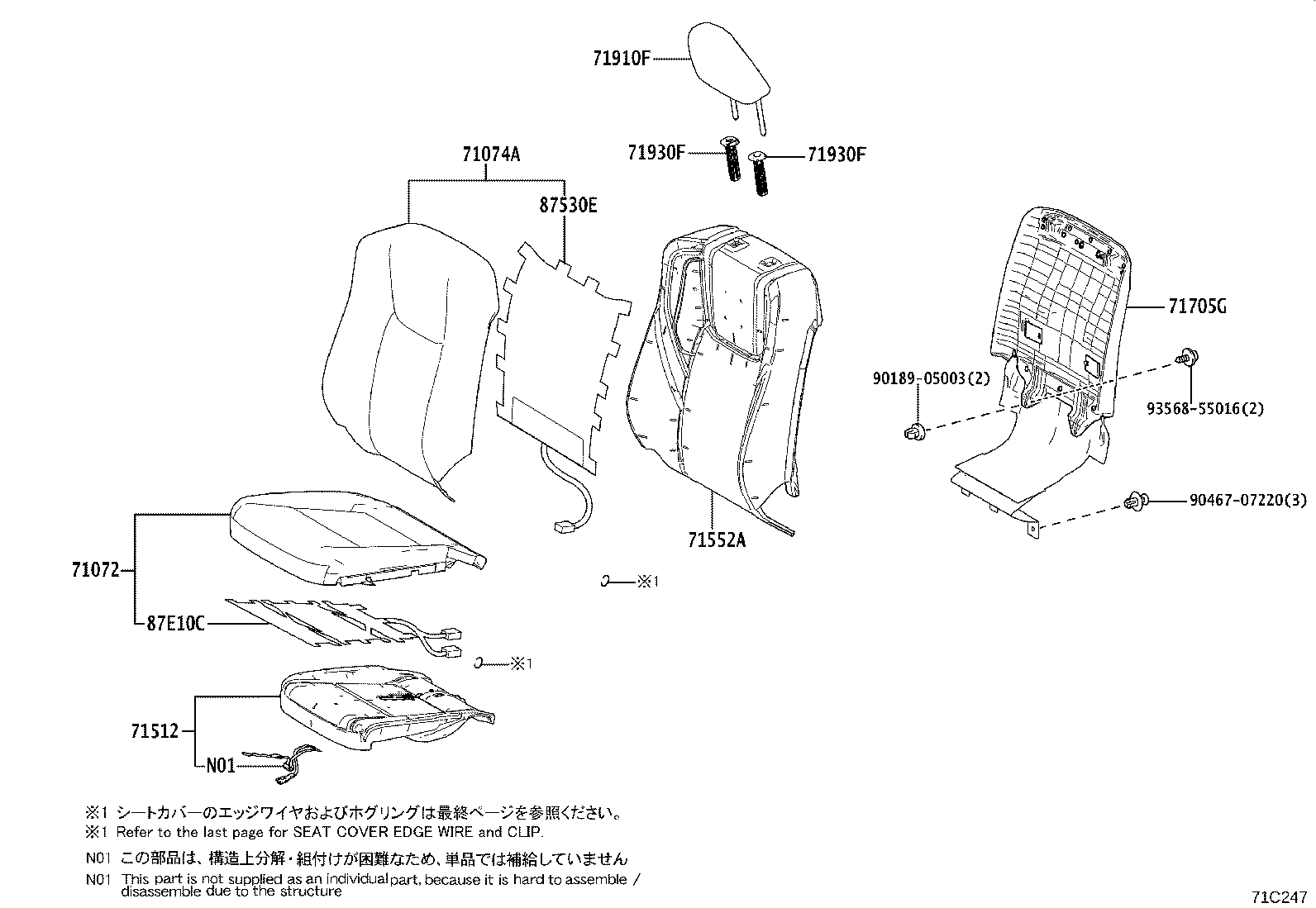

ILLUST NO. 3 OF 4(1912- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

diagram 71072 71074A 71512 71552A 71705G 71910F 71930F 71930F 87530E 87E10C 9018905003 9046707220 9356855016
Part # Description Qty Price
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-26D80C0

GDH303..G

BLACK,TRIM21

 1
71072-26D80E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
71074-26C20C0

GDH303..G

BLACK,TRIM21

 1
71074-26C20E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71512 - PAD, FRONT SEAT CUSHION, LH
71502-26230

GDH303

 1
71552A - PAD, FRONT SEAT BACK, LH
71552-26160

GDH303

 1
71705G - BOARD SUB-ASSY, FRONT SEAT BACK, LH
71705-26090C1

GDH303

BLACK,TRIM2#

 1
71910F - HEADREST ASSY, FRONT SEAT, LH
71910-26670C2

GDH303..G

BLACK,TRIM21

 1
71910-26670E1

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71931-47030C4

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-47050E0

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71930-47050C5

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47030E0

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH
71931-47030C4

GDH303..G

ﾛｯｸ無,BLACK,TRIM21

 1
71930-47050E0

GDH303..G

ﾛｯｸ付,NEUTRAL BEIGE,TRIM22

 1
71930-47050C5

GDH303..G

ﾛｯｸ付,BLACK,TRIM21

 1
71931-47030E0

GDH303..G

ﾛｯｸ無,NEUTRAL BEIGE,TRIM22

 1
87530E - HEATER ASSY, FRONT SEAT BACK, LH
87530-26030

GDH303

 1
87E10C - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-26080

GDH303

 1
Common parts
90189-05003
90467-07220
93568-55016

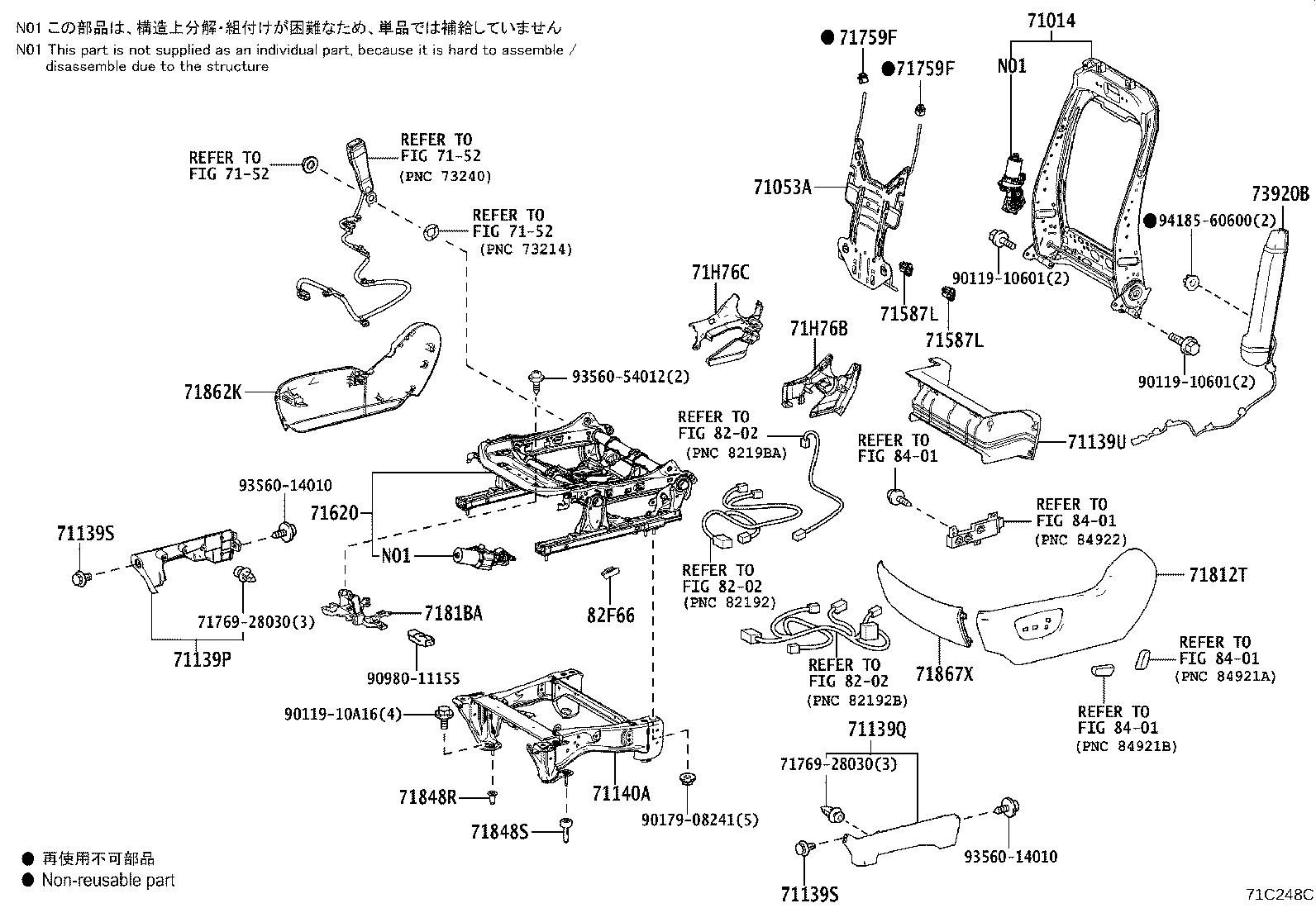

ILLUST NO. 4 OF 4(1912- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

diagram 71014 71053A 71139P 71139Q 71139S 71139S 71139U 71140A 7152 7152 7152 71587L 71587L 71620 71759F 71759F 7176928030 7176928030 71812T 7181BA 71848R 71848S 71862K 71867X 71H76B 71H76C 73920B 8202 8202 8202 82F66 8401 8401 8401 8401 9011910601 9011910601 9011910A16 9017908241 9098011155 9356014010 9356014010 9356054012 9418560600
Part # Description Qty Price
71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26230

GDH303

 1
71053A - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-47050

GDH303

 1
71139P - COVER, FRONT SEAT LEG, LH OUTER
71139-26180C0

GDH303

BLACK,TRIM2#

 1
71139Q - COVER, FRONT SEAT LEG, LH INNER
71139-26230C0

GDH303

BLACK,TRIM2#

 1
71139S - CLIP, FRONT SEAT LEG COVER, LH
90467-07220

GDH303

 2
71139S - CLIP, FRONT SEAT LEG COVER, LH
90467-07220

GDH303

 2
71139U - COVER, FRONT SEAT LEG, REAR LH
71139-26190C0

GDH303

BLACK,TRIM2#

 1
71140A - LEG ASSY, FRONT SEAT, LH
71140-26140

GDH303

 1
71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH
71587-47010

GDH303

 2
71587L - PROTECTOR, FRONT SEAT BACK EDGE, LH
71587-47010

GDH303

 2
71620 - SPRING ASSY, FRONT SEAT CUSHION, LH
71620-26120

GDH303

 1
71759F - HOOK, FRONT SEAT BACK, LH
71759-50040

GDH303

 2
71759F - HOOK, FRONT SEAT BACK, LH
71759-50040

GDH303

 2
71812T - SHIELD, FRONT SEAT CUSHION, LH
71812-26450C0

GDH303

BLACK,TRIM2#

 1
7181BA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-47010

GDH303

 1
71848R - CAP, FRONT SEAT ADJUSTER COVER, LH NO.1
71848-26030

GDH303

 1
71848S - CAP, FRONT SEAT ADJUSTER COVER, LH NO.2
71848-33010

GDH303

 1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26090C0

GDH303

BLACK,TRIM2#

 1
71867X - SHIELD, FRONT SEAT CUSHION, FRONT LH
71867-26080C0

GDH303

BLACK,TRIM2#

 1
71H76B - COVER, RECLINING ADJUSTER INSIDE, LH INNER(FOR LH SEAT)
71876-42070C0

GDH303

BLACK,TRIM2#

 1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-42060C0

GDH303

BLACK,TRIM2#

 1
73920B - AIR BAG ASSY, FRONT SEAT, LH
73920-26020

GDH303

 1
82F66 - HOLDER, CONNECTOR
82666-47630

GDH303

 1
Common parts
71769-28030
90119-10601
90119-10A16
90179-08241
90980-11155
93560-14010
93560-54012
94185-60600
Linked diagrams
7152
8202
8401

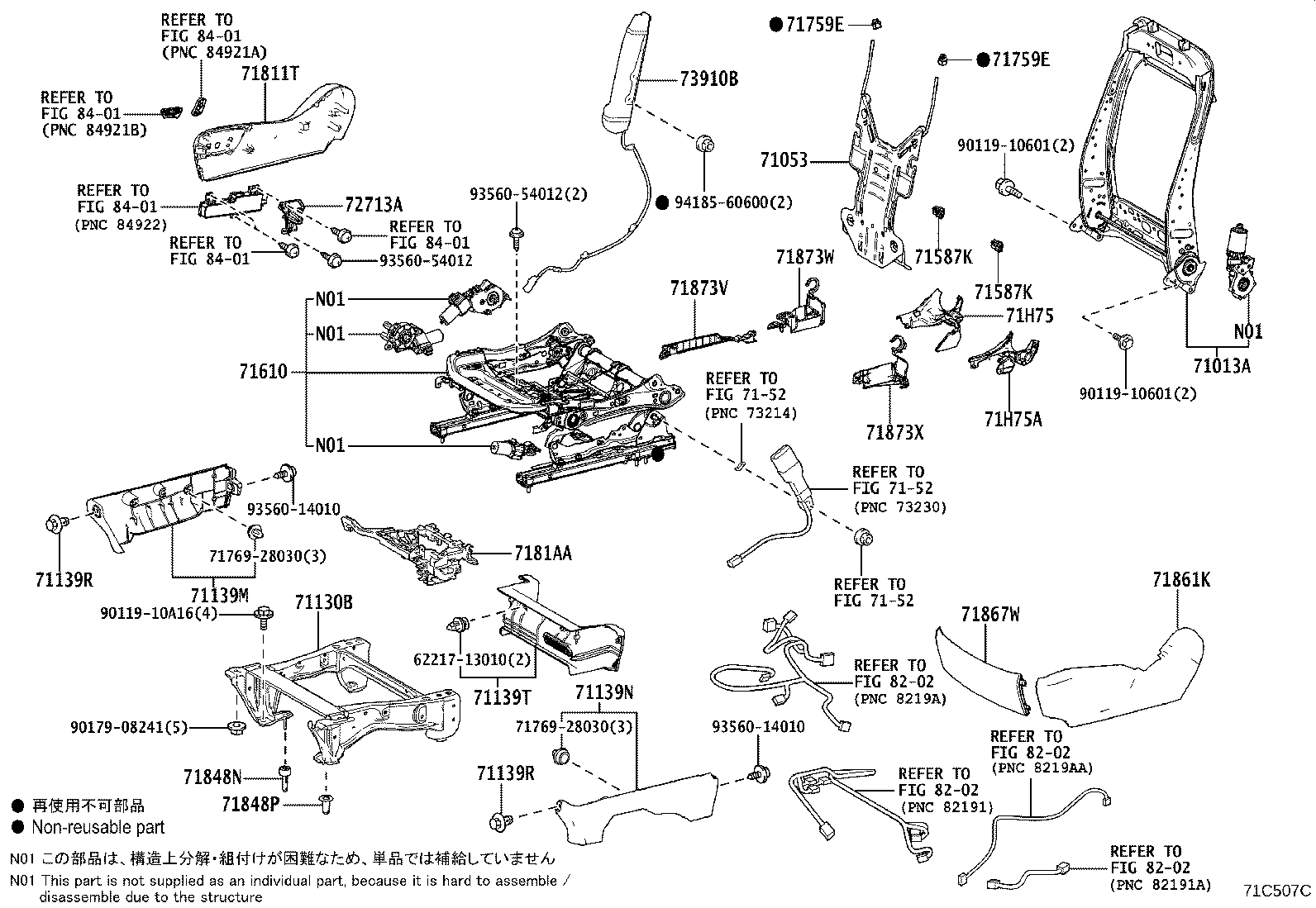

ILLUST NO. 2 OF 4(1912- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

diagram 6221713010 71013A 71053 71130B 71139M 71139N 71139R 71139R 71139T 7152 7152 7152 71587K 71587K 71610 71759E 71759E 7176928030 7176928030 71811T 7181AA 71848N 71848P 71861K 71867W 71873V 71873W 71873X 71H75 71H75A 72713A 73910B 8202 8202 8202 8202 8401 8401 8401 8401 8401 9011910601 9011910601 9011910A16 9017908241 9356014010 9356014010 9356054012 9356054012 9418560600
Part # Description Qty Price
71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-26260

GDH303

 1
71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-47050

GDH303

 1
71130B - LEG ASSY, FRONT SEAT, RH
71130-26150

GDH303

 1
71139M - COVER, FRONT SEAT LEG, RH OUTER
71139-26170C0

GDH303

BLACK,TRIM2#

 1
71139N - COVER, FRONT SEAT LEG, RH INNER
71139-26220C0

GDH303

BLACK,TRIM2#

 1
71139R - CLIP, FRONT SEAT LEG COVER, RH
90467-07220

GDH303

 2
71139R - CLIP, FRONT SEAT LEG COVER, RH
90467-07220

GDH303

 2
71139T - COVER, FRONT SEAT LEG, REAR RH
71139-26210C0

GDH303

BLACK,TRIM2#

 1
71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH
71587-47010

GDH303

 2
71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH
71587-47010

GDH303

 2
71610 - SPRING ASSY, FRONT SEAT CUSHION, RH
71610-26100

GDH303

 1
71759E - HOOK, FRONT SEAT BACK, RH
71759-50040

GDH303

 2
71759E - HOOK, FRONT SEAT BACK, RH
71759-50040

GDH303

 2
71811T - SHIELD, FRONT SEAT CUSHION, RH
71811-26500C0

GDH303

BLACK,TRIM2#

 1
7181AA - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-42010

GDH303

 1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-26030

GDH303

 1
71848P - CAP, FRONT SEAT ADJUSTER COVER, RH NO.2
71848-33010

GDH303

 1
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26060C0

GDH303

BLACK,TRIM2#

 1
71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-26080C0

GDH303

BLACK,TRIM2#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-42070

GDH303

 1
71873W - SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER
71873-26020

GDH303

 1
71873X - SHIELD, FRONT SEAT CUSHION, LOWER RH, INNER
71873-42060

GDH303

 1
71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
71875-26530C0

GDH303

BLACK,TRIM2#

 1
71H75A - COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT)
71875-42100C0

GDH303

BLACK,TRIM2#

 1
72713A - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72713-42010

GDH303

 1
73910B - AIR BAG ASSY, FRONT SEAT, RH
73910-26020

GDH303

 1
Common parts
62217-13010
71769-28030
90119-10601
90119-10A16
90179-08241
93560-14010
93560-54012
94185-60600
Linked diagrams
7152
8202
