GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

Click highlighted areas on diagram

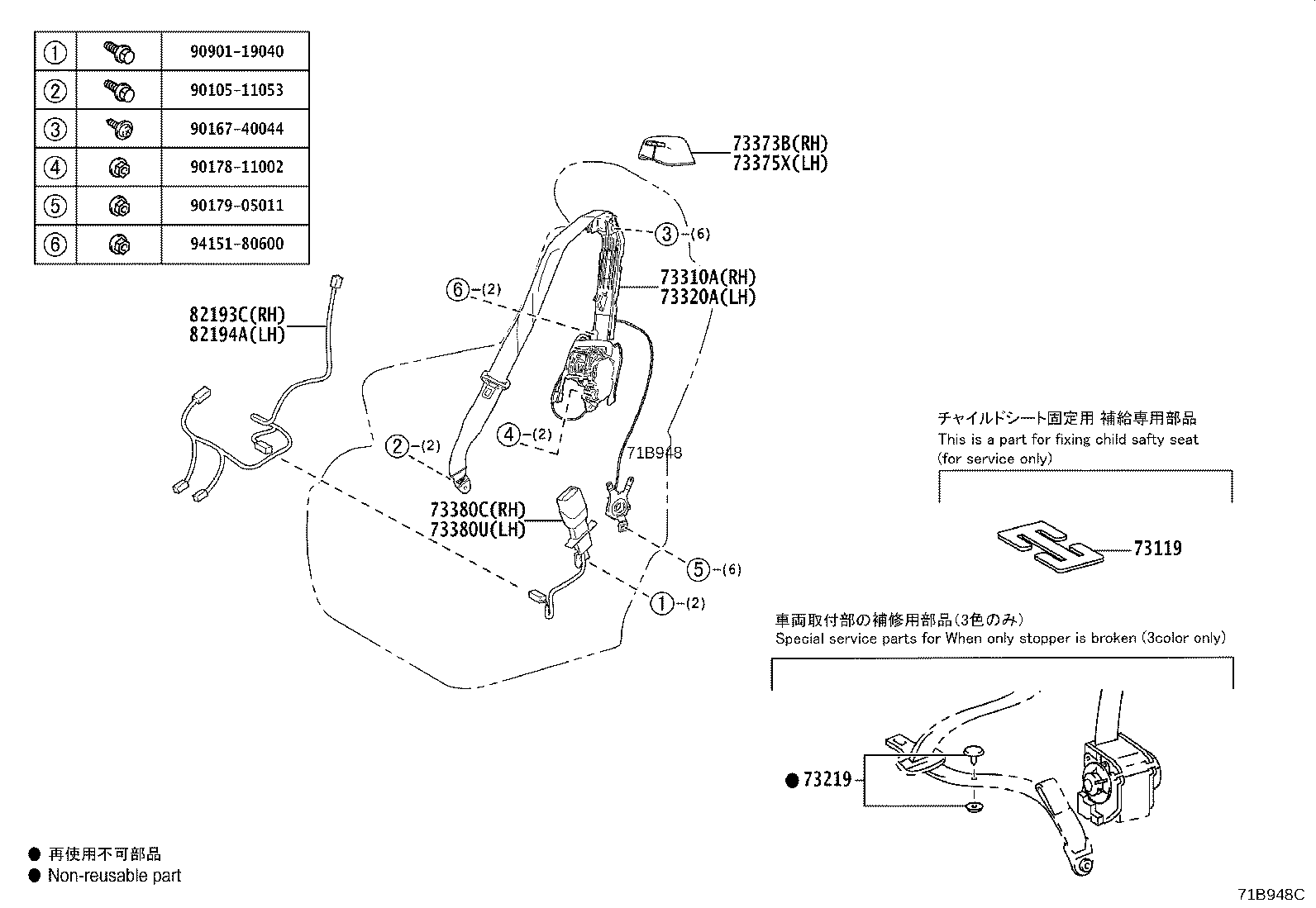

ﾘﾔNO.1ｼｰﾄ

diagram 73119 73219 73310A 73320A 73373B 73375X 73380C 73380U 82193C 82194A 9010511053 9016740044 9017811002 9017905011 9090119040 9415180600
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GDH303

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

GDH303

ﾌﾞﾗｯｸ

 1
73219-33020

GDH303

ｸﾞﾚｰ

 1
73219-33030

GDH303

ﾍﾞｰｼﾞｭ

 1
73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH
73310-26110C0

GDH303

BLACK,TRIM2#

 1
73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH
73320-26050C0

GDH303

BLACK,TRIM2#

 1
73373B - COVER, REAR NO.1 SEAT SHOULDER BELT
73373-26030C0

GDH303..G

BLACK,TRIM21

 1
73373-26030E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
73375X - COVER, REAR SEAT SHOULDER BELT, LH NO.1
73375-26020E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
73375-26020C0

GDH303..G

BLACK,TRIM21

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-26560C0

GDH303

BLACK,TRIM2#

 1
73380U - BELT ASSY, REAR NO.1 SEAT, INNER LH
73380-26870C0

GDH303

BLACK,TRIM2#

 1
82193C - WIRE, REAR NO.1 SEAT, RH
82193-26080

GDH303

 1
82194A - WIRE, REAR NO.1 SEAT, LH
82193-26080

GDH303

 1
Common parts
90105-11053
90167-40044
90178-11002
90179-05011
90901-19040
94151-80600

(1912- )

Click highlighted areas on diagram

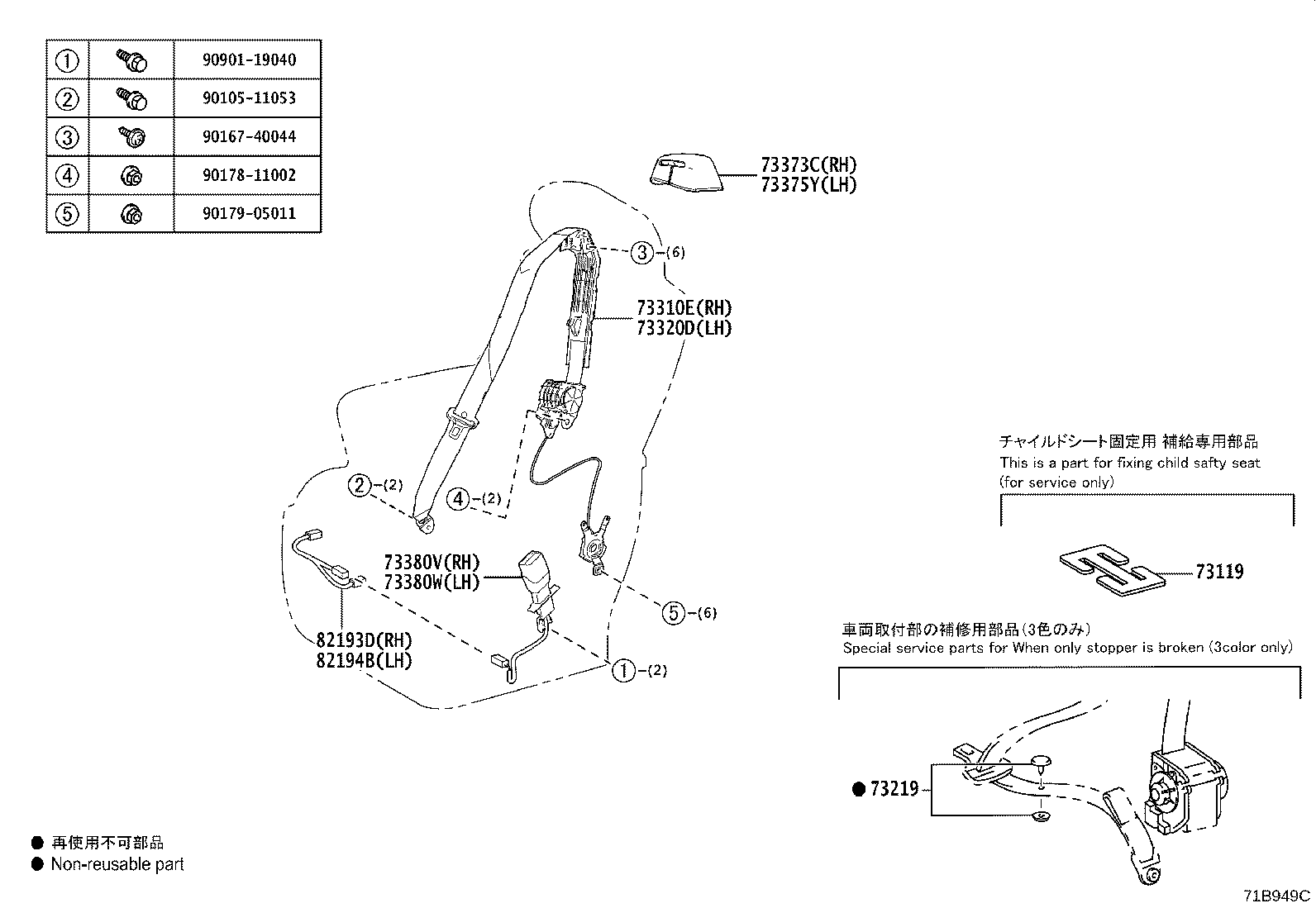

ﾘﾔNO.2ｼｰﾄ

diagram 73119 73219 73310E 73320D 73373C 73375Y 73380V 73380W 82193D 82194B 9010511053 9016740044 9017811002 9017905011 9090119040
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GDH303

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

GDH303

ﾌﾞﾗｯｸ

 1
73219-33020

GDH303

ｸﾞﾚｰ

 1
73219-33030

GDH303

ﾍﾞｰｼﾞｭ

 1
73310E - BELT ASSY, NO.2 SEAT 3 POINT TYPE, RH
73310-26120C0

GDH303..G

BLACK,TRIM2#

 1
73320D - BELT ASSY, NO.2 SEAT 3 POINT TYPE, LH
73320-26060C0

GDH303..G

BLACK,TRIM2#

 1
73373C - COVER, REAR NO.2 SEAT SHOULDER BELT
73373-26030C0

GDH303..G

BLACK,TRIM21

 1
73373-26030E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
73375Y - COVER, REAR SEAT SHOULDER BELT, LH NO.2
73375-26020E0

GDH303..G

NEUTRAL BEIGE,TRIM22

 1
73375-26020C0

GDH303..G

BLACK,TRIM21

 1
73380V - BELT ASSY, REAR NO.2 SEAT, INNER RH
73380-26570C0

GDH303..G

BLACK,TRIM2#

 1
73380W - BELT ASSY, REAR NO.2 SEAT, INNER LH
73380-26590C0

GDH303..G

BLACK,TRIM2#

 1
82193D - WIRE, REAR NO.2 SEAT, RH
82193-26090

GDH303..G

 1
82194B - WIRE, REAR NO.2 SEAT, LH
82194-26090

GDH303..G

 1
Common parts
90105-11053
90167-40044
90178-11002
90179-05011
90901-19040

(1912- )

Click highlighted areas on diagram

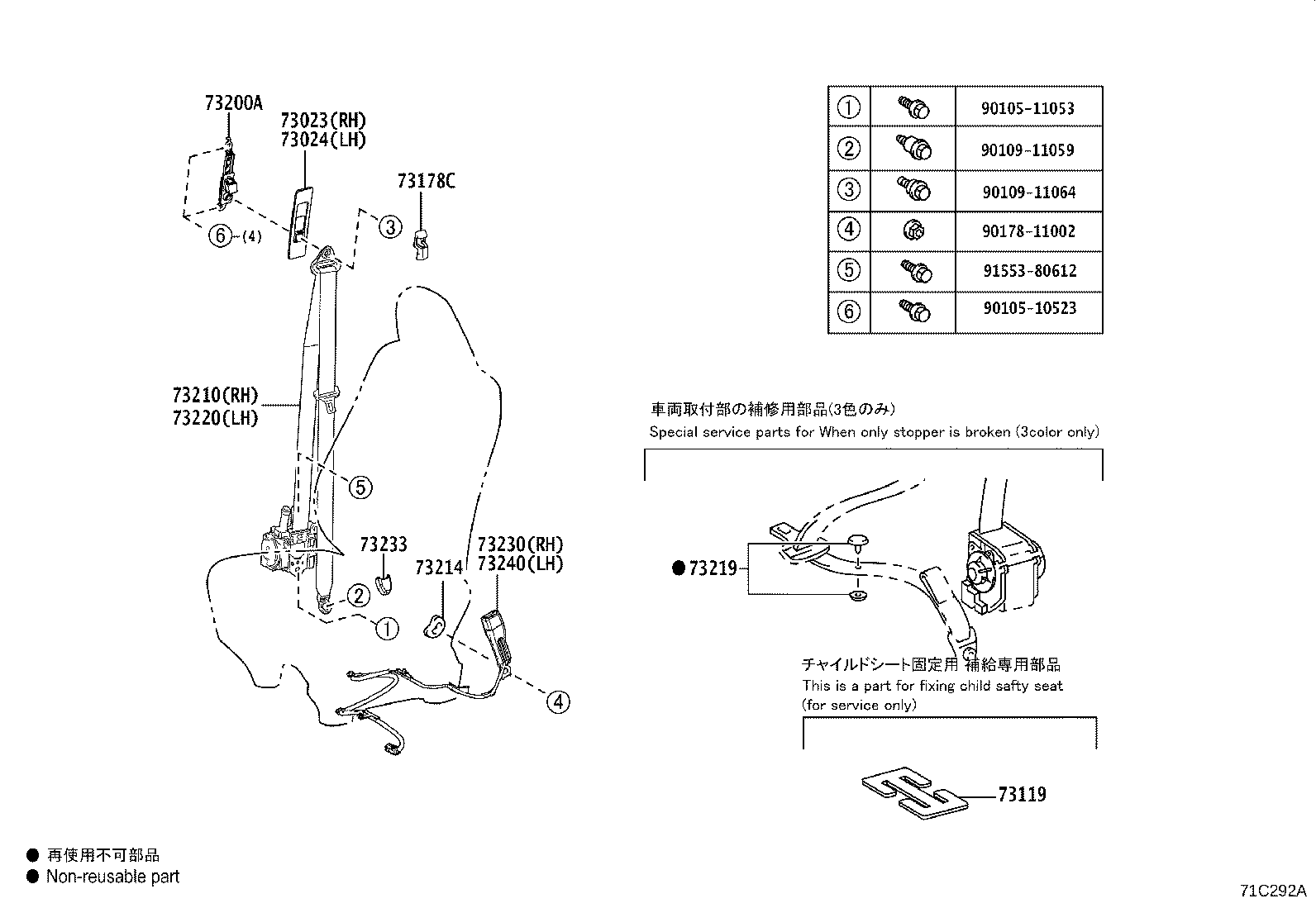

ﾌﾛﾝﾄｼｰﾄ

diagram 73023 73024 73119 73178C 73200A 73210 73214 73219 73220 73230 73233 73240 9010510523 9010511053 9010911059 9010911064 9017811002 9155380612
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-12020A0

GDH303..G

FROMAGE,TRIM2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73023-12020A0

GDH303..G

FROMAGE,TRIM2#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GDH303

 1
73178C - CAP, SEAT BELT ANCHOR COVER
73178-26010A0

GDH303..G

FROMAGE,TRIM2#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-26030A0

GDH303..G

FROMAGE,TRIM2#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-26780A0

GDH303..G

BLACK/FROMAGE,TRIM2#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

GDH303

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

GDH303

ﾌﾞﾗｯｸ

 1
73219-33020

GDH303

ｸﾞﾚｰ

 1
73219-33030

GDH303

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-26540A0

GDH303..G

BLACK/FROMAGE,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-26370C1

GDH303

BLACK,TRIM2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

GDH303

BLACK,TRIM2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-26430C0

GDH303

BLACK,TRIM2#

 1
Common parts
90105-10523
90105-11053
90109-11059
90109-11064
90178-11002
91553-80612

(1912- )G

Click highlighted areas on diagram

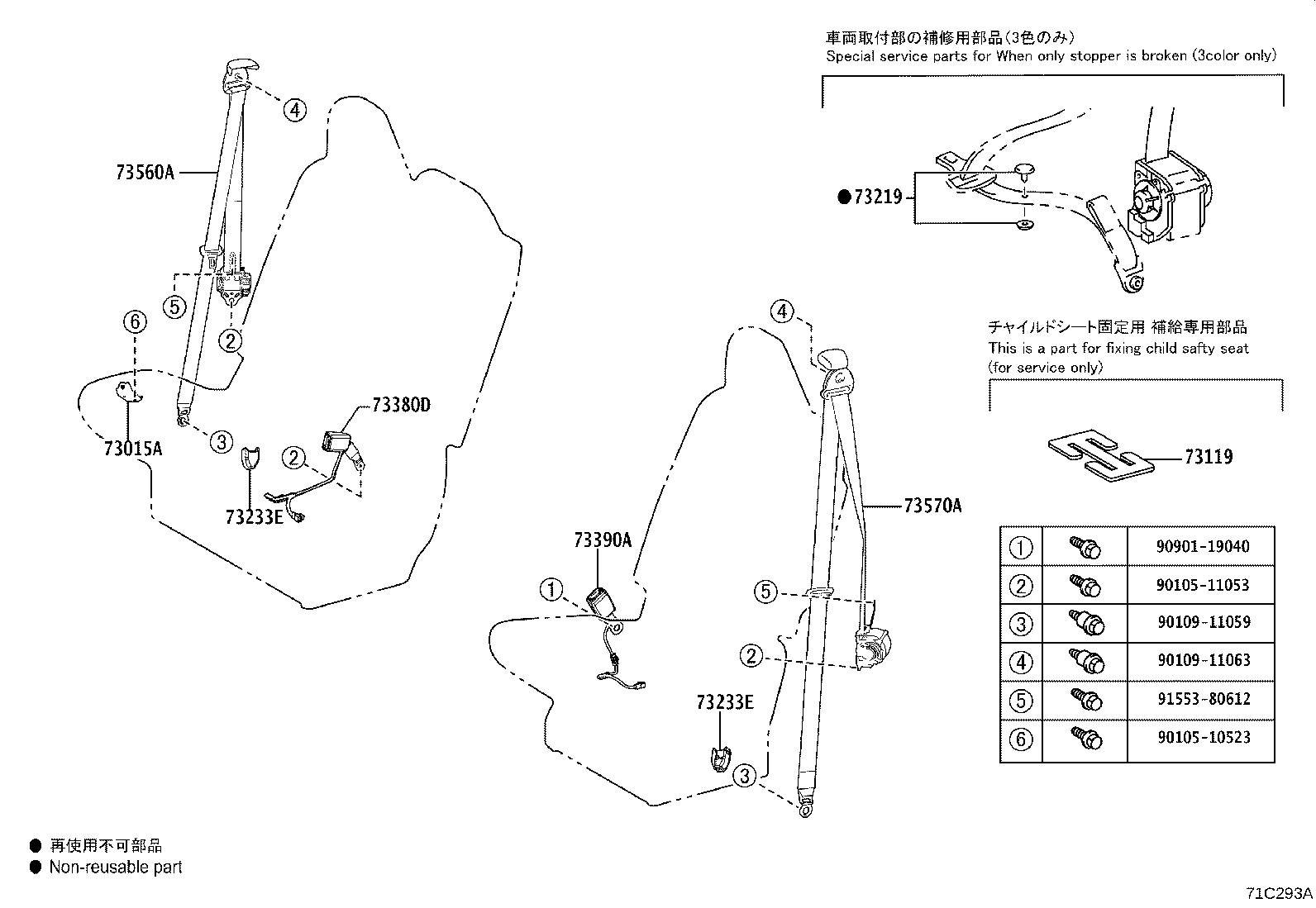

ﾘﾔNO.3ｼｰﾄ

diagram 73015A 73119 73219 73233E 73233E 73380D 73390A 73560A 73570A 9010510523 9010511053 9010911059 9010911063 9090119040 9155380612
Part # Description Qty Price
73015A - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73015-26020

GDH303..G

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

GDH303

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

GDH303

ﾌﾞﾗｯｸ

 1
73219-33020

GDH303

ｸﾞﾚｰ

 1
73219-33030

GDH303

ﾍﾞｰｼﾞｭ

 1
73233E - COVER, REAR OUTER SEAT BELT
73233-60020C1

GDH303..G

BLACK,TRIM2#

 2
73233E - COVER, REAR OUTER SEAT BELT
73233-60020C1

GDH303..G

BLACK,TRIM2#

 2
73380D - BELT ASSY, REAR SEAT, INNER
73380-26600C1

GDH303..G

BLACK,TRIM2#

 1
73390A - BELT ASSY, REAR SEAT, INNER
73390-26330C0

GDH303..G

BLACK,TRIM2#

 1
73560A - BELT ASSY, NO.3 SEAT, OUTER RH
73560-26560A0

GDH303..G

BLACK/FROMAGE,TRIM2#

 1
73570A - BELT ASSY, NO.3 SEAT, OUTER LH
73570-26500A0

GDH303..G

BLACK/FROMAGE,TRIM2#

 1
Common parts
90105-10523
90105-11053
90109-11059
90109-11063
90901-19040
91553-80612
