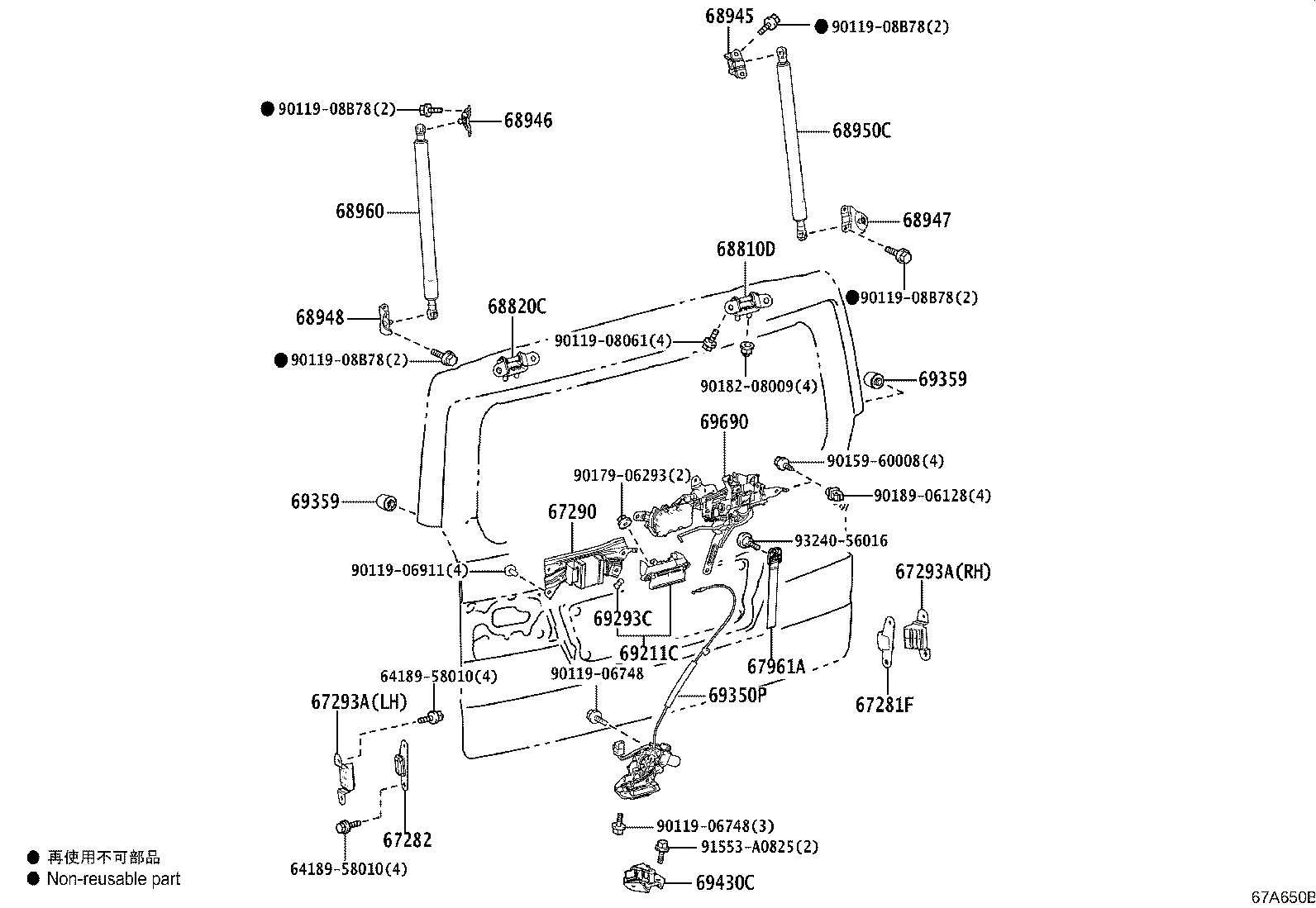

Toyota Granace GDH303 BACK DOOR LOCK & HINGE

Part #	Description	Period	Qty
67281F - STOPPER, BACK DOOR, LOWER
67281-28010	GDH303	12/2019 - 12/2999	1
67282 - STOPPER, BACK DOOR, NO.1
67282-28010	GDH303	12/2019 - 12/2999	1
67290 - DAMPER ASSY, BACK DOOR
67290-26020	GDH303	12/2019 - 12/2999	1
67293A - CUSHION, BACK DOOR STOPPER
67293-58020	GDH303	12/2019 - 12/2999	2
67293A - CUSHION, BACK DOOR STOPPER
67293-58020	GDH303	12/2019 - 12/2999	2
67961A - STRAP, BACK DOOR PULL
67961-26060C1	GDH303 BLACK,TRIM2#	12/2019 - 12/2999	1
68810D - HINGE ASSY, BACK DOOR, RH
68810-26011	GDH303	12/2019 - 12/2999	1
68820C - HINGE ASSY, BACK DOOR, LH
68820-26011	GDH303	12/2019 - 12/2999	1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-26110	GDH303	12/2019 - 12/2999	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-26110	GDH303	12/2019 - 12/2999	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-26070	GDH303	12/2019 - 12/2999	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-26070	GDH303	12/2019 - 12/2999	1
68950C - STAY ASSY, BACK DOOR, RH
68950-26140	GDH303 寒冷地仕様(−20℃地域)	12/2019 - 12/2999	1
68950-26420	GDH303	12/2019 - 12/2999	1
68960 - STAY ASSY, BACK DOOR, LH
68950-26140	GDH303 寒冷地仕様(−20℃地域)	12/2019 - 12/2999	1
68950-26420	GDH303	12/2019 - 12/2999	1
69211C - HANDLE, BACK DOOR OUTSIDE
69023-26040	GDH303	12/2019 - 12/2999	1
69293C - SNAP, BACK DOOR HANDLE
69293-12060	GDH303	07/2020 - 12/2999	1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-26190	GDH303	12/2019 - 12/2999	1
69359 - CUSHION, BACK DOOR LOCK
90541-09136	GDH303	12/2019 - 12/2999	2
69359 - CUSHION, BACK DOOR LOCK
90541-09136	GDH303	12/2019 - 12/2999	2
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-95J00	GDH303	12/2019 - 12/2999	1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-26270	GDH303	12/2019 - 12/2999	1
Common parts
64189-58010
90119-06748
90119-06911
90119-08061
90119-08B78
90159-60008
90179-06293
90182-08009
90189-06128
91553-A0825
93240-56016

GDH303W-RDTGY (2019)

(1912- )
