GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

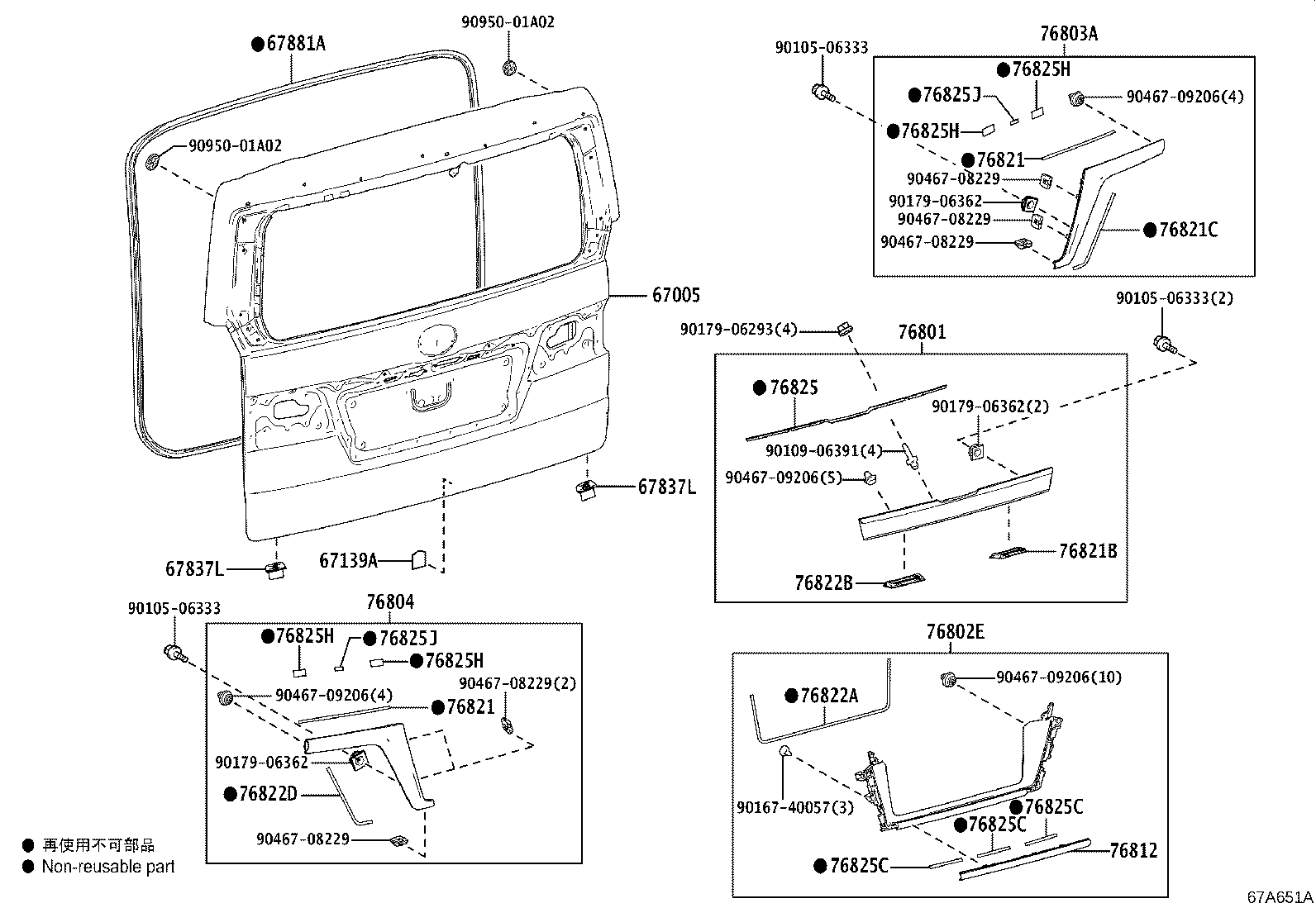

ILLUST NO. 1 OF 3(1912- )
Click highlighted areas on diagram
ﾄﾞｱ ﾊﾟﾈﾙ (1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-26V00 |
GDH303 |
1 | ||
| 67139A - LINING, DOOR OUTSIDE PANEL REINFORCEMENT | ||||
| 67139-26070 |
GDH303 |
1 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48050 |
GDH303 |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-48050 |
GDH303 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-26170 |
GDH303 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-26410B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 76801-26410B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 76801-26410A0 |
GDH303 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 76801-26410C0 |
GDH303 BLACK,202 |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-26030B1 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 76802-26030B0 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 76802-26030C0 |
GDH303 BLACK,202 |
1 | ||
| 76802-26030A0 |
GDH303 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 76803A - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER RH | ||||
| 76803-26010 |
GDH303 |
1 | ||
| 76804 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE UPPER LH | ||||
| 76804-26010 |
GDH303 |
1 | ||
| 76812 - GARNISH, BACK DOOR, OUTSIDE LOWER | ||||
| 76812-26040 |
GDH303 |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76822-26060 |
GDH303 左側 |
1 | ||
| 76821-26030 |
GDH303 右側 |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76822-26060 |
GDH303 左側 |
1 | ||
| 76821-26030 |
GDH303 右側 |
1 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-26010 |
GDH303 |
1 | ||
| 76821C - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-26040 |
GDH303 |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76822-26040 |
GDH303 |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-26020 |
GDH303 |
1 | ||
| 76822D - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-26050 |
GDH303 |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26190 |
GDH303 |
1 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH303 |
3 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH303 |
3 | ||
| 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-26170 |
GDH303 |
3 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH303 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH303 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH303 |
4 | ||
| 76825H - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1 | ||||
| 76825-26200 |
GDH303 |
4 | ||
| 76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76825-26210 |
GDH303 |
2 | ||
| 76825J - PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 | ||||
| 76825-26210 |
GDH303 |
2 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90109-06391 | ||||
| 90167-40057 | ||||
| 90179-06293 | ||||
| 90179-06362 | ||||
| 90467-08229 | ||||
| 90467-09206 | ||||
| 90950-01A02 | ||||

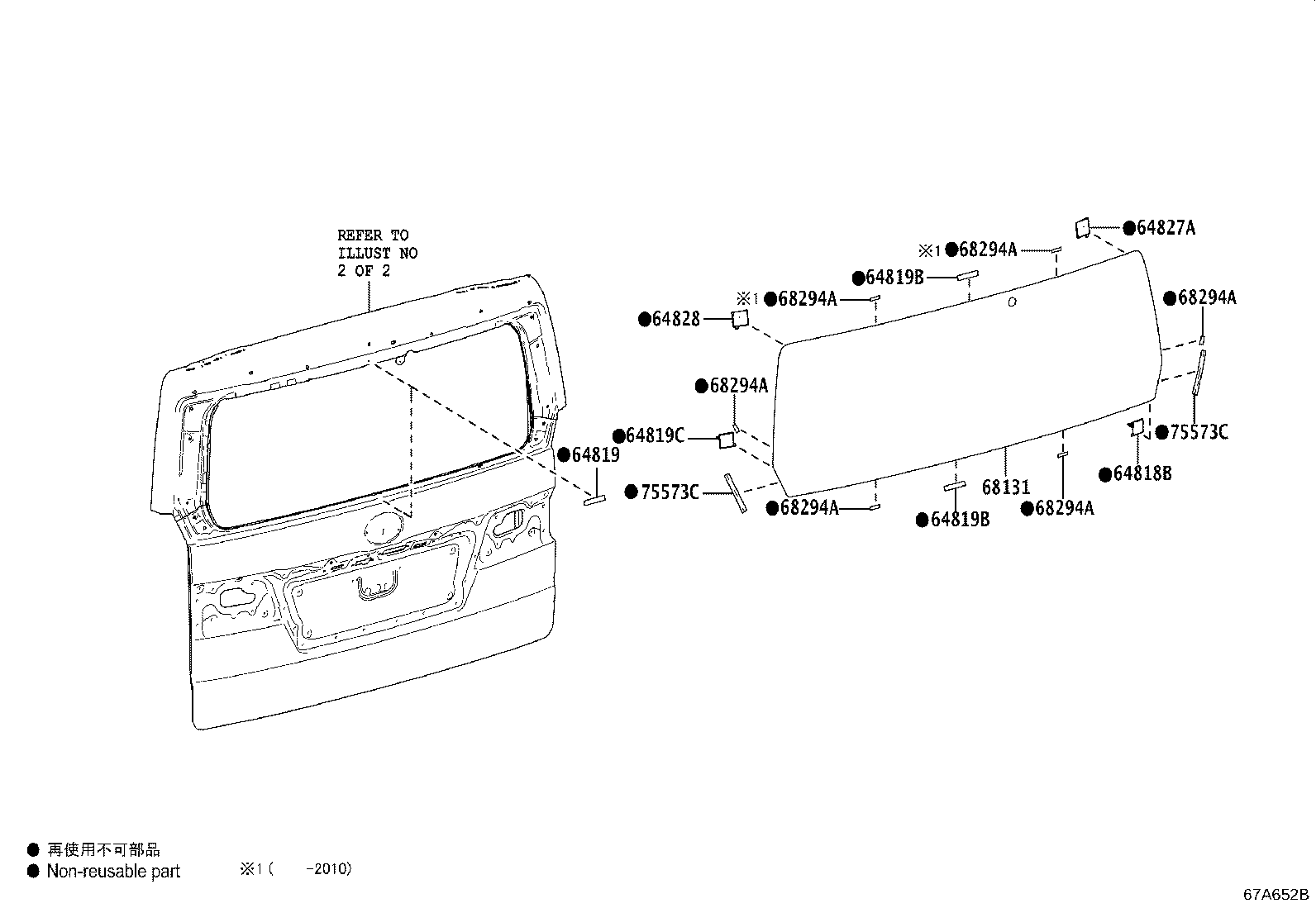

ILLUST NO. 2 OF 3(1912- )
Click highlighted areas on diagram
ﾄﾞｱ ﾊﾟﾈﾙ (2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-26060 |
GDH303 右側 |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26060 |
GDH303 |
2 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26010 |
GDH303 |
2 | ||
| 64819B - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-26010 |
GDH303 |
2 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-26070 |
GDH303 |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-26050 |
GDH303 |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-26040 |
GDH303 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-26A60 |
GDH303 |
1 | ||
| 68131-26A50 |
GDH303 寒冷地仕様(−20℃地域) |
1 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 68294A - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
GDH303 |
4 | ||
| 68294-26030 |
GDH303 |
6 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-26080 |
GDH303 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-26080 |
GDH303 |
2 | ||

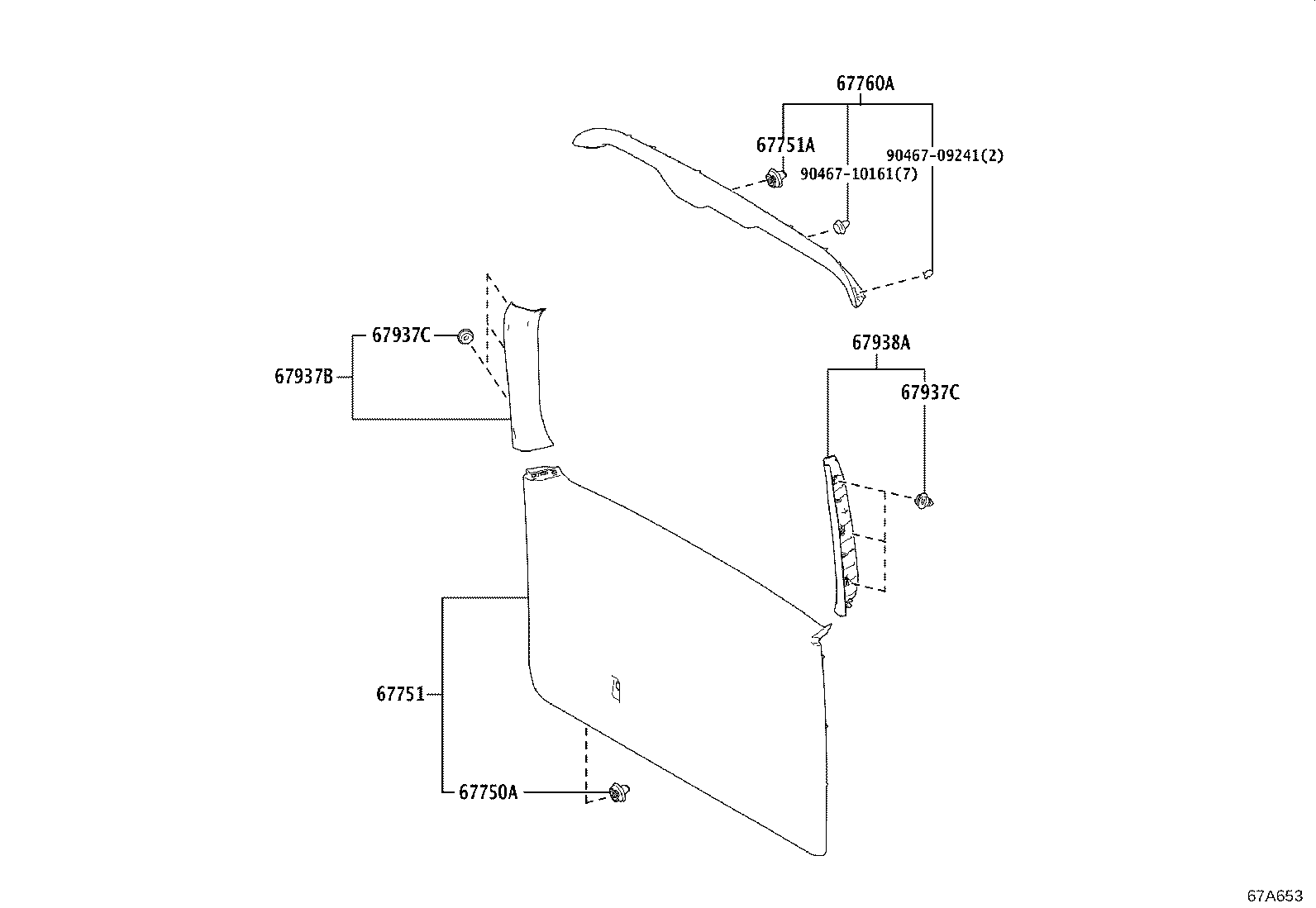

ILLUST NO. 3 OF 3(1912- )
Click highlighted areas on diagram
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
GDH303 |
21 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67750-26500C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 63395-12150 |
GDH303 |
1 | ||
| 67760A - BOARD ASSY, BACK DOOR TRIM, UPPER | ||||
| 67760-26160A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-26050A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
GDH303 |
6 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
GDH303 |
6 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-26010A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| Common parts | ||||
| 90467-09241 | ||||
| 90467-10161 | ||||
