GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

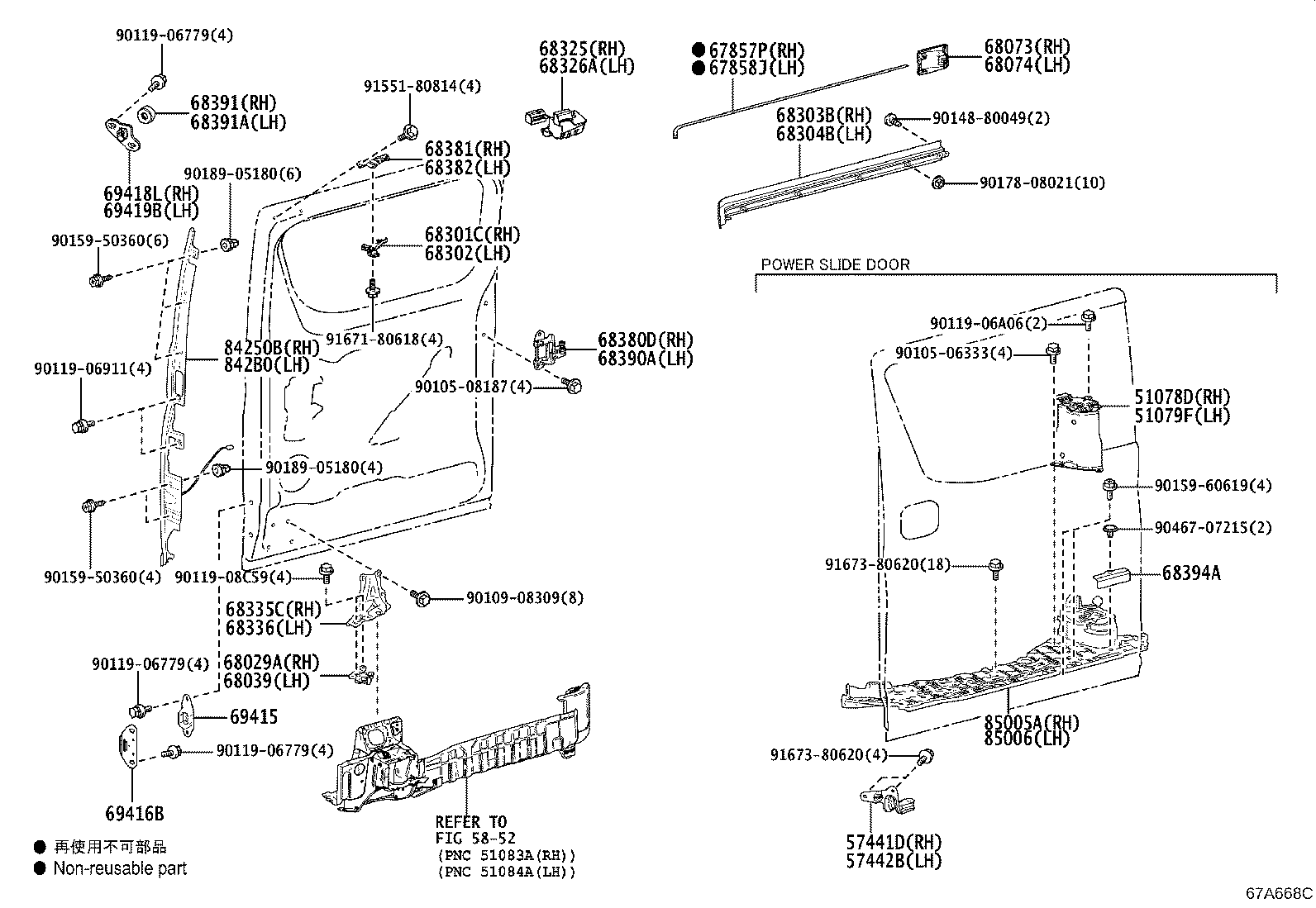

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51078D - BRACKET SUB-ASSY, SIDE STEP, RH | ||||
| 51078-26020 |
GDH303 |
1 | ||
| 51079F - BRACKET SUB-ASSY, SIDE STEP, LH | ||||
| 51079-26010 |
GDH303 |
1 | ||
| 57441D - SUPPORT, SIDE STEP, FRONT RH | ||||
| 57441-26060 |
GDH303 |
1 | ||
| 57442B - SUPPORT, SIDE STEP, FRONT LH | ||||
| 57442-26060 |
GDH303 |
1 | ||
| 67857P - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-26070 |
GDH303 |
1 | ||
| 67858J - PROTECTOR, SLIDE DOOR RAIL, LH | ||||
| 67858-26020 |
GDH303 |
1 | ||
| 68029A - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH | ||||
| 68029-26130 |
GDH303 |
1 | ||
| 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68039-26110 |
GDH303 |
1 | ||
| 68073 - MOULDING SUB-ASSY, SLIDE RAIL END, RH | ||||
| 68073-26020B1 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 68073-26020C0 |
GDH303 BLACK,202 |
1 | ||
| 68073-26020B2 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 68073-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 68074 - MOULDING SUB-ASSY, SLIDE RAIL END, LH | ||||
| 68074-26020B2 |
GDH303 GRAY ME.,1G3 |
1 | ||
| 68074-26020A1 |
GDH303 WHITE PEARL CS.,070 ,2QD |
1 | ||
| 68074-26020C0 |
GDH303 BLACK,202 |
1 | ||
| 68074-26020B1 |
GDH303 SILVER ME.,1F7 |
1 | ||
| 68301C - ROLLER SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68301-26040 |
GDH303 |
1 | ||
| 68302 - ROLLER SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68302-26020 |
GDH303 |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-26130 |
GDH303 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-26150 |
GDH303 |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-26040 |
GDH303 |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-26040 |
GDH303 |
1 | ||
| 68335C - ARM, SLIDE DOOR LOWER ROLLER, RH | ||||
| 68335-26061 |
GDH303 |
1 | ||
| 68336 - ARM, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68336-26071 |
GDH303 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-26050 |
GDH303 |
1 | ||
| 68381 - ARM, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68381-26020 |
GDH303 |
1 | ||
| 68382 - ARM, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68382-26020 |
GDH303 |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-26060 |
GDH303 |
1 | ||
| 68391 - CUSHION, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68391-28040 |
GDH303 |
1 | ||
| 68391A - CUSHION, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68391-28040 |
GDH303 |
1 | ||
| 68394A - PLATE, SLIDE DOOR LOWER RAIL, RH | ||||
| 68394-58010 |
GDH303 |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-26020 |
GDH303 |
1 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69416-26020 |
GDH303 |
1 | ||
| 69418L - STOP, SLIDE DOOR OPEN, RH | ||||
| 69418-26021 |
GDH303 |
1 | ||
| 69418-26020 |
GDH303 |
1 | ||
| 69419B - STOP, SLIDE DOOR OPEN, LH | ||||
| 69419-26021 |
GDH303 |
1 | ||
| 69419-26020 |
GDH303 |
1 | ||
| 84250B - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 842A0-26010 |
GDH303 |
1 | ||
| 842B0 - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 842B0-26010 |
GDH303 |
1 | ||
| 85005A - MOTOR UNIT, SLIDE DOOR, RH | ||||
| 85005-26040 |
GDH303 |
1 | ||
| 85005-26041 |
GDH303 |
1 | ||
| 85006 - MOTOR UNIT, SLIDE DOOR, LH | ||||
| 85006-26061 |
GDH303 |
1 | ||
| 85006-26060 |
GDH303 |
1 | ||
| Common parts | ||||
| 90105-06333 | ||||
| 90105-08187 | ||||
| 90109-08309 | ||||
| 90119-06779 | ||||
| 90119-06911 | ||||
| 90119-06A06 | ||||
| 90119-08C59 | ||||
| 90148-80049 | ||||
| 90159-50360 | ||||
| 90159-60619 | ||||
| 90178-08021 | ||||
| 90189-05180 | ||||
| 90467-07215 | ||||
| 91551-80814 | ||||
| 91671-80618 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 5852 | ||||
