GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

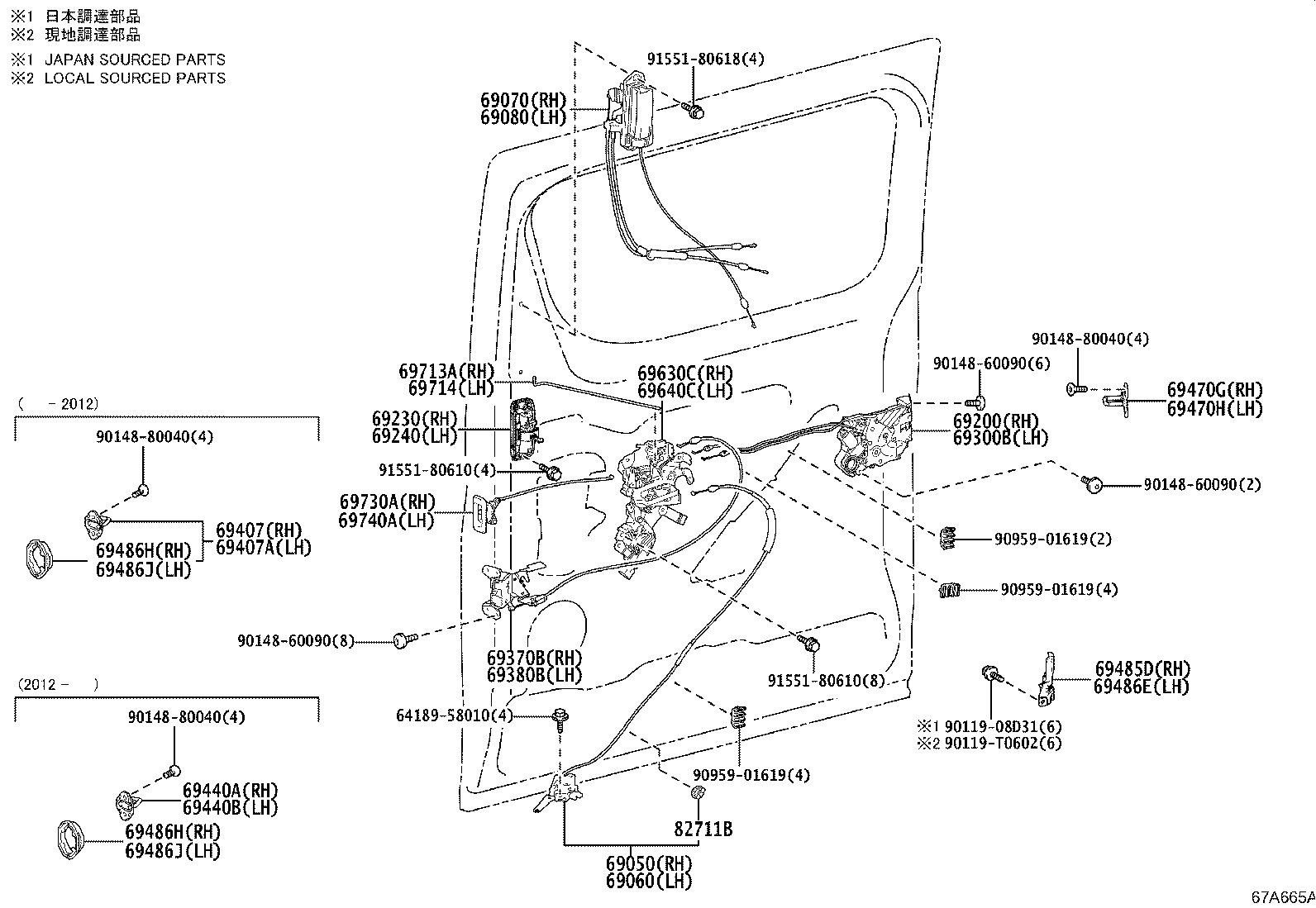

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69305-26010 |
GDH303 |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69306-26010 |
GDH303 |
1 | ||
| 69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH | ||||
| 69070-26060C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH | ||||
| 69080-26060C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69200 - LOCK ASSY, POWER SLIDE DOOR, RH | ||||
| 69200-26030 |
GDH303 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-26140 |
GDH303 ﾒｯｷ |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-26140 |
GDH303 *CR |
1 | ||
| 69300B - LOCK ASSY, POWER SLIDE DOOR, LH | ||||
| 69300-26150 |
GDH303 |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-26020 |
GDH303 |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-26020 |
GDH303 |
1 | ||
| 69407 - STRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT RH | ||||
| 69407-26010 |
GDH303 |
1 | ||
| 69407A - STRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT LH | ||||
| 69407-26010 |
GDH303 |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-08050 |
GDH303 |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-08050 |
GDH303 |
1 | ||
| 69470G - PLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, RH | ||||
| 69470-58010 |
GDH303 |
1 | ||
| 69470H - PLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, LH | ||||
| 69470-58010 |
GDH303 |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-26030 |
GDH303 |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-26030 |
GDH303 |
1 | ||
| 69486H - COVER, SLIDE DOOR FRONT LOCK STRIKER, RH | ||||
| 69486-15020 |
GDH303 |
1 | ||
| 69486H - COVER, SLIDE DOOR FRONT LOCK STRIKER, RH | ||||
| 69486-15020 |
GDH303 |
1 | ||
| 69486J - COVER, SLIDE DOOR FRONT LOCK STRIKER, LH | ||||
| 69486-15020 |
GDH303 |
1 | ||
| 69486J - COVER, SLIDE DOOR FRONT LOCK STRIKER, LH | ||||
| 69486-15020 |
GDH303 |
1 | ||
| 69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH | ||||
| 69630-26290 |
GDH303 |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-26460 |
GDH303 |
1 | ||
| 69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-26030 |
GDH303 |
1 | ||
| 69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-26030 |
GDH303 |
1 | ||
| 69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH | ||||
| 69730-26030 |
GDH303 |
1 | ||
| 69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH | ||||
| 69740-26030 |
GDH303 |
1 | ||
| 82711B - CLAMP, WIRING HARNESS | ||||
| 82711-52070 |
GDH303 |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90119-08D31 | ||||
| 90119-T0602 | ||||
| 90148-60090 | ||||
| 90148-80040 | ||||
| 90959-01619 | ||||
| 91551-80610 | ||||
| 91551-80618 | ||||
