GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

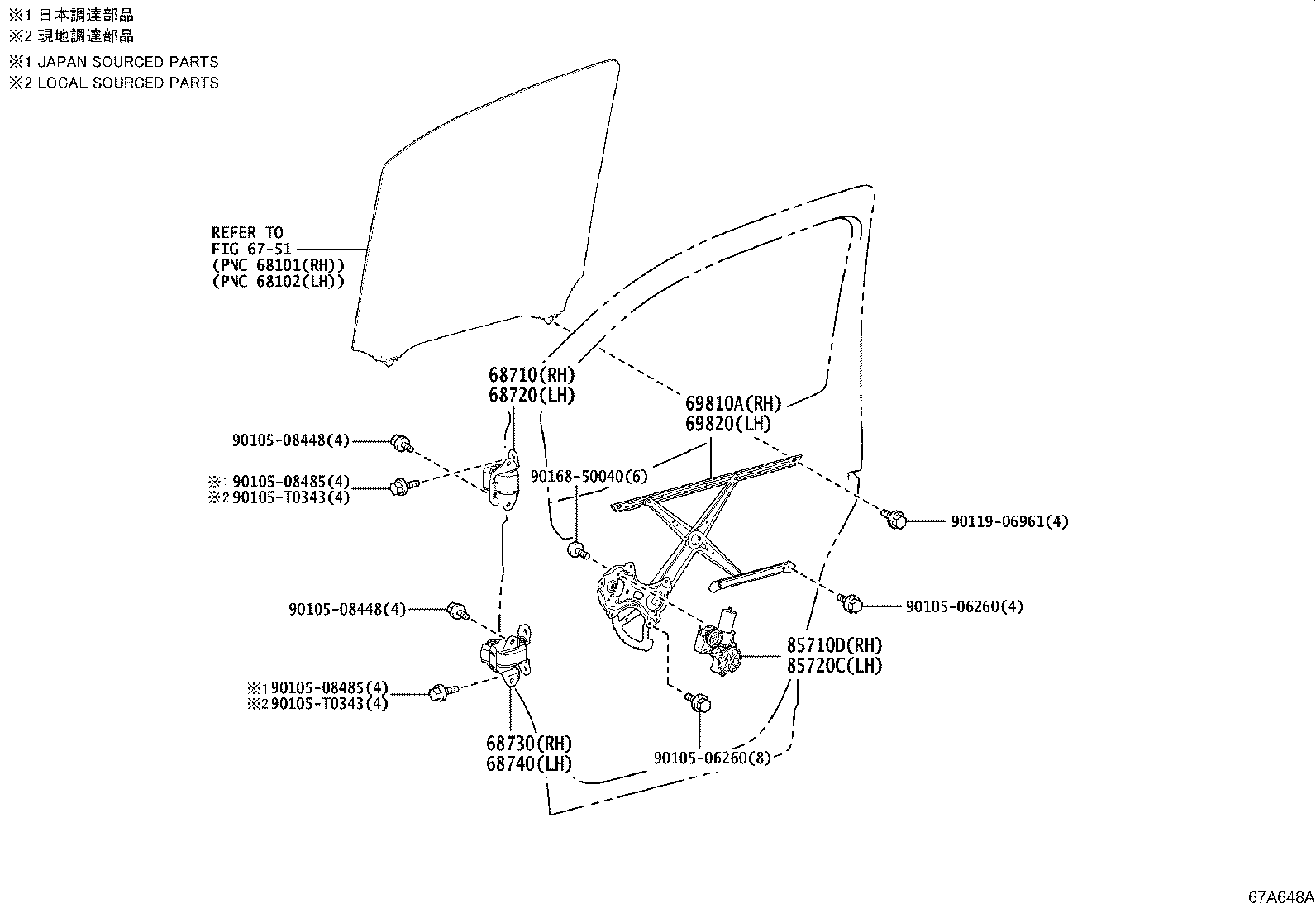

Click highlighted areas on diagram

diagram 6751 68710 68720 68730 68740 69810A 69820 85710D 85720C 9010506260 9010506260 9010508448 9010508448 9010508485 9010508485 90105T0343 90105T0343 9011906961 9016850040
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-26030

GDH303

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-26020

GDH303

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-26020

GDH303

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-26010

GDH303

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69801-26060

GDH303

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69802-26060

GDH303

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-26060

GDH303

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-26040

GDH303

 1
Common parts
90105-06260
90105-08448
90105-08485
90105-T0343
90119-06961
90168-50040
Linked diagrams
6751
