GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

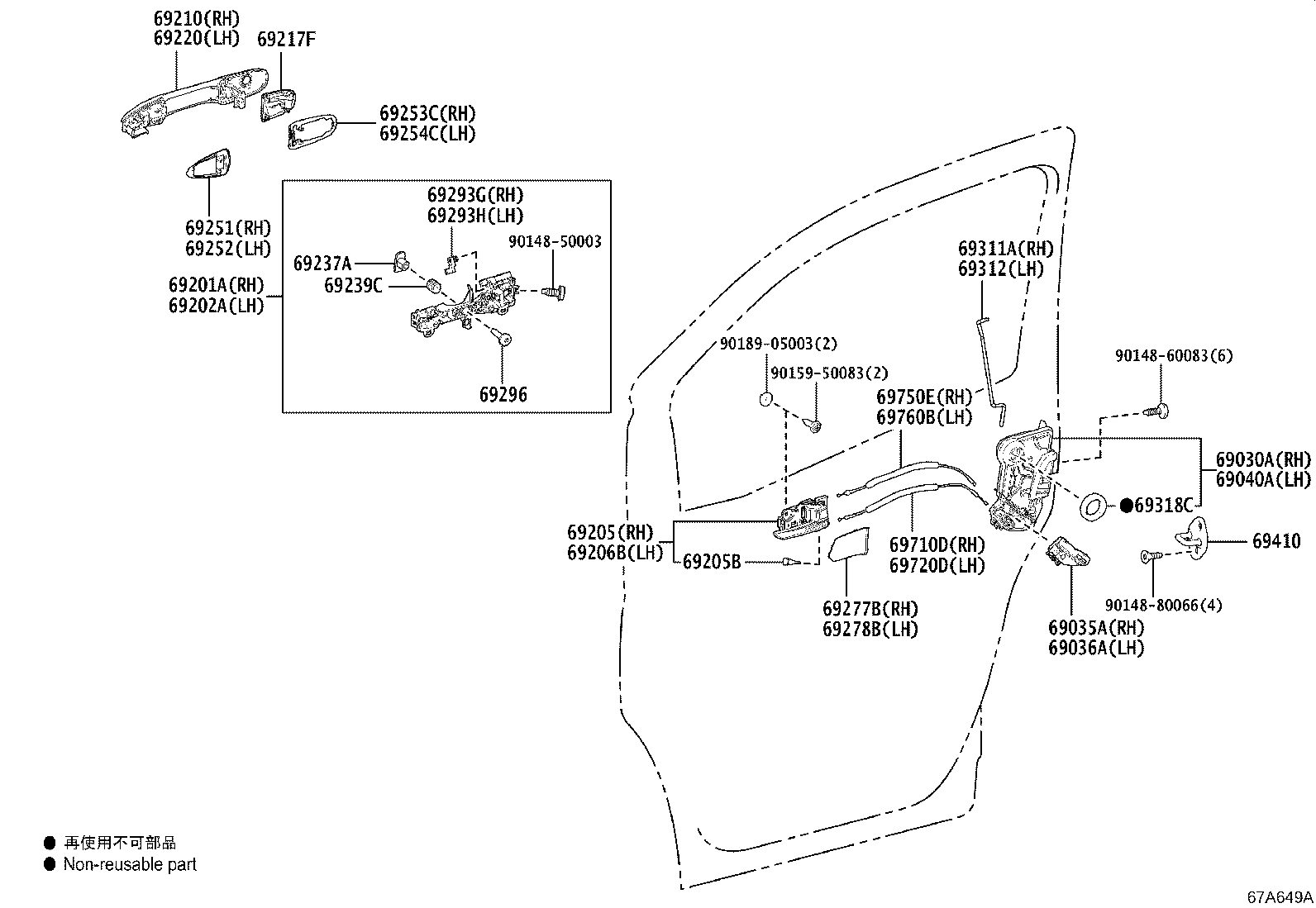

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-30A70 |
GDH303 |
1 | ||
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
GDH303 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
GDH303 |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-30A80 |
GDH303 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-47070 |
GDH303 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-47040 |
GDH303 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-33140C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GDH303 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-33150C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-33101 |
GDH303 ﾒｯｷ |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-47020 |
GDH303 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-33141 |
GDH303 ﾒｯｷ |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-62010 |
GDH303 |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-47010 |
GDH303 |
2 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69241-47020 |
GDH303 |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69241-47020 |
GDH303 |
1 | ||
| 69253C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR RH | ||||
| 69242-47030 |
GDH303 |
1 | ||
| 69254C - PAD, FRONT DOOR OUTSIDE HANDLE, REAR LH | ||||
| 69242-47030 |
GDH303 |
1 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-26010C1 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-26010C1 |
GDH303 BLACK,TRIM2# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GDH303 |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GDH303 |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
GDH303 |
2 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-26020 |
GDH303 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-26020 |
GDH303 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GDH303 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
GDH303 |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-26020 |
GDH303 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-26020 |
GDH303 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-26060 |
GDH303 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-26060 |
GDH303 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
