GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

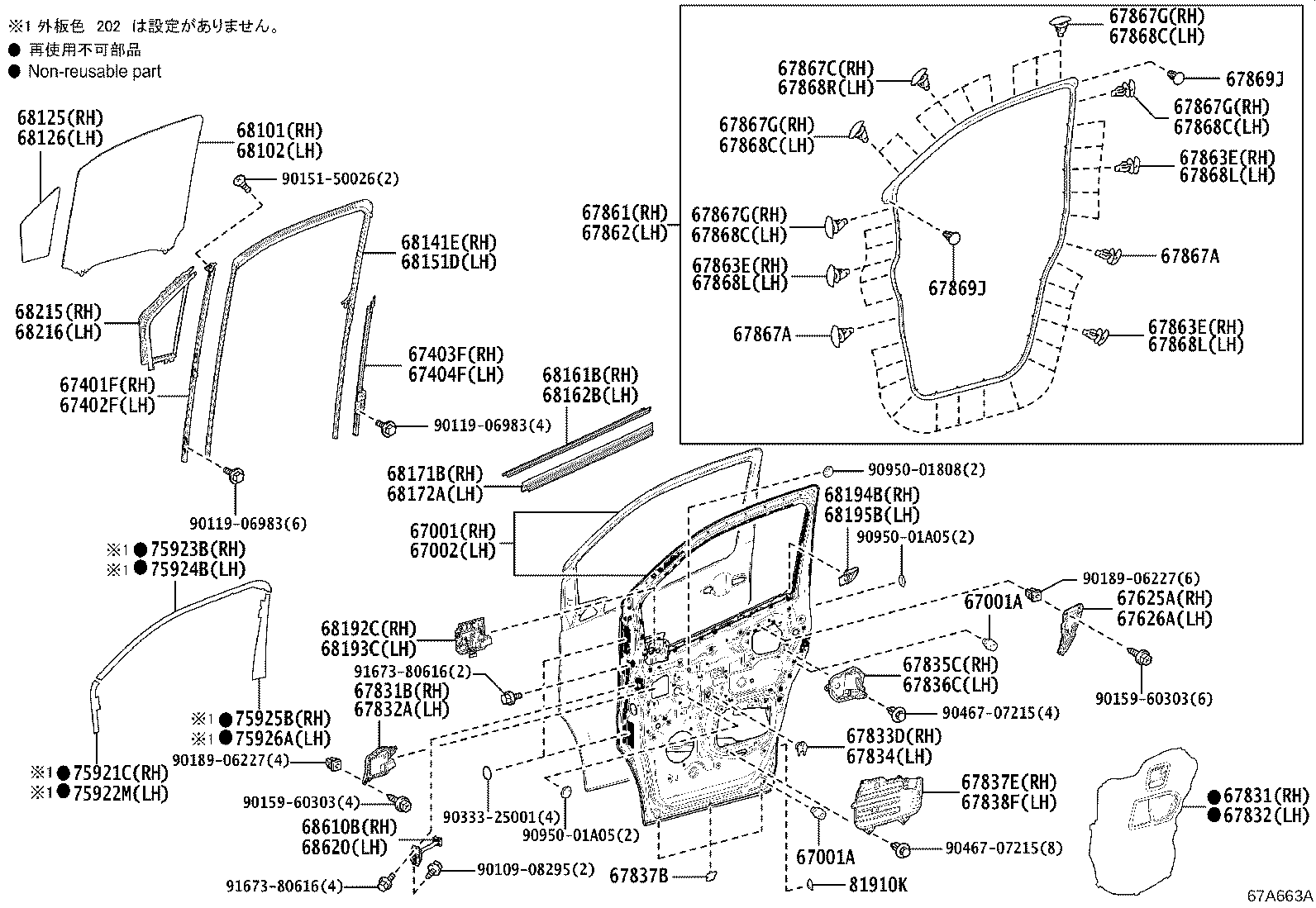

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-26340 |
GDH303 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
GDH303 |
4 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
GDH303 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-26320 |
GDH303 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-26020 |
GDH303 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-26020 |
GDH303 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-26070 |
GDH303 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-26070 |
GDH303 |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-26050 |
GDH303 |
1 | ||
| 67626A - BRACKET, DOOR TRIM, NO.2 | ||||
| 67626-26030 |
GDH303 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-26110 |
GDH303 |
1 | ||
| 67831B - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67851-26100 |
GDH303 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-26050 |
GDH303 |
1 | ||
| 67832A - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67852-26070 |
GDH303 |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-47010 |
GDH303 |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67833-47010 |
GDH303 |
1 | ||
| 67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH | ||||
| 67835-26010 |
GDH303 |
1 | ||
| 67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH | ||||
| 67836-26040 |
GDH303 |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-48050 |
GDH303 |
6 | ||
| 67837E - COVER, FRONT DOOR SERVICE HOLE, NO.4 RH | ||||
| 67837-26060 |
GDH303 |
1 | ||
| 67838F - COVER, FRONT DOOR SERVICE HOLE, NO.4 LH | ||||
| 67838-26020 |
GDH303 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-26070 |
GDH303 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-26070 |
GDH303 |
1 | ||
| 67863E - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67863E - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67863E - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
GDH303 |
4 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
GDH303 |
4 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GDH303 |
4 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GDH303 |
7 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GDH303 |
7 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GDH303 |
7 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GDH303 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
GDH303 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
GDH303 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
GDH303 |
7 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
GDH303 |
7 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GDH303 |
24 | ||
| 67868R - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52040 |
GDH303 |
4 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
GDH303 |
4 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
GDH303 |
4 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-26210 |
GDH303 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-26210 |
GDH303 |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-26030 |
GDH303 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-26030 |
GDH303 |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-26050 |
GDH303 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-26030 |
GDH303 |
1 | ||
| 68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-26050 |
GDH303 |
1 | ||
| 68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-26050 |
GDH303 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-26060 |
GDH303 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-26060 |
GDH303 |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-26010 |
GDH303 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-26010 |
GDH303 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-26010 |
GDH303 |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-26010 |
GDH303 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-26020 |
GDH303 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-26020 |
GDH303 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-26060 |
GDH303 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-26060 |
GDH303 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 75926A - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-26010 |
GDH303 個数0or1個､ｲﾗｽﾄ参照 |
1 | ||
| 81910K - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
GDH303 |
2 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90333-25001 | ||||
| 90467-07215 | ||||
| 90950-01808 | ||||
| 90950-01A05 | ||||
| 91673-80616 | ||||

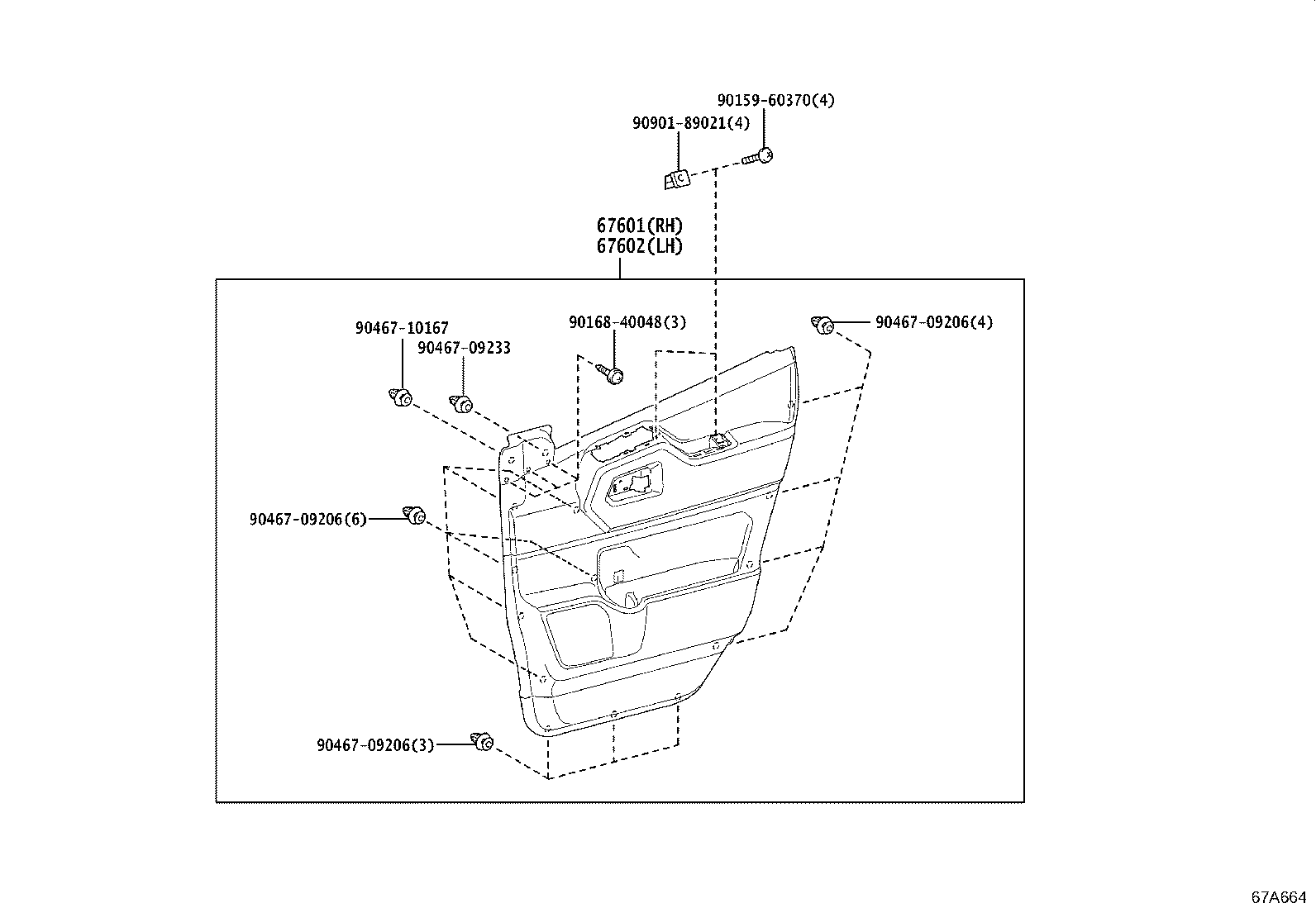

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-26820C0 |
GDH303 BLACK,TRIM2#,ﾀｲﾌﾟ C |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-26800C0 |
GDH303 BLACK,TRIM2#,ﾀｲﾌﾟ C |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90168-40048 | ||||
| 90467-09206 | ||||
| 90467-09233 | ||||
| 90467-10167 | ||||
| 90901-89021 | ||||
