GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

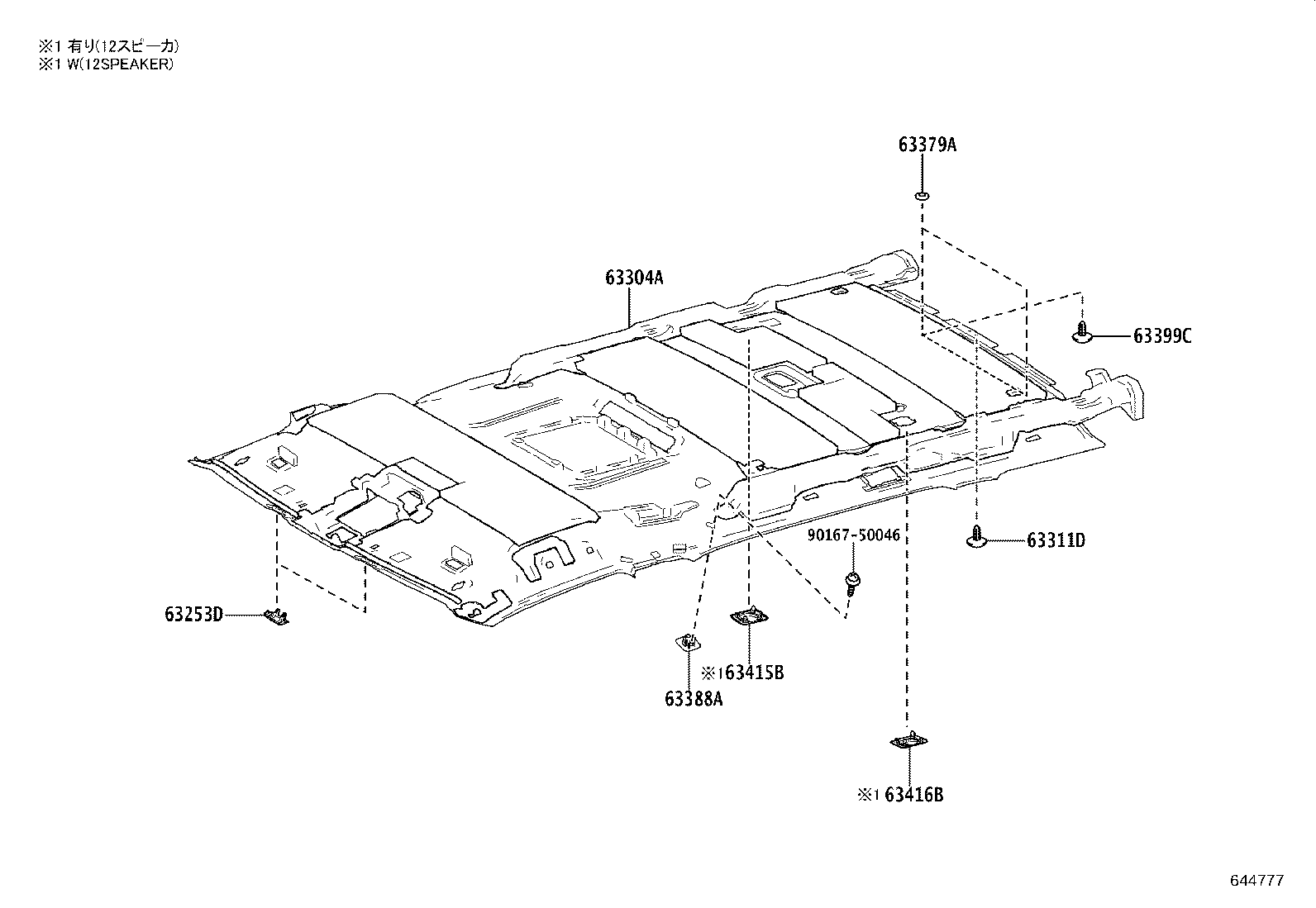

Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63253D - COVER, ROOF ANTENNA BRACKET | ||||
| 63253-26080A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 63304A - TRIM SUB-ASSY, ROOF HEADLINING, FRONT | ||||
| 63304-26660A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 63311D - CLIP(HEADLINING, ROOF, FRONT) | ||||
| 63399-26050A1 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 63379A - WASHER, ROOF HEADLINING SETTING | ||||
| 63379-26010 |
GDH303 |
2 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-58040 |
GDH303..G |
1 | ||
| 63399C - CLIP, ROOF HEADLINING | ||||
| 63399-26050A1 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 63415B - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-26120A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63415-26120A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| Common parts | ||||
| 90167-50046 | ||||
(1912- )

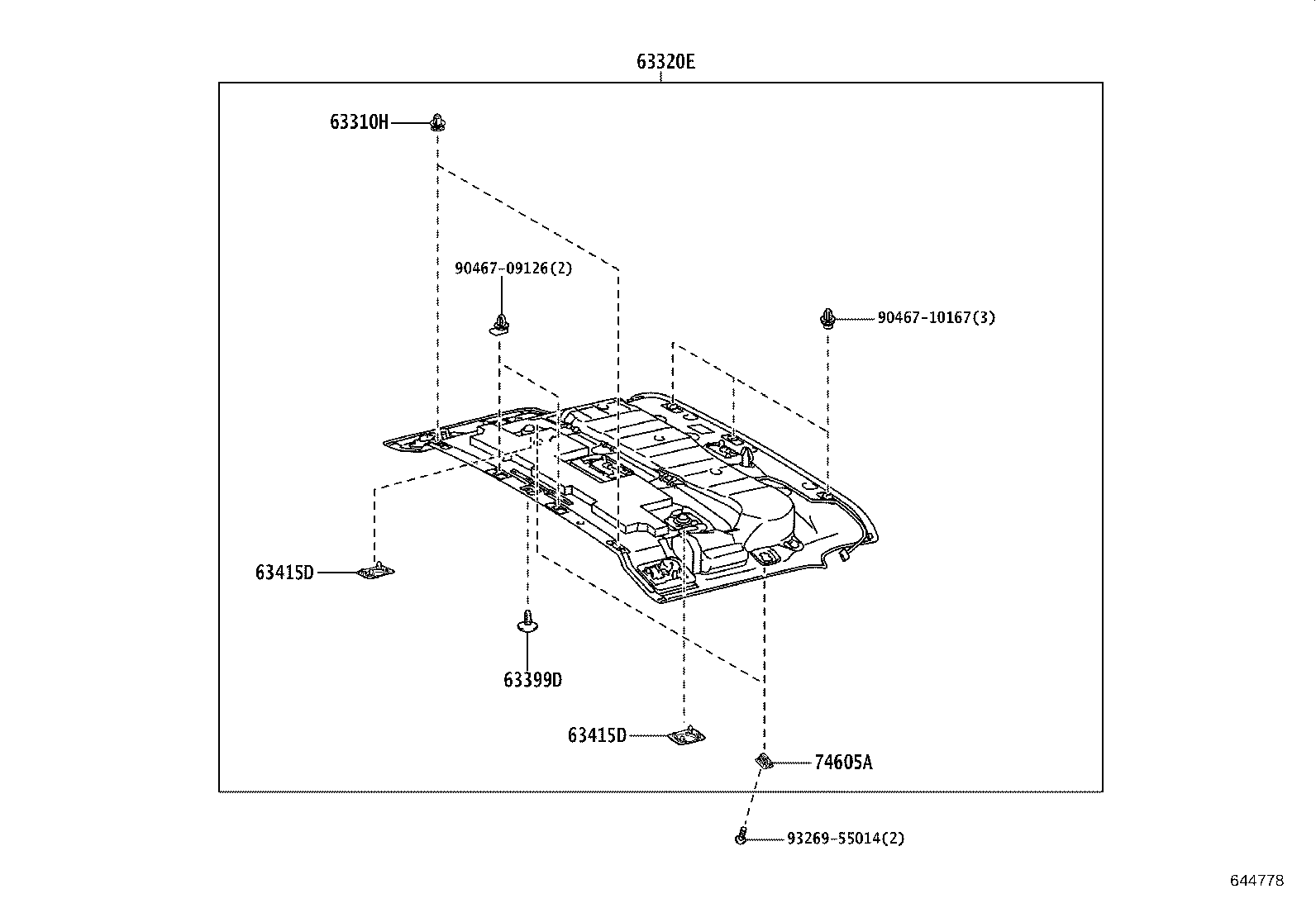

Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 62217-12050 |
GDH303 |
2 | ||
| 63320E - HEADLINING ASSY, ROOF, REAR | ||||
| 63320-26640A1 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-26050A1 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 63415D - GRILLE, ROOF SPEAKER, CENTER | ||||
| 63415-26120A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 63415D - GRILLE, ROOF SPEAKER, CENTER | ||||
| 63415-26120A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| 74605A - HOOK SUB-ASSY, COAT | ||||
| 74631-26020A0 |
GDH303..G FROMAGE,TRIM2# |
2 | ||
| Common parts | ||||
| 90467-09126 | ||||
| 90467-10167 | ||||
| 93269-55014 | ||||
