GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

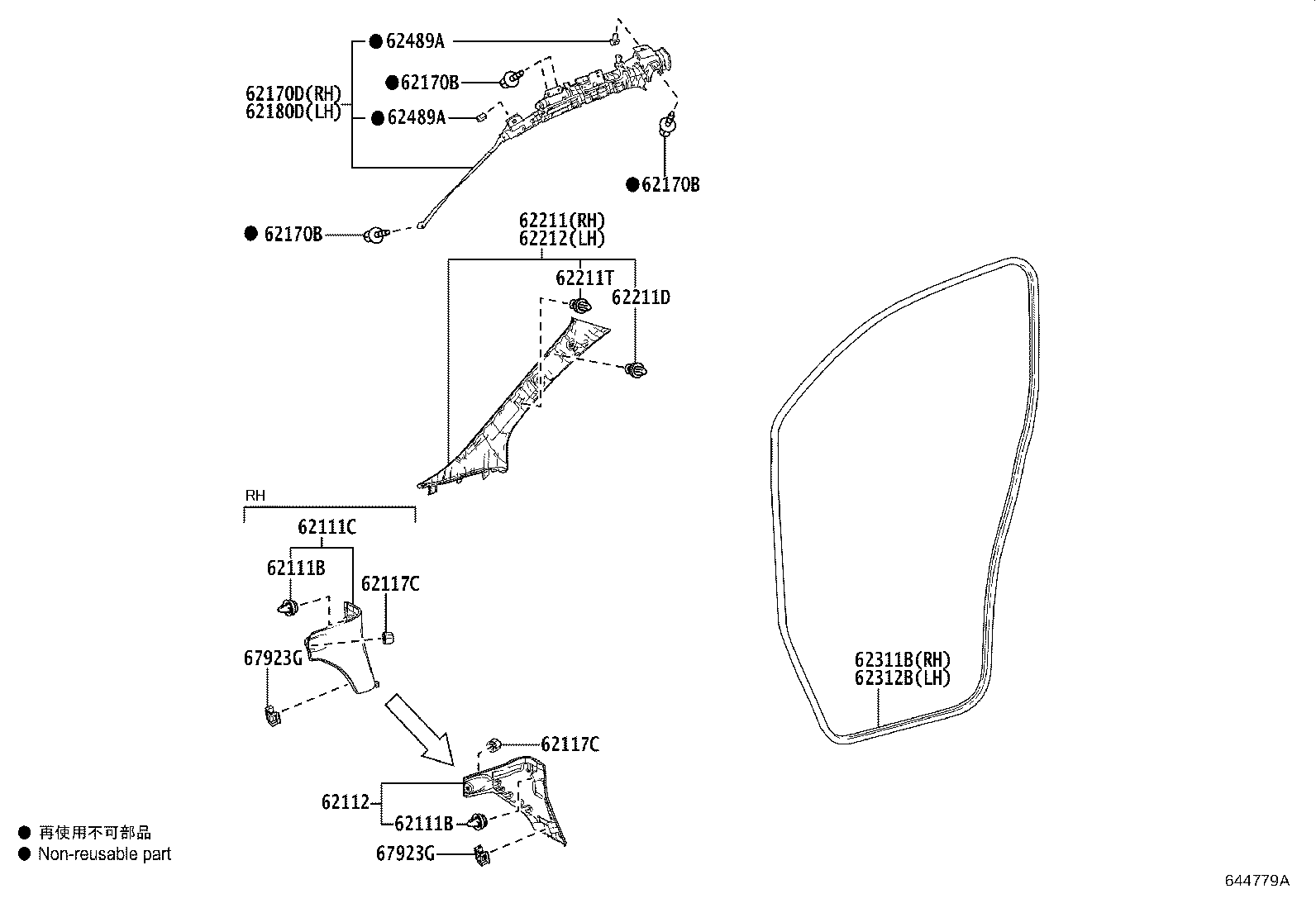

ILLUST NO. 1 OF 4(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-09245 |
GDH303 |
2 | ||
| 90467-09240 |
GDH303 |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-09245 |
GDH303 |
2 | ||
| 90467-09240 |
GDH303 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-26030C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-26030C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GDH303 |
2 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
GDH303 |
2 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
8 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
8 | ||
| 62170D - AIR BAG ASSY, CURTAIN SHIELD, FRONT RH | ||||
| 62170-26010 |
GDH303 |
1 | ||
| 62180D - AIR BAG ASSY, CURTAIN SHIELD, FRONT LH | ||||
| 62180-26010 |
GDH303 |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-26090A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90467-10161 |
GDH303 |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10167 |
GDH303 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-26090A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-26100 |
GDH303 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-26100 |
GDH303 |
1 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
GDH303 |
4 | ||
| 62489A - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
GDH303 |
4 | ||
| 67923G - CLAMP, COWL SIDE TRIM BOARD | ||||
| 67923-26040 |
GDH303 |
2 | ||
| 67923G - CLAMP, COWL SIDE TRIM BOARD | ||||
| 67923-26040 |
GDH303 |
2 | ||

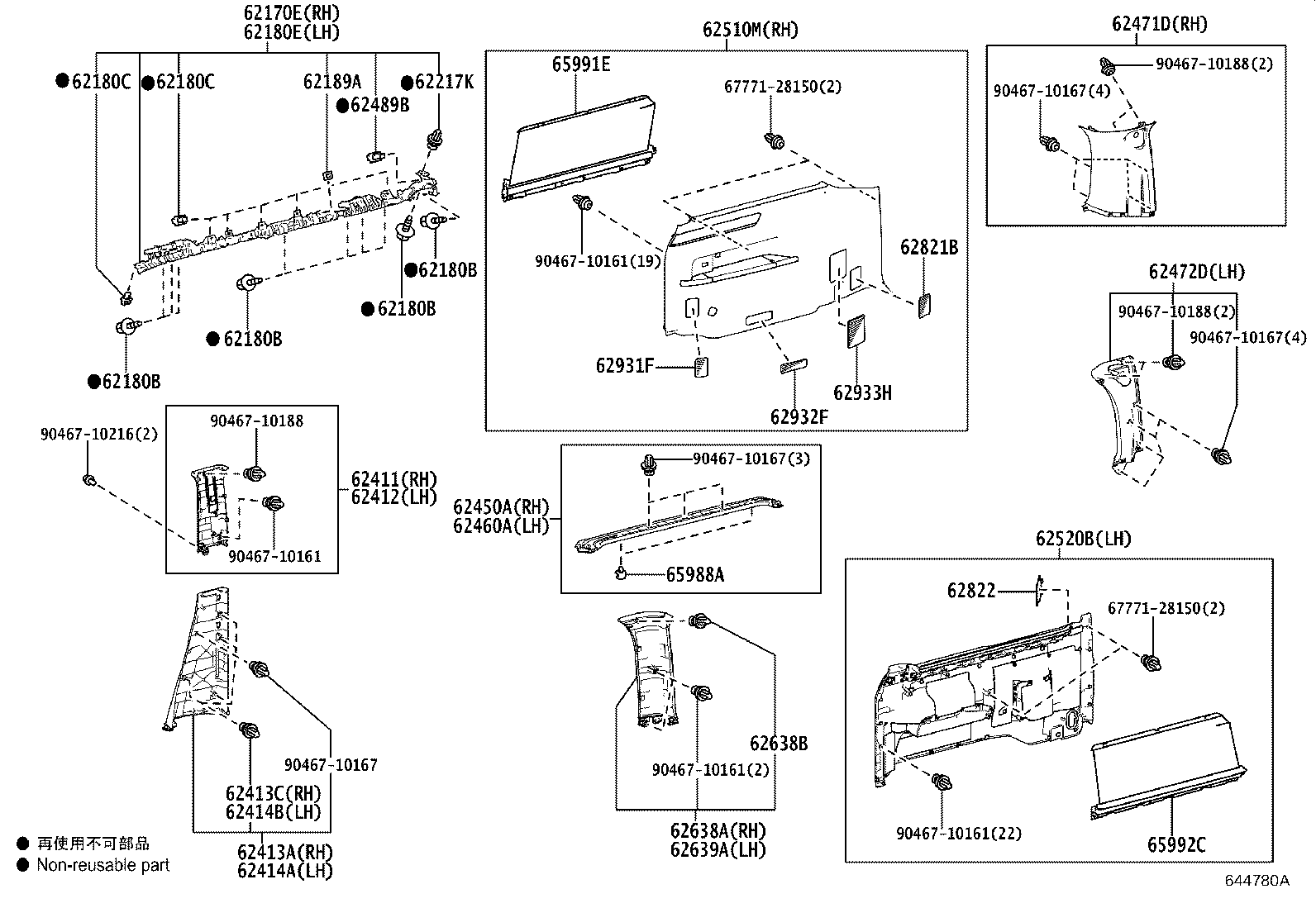

ILLUST NO. 2 OF 4(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62170E - AIR BAG ASSY, CURTAIN SHIELD, REAR RH | ||||
| 62170-26040 |
GDH303 |
1 | ||
| 62180B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
18 | ||
| 62180B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
18 | ||
| 62180B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
18 | ||
| 62180B - BOLT, W/WASHER | ||||
| 90119-06869 |
GDH303 |
18 | ||
| 62180C - CLIP, CURTAIN SHIELD AIR BAG | ||||
| 90467-18017 |
GDH303 |
12 | ||
| 62180C - CLIP, CURTAIN SHIELD AIR BAG | ||||
| 90467-18017 |
GDH303 |
12 | ||
| 62180E - AIR BAG ASSY, CURTAIN SHIELD, REAR LH | ||||
| 62180-26040 |
GDH303 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
GDH303 |
1 | ||
| 62217K - CLIP, CURTAIN SHIELD AIR BAG | ||||
| 62217-13010 |
GDH303 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-26160A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-26150A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-26330C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GDH303 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-26470C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62414B - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GDH303 |
4 | ||
| 62450A - GARNISH ASSY, ROOF SIDE RAIL, REAR RH | ||||
| 62450-26150A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62460A - GARNISH ASSY, ROOF SIDE RAIL, REAR LH | ||||
| 62460-26130A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-26410A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-26370A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62489B - CLIP, ROOF SIDE INNER GARNISH | ||||
| 62489-28010 |
GDH303 |
2 | ||
| 62510M - PANEL ASSY, QUARTER TRIM, RH | ||||
| 62510-26A70C0 |
GDH303..G BLACK,TRIM2# |
1 | ||
| 62520B - PANEL ASSY, QUARTER TRIM, LH | ||||
| 62520-26450C0 |
GDH303..G BLACK,TRIM2# |
1 | ||
| 62638A - GARNISH, QUARTER PILLAR, RH | ||||
| 62638-26230A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62638B - CLIP | ||||
| 90467-10188 |
GDH303 |
2 | ||
| 62639A - GARNISH, QUARTER PILLAR, LH | ||||
| 62639-26200A0 |
GDH303..G FROMAGE,TRIM2# |
1 | ||
| 62821B - GLILLE, ROOM VENTILATION | ||||
| 62821-26020C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62822 - GRILLE, ROOM VENTILATION, LH | ||||
| 62822-26020C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62931F - DUCT, QUARTER VENT | ||||
| 62931-26010C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62932F - DUCT, QUARTER VENT, NO.2 | ||||
| 62932-26010C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 62933H - DUCT, QUARTER PANEL AIR INLET | ||||
| 62933-26020C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-26010 |
GDH303 |
4 | ||
| 65991E - CURTAIN, REAR WINDOW, RH | ||||
| 65991-26010 |
GDH303 |
1 | ||
| 65992C - CURTAIN, REAR WINDOW, LH | ||||
| 65992-26010 |
GDH303 |
1 | ||
| Common parts | ||||
| 67771-28150 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-10188 | ||||
| 90467-10216 | ||||

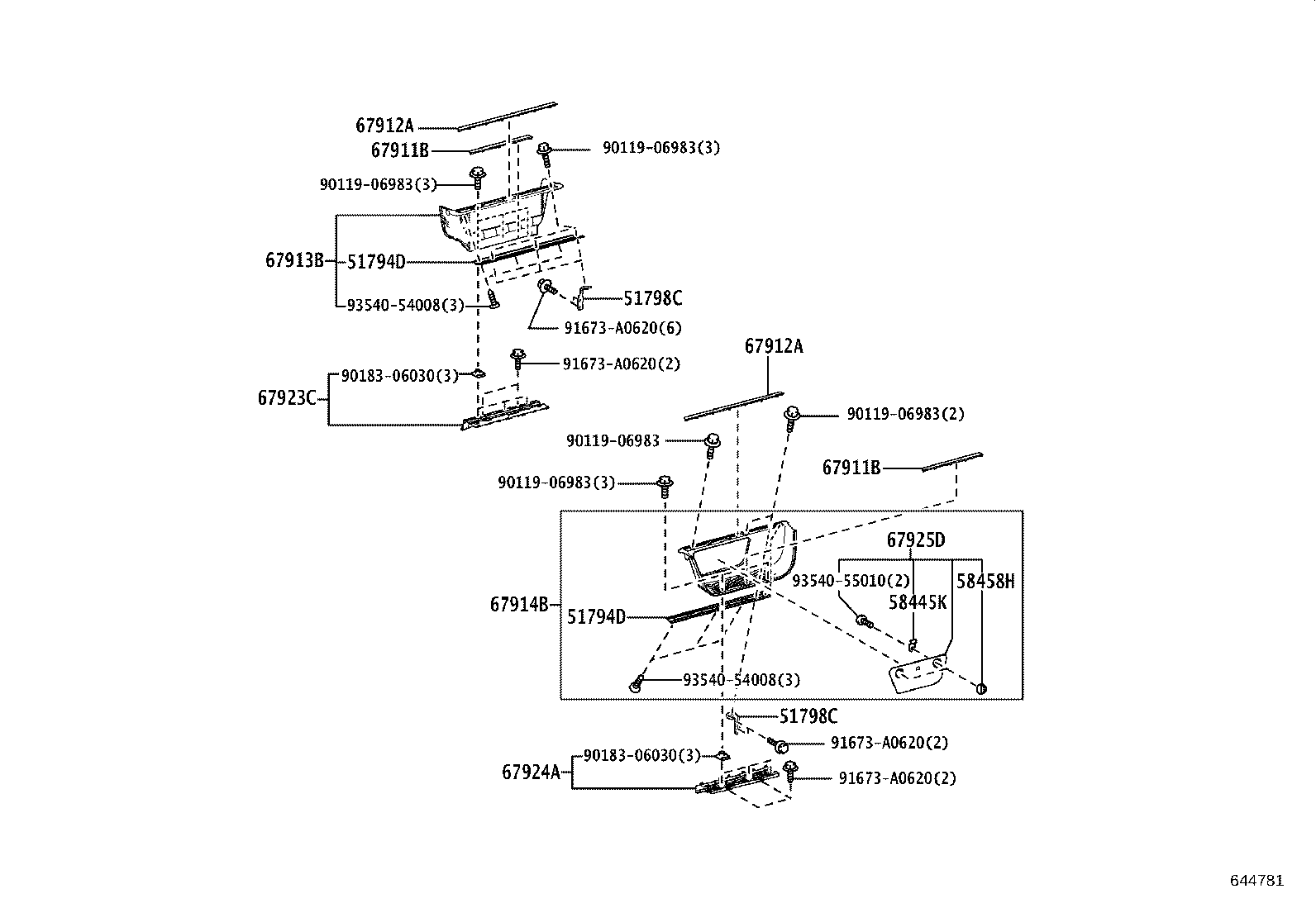

ILLUST NO. 3 OF 4(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51794D - PLATE, STEP BRACKET | ||||
| 51794-26030 |
GDH303 右側 |
1 | ||
| 51794-26040 |
GDH303 左側 |
1 | ||
| 51794D - PLATE, STEP BRACKET | ||||
| 51794-26030 |
GDH303 右側 |
1 | ||
| 51794-26040 |
GDH303 左側 |
1 | ||
| 51798C - BRACKET, STEP PANEL | ||||
| 51798-26020 |
GDH303 |
4 | ||
| 51798C - BRACKET, STEP PANEL | ||||
| 51798-26020 |
GDH303 |
4 | ||
| 58445K - LOCK, BATTERY SERVICE HOLE COVER | ||||
| 58445-26040 |
GDH303 |
2 | ||
| 58458H - KNOB, BATTERY SERVICE HOLE COVER | ||||
| 58458-26030C0 |
GDH303 BLACK,TRIM2# |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-26010C0 |
GDH303 BLACK,TRIM2# |
2 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-26010C0 |
GDH303 BLACK,TRIM2# |
2 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-26020C0 |
GDH303 BLACK,TRIM2# |
2 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-26020C0 |
GDH303 BLACK,TRIM2# |
2 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-26180C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-26090C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-26010 |
GDH303 |
1 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67923-26030 |
GDH303 |
1 | ||
| 67925D - COVER, DOOR SCUFF PLATE | ||||
| 67925-26150C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90183-06030 | ||||
| 91673-A0620 | ||||
| 93540-54008 | ||||
| 93540-55010 | ||||

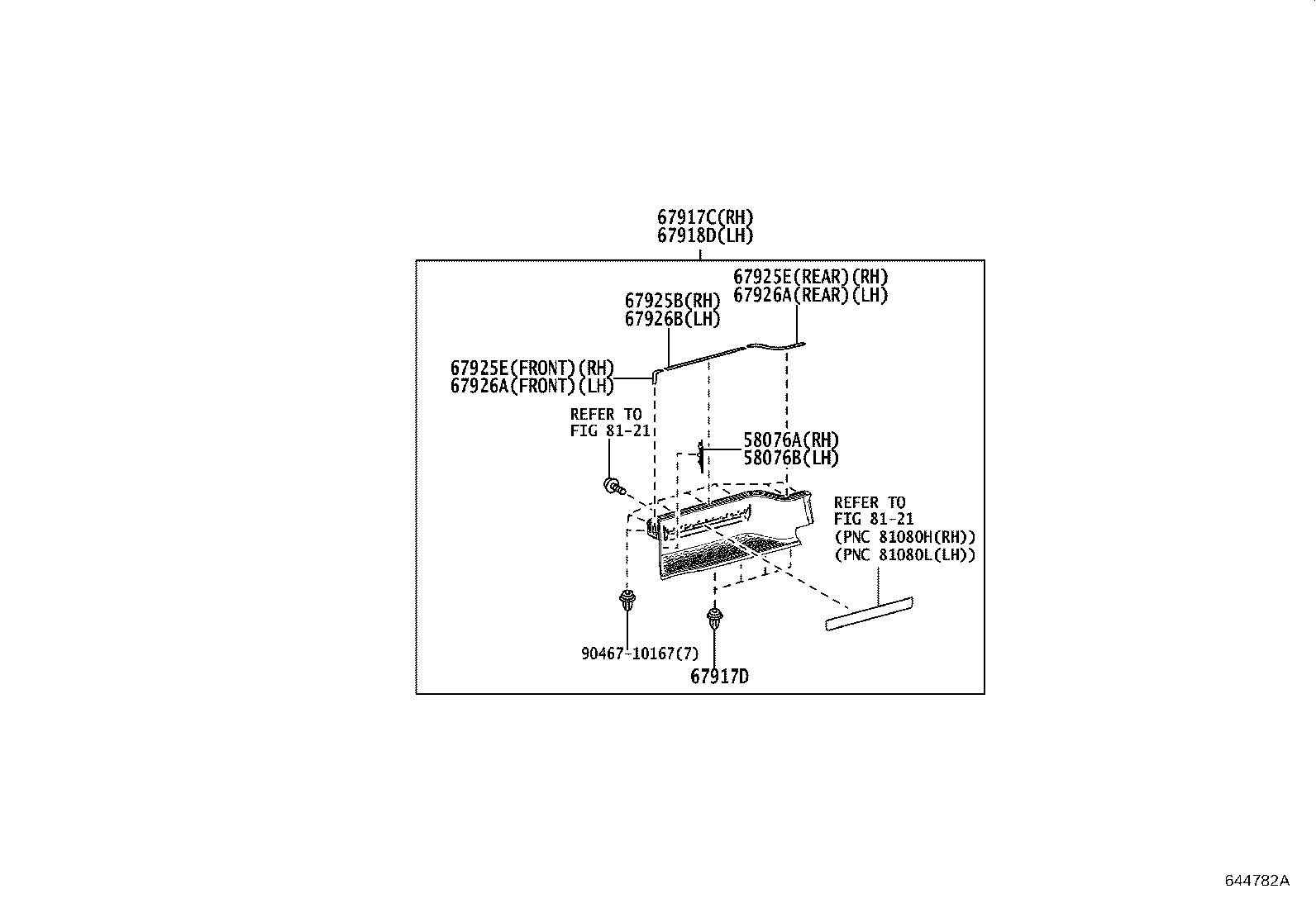

ILLUST NO. 4 OF 4(1912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58076A - COVER SUB-ASSY, JACK BOX HOLE, RH | ||||
| 58076-26050C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58076B - COVER SUB-ASSY, JACK BOX HOLE, LH | ||||
| 58076-26060C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-26240C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
GDH303 |
4 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-26170C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 67925B - PANEL, REAR DOOR SCUFF, RH | ||||
| 67925-26100 |
GDH303 |
1 | ||
| 67925E - PANEL, REAR DOOR SCUFF, RH NO.2 | ||||
| 67925-26090 |
GDH303 ﾌﾛﾝﾄ |
1 | ||
| 67925-26110 |
GDH303 ﾘﾔ |
1 | ||
| 67925E - PANEL, REAR DOOR SCUFF, RH NO.2 | ||||
| 67925-26090 |
GDH303 ﾌﾛﾝﾄ |
1 | ||
| 67925-26110 |
GDH303 ﾘﾔ |
1 | ||
| 67926A - PANEL, REAR DOOR SCUFF, LH | ||||
| 67926-26070 |
GDH303 ﾌﾛﾝﾄ |
1 | ||
| 67926-26080 |
GDH303 ﾘﾔ |
1 | ||
| 67926A - PANEL, REAR DOOR SCUFF, LH | ||||
| 67926-26070 |
GDH303 ﾌﾛﾝﾄ |
1 | ||
| 67926-26080 |
GDH303 ﾘﾔ |
1 | ||
| 67926B - PANEL, REAR DOOR SCUFF, LH NO.2 | ||||
| 67925-26100 |
GDH303 |
1 | ||
| Common parts | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8121 | ||||
