GDH303W-RDTGY (2019)

Toyota Granace

Production Dec 2019 - Sep 9999
Engine 1GDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

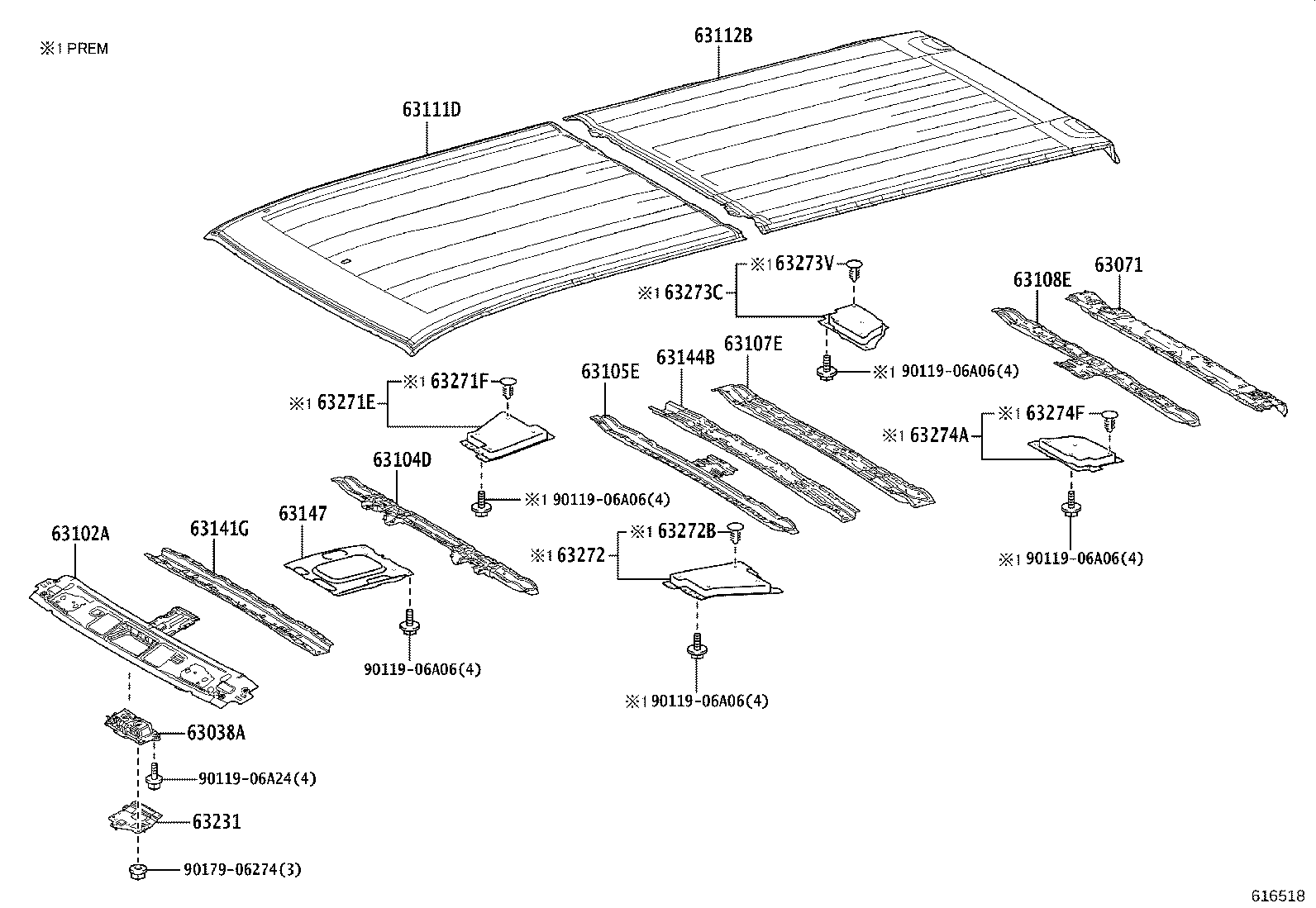

Click highlighted areas on diagram

diagram 63038A 63071 63102A 63104D 63105E 63107E 63108E 63111D 63112B 63141G 63144B 63147 63231 63271E 63271F 63272 63272B 63273C 63273V 63274A 63274F 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A24 9017906274
Part # Description Qty Price
63038A - DAMPER SUB-ASSY, WINDSHIELD HEADER PANEL, RH
63038-26020

GDH303

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26390

GDH303

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-26340

GDH303

 1
63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63104-26340

GDH303..G

 1
63105E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63105-26260

GDH303..G

 1
63107E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63107-26190

GDH303..G

 1
63108E - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6
63108-26120

GDH303..G

 1
63111D - PANEL, ROOF, FRONT
63111-26580

GDH303

 1
63112B - PANEL, ROOF, REAR
63112-26080

GDH303

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-26230

GDH303

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63106-26210

GDH303

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63147-26120

GDH303

 1
63231 - BRACKET, ROOM LAMP
63231-26320

GDH303

 1
Common parts
90119-06A06
90119-06A24
90179-06274
