GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

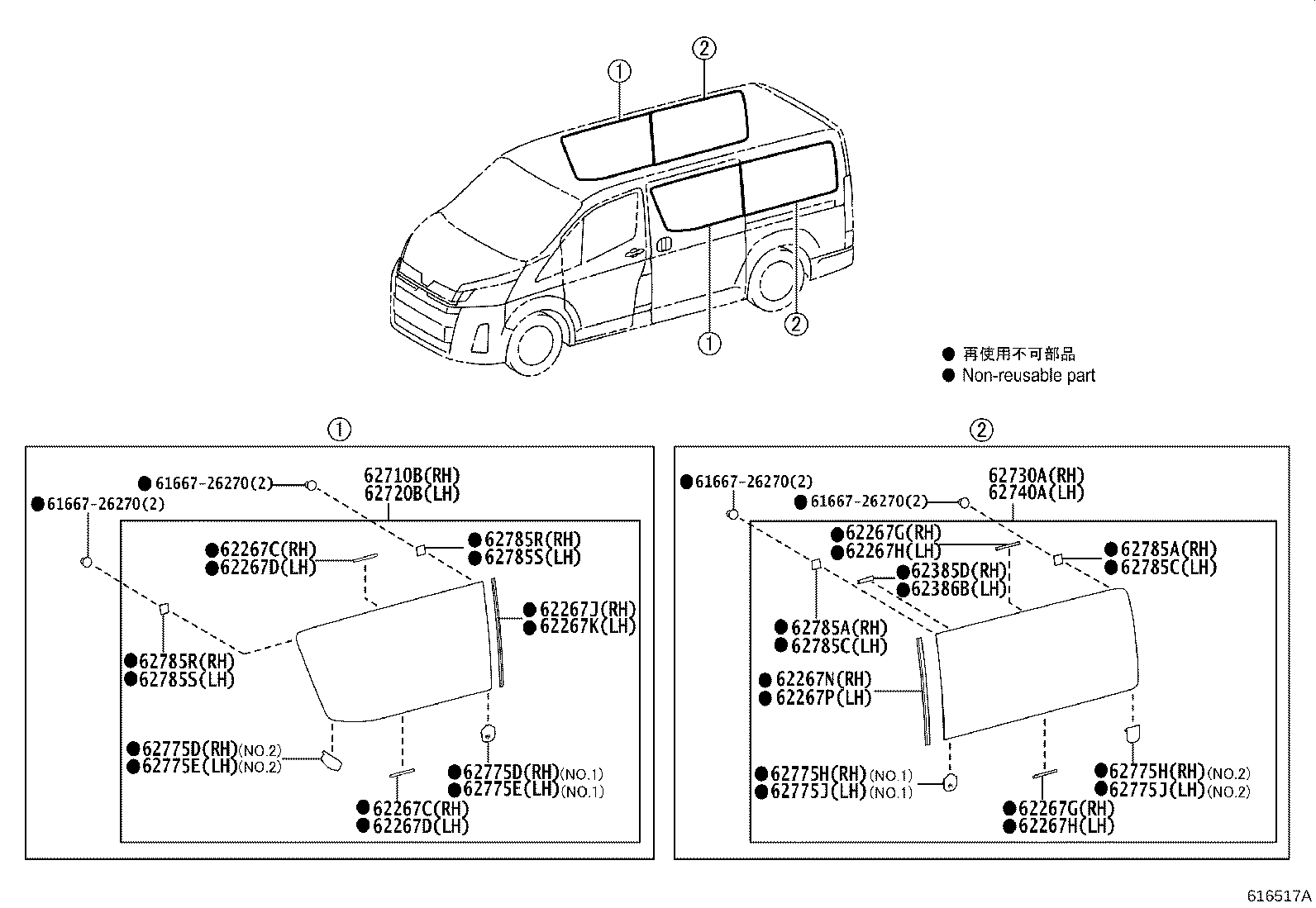

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267G - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267G - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267H - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267H - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26090 |
GDH303 |
2 | ||
| 62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26080 |
GDH303 |
1 | ||
| 62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26080 |
GDH303 |
1 | ||
| 62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26120 |
GDH303 |
1 | ||
| 62267P - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26120 |
GDH303 |
1 | ||
| 62385D - SEAL, SIDE WINDOW, NO.1 | ||||
| 62385-26020 |
GDH303 |
1 | ||
| 62386B - SEAL, SIDE WINDOW, NO.2 | ||||
| 62385-26020 |
GDH303 |
1 | ||
| 62710B - WINDOW ASSY, SIDE, FRONT RH | ||||
| 68103-26100 |
GDH303..G |
1 | ||
| 62720B - WINDOW ASSY, SIDE, FRONT LH | ||||
| 68104-26110 |
GDH303..G |
1 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62073-26330 |
GDH303 *TT,厚さ=4.0,ｸﾞﾚｰ |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62074-26240 |
GDH303 |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26070 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26070 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26090 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26090 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26050 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26050 |
GDH303 NO.2 |
1 | ||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775J - CLIP, REAR SIDE WINDOW, LH | ||||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775-26050 |
GDH303 NO.2 |
1 | ||
| 62775J - CLIP, REAR SIDE WINDOW, LH | ||||
| 62775-26020 |
GDH303 NO.1 |
1 | ||
| 62775-26050 |
GDH303 NO.2 |
1 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785C - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785C - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785R - SPACER, SIDE WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785R - SPACER, SIDE WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| 62785S - SPACER, SIDE WINDOW GLASS | ||||
| 62785-26020 |
GDH303 |
2 | ||
| Common parts | ||||
| 61667-26270 | ||||
