GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

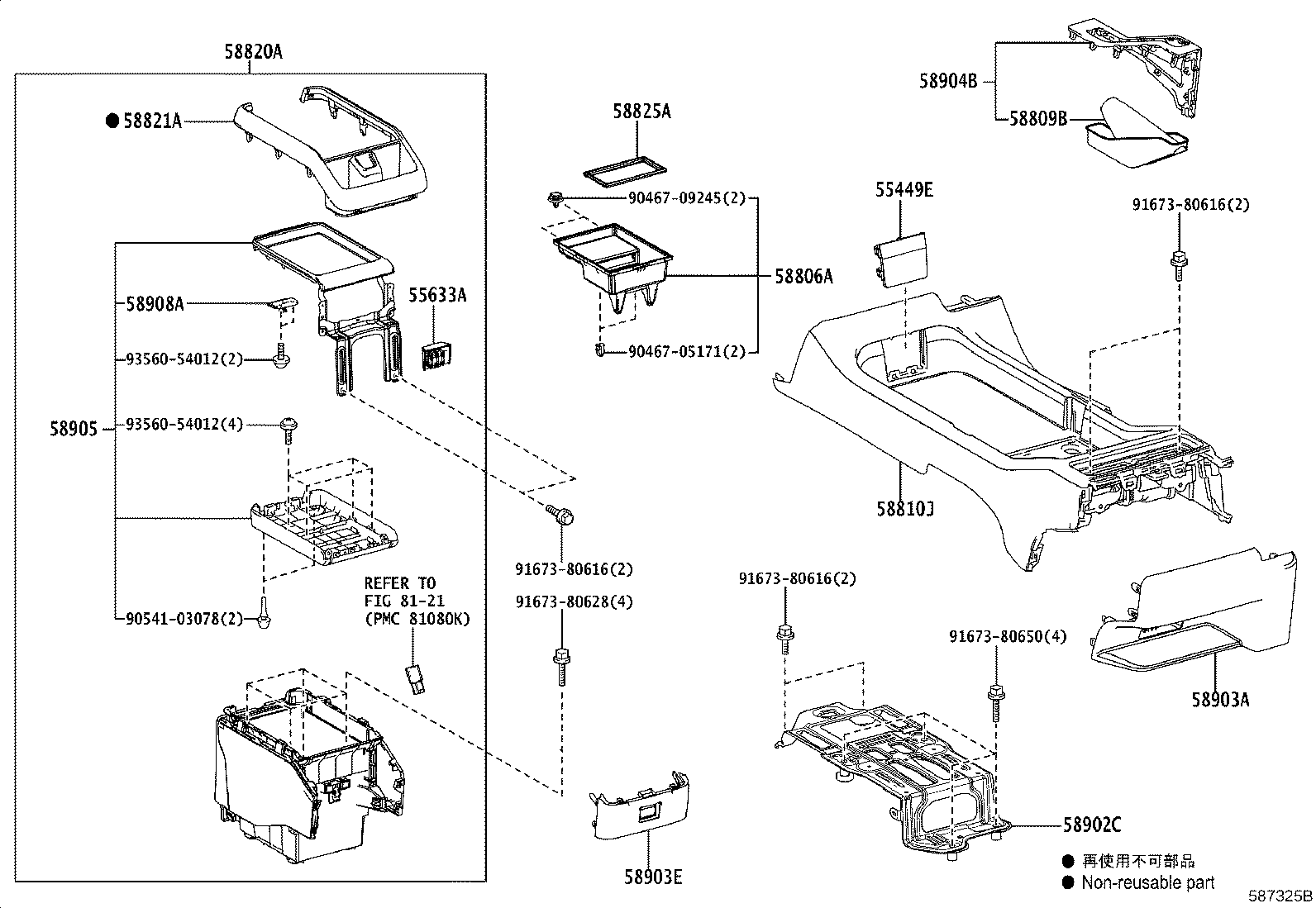

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55449E - BASE, SWITCH | ||||
| 55449-26030C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 55633A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1 | ||||
| 55633-26060C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-26020 |
GDH303 |
1 | ||
| 58809B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58809-26010C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-26230C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58820A - BOX ASSY, CONSOLE COMPARTMENT | ||||
| 58820-26050C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58821A - PANEL, CONSOLE | ||||
| 58821-26030C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58825A - POCKET, CONSOLE BOX | ||||
| 58825-26030 |
GDH303 |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-26060 |
GDH303 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-26040C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58903E - PANEL SUB-ASSY, CONSOLE REAR END, NO.2 | ||||
| 58903-26070C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-26090C1 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-26220C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-12080 |
GDH303 |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-09245 | ||||
| 90541-03078 | ||||
| 91673-80616 | ||||
| 91673-80628 | ||||
| 91673-80650 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
