GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

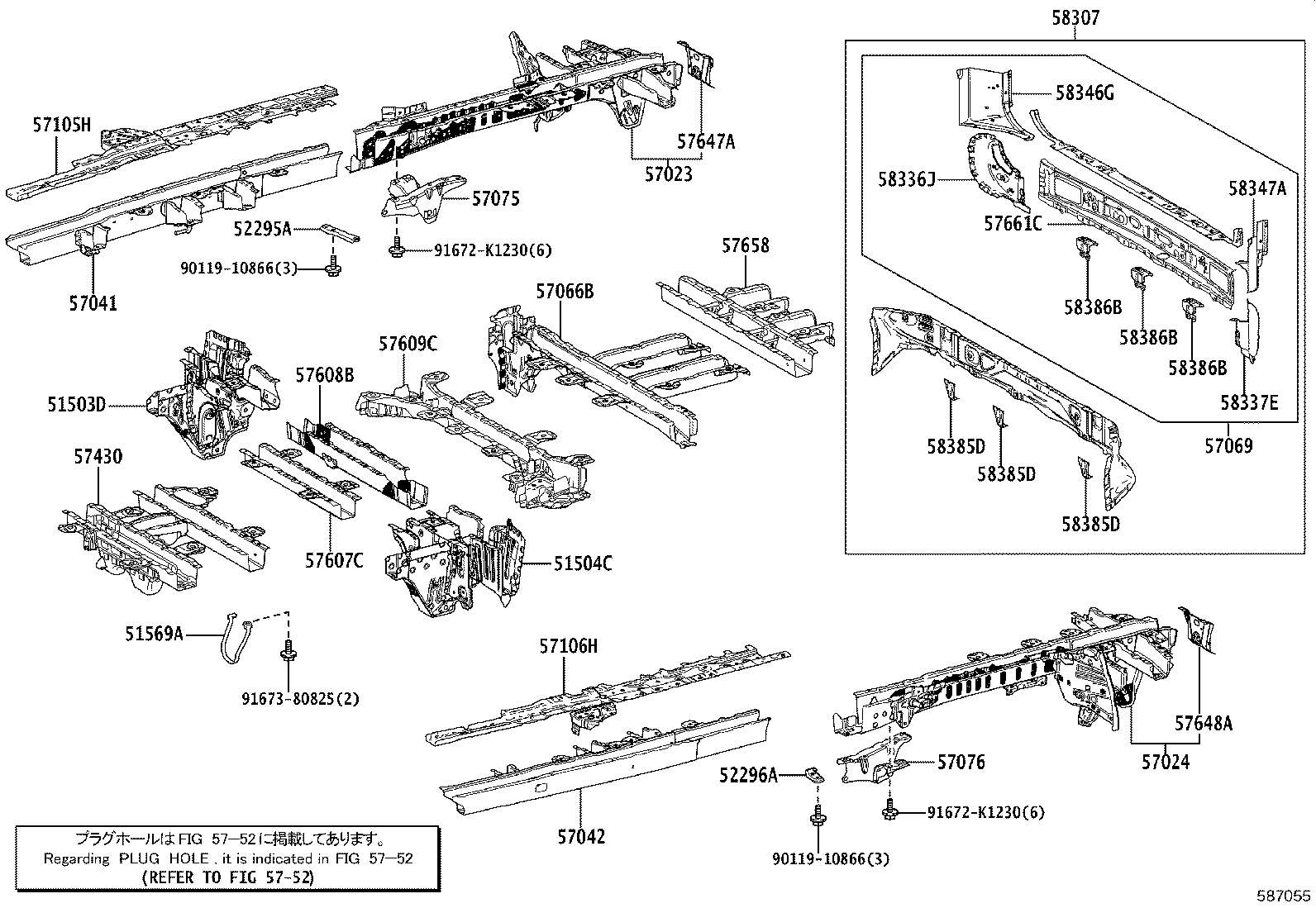

ILLUST NO. 2 OF 2(1912- )G
Click highlighted areas on diagram
ﾌﾛｱﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51503D - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH | ||||
| 51503-26080 |
GDH303 |
1 | ||
| 51504C - BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH | ||||
| 51504-26080 |
GDH303 |
1 | ||
| 51569A - GUARD, PROPELLER SHAFT | ||||
| 51569-26100 |
GDH303 |
1 | ||
| 52295A - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-26040 |
GDH303 |
1 | ||
| 52296A - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-26030 |
GDH303 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26740 |
GDH303 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26750 |
GDH303 |
1 | ||
| 57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH | ||||
| 57041-26220 |
GDH303 |
1 | ||
| 57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH | ||||
| 57042-26190 |
GDH303 |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26440 |
GDH303..G |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26260 |
GDH303 |
1 | ||
| 57075 - BRACKET SUB-ASSY, UPPER CONTROL LINK, RH | ||||
| 57075-26020 |
GDH303 |
1 | ||
| 57076 - BRACKET SUB-ASSY, UPPER CONTROL LINK, LH | ||||
| 57076-26030 |
GDH303 |
1 | ||
| 57105H - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-26340 |
GDH303 |
1 | ||
| 57106H - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57106-26280 |
GDH303 |
1 | ||
| 57430 - MEMBER ASSY, CENTER FLOOR CROSS | ||||
| 57430-26170 |
GDH303 |
1 | ||
| 57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26A90 |
GDH303 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26470 |
GDH303 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26550 |
GDH303 |
1 | ||
| 57647A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT RH | ||||
| 57647-26020 |
GDH303 |
1 | ||
| 57648A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, OUT LH | ||||
| 57648-26020 |
GDH303 |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26370 |
GDH303..G |
1 | ||
| 57661C - MEMBER, REAR FLOOR REAR CROSS, OUTER | ||||
| 57661-26190 |
GDH303 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-26070 |
GDH303 |
1 | ||
| 58336J - REINFORCEMENT, REAR FLOOR END, LOWER RH | ||||
| 58336-26080 |
GDH303 |
1 | ||
| 58337E - REINFORCEMENT, REAR FLOOR END, LOWER LH | ||||
| 58337-26050 |
GDH303 |
1 | ||
| 58346G - REINFORCE, REAR FLOOR REAR CORNER, RH | ||||
| 58346-26040 |
GDH303 |
1 | ||
| 58347A - REINFORCE, REAR FLOOR REAR CORNER, LH | ||||
| 58347-26050 |
GDH303 |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH303 |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH303 |
3 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-26080 |
GDH303 |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH303 |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH303 |
3 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
GDH303 |
3 | ||
| Common parts | ||||
| 90119-10866 | ||||
| 91672-K1230 | ||||
| 91673-80825 | ||||
| Linked diagrams | ||||
| 5752 | ||||

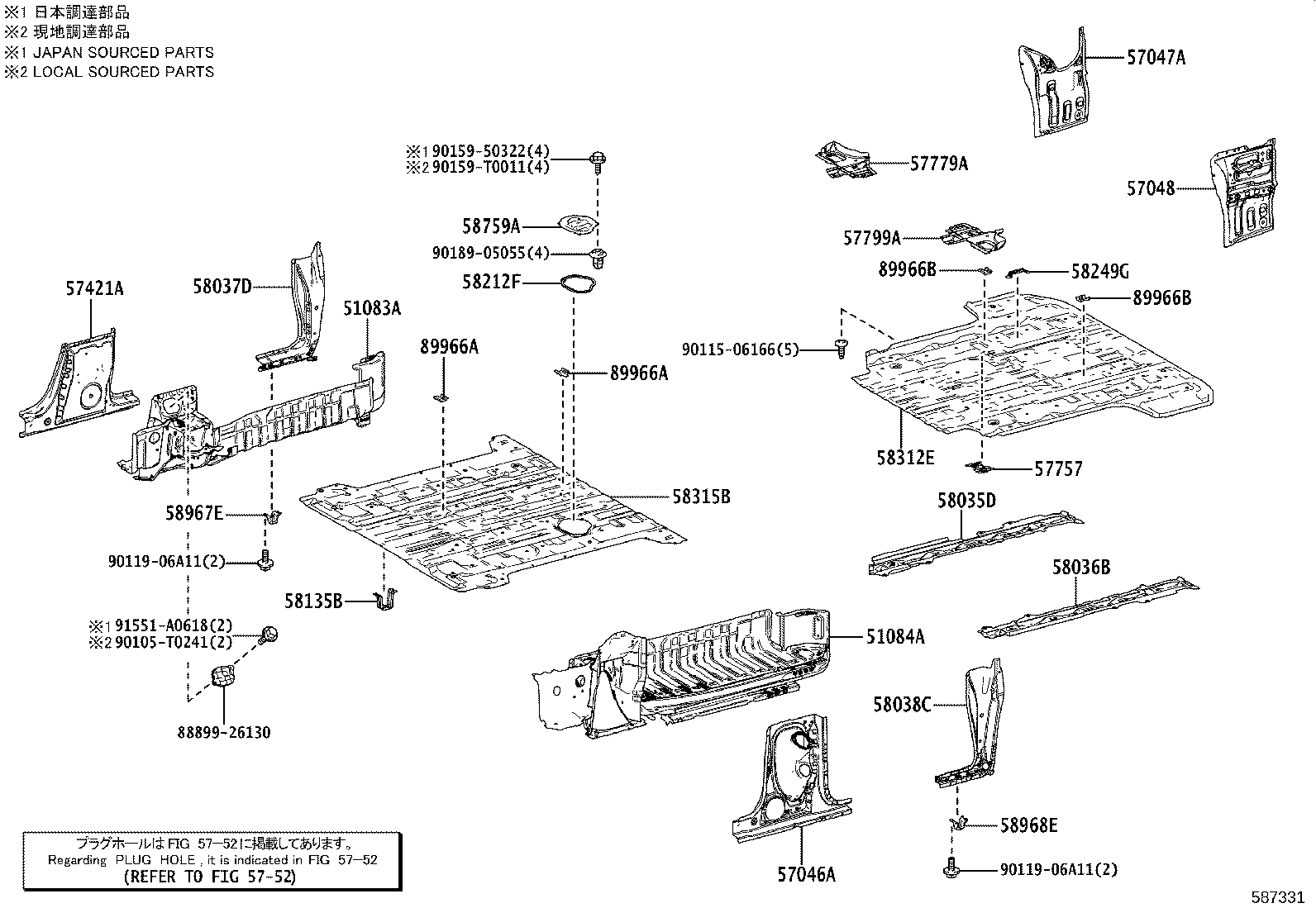

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
ﾌﾛｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083A - STEP SUB-ASSY, RH | ||||
| 51083-26610 |
GDH303 |
1 | ||
| 51084A - STEP SUB-ASSY, LH | ||||
| 51084-26350 |
GDH303 |
1 | ||
| 57046A - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-26460 |
GDH303 |
1 | ||
| 57047A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH | ||||
| 57047-26380 |
GDH303 |
1 | ||
| 57048 - RAIL SUB-ASSY, FLOOR SIDE, REAR LH | ||||
| 57048-26380 |
GDH303 |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-26300 |
GDH303 |
1 | ||
| 57757 - PLATE, REAR FLOOR CROSSMEMBER | ||||
| 57757-26010 |
GDH303 |
1 | ||
| 57779A - GUSSET, REAR FLOOR CROSSMEMBER, B | ||||
| 57779-26120 |
GDH303 |
1 | ||
| 57799A - GUSSET, REAR FLOOR CROSSMEMBER, A | ||||
| 57799-26090 |
GDH303 |
1 | ||
| 58035D - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH | ||||
| 58035-26010 |
GDH303 |
1 | ||
| 58036B - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH | ||||
| 58036-26010 |
GDH303 |
1 | ||
| 58037D - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-26070 |
GDH303 |
1 | ||
| 58038C - REINFORCE SUB-ASSY, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-26060 |
GDH303 |
1 | ||
| 58135B - BRACKET, FLOOR INSULATOR SUPPORT | ||||
| 58135-26020 |
GDH303 |
1 | ||
| 58212F - SEAL, CENTER FLOOR | ||||
| 58212-26010 |
GDH303 |
1 | ||
| 58249G - BRACKET, CABLE CLAMP, NO.2 | ||||
| 58249-26120 |
GDH303 |
1 | ||
| 58312E - PANEL, REAR FLOOR, REAR | ||||
| 58312-26680 |
GDH303..G |
1 | ||
| 58315B - PANEL, REAR FLOOR, FRONT | ||||
| 58315-26N50 |
GDH303 |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26020 |
GDH303 |
1 | ||
| 58967E - BRACKET, JACK SUPPORT, NO.1 | ||||
| 58967-26090 |
GDH303 |
1 | ||
| 58968E - BRACKET, JACK SUPPORT, NO.2 | ||||
| 58967-26090 |
GDH303 |
1 | ||
| 89966A - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH303 |
2 | ||
| 89966A - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH303 |
2 | ||
| 89966B - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH303 |
2 | ||
| 89966B - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH303 |
2 | ||
| Common parts | ||||
| 88899-26130 | ||||
| 90105-T0241 | ||||
| 90115-06166 | ||||
| 90119-06A11 | ||||
| 90159-50322 | ||||
| 90159-T0011 | ||||
| 90189-05055 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 5752 | ||||
