GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

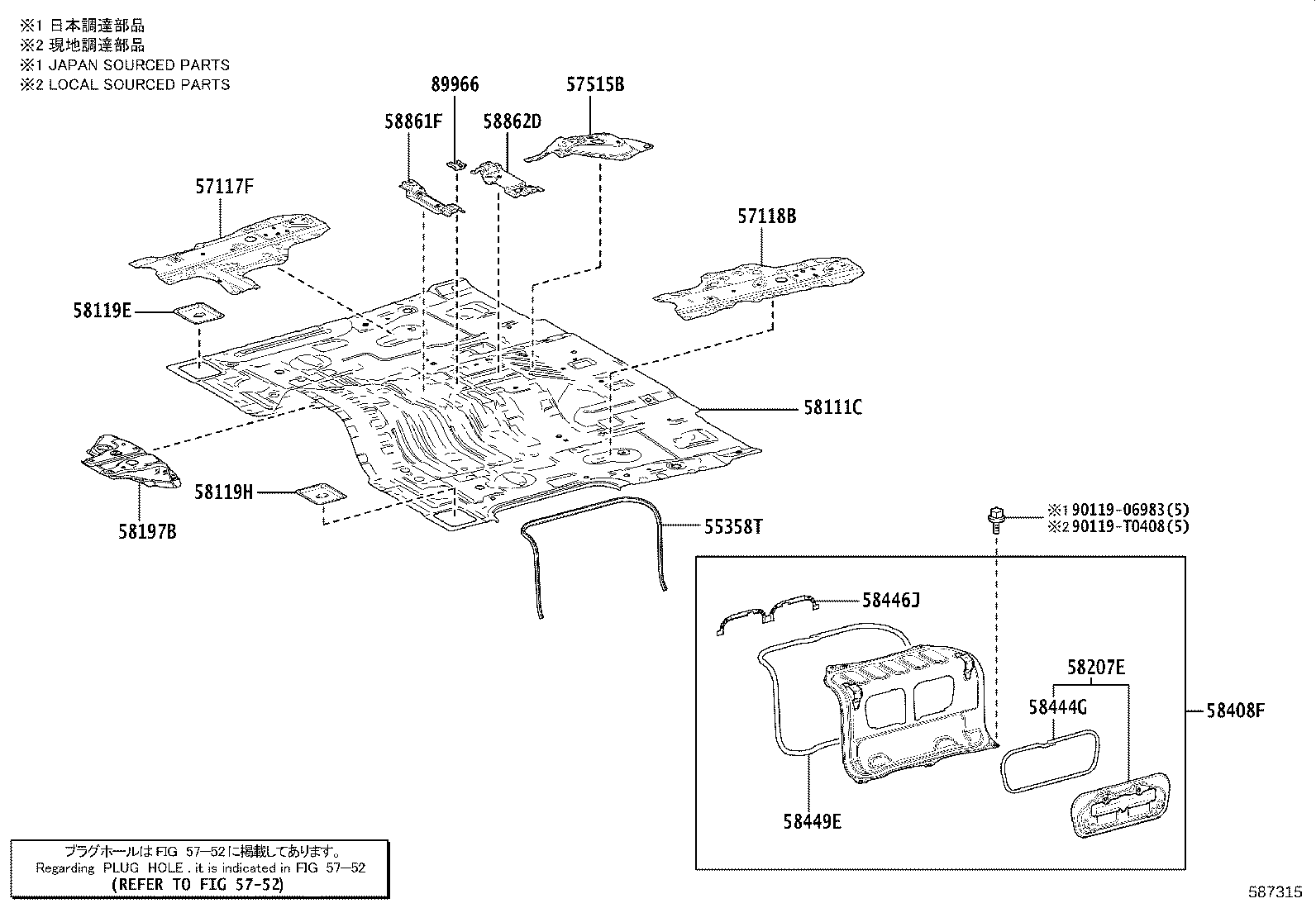

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55358T - PROTECTOR, EDGE | ||||
| 55358-26080 |
GDH303 |
1 | ||
| 57117F - PLATE, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57117-26050 |
GDH303 |
1 | ||
| 57118B - PLATE, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57118-26050 |
GDH303 |
1 | ||
| 57515B - BRACKET, PARKING BRAKE, RH | ||||
| 57515-26110 |
GDH303 |
1 | ||
| 58111C - PAN, FRONT FLOOR | ||||
| 58111-26D00 |
GDH303 |
1 | ||
| 58119E - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH303 |
1 | ||
| 58119H - COVER, FRONT FLOOR SIDE, FRONT | ||||
| 58119-26020 |
GDH303 |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-26030 |
GDH303 |
1 | ||
| 58207E - COVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH | ||||
| 58207-26080 |
GDH303 |
1 | ||
| 58408F - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 58408-26020 |
GDH303 |
1 | ||
| 58444G - PACKING, BATTERY SERVICE OPENING LID | ||||
| 58444-26030 |
GDH303 |
1 | ||
| 58446J - PROTECTOR, BATTERY SERVICE OPENING LID | ||||
| 58446-26020 |
GDH303 |
1 | ||
| 58449E - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-26030 |
GDH303 |
1 | ||
| 58861F - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58861-26030 |
GDH303 |
1 | ||
| 58862D - SUPPORT, CONSOLE BOX, NO.2 | ||||
| 58862-26010 |
GDH303 |
1 | ||
| 89966 - BRACKET, OSCILLATOR ELECTRICAL KEY | ||||
| 89966-28010 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-06983 | ||||
| 90119-T0408 | ||||
| Linked diagrams | ||||
| 5752 | ||||

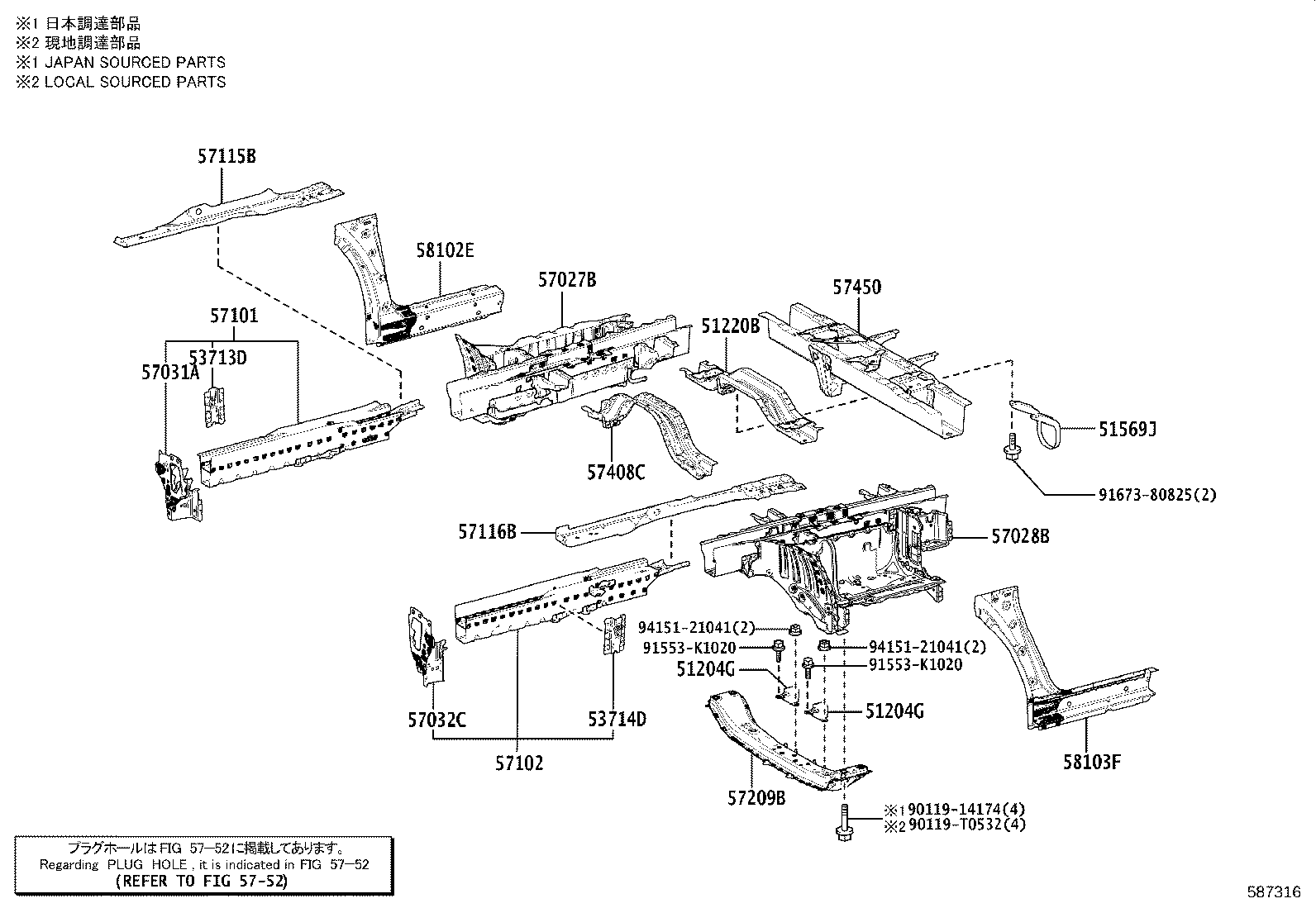

ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
FLOOR MEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER | ||||
| 51087-26010 |
GDH303 |
2 | ||
| 51204G - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER | ||||
| 51087-26010 |
GDH303 |
2 | ||
| 51220B - CROSSMEMBER ASSY, FRAME, NO.2 | ||||
| 51220-26020 |
GDH303 |
1 | ||
| 51569J - GUARD, PROPELLER SHAFT | ||||
| 51569-26090 |
GDH303 |
1 | ||
| 53713D - EXTENSION, FRONT FENDER APRON, RH | ||||
| 53713-26090 |
GDH303 |
1 | ||
| 53714D - EXTENSION, FRONT FENDER APRON, LH | ||||
| 53714-26060 |
GDH303 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-26020 |
GDH303 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-26020 |
GDH303 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-26050 |
GDH303 |
1 | ||
| 57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-26030 |
GDH303 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-26790 |
GDH303 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-26760 |
GDH303 |
1 | ||
| 57115B - PLATE, FRONT SIDE MEMBER, NO.1 RH | ||||
| 57115-26050 |
GDH303 |
1 | ||
| 57116B - PLATE, FRONT SIDE MEMBER, NO.1 LH | ||||
| 57116-26040 |
GDH303 |
1 | ||
| 57209B - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57209-26010 |
GDH303 |
1 | ||
| 57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-26090 |
GDH303 |
1 | ||
| 57450 - MEMBER ASSY, FRONT FLOOR CROSS | ||||
| 57450-26040 |
GDH303 |
1 | ||
| 58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 58102-26220 |
GDH303 |
1 | ||
| 58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 58103-26110 |
GDH303 |
1 | ||
| Common parts | ||||
| 90119-14174 | ||||
| 90119-T0532 | ||||
| 91553-K1020 | ||||
| 91673-80825 | ||||
| 94151-21041 | ||||
| Linked diagrams | ||||
| 5752 | ||||
