GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1912- )
Click highlighted areas on diagram
ﾀﾞｯｼｭﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55210D - SILENCER ASSY, DASH PANEL | ||||
| 55210-26170 |
GDH303 |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-26090 |
GDH303 |
1 | ||
| 55223C - CLIP | ||||
| 90467-06197 |
GDH303 |
3 | ||
| 58002 - BODY SUB-ASSY, FRONT | ||||
| 58002-26260 |
GDH303 |
1 | ||
| 58435K - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-26050 |
GDH303 |
1 | ||
| 63379F - WASHER, DASH PANEL SILENCER | ||||
| 63379-26010 |
GDH303 |
1 | ||
| 63399H - CLIP, DASH PANEL SILENCER | ||||
| 63399-26050B0 |
GDH303 LT.GRAY |
1 | ||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||

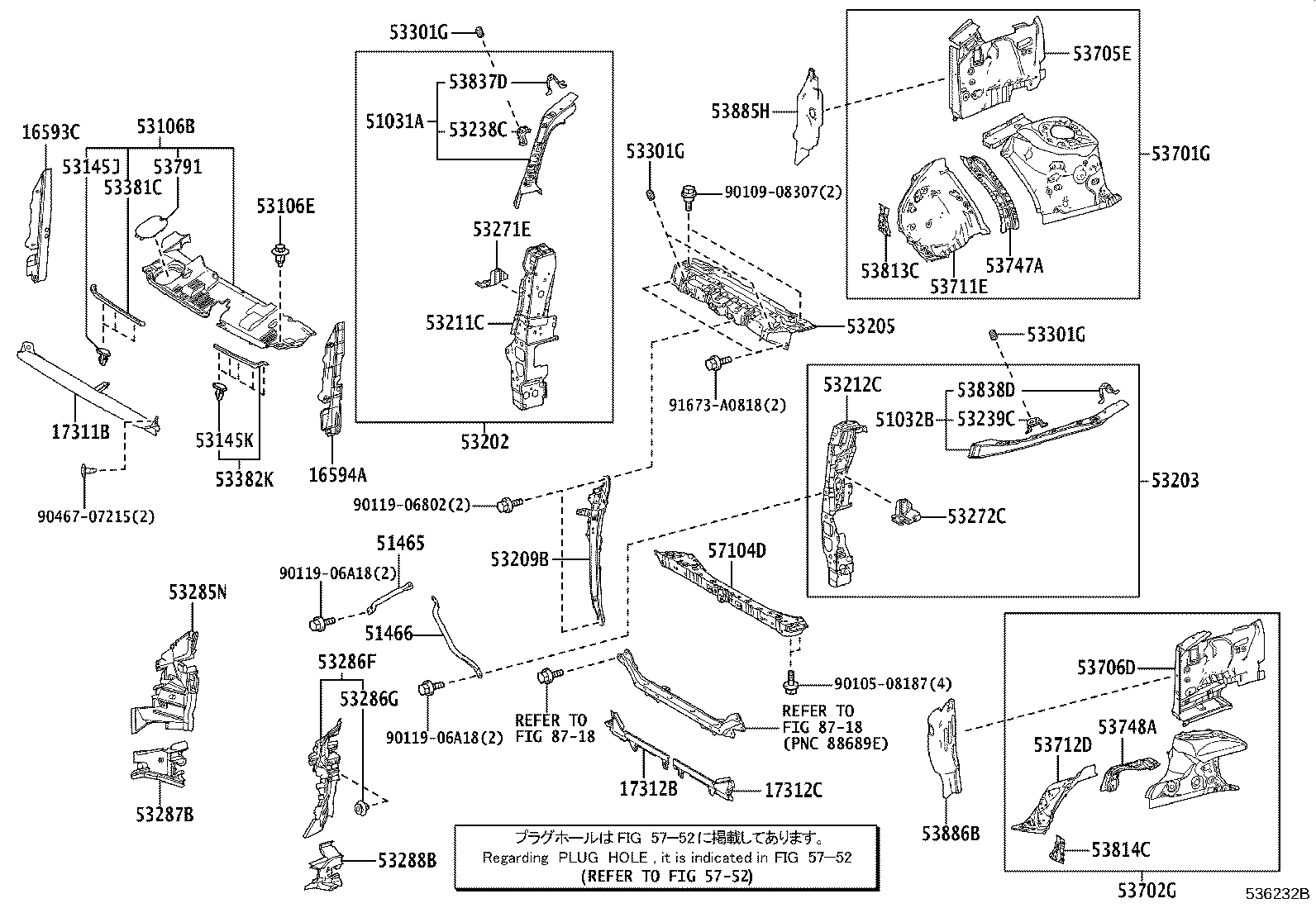

ILLUST NO. 1 OF 2(1912- )
Click highlighted areas on diagram
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ & ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16593C - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-11010 |
1GDFTV..GDH303 |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-11010 |
1GDFTV..GDH303 |
1 | ||
| 17311B - DUCT, AIR INLET, NO.1 | ||||
| 17311-11020 |
1GDFTV..GDH303 |
1 | ||
| 17312B - DUCT, AIR INLET, NO.2 | ||||
| 17312-11020 |
1GDFTV..GDH303 |
1 | ||
| 17312C - DUCT, AIR INLET, NO.2 | ||||
| 17312-11030 |
1GDFTV..GDH303 |
1 | ||
| 51031A - GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH | ||||
| 51031-26020 |
GDH303 |
1 | ||
| 51032B - GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH | ||||
| 51032-26020 |
GDH303 |
1 | ||
| 51465 - BRACE, RADIATOR SUPPORT, UPPER RH | ||||
| 51465-26020 |
GDH303 |
1 | ||
| 51466 - BRACE, RADIATOR SUPPORT, UPPER LH | ||||
| 51466-26010 |
GDH303 |
1 | ||
| 53106B - COVER SUB-ASSY, RADIATOR | ||||
| 53106-26010 |
GDH303 |
1 | ||
| 53106E - CLIP, RADIATOR COVER | ||||
| 90467-07217 |
GDH303 |
9 | ||
| 53145J - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
GDH303 |
3 | ||
| 53145K - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
GDH303 |
5 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-26060 |
GDH303 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-26020 |
GDH303 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-26030 |
GDH303 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-26120 |
GDH303 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53202-26050 |
GDH303 |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53203-26010 |
GDH303 |
1 | ||
| 53238C - BRACKET, HOOD BUMPER MOUNTING, RH | ||||
| 53238-26010 |
GDH303 |
1 | ||
| 53238-26010 |
GDH303 |
2 | ||
| 53238-26010 |
GDH303 |
1 | ||
| 53239C - BRACKET, HOOD BUMPER MOUNTING, LH | ||||
| 53239-26010 |
GDH303 |
1 | ||
| 53239-26010 |
GDH303 |
2 | ||
| 53239-26010 |
GDH303 |
1 | ||
| 53271E - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26030 |
GDH303 |
1 | ||
| 53272C - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26020 |
GDH303 |
1 | ||
| 53285N - SEAL, RADIATOR SIDE AIR, RH | ||||
| 53285-26030 |
GDH303 |
1 | ||
| 53286F - SEAL, RADIATOR SIDE AIR, LH | ||||
| 53286-26020 |
GDH303 |
1 | ||
| 53286G - CLIP, RADIATOR SIDE AIR SEAL | ||||
| 75867-12040 |
GDH303 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-26020 |
GDH303 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-26020 |
GDH303 |
1 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
GDH303 (J) |
4 | ||
| 90541-T0006 |
GDH303 (L) |
4 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
GDH303 (J) |
4 | ||
| 90541-T0006 |
GDH303 (L) |
4 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15019 |
GDH303 (J) |
4 | ||
| 90541-T0006 |
GDH303 (L) |
4 | ||
| 53381C - SEAL, HOOD TO RADIATOR SUPPORT, RH | ||||
| 53381-26140 |
GDH303 |
1 | ||
| 53382K - SEAL, HOOD TO RADIATOR SUPPORT, LH | ||||
| 53382-26010 |
GDH303 |
1 | ||
| 53701G - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-26140 |
GDH303 |
1 | ||
| 53702G - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-26140 |
GDH303 |
1 | ||
| 53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-26010 |
GDH303 |
1 | ||
| 53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-26010 |
GDH303 |
1 | ||
| 53711E - APRON, FRONT FENDER, RH | ||||
| 53711-26060 |
GDH303 |
1 | ||
| 53712D - APRON, FRONT FENDER, LH | ||||
| 53712-26050 |
GDH303 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-26010 |
GDH303 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-26010 |
GDH303 |
1 | ||
| 53791 - COVER, COOL AIR INTAKE HOLE | ||||
| 53791-26020 |
GDH303 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-26050 |
GDH303 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-26030 |
GDH303 |
1 | ||
| 53837D - BRACKET, FRONT SIDE PANEL, NO.2 RH | ||||
| 53837-26020 |
GDH303 |
1 | ||
| 53837-26020 |
GDH303 |
2 | ||
| 53837-26020 |
GDH303 |
1 | ||
| 53838D - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-26010 |
GDH303 |
1 | ||
| 53838-26010 |
GDH303 |
1 | ||
| 53838-26010 |
GDH303 |
2 | ||
| 53885H - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-26080 |
GDH303 |
1 | ||
| 53886B - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-26080 |
GDH303 |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-26210 |
GDH303 |
1 | ||
| Common parts | ||||
| 90105-08187 | ||||
| 90109-08307 | ||||
| 90119-06802 | ||||
| 90119-06A18 | ||||
| 90467-07215 | ||||
| 91673-A0818 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8718 | ||||
