GDH303W-RDTGY (2019)
Toyota Granace
Production
Dec 2019
-
Sep 9999
Engine
1GDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1912- )

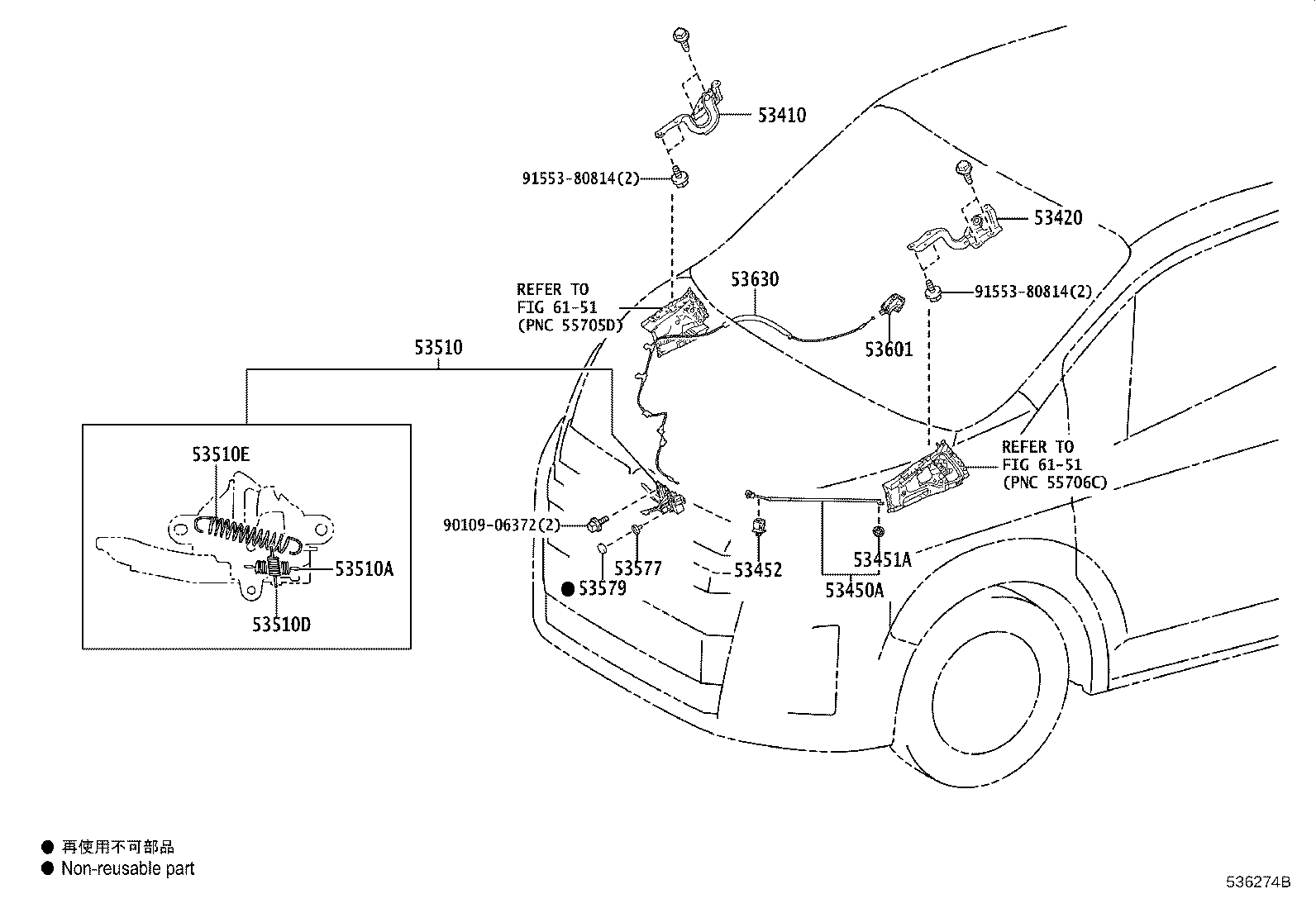

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-26060 |
GDH303 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-26060 |
GDH303 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-26030 |
GDH303 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15034 |
GDH303 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-26020 |
GDH303 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-26100 |
GDH303 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09055 |
GDH303 線径=0.9,ｺｲﾙ巻数=21 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-12063 |
GDH303 線径=1.2,ｺｲﾙ巻数=8.5 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-18067 |
GDH303 線径=1.8,ｺｲﾙ巻数=13 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
GDH303 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
GDH303 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-30100C0 |
GDH303 BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-26090 |
GDH303 |
1 | ||
| Common parts | ||||
| 90109-06372 | ||||
| 91553-80814 | ||||
| Linked diagrams | ||||
| 6151 | ||||
